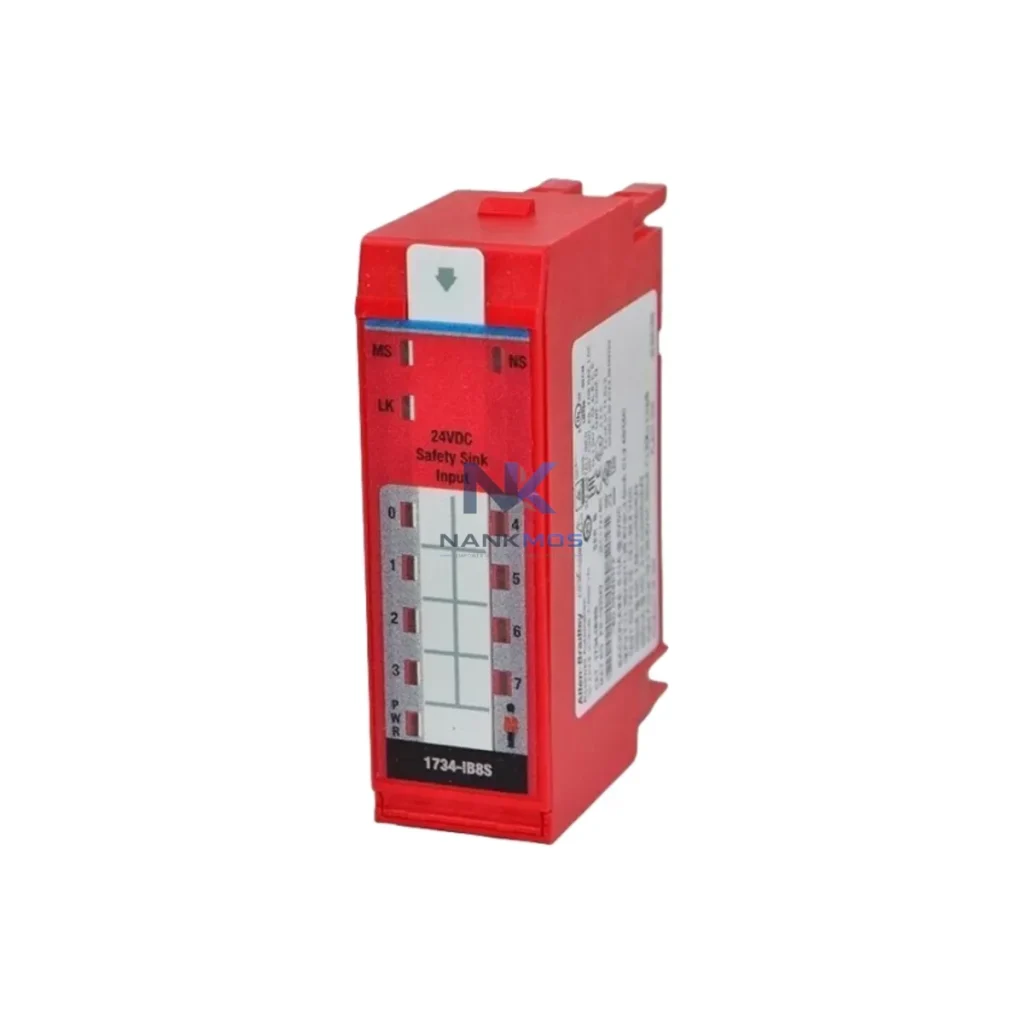

Allen-Bradley 1734-IB8S Safety Digital Input Module

Product Details

1734-IB8S Product Description

The Allen-Bradley 1734-IB8S is not a standalone safety component — it is a precision-engineered node within a layered, safety-rated automation architecture built around the Rockwell Automation POINT I/O platform. Understanding its system role requires examining how it interacts with every layer of a modern industrial control environment.

At the control layer, the 1734-IB8S is designed for direct integration with Allen-Bradley GuardLogix 5580 and GuardLogix 5570 safety PLCs, which execute the CIP Safety protocol natively. These controllers manage safety task execution, safety peer-to-peer communication, and SIL 2 logic processing. The 1734-IB8S feeds verified safety input states directly into the GuardLogix safety task partition, enabling deterministic response to field-level safety events such as E-stop activation, light curtain interruption, or safety gate status changes.

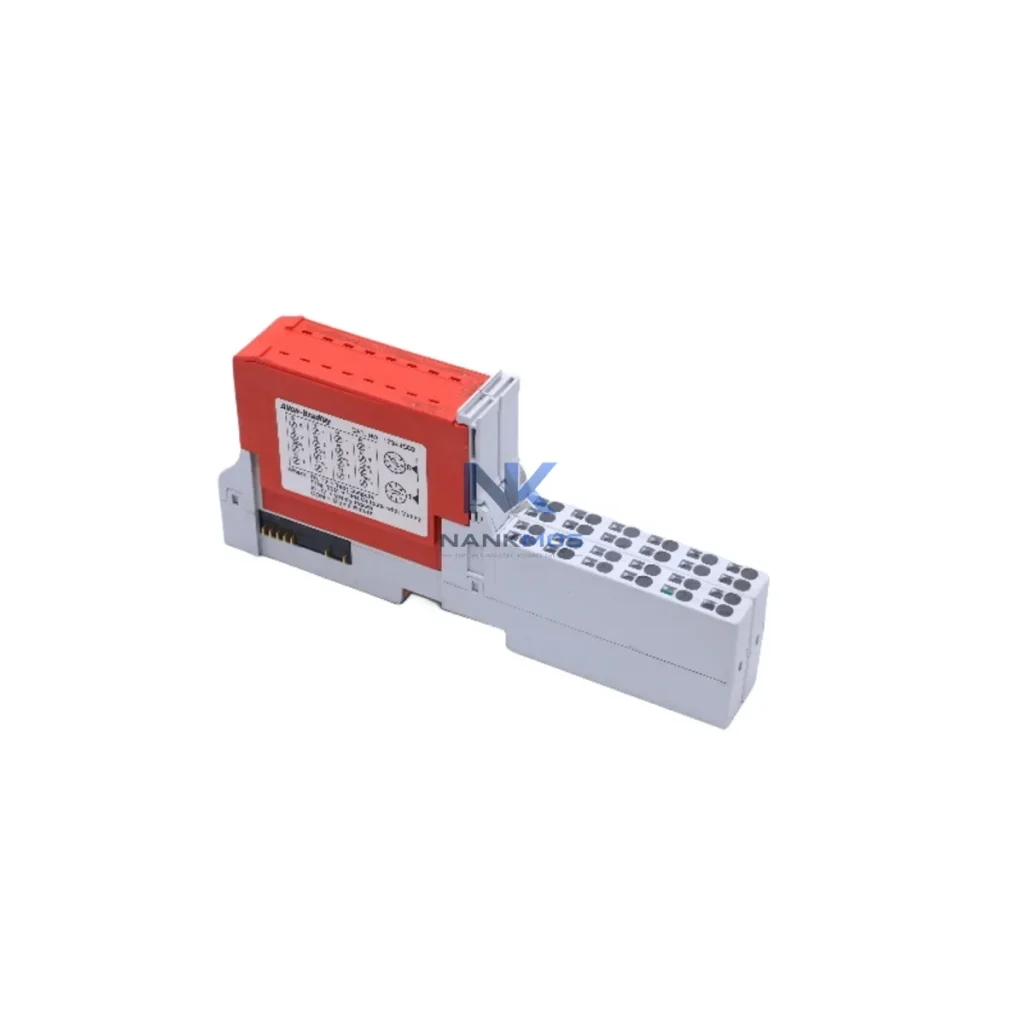

At the I/O layer, the 1734-IB8S occupies a single slot on the POINT I/O 1734 Series backplane. It operates alongside complementary modules including the 1734-OB8S Safety Digital Output Module for actuator control, the 1734-IE4S Safety Analog Input Module for process variable monitoring, and the 1734-IB8 standard digital input module for non-safety field signals. This mixed-module architecture allows engineers to consolidate safety and standard I/O within a single compact DIN rail assembly, reducing panel footprint and wiring complexity.

At the communication layer, the 1734-IB8S relies on the 1734-AENTR EtherNet/IP Adapter to bridge field-level safety signals to the plant network. The 1734-AENTR supports Device Level Ring (DLR) topology, providing network-level redundancy that ensures safety input data reaches the GuardLogix controller even in the event of a single cable or switch failure. This communication architecture is critical in applications where safety response time (SRT) must be guaranteed across distributed I/O drops.

At the power layer, the 1734-IB8S requires a stable 24V DC supply, typically sourced from an Allen-Bradley 1734-EP24DC POINT I/O power supply or a Bulletin 1606 switched-mode power supply. Proper power segmentation — separating safety I/O power from standard I/O power — is a fundamental requirement of SIL 2 system design and must be validated during system commissioning.

At the HMI layer, operators interact with safety system status through Allen-Bradley PanelView Plus 7 or PanelView 5510 terminals connected via EtherNet/IP. Safety input states, fault diagnostics, and bypass status can be surfaced on HMI faceplates, enabling operators to monitor E-stop circuit integrity, safety gate positions, and dual-channel input health without requiring direct access to the control cabinet.

At the execution layer, the 1734-IB8S safety inputs drive safety-rated output devices through the GuardLogix safety task. Typical actuators include safety relays, safety contactors, and variable frequency drives (VFDs) with STO (Safe Torque Off) capability such as the Allen-Bradley PowerFlex 525 or PowerFlex 755 with DriveGuard safety option. The 1734-IB8S dual-channel input configuration supports cross-channel discrepancy detection, ensuring that both channels of a safety device must agree before the safety output is de-energized.

At the protection layer, the 1734-IB8S contributes to the overall safety function by providing short-circuit detection, open-wire detection, and cross-channel fault diagnostics. These diagnostics are reported back to the GuardLogix controller via CIP Safety, allowing the safety task to initiate a controlled shutdown or safe state transition without operator intervention. This diagnostic coverage is a key contributor to the module's SIL 2 / PLd rating.

At the maintenance layer, the 1734-IB8S supports hot-swap replacement on the POINT I/O backplane, minimizing planned maintenance downtime. Module configuration is stored in the 1734-AENTR adapter, enabling rapid module replacement without re-commissioning the safety application. This feature is particularly valuable in high-availability manufacturing environments where unplanned downtime carries significant production cost.

The 1734-IB8S is deployed across a broad range of safety-critical industrial environments where SIL 2 input integrity is a regulatory or operational requirement.

In automotive manufacturing, the 1734-IB8S monitors safety gates, light curtains, and two-hand control devices on robotic welding cells and stamping lines. Its dual-channel input architecture supports Category 3 and Category 4 safety functions as defined by ISO 13849-1, meeting the stringent safety requirements of automotive OEM production standards.

In power generation and utilities, the module is integrated into turbine control panels and switchgear protection systems where safety input signals from pressure switches, temperature sensors, and emergency shutdown (ESD) pushbuttons must be processed with guaranteed SIL 2 integrity. The 1734-IB8S's diagnostic coverage ensures that latent faults in field wiring are detected before they can compromise the safety function.

In oil, gas, and petrochemical processing, the 1734-IB8S is used in safety instrumented systems (SIS) for process shutdown applications. Its ATEX Zone 2 compatibility (with appropriate enclosure) allows deployment in potentially explosive atmospheres, and its CIP Safety communication ensures that safety input data is transmitted with the integrity required by IEC 61511 functional safety standards.

In water and wastewater treatment, the module monitors pump protection circuits, valve position feedback, and emergency stop stations across distributed pump stations. Its compact POINT I/O form factor allows installation in space-constrained remote I/O panels, while DLR network topology ensures communication reliability across geographically distributed sites.

In packaging and material handling, the 1734-IB8S integrates with safety light curtains, area scanners, and safety mats on high-speed packaging lines. Its fast input response time supports the short safety response times required by high-cycle-rate machinery, and its modular architecture allows safety I/O to be expanded as production line configurations evolve.

Q1: Is the 1734-IB8S compatible with both GuardLogix 5570 and GuardLogix 5580 safety PLCs, and what adapter is required for EtherNet/IP connectivity? Yes. The 1734-IB8S is fully compatible with both GuardLogix 5570 (1756-L7xS) and GuardLogix 5580 (1756-L8xS) safety controllers via CIP Safety over EtherNet/IP. The required adapter is the 1734-AENTR (dual-port EtherNet/IP adapter with DLR support) or the 1734-AENT (single-port). The adapter must be configured with the correct safety network number (SNN) and the 1734-IB8S module must be added to the I/O tree in Studio 5000 Logix Designer with the appropriate safety connection type (safety or standard). All POINT I/O modules on the same adapter share the adapter's EtherNet/IP connection, so network bandwidth and RPI (Requested Packet Interval) settings should be validated during system design.

Q2: How does the 1734-IB8S support dual-channel safety input wiring, and what discrepancy time settings are available? The 1734-IB8S supports both single-channel (SIL 1 / PLc) and dual-channel (SIL 2 / PLd) input configurations. In dual-channel mode, two adjacent input channels are paired to monitor a single safety device (e.g., a safety gate switch with two independent contacts). The module monitors both channels simultaneously and reports a discrepancy fault if the two channels disagree beyond the configured discrepancy time window. Discrepancy time is configurable in Studio 5000 Logix Designer, typically in the range of 0–65,535 ms, allowing the safety application to accommodate mechanical switching delays in field devices. Cross-channel short-circuit detection is active in both single and dual-channel modes, providing diagnostic coverage that contributes to the module's SIL 2 / PLd rating.

Q3: What is the warranty coverage for the 1734-IB8S, and what pre-shipment testing is performed? All 1734-IB8S modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes pre-shipment functional verification including input channel continuity testing, backplane communication validation, and visual inspection for physical integrity. Stock is sourced from verified supply channels and maintained in controlled storage conditions to preserve module integrity. For volume procurement or project-specific lead time requirements, contact NANKMOS at [email protected] or +86 18359268345 to confirm availability and arrange expedited fulfillment.
