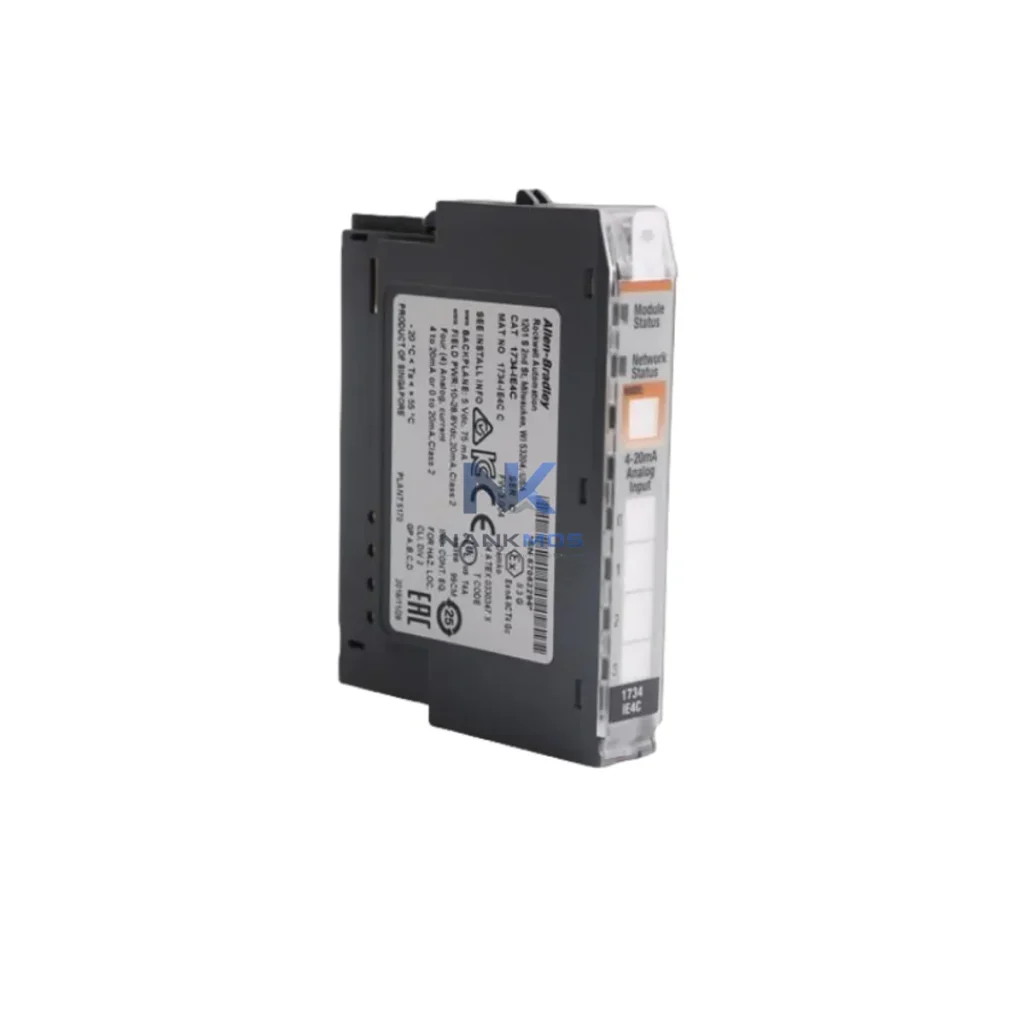

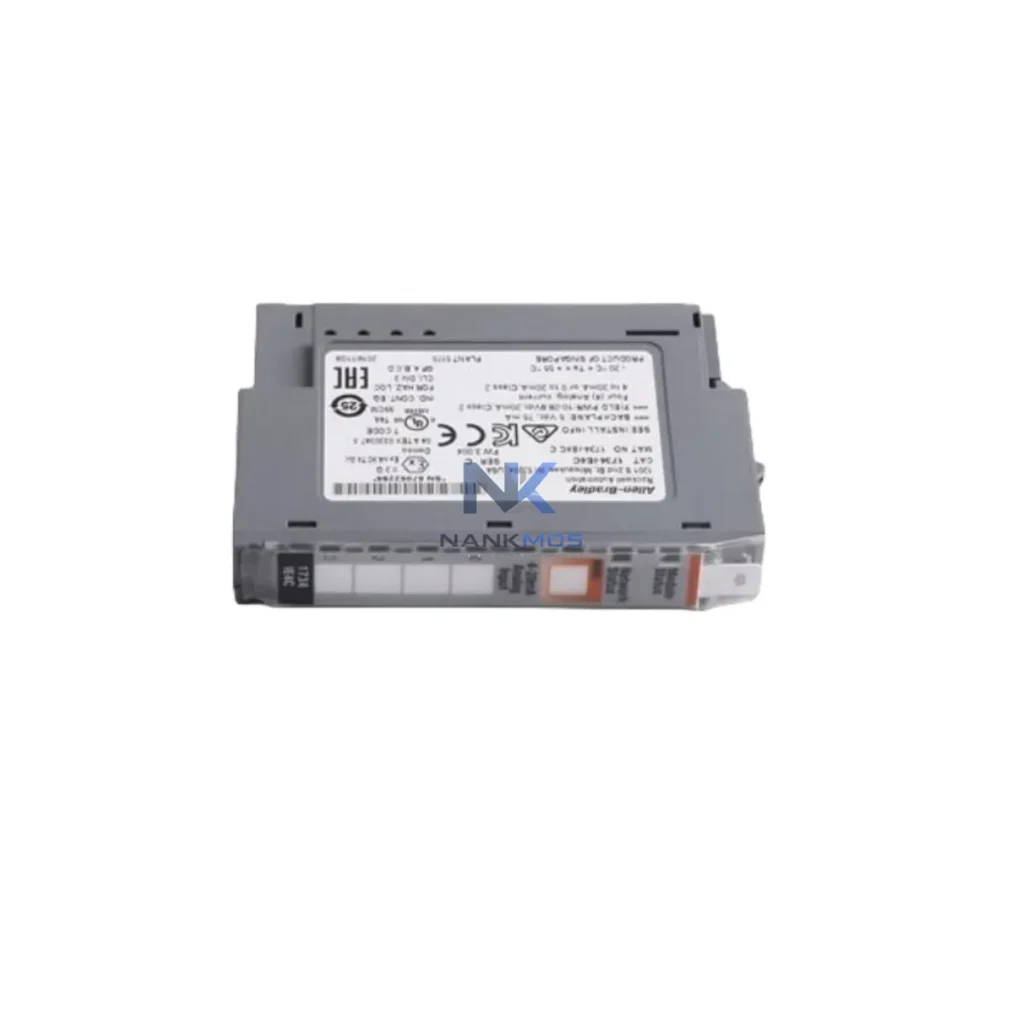

Allen-Bradley 1734-IE4C Analog Input Module

Product Details

1734-IE4C Product Description

The Allen-Bradley 1734-IE4C is a 4-channel current analog input module engineered for the POINT I/O 1734 platform, delivering precision signal acquisition within distributed control architectures. Designed to interface seamlessly with Rockwell Automation's ControlLogix and CompactLogix ecosystems, the 1734-IE4C resolves the critical challenge of reliable analog signal conditioning at the field level — bridging process instrumentation with the control layer through a compact, DIN-rail-mounted form factor. Each channel accepts 4–20 mA current signals, providing the resolution and noise immunity required for demanding process control environments including chemical dosing, pressure monitoring, flow measurement, and temperature regulation. With native EtherNet/IP communication via the 1734-AENT or 1734-AENTR adapter, the module participates fully in a unified network topology, enabling real-time diagnostics, channel-level fault reporting, and seamless integration with Studio 5000 Logix Designer. NANKMOS maintains verified in-stock inventory of the 1734-IE4C, with pre-shipment functional testing and a 12-Month Warranty covering all units dispatched.

The 1734-IE4C operates as a precision signal acquisition node within a layered automation architecture. At the control layer, a 1769-L33ER CompactLogix 5370 CPU or 1756-L85E ControlLogix 5580 CPU executes the process logic, consuming the analog data delivered by the 1734-IE4C through the EtherNet/IP network. The 1734-AENTR EtherNet/IP adapter provides the communication bridge between the POINT I/O bank and the control network, supporting Device Level Ring (DLR) topology for network-level redundancy — a critical design consideration in continuous process environments where communication loss cannot be tolerated.

Power integrity at the I/O level is maintained by the 1734-EP24DC POINT I/O power supply, which segments field-side power from the backplane bus, protecting the control system from field-side transients. For applications requiring signal isolation between field instruments and the control system — particularly in high-voltage or electrically noisy environments such as motor control centers — a dedicated signal isolator or barrier module should be positioned upstream of the 1734-IE4C input terminals.

Within the same POINT I/O bank, the 1734-IE4C is commonly deployed alongside the 1734-OE4C analog output module for closed-loop control loops, and the 1734-IB8 digital input module for discrete status monitoring. Where process variables require thermocouple or RTD measurement, the 1734-IT2I thermocouple input module complements the 1734-IE4C within the same rack, sharing the same adapter and network segment. For applications requiring HART pass-through capability on analog channels, the 1734-IE4CH HART-enabled variant provides an upgrade path without changing the physical installation footprint.

At the HMI layer, a 2711P-T10C21D8S PanelView Plus 7 terminal provides operator visualization of the analog process values acquired by the 1734-IE4C, with faceplates generated automatically within Studio 5000 View Designer. For distributed architectures spanning multiple control cabinets, an 1783-BMS10CGL Stratix 5700 managed switch provides the EtherNet/IP backbone, ensuring deterministic communication latency across all I/O nodes. The complete architecture — from field instrument through the 1734-IE4C, adapter, switch, CPU, and HMI — represents a fully validated Rockwell Automation Integrated Architecture, minimizing integration risk and reducing commissioning time.

Chemical & Petrochemical Processing: In continuous process plants, the 1734-IE4C acquires 4–20 mA signals from pressure transmitters, flow meters, and level sensors distributed across reactor vessels and pipeline segments. Its 16-bit resolution supports tight PID loop control for dosing and blending operations, where signal accuracy directly impacts product quality and regulatory compliance. The module's compact POINT I/O form factor allows high-density I/O marshalling within space-constrained control cabinets typical of skid-mounted process units.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feedwater control, cooling tower management, and turbine lube oil monitoring — the 1734-IE4C provides reliable analog acquisition from field transmitters operating in electrically noisy environments. Its compatibility with the 1734-AENTR redundant adapter supports dual-ring EtherNet/IP topologies, ensuring continuous data availability in systems where unplanned downtime carries significant operational and financial consequences.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities deploy the 1734-IE4C for monitoring flow rates, dissolved oxygen levels, pH, and turbidity via 4–20 mA transmitters. The module's DIN-rail mounting and modular POINT I/O architecture simplify panel construction for distributed lift stations and remote pump control panels, where minimizing panel footprint and simplifying field wiring are primary engineering objectives.

Mining & Metals: In ore processing and smelting operations, the 1734-IE4C monitors conveyor load cells, crusher motor current feedback, and flotation cell level transmitters. Its operating temperature range and robust backplane connection maintain signal integrity in environments subject to vibration, dust ingress, and wide ambient temperature variation. Integration with ControlLogix redundancy systems ensures continuous process monitoring even during controller switchover events.

Packaging & Discrete Manufacturing: On high-speed packaging lines, the 1734-IE4C acquires tension feedback, web tension, and servo drive analog outputs, feeding real-time data to CompactLogix motion controllers. Its fast channel update rate supports the tight synchronization requirements of multi-axis packaging machinery, where analog feedback latency directly affects product registration accuracy and line throughput.

Q1: What adapter is required to connect the 1734-IE4C to an EtherNet/IP network, and does it support redundant network topologies?The 1734-IE4C requires a POINT I/O EtherNet/IP adapter — either the 1734-AENT (standard) or the 1734-AENTR (redundant media, Device Level Ring support). The 1734-AENTR is recommended for applications requiring network-level redundancy, as it supports DLR topology, allowing the EtherNet/IP ring to self-heal within milliseconds of a cable or switch fault. A single adapter supports up to 63 POINT I/O modules in a single bank, enabling high-density I/O configurations with a single network node address.

Q2: Is the 1734-IE4C compatible with both ControlLogix and CompactLogix platforms, and what configuration tool is required?Yes. The 1734-IE4C is fully compatible with all EtherNet/IP-capable Rockwell Automation controllers, including the ControlLogix 5580 (1756-L8x), ControlLogix 5570 (1756-L7x), CompactLogix 5370 (1769-L3x), and CompactLogix 5380 (5069-L3x) families. Configuration is performed within Studio 5000 Logix Designer (v21 and later), where each channel is individually configurable for input range, filter frequency, and fault/program mode behavior. The module's Add-On Profile (AOP) is included in the Studio 5000 library, eliminating manual tag creation and accelerating commissioning.

Q3: What does NANKMOS's 12-Month Warranty cover for the 1734-IE4C, and what pre-shipment testing is performed?All 1734-IE4C units dispatched by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each unit undergoes pre-shipment functional testing to verify channel integrity, backplane communication, and power consumption within specification. NANKMOS maintains verified in-stock inventory sourced from authorized distribution channels, ensuring product authenticity and traceability. For volume orders or project-specific lead time requirements, contact NANKMOS directly to confirm availability and arrange expedited fulfillment.
