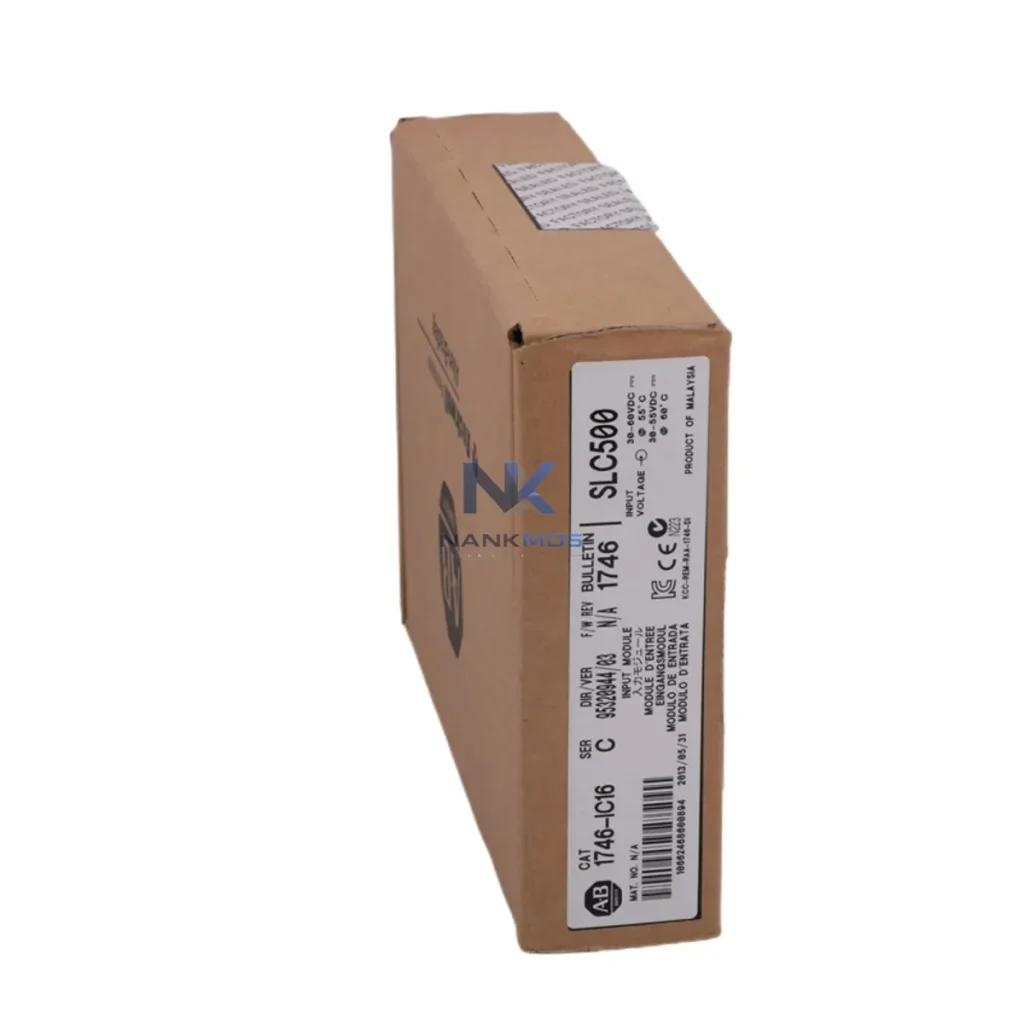

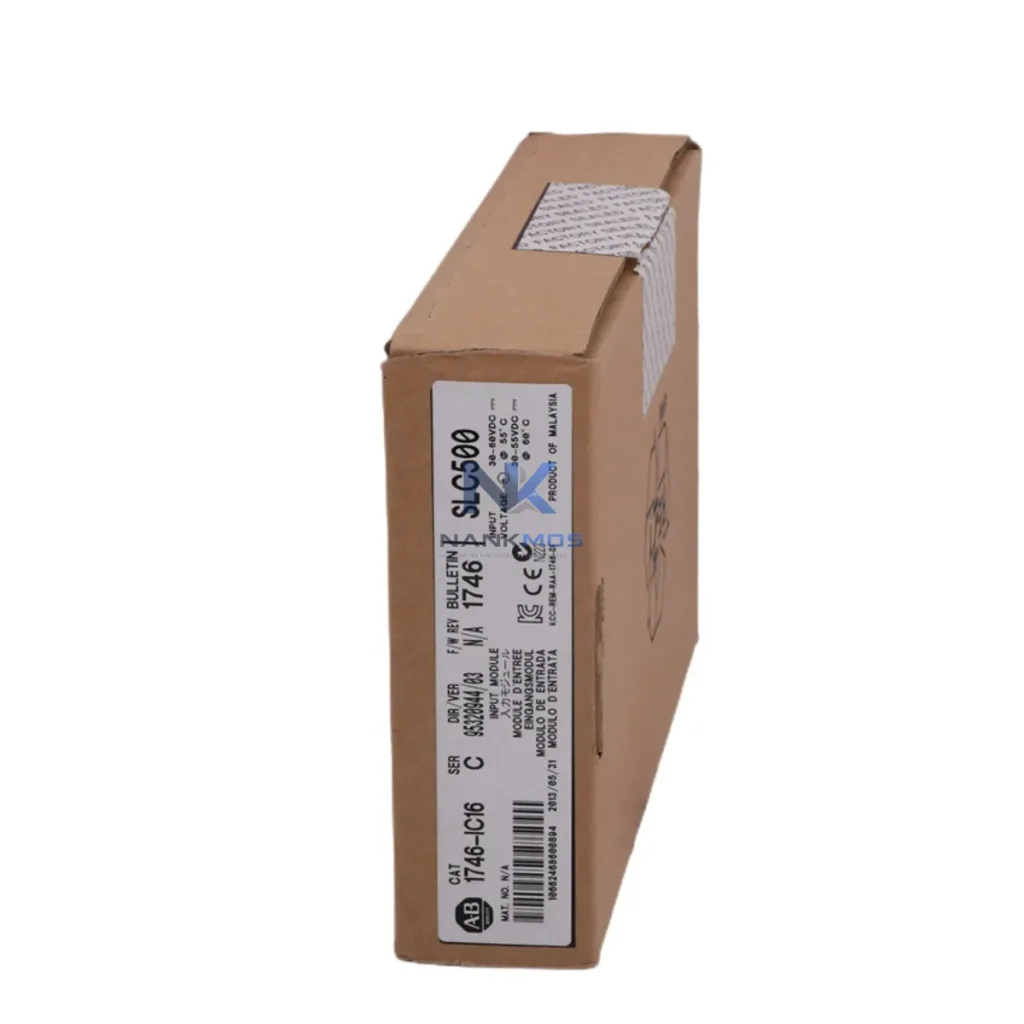

Allen-Bradley 1746-IC16 Digital Input Module

Product Details

1746-IC16 Product Description

The Allen-Bradley 1746-IC16 is a 16-channel, 120V AC digital input module engineered for the SLC 500 modular I/O platform. Designed to serve as a critical data acquisition node in industrial network architectures, the 1746-IC16 captures discrete field signals from sensors, limit switches, push buttons, and proximity devices, converting them into structured digital data that flows seamlessly through the SLC 500 backplane into the controller's data table. In smart factory environments where real-time visibility and deterministic communication are non-negotiable, this module delivers the signal integrity and network compatibility required to sustain continuous production monitoring, remote diagnostics, and SCADA-driven decision-making across multi-tier automation systems.

The 1746-IC16 integrates directly into SLC 500 fixed and modular chassis configurations, operating alongside the 1747-L553 SLC 5/05 processor — a controller with native Ethernet/IP and DH-485 communication capability. This pairing enables the 1746-IC16's field-level input data to be transmitted upstream to FactoryTalk View SE SCADA platforms, Panelview Plus HMI terminals, and MES/ERP layers without protocol conversion overhead. In distributed control architectures, the module's data is accessible via the 1747-SDN DeviceNet Scanner, allowing the SLC 500 rack to participate in DeviceNet network segments alongside variable frequency drives, smart sensors, and remote I/O adapters. This positions the 1746-IC16 not merely as a passive input device, but as an active contributor to the plant-wide data fabric.

For facilities deploying Industrial Ethernet backbones, the 1746-IC16 pairs with the 1747-AENTR EtherNet/IP adapter to extend SLC 500 I/O data across standard TCP/IP infrastructure. This enables integration with Stratix 5700 managed industrial switches, which provide IGMP snooping, QoS prioritization, and ring topology redundancy to ensure that input status data from the 1746-IC16 reaches upstream controllers and SCADA servers with minimal latency. The result is a connected I/O architecture where field-level discrete signals are continuously visible to plant operators through real-time dashboards, alarm management systems, and historian databases.

In a typical smart factory deployment, the 1746-IC16 sits at the field device layer, receiving 120V AC signals from motor run contacts, valve position switches, conveyor limit switches, and safety interlock relays. These discrete inputs are scanned by the SLC 500 processor — commonly a 1747-L553 SLC 5/05 — at sub-millisecond intervals, populating the input image table that drives ladder logic execution. The processor's native DH-485 port connects to a 1747-PIC interface converter, enabling RSLogix 500 programming terminals to perform online monitoring, force operations, and diagnostic reads without interrupting production.

For plant-wide data visibility, the SLC 5/05's Ethernet port connects to a Stratix 5700 managed switch, which aggregates I/O data from multiple SLC 500 racks distributed across the production floor. FactoryTalk View SE SCADA servers subscribe to this data via EtherNet/IP explicit messaging, rendering real-time input status on operator workstations and Panelview Plus 7 HMI terminals mounted at machine stations. When the 1746-IC16 detects an input state change — such as a conveyor jam or safety gate open — the SLC 500 processor triggers an alarm that propagates through FactoryTalk Alarms and Events to shift supervisors' mobile devices and the central control room within milliseconds.

In DeviceNet-based architectures, the 1747-SDN DeviceNet Scanner module installed in the same SLC 500 chassis allows the 1746-IC16's input data to be shared with other DeviceNet nodes, including PowerFlex 40 variable frequency drives, 1734 POINT I/O remote adapter modules, and Banner Engineering photoelectric sensors. This creates a unified device-level network where the 1746-IC16's field signals contribute to coordinated motion control, energy monitoring, and predictive maintenance routines managed by the SLC 500 controller. Edge gateway devices such as the Moxa MGate MB3180 can further bridge this DeviceNet data to MQTT or OPC-UA streams for cloud-based analytics platforms, completing the data chain from field sensor to enterprise dashboard.

Many industrial facilities operating legacy SLC 500 systems face persistent challenges: protocol fragmentation between field devices and supervisory systems, data islands where machine-level I/O is invisible to SCADA, and limited remote diagnostic capability that forces on-site troubleshooting for every fault condition. The 1746-IC16 addresses these gaps by providing a standardized, backplane-native input interface that integrates with the full spectrum of SLC 500 communication options.

Protocol unification is achieved through the SLC 500 platform's multi-protocol architecture. A single SLC 5/05 processor can simultaneously communicate via EtherNet/IP to SCADA servers, DH-485 to programming terminals, and DF1 to remote I/O drops — all while the 1746-IC16 continuously feeds field signal data into the controller's input image table. This eliminates the need for standalone protocol converters or middleware gateways in most standard configurations, reducing network complexity and potential failure points.

Remote diagnostics are enabled through RSLogix 500 remote access sessions over Ethernet, allowing maintenance engineers to monitor 1746-IC16 input states, verify signal quality, and diagnose wiring faults from off-site locations. FactoryTalk AssetCentre provides version-controlled backup of SLC 500 programs and I/O configurations, ensuring rapid recovery after hardware replacement. For production line transparency, FactoryTalk Historian archives every input state change from the 1746-IC16 with millisecond timestamps, enabling post-event analysis, OEE calculation, and regulatory compliance reporting. System expansion is straightforward: additional 1746-IC16 modules or complementary 1746-OB16 output modules can be added to existing chassis without controller reprogramming, supporting phased capacity increases aligned with production growth.

Q1: What communication protocols does the 1746-IC16 support for SCADA integration? The 1746-IC16 communicates via the SLC 500 backplane bus and relies on the host processor for network connectivity. When paired with a 1747-L553 SLC 5/05 processor, the system supports EtherNet/IP, DH-485, and DF1 protocols natively. Adding a 1747-SDN scanner extends connectivity to DeviceNet, and the 1747-AENTR adapter enables remote EtherNet/IP I/O operation. This multi-protocol capability ensures compatibility with FactoryTalk View SE, Ignition SCADA, and third-party OPC-DA/UA servers.

Q2: How is network stability maintained when the 1746-IC16 is deployed in high-noise industrial environments? The 1746-IC16 features optical isolation between field-side inputs and backplane logic, providing immunity to common-mode noise, ground loops, and voltage transients typical in motor control centers and switchgear rooms. When deployed on EtherNet/IP networks, Stratix 5700 managed switches with storm control and VLAN segmentation further protect I/O data traffic from broadcast interference. DH-485 networks use shielded twisted-pair cabling with defined termination resistors to maintain signal integrity across distances up to 1,219 meters.

Q3: Can the 1746-IC16 be integrated into a remote monitoring and diagnostics architecture without on-site access? Yes. When the SLC 500 system is connected to an Ethernet network via the SLC 5/05 processor or 1747-AENTR adapter, RSLogix 500 and FactoryTalk View SE support remote online monitoring of all I/O module states including the 1746-IC16. Maintenance personnel can read input status, verify channel health, and execute diagnostic routines from any networked workstation. VPN-secured remote access through industrial routers such as the Cisco IR1101 or Moxa EDR-810 provides encrypted connectivity for off-site diagnostics without exposing the control network to public internet risks.

Q4: What does the 12-month warranty cover, and what is the shipping lead time? Every 1746-IC16 supplied by NANKMOS is backed by a 12-month warranty covering manufacturing defects, functional failure under normal operating conditions, and DOA (dead on arrival) replacement. Pre-shipment functional testing is performed on all units to verify channel integrity and backplane communication before dispatch. Stock units ship within 1–3 business days; sourced units have lead times available on request. For volume orders or urgent project requirements, contact our technical sales team for expedited fulfillment options.
