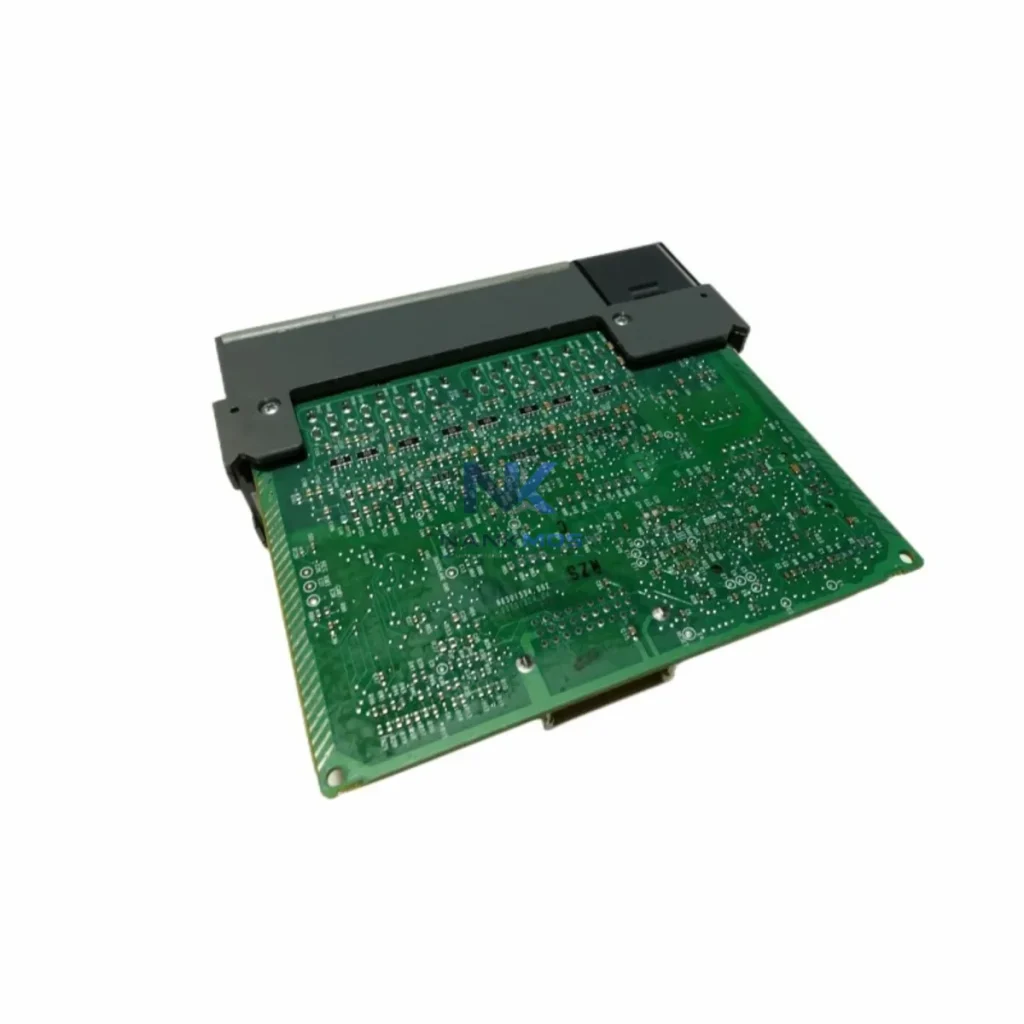

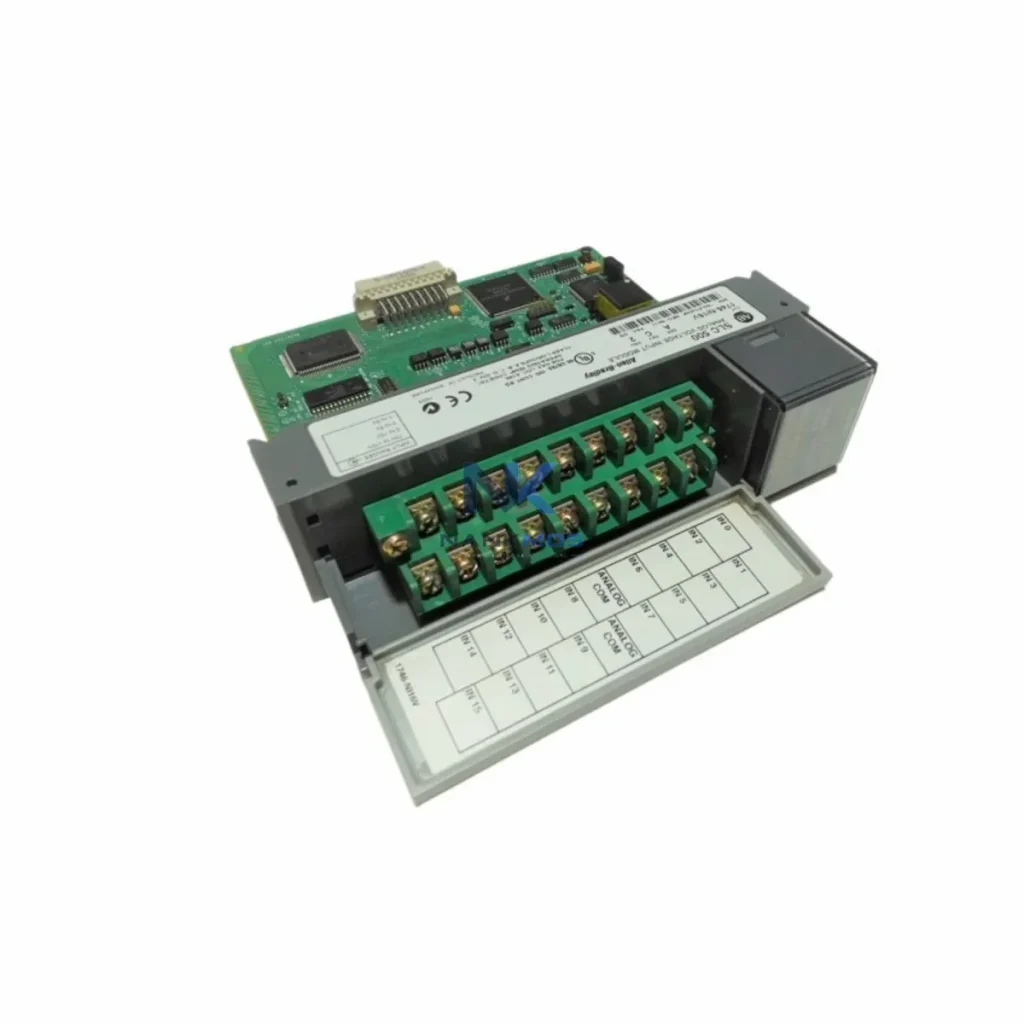

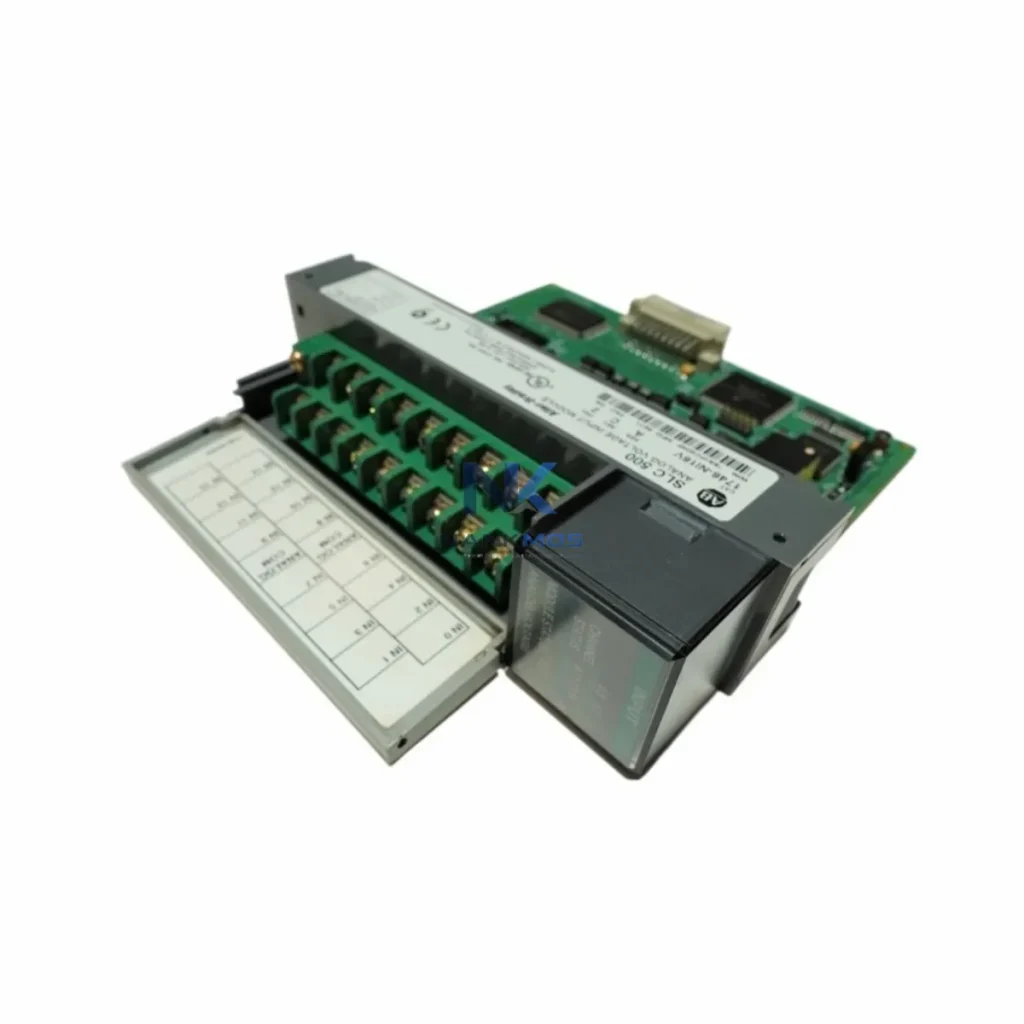

Allen-Bradley 1746-NI16V Analog Input Module

Product Details

1746-NI16V Product Description

The Allen-Bradley 1746-NI16V is a 16-channel voltage analog input module engineered for the SLC 500 modular I/O platform. Designed to serve as a precision data acquisition front-end in smart factory environments, this module bridges the physical world of field sensors and transmitters with the digital data backbone of modern industrial automation networks. Whether deployed in discrete manufacturing, process control, or hybrid automation architectures, the 1746-NI16V delivers the signal fidelity, channel density, and system compatibility required to sustain continuous, high-integrity data flow across every layer of the connected factory.

In a fully connected smart factory, the 1746-NI16V occupies a critical position at the signal acquisition layer — the point where analog process variables are converted into digital data that can be acted upon by control logic, transmitted across industrial networks, and visualized on operator interfaces. The module accepts voltage signals from field-level devices such as pressure transmitters, temperature sensors, flow meters, and position transducers, converting each channel's analog value into a 12-bit digital word that the SLC 500 CPU processes in real time.

The SLC 500 processor — whether a 1747-L532 (SLC 5/03), 1747-L541 (SLC 5/04), or 1747-L551 (SLC 5/05) — reads the 1746-NI16V data table at every scan cycle and makes it available to the control program. When paired with a 1747-L551 SLC 5/05 CPU, the analog data becomes accessible over EtherNet/IP, enabling seamless integration with plant-level SCADA systems such as FactoryTalk View SE or Ignition by Inductive Automation. This EtherNet/IP pathway allows supervisory systems to poll real-time process values, trigger alarms, and log historical trends without any additional protocol conversion hardware.

For sites running legacy Data Highway Plus (DH+) networks, the 1747-L541 SLC 5/04 CPU routes analog data from the 1746-NI16V through the DH+ backbone to remote HMI panels and programming terminals. In multi-drop DH+ topologies, a 1761-NET-AIC Advanced Interface Converter or a 1784-PKTX communication card can bridge the SLC network to a PC-based SCADA workstation, enabling centralized monitoring of all 16 analog channels alongside discrete I/O data from companion modules such as the 1746-IB16 digital input module or the 1746-OB16 digital output module.

Where protocol translation is required — for example, integrating the SLC 500 platform with a Modbus RTU field device network or a PROFIBUS DP segment — a ProSoft Technology MVI46-MCM Modbus Communication Module or a similar 1746-series gateway module can be installed in the same chassis. This allows the 1746-NI16V analog data to be mapped alongside Modbus register data, creating a unified data namespace that upstream SCADA and MES systems can query through a single EtherNet/IP or OPC-DA/UA server. The result is a transparent data pipeline from sensor to enterprise, with no data islands and no manual transcription of process values.

At the edge layer, an industrial gateway such as the Moxa MGate MB3180 or a Rockwell Automation 1783-NATR NAT Router can aggregate data from multiple SLC 500 nodes and forward it to cloud-based analytics platforms or on-premise historian servers. This architecture supports predictive maintenance workflows, where the continuous analog streams from the 1746-NI16V — monitoring motor current, hydraulic pressure, or furnace temperature — feed machine learning models that detect anomalies before they escalate into unplanned downtime. Remote diagnostic access is maintained through secure VPN tunnels, allowing engineers to review live analog values, adjust channel scaling, and acknowledge alarms from any location without physical presence on the plant floor.

Power distribution within the SLC 500 chassis is managed by a 1746-P4 or 1746-P7 power supply, which provides the regulated backplane voltage required for stable operation of the 1746-NI16V and co-resident modules. Stable power is a prerequisite for analog accuracy: voltage fluctuations at the backplane level translate directly into measurement noise, so the quality of the power supply is as important to data integrity as the module's own 12-bit ADC. NANKMOS supplies tested 1746-series power supplies alongside the 1746-NI16V to ensure that customers receive a validated, system-level solution rather than individual components.

Protocol Fragmentation: Many brownfield automation sites operate a mix of DH+, DH-485, DeviceNet, Modbus RTU, and EtherNet/IP networks that were installed at different times and by different vendors. The 1746-NI16V, when hosted in an SLC 500 chassis alongside appropriate communication modules, acts as a protocol-agnostic data source: its analog values can be mapped to any of these networks through the SLC CPU's routing capabilities, eliminating the need for standalone protocol converters and reducing wiring complexity.

Data Silos and Production Transparency: Without a reliable analog input layer, process variables remain trapped in local controllers and are invisible to plant-level SCADA, MES, and ERP systems. The 1746-NI16V resolves this by providing 16 simultaneous analog acquisition channels that feed directly into the SLC 500 data table, from which any networked supervisory system can retrieve values in real time. This transparency is the foundation of production KPI dashboards, OEE calculations, and energy monitoring programs.

Remote Monitoring and Alarm Management: In geographically distributed facilities or unmanned substations, the ability to monitor analog process variables remotely is essential. The 1746-NI16V's integration with EtherNet/IP-capable SLC 5/05 processors enables remote SCADA polling at configurable intervals, with alarm thresholds set in RSLogix 500 ladder logic. When a channel value exceeds its configured limit, the SLC CPU generates an alarm bit that SCADA systems can detect, log, and escalate through email or SMS notification workflows — all without operator intervention at the local panel.

System Scalability: As production lines expand, additional 1746-NI16V modules can be added to existing SLC 500 chassis (up to the chassis slot limit) or to remote I/O racks connected via a 1747-SN Scanner Module. This modular scalability means that analog channel count can grow incrementally with production requirements, protecting the initial investment in SLC 500 infrastructure while accommodating new sensors and measurement points.

Q1: What communication protocols does the 1746-NI16V support for SCADA integration? The 1746-NI16V communicates via the SLC 500 backplane bus and does not have an independent network port. Protocol access depends on the SLC CPU installed in the same chassis: a 1747-L551 SLC 5/05 provides EtherNet/IP connectivity; a 1747-L541 SLC 5/04 provides DH+ and DH-485; and a 1747-L531 SLC 5/03 provides DH-485. For Modbus RTU or PROFIBUS DP integration, a dedicated communication module such as the MVI46-MCM must be added to the chassis.

Q2: How is network stability maintained when the 1746-NI16V is deployed in a high-noise industrial environment? The module uses differential input architecture on all 16 channels, which provides common-mode noise rejection and minimizes the impact of electromagnetic interference from variable frequency drives, contactors, and power cables. Additional stability is achieved by using shielded twisted-pair wiring from field devices, grounding the shield at one end only, and installing the SLC 500 chassis in a properly bonded control panel enclosure. The 1746-P4 or 1746-P7 power supply's regulated output further isolates the backplane from line-side disturbances.

Q3: Can the 1746-NI16V be used for remote diagnostics and predictive maintenance applications? Yes. When the SLC 500 system is connected to an EtherNet/IP network via a 1747-L551 CPU or a 1761-NET-ENI Ethernet Interface, remote engineering workstations running RSLogix 500 or FactoryTalk Diagnostics can access the module's channel data, fault bits, and configuration registers in real time. This enables remote calibration verification, trend analysis, and early fault detection without requiring a site visit. All 16 channel values are available as standard SLC data table words (N-file integers) that any OPC-UA server can publish to historian or analytics platforms.

Q4: What does the 12-month warranty cover, and how does NANKMOS verify module condition before shipment? Every 1746-NI16V supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a functional test that verifies channel-by-channel analog conversion accuracy, backplane communication integrity, and LED status indicator operation. Units that do not pass the full test protocol are not shipped. In the event of a warranty claim, NANKMOS provides advance replacement or repair service to minimize production downtime. Contact [email protected] or +86 18359268345 for warranty support.
