Allen-Bradley 1746-NR8 Analog Input Module

Product Details

1746-NR8 Product Description

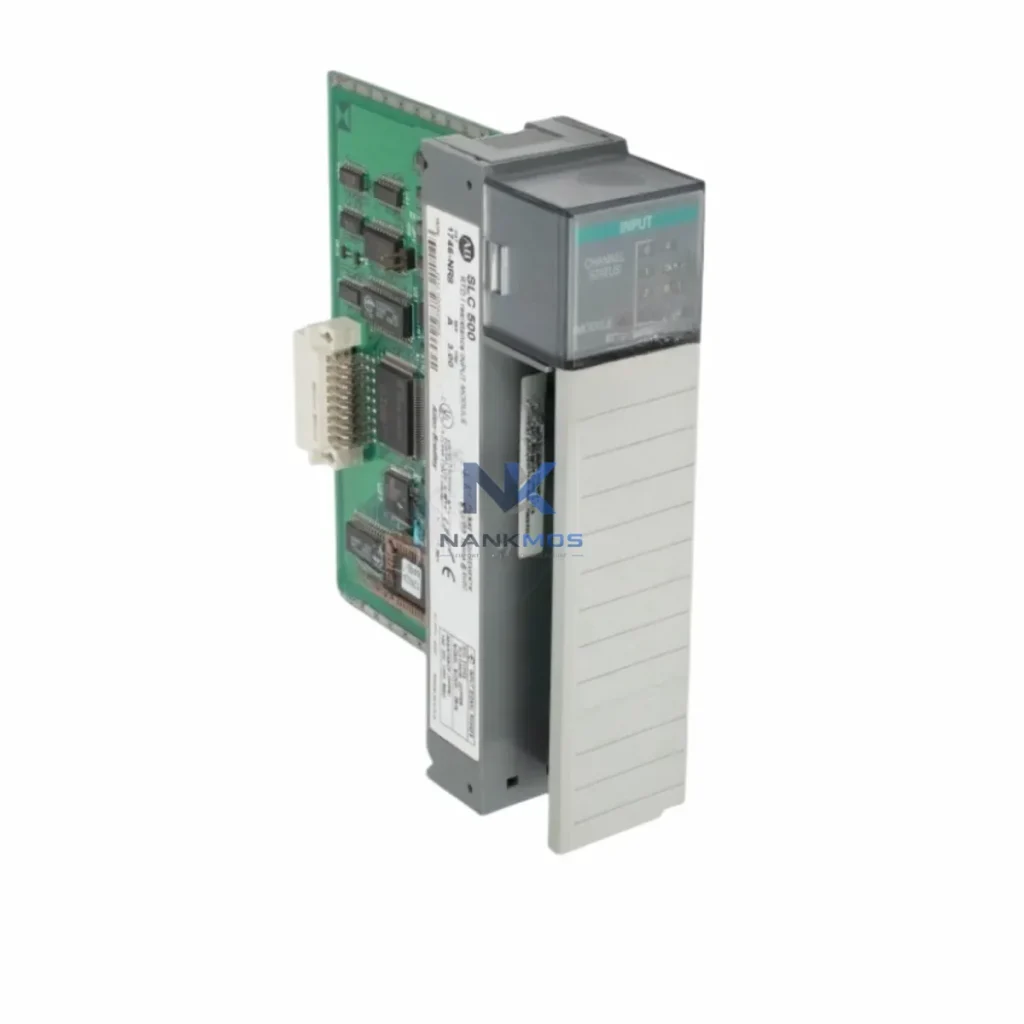

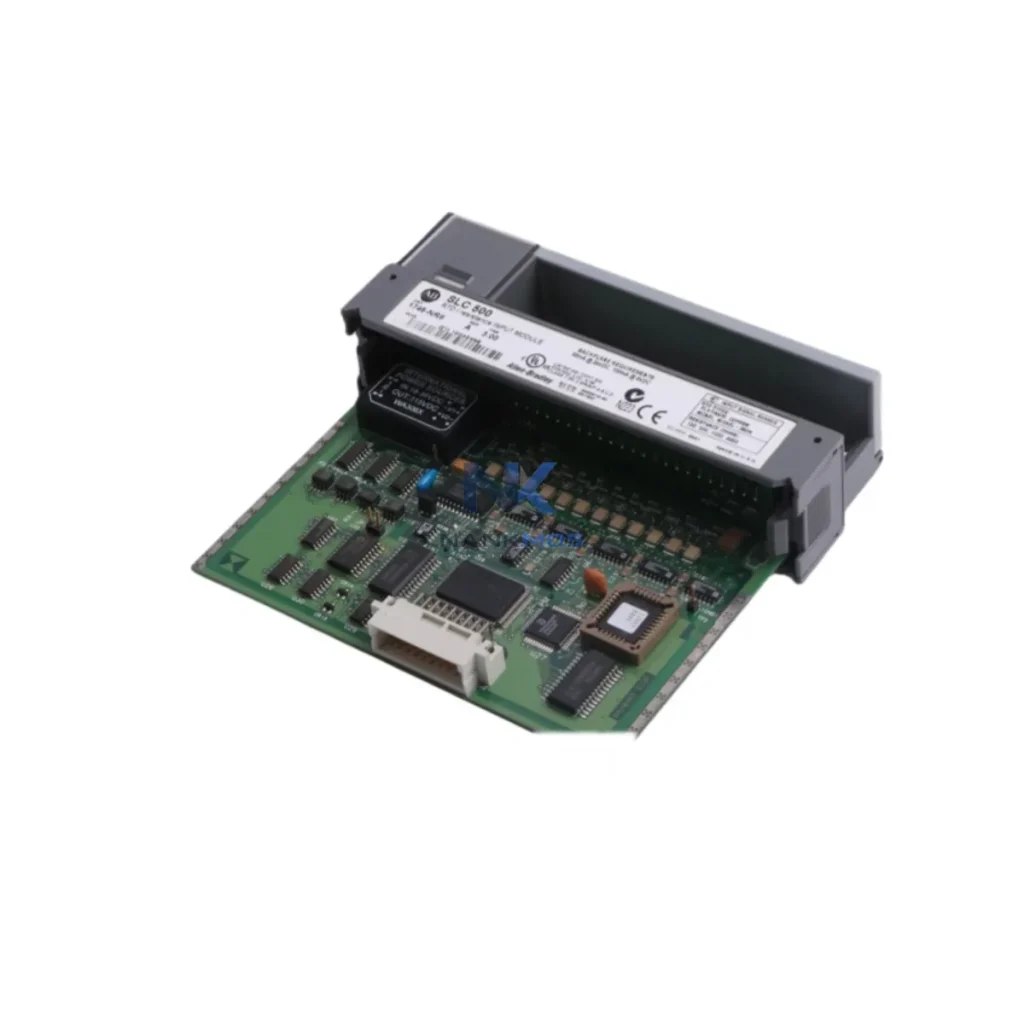

The Allen-Bradley 1746-NR8 is an 8-channel RTD and thermocouple analog input module engineered for the SLC 500 programmable controller platform. Designed to deliver precise thermal and process signal acquisition, the 1746-NR8 plays a central role in energy-aware automation architectures — enabling production lines to monitor heat loads, regulate drive output, and eliminate unnecessary energy consumption across multi-zone manufacturing environments. With direct integration into the SLC 500 backplane and compatibility with a broad range of industrial sensors, this module supports the kind of closed-loop energy management that modern smart factories demand.

In a fully integrated energy-optimised production line, the 1746-NR8 serves as the thermal intelligence layer within the SLC 500 control architecture. Its 8-channel RTD and thermocouple inputs feed real-time temperature data directly into the SLC 5/04 or SLC 5/05 processor, where ladder logic routines translate thermal readings into actionable drive commands. When paired with a PowerFlex 40 or PowerFlex 400 variable frequency drive, the processor can dynamically throttle motor speed in response to thermal load — reducing energy draw during low-demand cycles without sacrificing throughput.

The 1746-NR8 integrates seamlessly alongside the 1746-NI8 analog voltage/current input module and the 1746-NO4I analog output module, forming a complete closed-loop signal chain from sensor to actuator. For applications requiring digital I/O coordination, the 1746-IB16 and 1746-OB16 discrete modules handle on/off switching of contactors, solenoids, and auxiliary loads — all orchestrated by the same SLC 500 processor that processes the thermal data from the NR8.

On the communications side, the 1747-SDN DeviceNet Scanner or the 1747-SCNR Remote I/O Scanner can extend the SLC 500's reach across distributed field devices, enabling the 1746-NR8's thermal data to be shared with upstream SCADA systems or energy management platforms via FactoryTalk Historian. HMI operators using a PanelView 800 or PanelView Plus 7 terminal can visualise zone temperatures, set alarm thresholds, and trigger load-shedding routines — all from a single operator interface. This multi-layer integration ensures that every watt consumed by motors, heaters, and drives is accounted for and actively managed.

Uncontrolled thermal conditions are one of the leading causes of unplanned downtime and excessive energy consumption in discrete and process manufacturing. The 1746-NR8 addresses this directly by providing the SLC 500 controller with continuous, high-resolution temperature data from up to 8 independent measurement points across a production cell. This data enables the PLC to implement predictive thermal management strategies — pre-emptively reducing drive output before a motor reaches its thermal limit, cycling cooling systems only when zone temperatures exceed defined thresholds, and logging thermal trends for predictive maintenance analysis.

In furnace and oven applications, the 1746-NR8 supports multi-zone temperature profiling, allowing the SLC 500 to balance heat distribution across zones and eliminate energy waste caused by over-heating in one zone while another remains under-temperature. In motor-driven conveyor and pump systems, RTD feedback from the NR8 enables the controller to detect bearing wear through rising temperature signatures — triggering maintenance alerts before catastrophic failure occurs and production is halted.

The result is a measurable improvement in Overall Equipment Effectiveness (OEE): fewer unplanned stops, more consistent production rhythm, lower peak energy demand, and reduced thermal stress on connected components such as servo drives, power supplies, and I/O modules. For facilities operating under ISO 50001 energy management frameworks or pursuing carbon reduction targets, the 1746-NR8 provides the granular, real-time thermal data needed to substantiate energy savings and demonstrate continuous improvement.

Every 1746-NR8 unit supplied by NANKMOS undergoes a full outgoing quality inspection — including channel-by-channel signal verification and thermal accuracy testing — before shipment. Units are held in climate-controlled storage and dispatched with full traceability documentation. A 12-Month Warranty is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q1: How does the 1746-NR8 contribute to energy savings on a production line? The 1746-NR8 provides the SLC 500 PLC with real-time RTD and thermocouple data from up to 8 measurement points. This thermal feedback enables the controller to dynamically adjust drive speeds, cycle cooling equipment on demand, and prevent over-temperature conditions — directly reducing idle energy consumption and peak thermal load across the production cell.

Q2: Which SLC 500 processors and software are compatible with the 1746-NR8? The 1746-NR8 is compatible with all SLC 500 processors (SLC 5/01 through SLC 5/05) and is programmed via RSLogix 500. It occupies one slot in the 1746 series backplane and is configured through the I/O configuration tree in RSLogix 500, with no additional hardware adapters required.

Q3: Can the 1746-NR8 replace an existing analog input module in a running system? Yes. The 1746-NR8 is a direct slot-compatible replacement for other 1746-series analog input modules. Before replacement, back up the RSLogix 500 project file, note the existing I/O address assignments, and verify that the replacement module's channel configuration matches the sensor types in use. NANKMOS recommends a bench test of the replacement unit prior to installation.

Q4: What does the 12-Month Warranty cover, and what is the supply lead time? The 12-Month Warranty covers manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. NANKMOS maintains in-stock inventory of the 1746-NR8, with units available for immediate dispatch following outgoing quality inspection. Contact [email protected] or +86 18359268345 for current stock confirmation and lead time.
