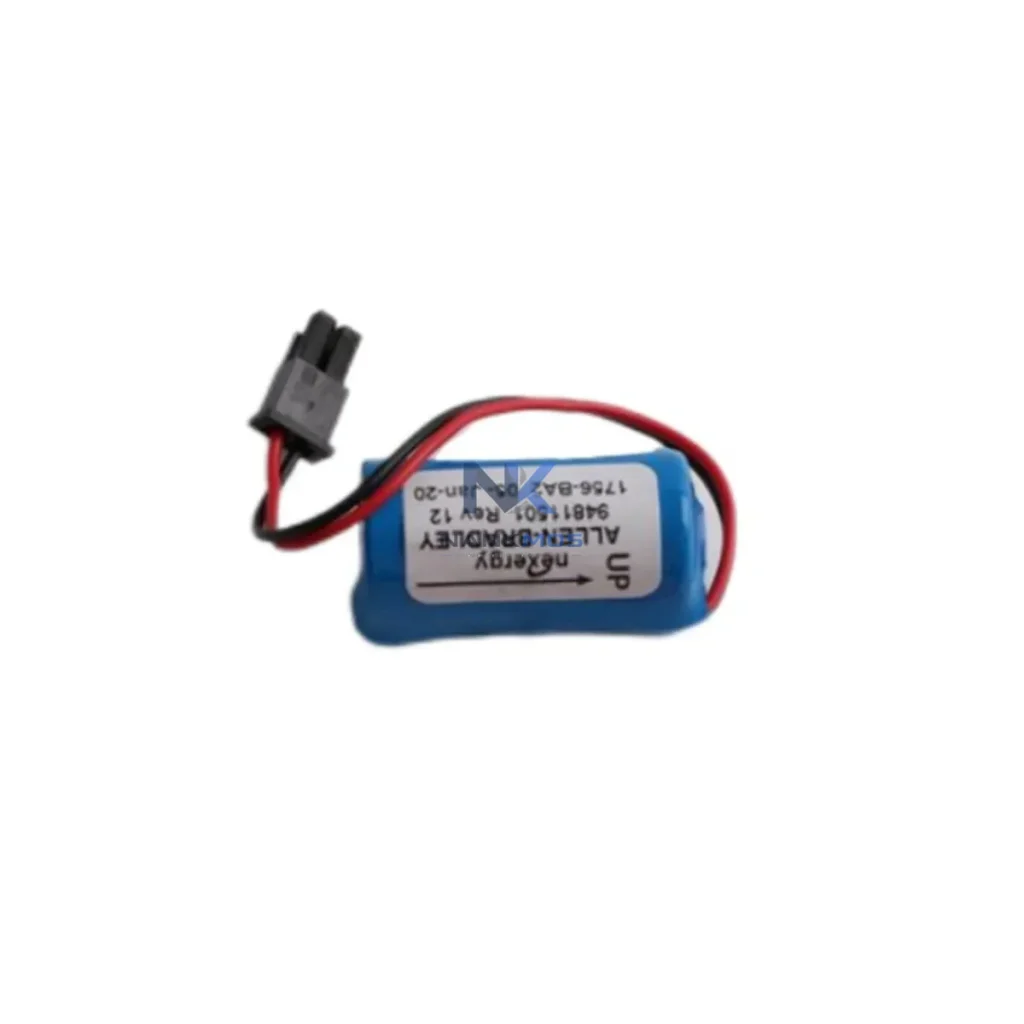

Allen-Bradley 1756-BA1 PLC Battery Module

Product Details

1756-BA1 Product Description

In a connected factory, every node in the data chain must remain powered and synchronized. The Allen-Bradley 1756-BA1 ControlLogix Battery Module is the silent backbone of memory retention across the 1756 chassis — ensuring that EtherNet/IP communication tables, ladder logic programs, I/O mapping configurations, and real-time tag databases survive unexpected power interruptions without data loss or reinitialization delays. When a ControlLogix controller loses its battery backup, the entire data flow from field sensors through to SCADA dashboards can be disrupted. The 1756-BA1 eliminates that risk, keeping your automation network continuously synchronized and your production data intact.

Designed for the Rockwell Automation ControlLogix platform, the 1756-BA1 integrates directly into the 1756 series chassis alongside processors such as the 1756-L71, 1756-L73, and 1756-L85E. It provides lithium-cell backup power to sustain volatile memory during planned shutdowns, emergency power-offs, and grid fluctuations — a critical requirement in smart factory environments where data continuity directly impacts OEE (Overall Equipment Effectiveness) and production traceability.

Modern smart factory architectures depend on uninterrupted data flow across every layer of the automation stack. The 1756-BA1 plays a foundational role in sustaining that flow. Consider a typical production line where a 1756-L73 ControlLogix processor manages motion control, discrete I/O, and EtherNet/IP communication simultaneously. This controller coordinates with 1756-EN2T EtherNet/IP communication modules to transmit real-time process data upstream to a Rockwell FactoryTalk View SCADA system and downstream to 1756-IB16 digital input modules and 1756-OB16E digital output modules that interface directly with field actuators and sensors.

When the 1756-BA1 is properly installed and maintained, the controller retains its full program, I/O configuration, and network tag table across power cycles. This means that after a planned maintenance shutdown or an unplanned power event, the 1756-EN2T re-establishes its EtherNet/IP connections immediately upon restart — without requiring a full program download from the engineering workstation. Remote I/O racks connected via 1756-ENBT adapters resume their data exchange with the controller within seconds, and HMI panels running on PanelView Plus 7 terminals reconnect to their tag servers without operator intervention.

Further along the data chain, PowerFlex 755 variable frequency drives receiving speed references and torque commands over EtherNet/IP maintain their last-known configuration parameters, reducing restart time and preventing uncontrolled motor behavior. Distributed POINT I/O 1734-AENT adapters on remote skids continue to report sensor values — temperature, pressure, flow — to the ControlLogix controller as soon as network connectivity is restored. This seamless recovery is only possible because the 1756-BA1 has preserved the controller's memory state throughout the outage.

At the edge layer, Stratix 5700 industrial managed switches maintain their VLAN configurations and QoS policies independently, but the ControlLogix controller's ability to immediately resume EtherNet/IP producer/consumer relationships depends entirely on the integrity of its memory — which the 1756-BA1 protects. Data collected from field instruments flows through the controller to FactoryTalk Historian for long-term trending and OEE analysis, and any gap in controller memory continuity creates gaps in the historian record that are difficult to reconcile during audits or root-cause analysis.

For facilities using Rockwell Automation GuardLogix 1756-L73S safety controllers alongside standard ControlLogix processors, battery backup is equally critical for the safety task memory. The 1756-BA1 ensures that safety program configurations, SIL-rated I/O mappings, and safety network node addresses are retained, avoiding the mandatory safety validation procedures that would otherwise be required after a cold restart.

Protocol Fragmentation: In multi-vendor environments where EtherNet/IP controllers coexist with Modbus RTU field devices, PROFIBUS DP legacy instruments, or CC-Link remote I/O, the ControlLogix platform with a properly backed-up 1756-BA1 acts as the central protocol arbitrator. Communication module configurations — including baud rates, node addresses, and message routing tables — are preserved in controller memory, eliminating the need for manual reconfiguration after power events.

Data Islands and Production Transparency: Without reliable battery backup, controllers may lose their tag database on restart, causing SCADA systems to display stale or missing data. This creates data islands where production metrics from one line segment are invisible to the plant-wide MES or ERP system. The 1756-BA1 ensures that the controller's tag structure remains intact, keeping every data point — from conveyor speed to reject counts — continuously visible in the FactoryTalk View dashboard.

Remote Monitoring and Alarm Tracking: Facilities using Rockwell's Remote Access solutions or third-party VPN gateways for remote diagnostics rely on the controller maintaining its communication configuration across restarts. A controller that loses its memory on power-off requires an on-site engineer to reload the program before remote access is possible — a significant operational cost. With the 1756-BA1 in place, remote diagnostics via FactoryTalk Remote Access or Cisco industrial routers remain available immediately after power restoration.

System Scalability: As production lines expand and new I/O modules, drives, or communication adapters are added to the 1756 chassis, the controller's configuration grows in complexity. The 1756-BA1 ensures that this accumulated configuration investment is protected, making system expansion a low-risk operation rather than a potential source of data loss.

Q1: Does the 1756-BA1 affect EtherNet/IP communication latency during normal operation?No. The 1756-BA1 is a passive backup power source that only activates when main chassis power is removed. During normal operation, it draws negligible current and has no effect on EtherNet/IP packet timing, controller scan time, or network throughput. Communication latency is determined by the 1756-EN2T or 1756-ENBT module and the network infrastructure, not the battery module.

Q2: Which ControlLogix controllers and firmware versions are compatible with the 1756-BA1?The 1756-BA1 is compatible with all standard ControlLogix 1756-series processors that use the 1756 chassis backplane, including the 1756-L71, L73, L74, L75, L82E, L83E, and L85E. It is also compatible with GuardLogix safety controllers in the 1756 series. Compatibility is hardware-based and independent of firmware version — no firmware update is required to use the 1756-BA1.

Q3: How is the 1756-BA1 tested before shipment, and what does the 12-month warranty cover?Each 1756-BA1 unit undergoes pre-shipment functional verification including open-circuit voltage testing and capacity verification to confirm it meets Rockwell Automation's original specifications. The 12-month warranty covers manufacturing defects, premature capacity loss, and connector integrity. Units that fail to maintain the specified backup duration under normal operating conditions within the warranty period are replaced at no charge. Warranty claims are processed with full traceability documentation.

Q4: Can the 1756-BA1 be replaced while the controller is running (hot-swap)?Hot-swap capability depends on the specific controller model and chassis configuration. For most standard ControlLogix processors, the battery can be replaced with the controller powered on, provided the replacement is completed within the controller's capacitor hold-up time (typically 30 seconds to several minutes depending on the model). It is recommended to verify the specific controller's hot-swap window in the Rockwell Automation 1756-UM001 user manual before performing a live replacement in a production environment.
