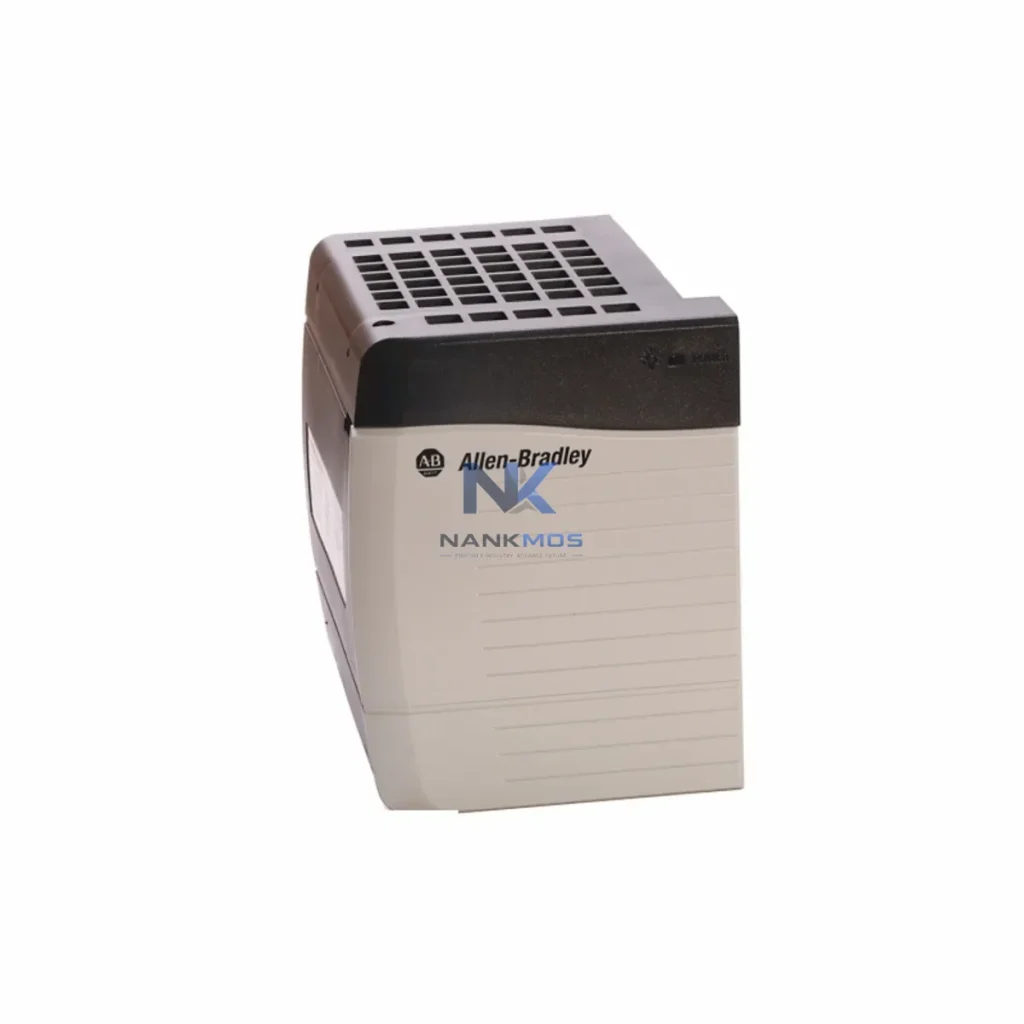

Allen-Bradley 1756-PA72K Industrial Power Supply

Product Details

1756-PA72K Product Description

The Allen-Bradley 1756-PA72/K is a high-reliability AC input power supply engineered for the ControlLogix chassis platform, delivering stable, energy-controlled power to mission-critical automation systems. Rated at 72W output with 85–265V AC wide-range input, this power supply is purpose-built to support demanding industrial environments where energy efficiency, load stability, and continuous uptime are non-negotiable. Whether deployed in discrete manufacturing, process control, or utility infrastructure, the 1756-PA72/K provides the backbone power architecture that keeps production lines running at optimal throughput with minimal thermal overhead.

In a well-architected ControlLogix system, the 1756-PA72/K does far more than supply voltage — it defines the energy envelope within which every downstream module operates. When paired with a 1756-L85E ControlLogix L8 controller, the power supply's stable backplane rails ensure deterministic scan-cycle execution, eliminating voltage-sag-induced faults that can disrupt PID loops or motion sequences. For motion-intensive lines, the 1756-PA72/K works in tandem with Kinetix 5700 servo drives, where clean backplane power prevents nuisance trips during high-inertia deceleration events.

On the I/O side, 1756-IB16 digital input modules and 1756-OB16E digital output modules draw regulated current from the backplane, and the 1756-PA72/K's load-sharing architecture ensures that adding or removing I/O modules does not destabilize the supply rail. For analog signal integrity — critical in energy monitoring applications — the 1756-IF16 analog input module benefits directly from the low-ripple output of the 1756-PA72/K, enabling accurate 4–20 mA readings from current transformers and power transducers connected to the plant's energy metering network.

When the ControlLogix rack is integrated into a broader SCADA or MES environment via a 1756-EN2T EtherNet/IP communication module, the power supply's continuous availability becomes a system-level reliability factor. Any power interruption at the chassis level cascades into communication loss, historian gaps, and alarm floods. The 1756-PA72/K's wide-input tolerance (85–265V AC) provides inherent ride-through capability against utility voltage fluctuations common in heavy industrial facilities. For installations requiring redundant power, a second 1756-PA72/K can be installed in a redundant chassis configuration alongside a 1756-RM2 redundancy module, ensuring zero-switchover downtime.

In variable-speed drive applications, the 1756-PA72/K-powered ControlLogix rack coordinates speed references and torque limits sent to PowerFlex 755 AC drives via EtherNet/IP, enabling precise load management across multi-motor conveyor systems. The controller's energy-aware programming — leveraging the 1756-PA72/K's stable power — supports demand-response strategies that shed non-critical motor loads during peak tariff windows, directly reducing energy costs without sacrificing throughput.

Factory energy waste rarely originates from a single source — it accumulates across hundreds of micro-inefficiencies: motors running at full speed during partial-load conditions, control panels drawing standby power from oversized supplies, and automation systems that cannot distinguish between productive and idle machine states. The 1756-PA72/K addresses the foundational layer of this problem by delivering precisely regulated, load-matched power to the ControlLogix chassis, ensuring that every watt consumed at the backplane translates into productive computation and control output.

When integrated with a plant-wide energy management strategy, the ControlLogix platform powered by the 1756-PA72/K can execute scheduled load-shedding routines, monitor real-time power consumption via connected power monitoring modules such as the PowerMonitor 5000, and trigger demand-response actions based on utility tariff signals. This closed-loop energy control — from the power supply rail through the controller logic to the field device — is the architecture that enables ISO 50001-aligned energy management in discrete and process manufacturing environments.

Thermal load reduction is another measurable benefit. The 1756-PA72/K's switch-mode design operates at high conversion efficiency, generating significantly less heat than legacy linear supplies. In densely populated control panels, lower heat output reduces the duty cycle of panel air conditioners and cooling fans, extending their service life and reducing auxiliary energy consumption. Over a 12-month operating cycle, the cumulative thermal savings in a multi-rack installation can represent a meaningful reduction in facility HVAC load.

For predictive maintenance programs, the ControlLogix system powered by the 1756-PA72/K can log power supply status bits, chassis temperature data, and module health diagnostics to a historian via the 1756-EN2T EtherNet/IP bridge. Maintenance teams using FactoryTalk View or third-party SCADA platforms can trend these parameters over time, identifying early indicators of power supply degradation — such as increasing output ripple or thermal derating — before they result in unplanned downtime. This proactive approach to power infrastructure management is a core pillar of modern OEE (Overall Equipment Effectiveness) improvement programs.

Every 1756-PA72/K unit supplied by NANKMOS undergoes full functional testing prior to shipment, including output voltage verification across all backplane rails, load regulation testing, and input voltage sweep across the full 85–265V AC range. Units are shipped with test documentation and are covered by a 12-month warranty. In-stock inventory ensures short lead times for MRO replacement and project commissioning requirements.

Q1: What energy efficiency benefits does the 1756-PA72/K provide compared to older ControlLogix power supplies? The 1756-PA72/K uses a modern switch-mode power conversion topology that operates at higher efficiency than earlier series, reducing heat dissipation and lowering the panel cooling load. Its wide-range AC input (85–265V AC) also eliminates the need for external voltage regulators in facilities with unstable utility supply, removing an additional source of energy loss in the power distribution chain.

Q2: Is the 1756-PA72/K compatible with all ControlLogix chassis and communication modules? Yes. The 1756-PA72/K is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot configurations) and supports all ControlLogix I/O, controller, and communication modules including the 1756-EN2T, 1756-DNB DeviceNet bridge, and 1756-CN2 ControlNet modules. It is also compatible with redundant chassis configurations when used with the 1756-RM2 redundancy module.

Q3: Can the 1756-PA72/K replace earlier series power supplies such as the 1756-PA72/B or /C without hardware changes? In most cases, yes. The 1756-PA72/K is a form-fit-function replacement for earlier /B and /C series units within the same chassis. The Series K revision incorporates updated internal components for improved reliability and compliance with current CE and UL standards. Always verify chassis slot compatibility and firmware revision requirements with your system integrator before substitution in safety-rated or SIL-classified applications.

Q4: What is the testing and warranty process for NANKMOS-supplied 1756-PA72/K units? Every unit undergoes pre-shipment functional testing covering output voltage accuracy on all backplane rails, load regulation under rated conditions, and input voltage sweep across the full operating range. Test results are documented and available upon request. All units are covered by a 12-month warranty from the date of shipment. NANKMOS maintains in-stock inventory of the 1756-PA72/K to support urgent MRO replacement and project commissioning timelines with minimal lead time.
