Allen-Bradley 1756-PA75 Industrial Power Supply

Product Details

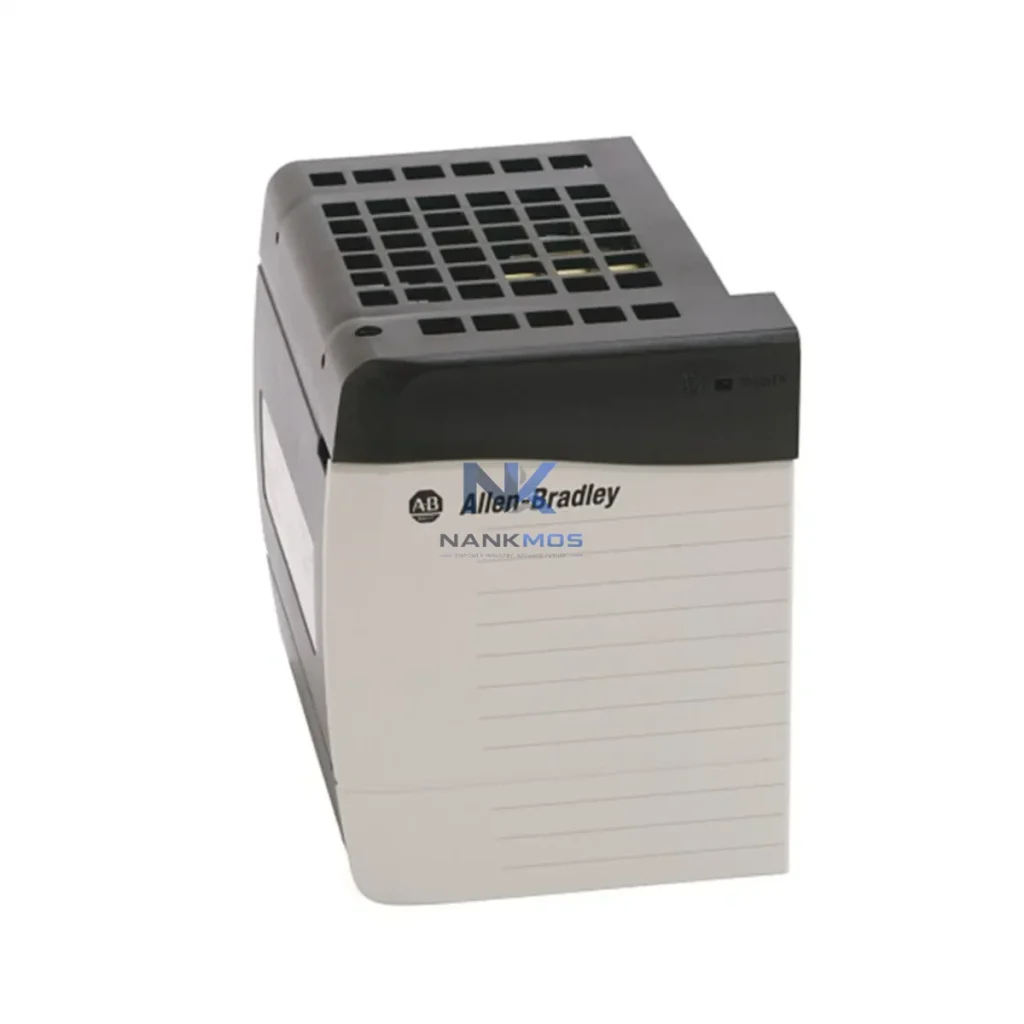

1756-PA75 Product Description

The Allen-Bradley 1756-PA75 is a high-reliability AC power supply engineered for the ControlLogix chassis platform, delivering stable backplane power across demanding industrial automation environments. Rated for 85–265VAC wide-range input, the 1756-PA75 ensures uninterrupted power delivery to ControlLogix processor modules, communication interface cards, and I/O adapter modules operating within multi-rack, multi-network architectures. In smart factory deployments where data continuity is non-negotiable, the 1756-PA75 serves as the foundational energy layer that keeps the entire data chain alive — from field-level sensors and remote I/O nodes through to SCADA servers and enterprise MES platforms.

Modern industrial connectivity depends on a power infrastructure that can sustain continuous, low-noise operation across EtherNet/IP, ControlNet, DeviceNet, and PROFIBUS network segments simultaneously. The 1756-PA75 is designed to support exactly this kind of multi-protocol, multi-chassis environment. When paired with communication modules such as the 1756-EN2T EtherNet/IP bridge or the 1756-CN2 ControlNet interface, the power supply ensures that real-time data exchange between ControlLogix controllers and distributed I/O racks — including 1734 POINT I/O and 1756 I/O modules — remains stable even under peak load conditions. This is critical in process industries where a momentary power fluctuation can interrupt a Modbus TCP or EtherNet/IP transaction mid-cycle, causing data loss or false alarm triggers in connected HMI and SCADA systems.

In smart factory data flow architectures, the 1756-PA75 anchors the control layer. Field instruments — including pressure transmitters, flow meters, and temperature sensors — feed analog and digital signals into 1756 I/O modules housed in the same ControlLogix chassis. The 1756-PA75 powers these modules continuously, enabling the ControlLogix L7x or L8x series processor to execute ladder logic, function block, and structured text programs that govern PID loops, sequence control, and safety interlocks. Processed data is then routed via the 1756-EN2T or 1756-ENBT EtherNet/IP communication module to upstream SCADA platforms such as Rockwell FactoryTalk View SE or third-party systems via OPC-UA gateways, enabling real-time visualization, alarm management, and remote diagnostics from any networked workstation or mobile HMI terminal.

For multi-rack ControlLogix systems, the 1756-PA75 is frequently deployed alongside the 1756-RM2 redundancy module and 1756-SYNCH synchronization cable to support hot-standby controller configurations. In these redundant architectures, power supply stability directly impacts the switchover time between primary and secondary controllers — a critical parameter in continuous process plants where even a 100ms interruption can trigger downstream equipment faults. The 1756-PA75's regulated DC output to the backplane ensures that all installed modules, including the 1756-L85E processor and 1756-IF16 analog input module, maintain their operational state during network reconfiguration events.

Edge connectivity is another area where the 1756-PA75 plays an indirect but essential role. Industrial edge gateways — such as those running Kepware KEPServerEX or Rockwell FactoryTalk Edge Gateway — rely on stable EtherNet/IP communication with the ControlLogix chassis to poll real-time tag data for cloud forwarding, predictive maintenance analytics, and OEE dashboards. Any instability in the backplane power layer introduces jitter in the EtherNet/IP implicit messaging cycle, which can degrade the quality of data reaching the edge layer and ultimately the cloud historian. The 1756-PA75 eliminates this risk by providing clean, regulated power with minimal ripple across the full operating temperature range of -20°C to +60°C.

Variable frequency drives (VFDs) and servo drives connected to ControlLogix via DriveLogix integration or EtherNet/IP also benefit from the system stability provided by the 1756-PA75. When a PowerFlex 755 or PowerFlex 525 drive communicates speed reference and feedback data to the ControlLogix controller over EtherNet/IP, the integrity of that data loop depends on the controller chassis remaining fully powered and responsive. The 1756-PA75 supports this requirement by delivering up to 10A of backplane current, sufficient to power a fully populated 17-slot ControlLogix chassis with mixed I/O, communication, and motion modules installed.

All 1756-PA75 units supplied by NANKMOS are sourced from verified distribution channels, subject to incoming inspection, and covered by a 12-Month Warranty. Each unit undergoes functional verification prior to shipment, including input voltage range testing, backplane output load testing, and LED status indicator verification. Global stock is maintained to support urgent MRO requirements, planned system expansions, and spare parts programs for existing ControlLogix installations. Lead time and quantity availability are confirmed at the time of RFQ.

A typical smart factory data flow built around the 1756-PA75-powered ControlLogix chassis begins at the field device layer. Sensors — including HART-enabled pressure transmitters and thermocouple inputs — connect to 1756-IF16 analog input modules installed in the chassis. The ControlLogix L85E processor, sustained by the 1756-PA75 backplane supply, executes real-time control algorithms and packages process data into EtherNet/IP producer/consumer tags. These tags are consumed by the 1756-EN2T communication module, which bridges the chassis to the plant EtherNet/IP network.

Downstream, a managed industrial Ethernet switch — such as a Stratix 5700 or Hirschmann RS20 — routes EtherNet/IP traffic to multiple consumers simultaneously: a FactoryTalk View SE HMI server for operator visualization, a FactoryTalk Historian SE server for time-series data archiving, and a Kepware KEPServerEX OPC-UA gateway for third-party SCADA or MES integration. Remote I/O racks — populated with 1734 POINT I/O modules and connected via 1734-AENT EtherNet/IP adapters — extend the I/O footprint to remote field panels without additional controller hardware, all powered and coordinated through the central 1756-PA75 chassis.

For motion control applications, PowerFlex 755 drives receive speed and torque references from the ControlLogix motion controller via EtherNet/IP implicit messaging, with encoder feedback routed back to 1756-M02AE motion modules in the same chassis. The 1756-PA75 ensures that the motion module's real-time clock and axis state data remain synchronized with the controller scan cycle, preventing position errors during high-speed coordinated motion sequences. Alarm events generated by the controller are forwarded via FactoryTalk Alarms and Events to connected HMI terminals and, optionally, to mobile notification systems via the FactoryTalk Edge Gateway cloud connector.

Many industrial sites operating legacy ControlLogix systems face a common set of data challenges: protocol fragmentation across EtherNet/IP, ControlNet, and serial Modbus segments; data silos between PLC islands and SCADA servers; limited remote visibility into controller health and I/O status; and difficulty scaling the control architecture to accommodate new production lines or process units.

The 1756-PA75, as the power foundation of the ControlLogix chassis, directly enables the solutions to these challenges. By maintaining stable backplane power, it allows simultaneous installation of multiple communication modules — including 1756-EN2T for EtherNet/IP, 1756-CN2 for ControlNet, and 1756-DNB for DeviceNet — within a single chassis, effectively consolidating multi-protocol data collection into one controller node. This eliminates the need for standalone protocol converters and reduces the number of network segments that must be independently managed and monitored.

Remote diagnostics are enabled through FactoryTalk Remote Access or Rockwell's ThinManager platform, both of which rely on continuous EtherNet/IP connectivity to the ControlLogix chassis. The 1756-PA75's reliable operation ensures that remote sessions remain stable, allowing maintenance engineers to monitor controller status, review fault logs, and execute online program edits without traveling to the plant floor. For sites implementing IIoT transparency initiatives, the stable power layer provided by the 1756-PA75 is a prerequisite for deploying edge analytics agents that continuously stream controller tag data to cloud dashboards for OEE tracking and predictive maintenance modeling.

Q1: Does the 1756-PA75 support hot-swap replacement in a running ControlLogix system? Yes. The 1756-PA75 is designed for removal and insertion under power (RIUP) in ControlLogix chassis that support this feature. This allows power supply replacement during planned maintenance windows without requiring a full system shutdown, minimizing production downtime in continuous process environments.

Q2: What communication protocols are supported in a ControlLogix system powered by the 1756-PA75? The 1756-PA75 powers the chassis backplane, enabling any combination of installed communication modules to operate simultaneously. Supported protocols include EtherNet/IP (via 1756-EN2T/ENBT), ControlNet (via 1756-CN2), DeviceNet (via 1756-DNB), and PROFIBUS DP (via 1756-PDPS), making the ControlLogix platform suitable for multi-protocol smart factory architectures.

Q3: How does the 1756-PA75 contribute to network stability and data integrity in SCADA-connected systems? By delivering clean, regulated backplane power with minimal ripple, the 1756-PA75 prevents communication module resets and EtherNet/IP connection timeouts that can cause data gaps in SCADA historians and HMI displays. Stable power is a prerequisite for deterministic EtherNet/IP implicit messaging cycles, which are critical for real-time process control and alarm management.

Q4: What warranty and quality assurance does NANKMOS provide for the 1756-PA75? All 1756-PA75 units supplied by NANKMOS carry a 12-Month Warranty and undergo pre-shipment functional testing including input voltage range verification, backplane load testing, and visual inspection. Global stock is available for immediate MRO fulfillment and planned system expansion projects. Contact [email protected] or +86 18359268345 for RFQ and lead time confirmation.
