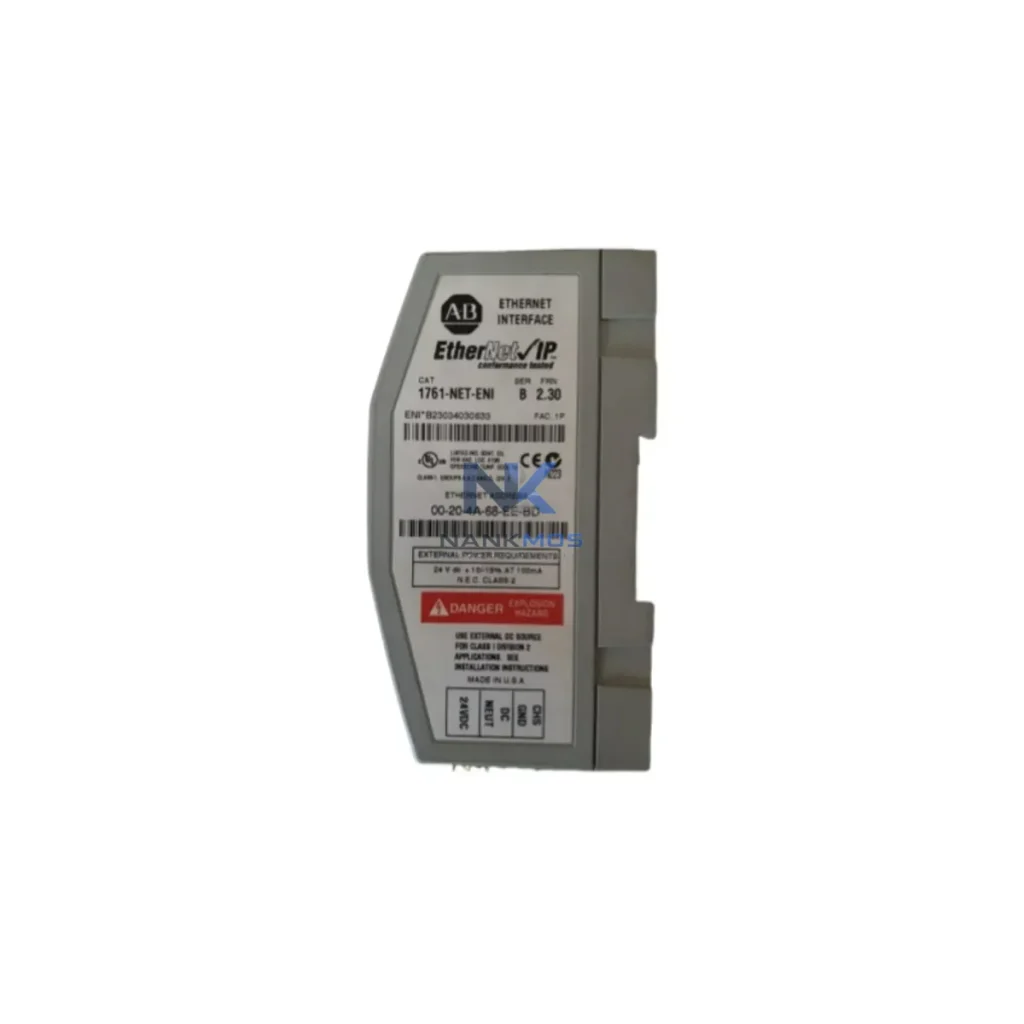

Allen-Bradley 1761-ENT-ENI Ethernet Network Interface

Product Details

1761-ENT-ENI Product Description

The Allen-Bradley 1761-NET-ENI is a dedicated Ethernet network interface module engineered to bridge MicroLogix programmable logic controllers to Ethernet/IP and TCP/IP industrial networks. In modern smart factory environments, where real-time data visibility across field devices, control systems, and supervisory platforms is non-negotiable, the 1761-NET-ENI delivers a reliable, protocol-compliant communication pathway that eliminates the data isolation historically associated with serial-only PLC architectures. By converting the MicroLogix DF1 serial port into a full Ethernet node, this module enables seamless integration into plant-wide SCADA systems, HMI platforms, remote I/O networks, and cloud-connected edge infrastructure — all without replacing the existing controller hardware.

The 1761-NET-ENI sits at the intersection of legacy serial control and modern Ethernet-based automation architecture. In a typical smart factory deployment, field-level signals originate from sensors, proximity switches, and actuators wired directly into a MicroLogix 1200 or MicroLogix 1400 controller. The 1761-NET-ENI connects to the MicroLogix's DF1 serial port and presents the controller as a standard Ethernet/IP node on the plant network — making its data registers immediately accessible to upstream systems without any ladder logic modification.

From the network layer, an industrial managed Ethernet switch — such as those in the Stratix 2000 or Stratix 5700 series — routes the controller's data packets across the facility backbone. SCADA platforms like FactoryTalk View SE or Ignition by Inductive Automation can then poll the MicroLogix in real time, reading process variables, alarm states, and production counters at scan rates suitable for line-speed monitoring. Simultaneously, FactoryTalk Historian or equivalent data historians archive time-stamped values for trend analysis and OEE reporting.

Where the automation architecture includes remote I/O expansion, the 1761-NET-ENI enables the MicroLogix to participate in broader network topologies alongside POINT I/O modules (1734 series) and FLEX I/O (1794 series) connected via EtherNet/IP. This allows a single SCADA session to aggregate data from distributed I/O nodes, the MicroLogix controller, and higher-level CompactLogix or ControlLogix systems — all on a unified Ethernet segment. Variable frequency drives such as the PowerFlex 525 or PowerFlex 40 can be monitored on the same network, with speed references, fault codes, and energy consumption data flowing into the same HMI display as the MicroLogix process values.

For edge connectivity and remote diagnostics, the 1761-NET-ENI-equipped MicroLogix can be reached through an industrial edge gateway — for example, a Moxa MGate or Ewon Flexy — that tunnels Ethernet/IP traffic securely over cellular or VPN connections. This enables maintenance engineers to perform remote program uploads, register reads, and fault diagnostics from off-site locations without requiring physical access to the panel. Alarm notifications generated by the MicroLogix can be forwarded through the SCADA layer to mobile dashboards or email alert systems, closing the loop on remote incident response.

Panel-level HMI terminals — including PanelView 800 and PanelView Plus 7 — connect directly to the same Ethernet segment, displaying real-time process data sourced from the MicroLogix via the 1761-NET-ENI. Operators gain live visibility into machine states, setpoint values, and production metrics without the latency or reliability limitations of serial RS-232 connections. The result is a fully networked, data-transparent automation cell that integrates seamlessly into plant-wide MES and ERP data pipelines.

Protocol Fragmentation: Many brownfield facilities run MicroLogix controllers that were originally commissioned with serial DF1 or DH-485 communications. These controllers are invisible to modern Ethernet/IP-based SCADA and HMI systems. The 1761-NET-ENI resolves this by acting as a transparent protocol bridge — the MicroLogix retains its existing program and I/O configuration while gaining full Ethernet/IP addressability. No controller replacement, no re-commissioning, no production downtime for migration.

Data Silos and Production Transparency: Without network connectivity, MicroLogix data remains trapped at the machine level. Supervisors and process engineers have no real-time view of cycle counts, fault histories, or energy consumption. By connecting the 1761-NET-ENI to the plant Ethernet backbone, all MicroLogix data registers become available to SCADA, historian, and MES systems — enabling production dashboards, shift reports, and KPI tracking that were previously impossible without manual data collection.

Remote Monitoring and Alarm Tracking: Unplanned downtime caused by undetected faults is a persistent cost driver in discrete manufacturing. The 1761-NET-ENI enables continuous remote polling of MicroLogix status bits and alarm registers. When a fault condition is detected, the SCADA system can trigger automated notifications, log the event with a precise timestamp, and initiate a remote diagnostic session — reducing mean time to repair (MTTR) and minimising production loss.

System Scalability: As production lines expand, additional MicroLogix controllers equipped with 1761-NET-ENI modules can be added to the Ethernet network without architectural changes. Each new node is immediately discoverable by the SCADA system, and its data can be incorporated into existing dashboards and historian databases. This plug-and-extend scalability supports phased smart factory upgrades without the capital expenditure of full controller replacement programmes.

Q1: Does the 1761-NET-ENI introduce communication latency that could affect real-time control? The 1761-NET-ENI is designed for supervisory data exchange, not deterministic I/O control. It operates as a messaging interface between the MicroLogix serial port and the Ethernet network, with typical response times suitable for SCADA polling, HMI display updates, and remote diagnostics. Time-critical I/O control remains handled by the MicroLogix controller's local scan cycle, which is unaffected by the network interface module.

Q2: Which SCADA and HMI platforms are compatible with the 1761-NET-ENI? The 1761-NET-ENI exposes the MicroLogix as an Ethernet/IP and TCP/IP node, making it compatible with any SCADA or HMI platform that supports these protocols — including FactoryTalk View SE, FactoryTalk View ME, Ignition, Wonderware (AVEVA System Platform), Citect SCADA, and most third-party HMI terminals with Ethernet/IP or DF1 Ethernet drivers. RSLinx Classic and RSLinx Enterprise are the recommended Rockwell Automation communication servers for this interface.

Q3: Can the 1761-NET-ENI be used in multi-controller network architectures alongside CompactLogix or ControlLogix systems? Yes. The 1761-NET-ENI places the MicroLogix on the same Ethernet/IP network segment as CompactLogix (1769-L series) and ControlLogix (1756-L series) controllers. SCADA systems and data historians can poll all controllers simultaneously. MSG instructions from a ControlLogix can also read or write MicroLogix data registers through the 1761-NET-ENI, enabling peer-to-peer data exchange across controller families on a unified network.

Q4: What does the 12-Month Warranty cover, and how is the unit tested before shipment? Every 1761-NET-ENI unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each unit undergoes functional verification including Ethernet port connectivity testing, serial communication validation, and firmware version confirmation. Units are shipped in anti-static packaging with full documentation. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
