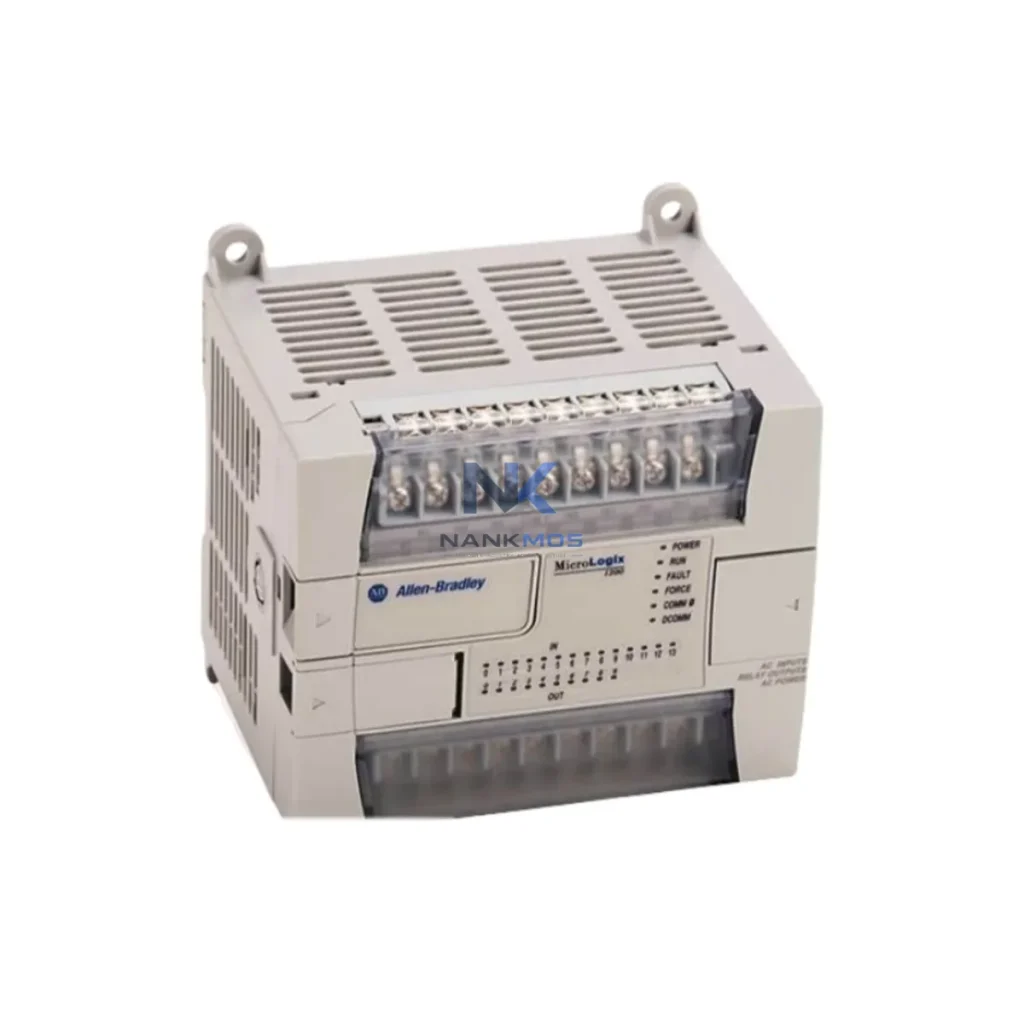

Allen-Bradley 1762-L24BXBR Programmable Logic Controller

Product Details

1762-L24BXBR Product Description

The Allen-Bradley 1762-L24BXBR is a MicroLogix 1200 series programmable logic controller engineered for energy-conscious industrial environments. With 24 I/O points, a compact DIN-rail footprint, and native support for ladder logic and function block programming, this controller delivers precise load management and cycle-time optimization across a wide range of production line applications. Whether deployed in discrete manufacturing, material handling, or process control, the 1762-L24BXBR reduces unnecessary actuator dwell time, minimizes idle-state power draw, and enables deterministic control loops that keep energy consumption aligned with actual production demand.

Every unit shipped by NANKMOS is pre-shipment tested against Allen-Bradley factory specifications, verified for I/O integrity, communication response, and program execution timing. In-stock availability ensures minimal lead time for maintenance replacements or new line commissioning. All units carry a 12-month warranty covering hardware defects and functional failures under normal operating conditions.

The 1762-L24BXBR achieves its energy efficiency advantage through tight integration with the surrounding automation ecosystem. When paired with a PowerFlex 525 variable frequency drive, the controller issues speed-reference commands proportional to actual load demand, eliminating the fixed-speed motor losses that account for a significant share of factory energy waste. The relay outputs directly switch motor contactors and solenoid valves only when process conditions require actuation, reducing reactive power and heat generation in the control panel.

On the sensing side, the controller accepts discrete signals from photoelectric sensors, inductive proximity switches, and pressure transducers wired to its 14 DC input channels. This real-time feedback loop allows the program to suppress conveyor drives, cooling fans, and pneumatic actuators during line stoppages or low-throughput windows — a strategy that measurably reduces peak demand charges. For analog process variables such as flow rate or tank level, an expansion module such as the 1762-IF4 analog input module extends the platform's monitoring capability without requiring a larger controller chassis.

Communication is handled through the onboard RS-232 port, which supports DF1 full-duplex, DH-485 multi-drop, and Modbus RTU protocols. This makes the 1762-L24BXBR directly addressable from a SCADA system or an energy management platform, enabling supervisory-level load shedding commands and real-time KWh trending. A 1761-NET-AIC Advanced Interface Converter can bridge the controller onto a DH-485 network alongside other MicroLogix nodes, while a third-party Modbus TCP gateway extends visibility to Ethernet-based HMI panels and MES platforms.

For operator interaction at the machine level, a PanelView Component C400 or C600 HMI can be connected via the RS-232 port to display cycle counts, fault codes, and energy consumption trends. Maintenance technicians can use RSLogix 500 programming software to adjust setpoints, tune timer values, and review data file trends without interrupting production — a capability that supports both planned maintenance windows and rapid fault recovery.

Factory energy audits consistently identify three primary waste sources: motors running at full speed under partial load, actuators held energized during idle periods, and control systems that lack the granularity to distinguish productive from non-productive machine states. The 1762-L24BXBR addresses all three through its deterministic scan cycle and flexible output control logic.

By implementing time-based and event-based output suppression in the ladder program, engineers can configure the controller to de-energize conveyor drives, indexing actuators, and auxiliary cooling systems whenever upstream sensors detect a line stoppage or buffer-full condition. This demand-responsive approach reduces energy consumption during shift changes, scheduled breaks, and unplanned stoppages — periods that can account for 15–30% of total machine runtime in high-mix production environments.

Thermal load management is a secondary benefit. Relay outputs that switch only on demand generate less heat than continuously energized solid-state outputs under partial load, reducing the cooling requirement for the control enclosure and extending the service life of adjacent components including terminal blocks, wiring insulation, and the controller's own power supply section. Lower enclosure temperatures also reduce the risk of nuisance trips caused by thermal expansion of mechanical relay contacts.

Predictive maintenance integration is achievable by logging relay output cycle counts and input signal transition frequencies to the controller's data files. These values can be polled by a SCADA system via Modbus RTU to build wear-trend baselines for connected actuators and sensors. When cycle counts approach maintenance thresholds, the system can generate early warnings that allow planned replacement during scheduled downtime rather than reactive repair during production — a shift that directly improves Overall Equipment Effectiveness (OEE) and reduces the energy penalty associated with unplanned restart sequences.

NANKMOS maintains in-stock inventory of the 1762-L24BXBR to support both planned commissioning projects and urgent maintenance replacements. Each unit undergoes pre-shipment functional testing covering I/O point verification, communication port handshake, and program load/execute cycles. The 12-month warranty provides assurance for both OEM integrators building new equipment and end-users replacing controllers in existing installations.

Q1: What energy savings can I realistically expect by deploying the 1762-L24BXBR on an existing production line? Actual savings depend on the baseline control strategy and the proportion of runtime spent in idle or partial-load states. Lines that currently use fixed-speed drives and continuously energized outputs typically see 10–25% reductions in machine-level energy consumption after implementing demand-based output control logic in the MicroLogix 1200 program. Pairing the controller with a PowerFlex variable frequency drive on motor-driven axes amplifies these savings further.

Q2: Is the 1762-L24BXBR compatible with my existing SCADA or energy management system? Yes. The onboard RS-232 port supports Modbus RTU, which is natively supported by most SCADA platforms including Wonderware, Ignition, and iFIX. For Ethernet-based systems, a Modbus RTU-to-TCP gateway bridges the controller onto the plant network. DF1 and DH-485 protocols are also available for integration with existing Allen-Bradley networks managed through RSLinx Classic.

Q3: Can this controller replace an older MicroLogix 1000 or 1100 unit without reprogramming? The 1762-L24BXBR is instruction-set compatible with other MicroLogix platforms. Programs developed in RSLogix 500 for MicroLogix 1000 or 1100 controllers can typically be imported and adapted with minimal modification. I/O wiring should be verified against the 1762-L24BXBR terminal layout before cutover. NANKMOS recommends a bench test of the adapted program prior to installation.

Q4: What does the 12-month warranty cover, and how does NANKMOS handle warranty claims? The 12-month warranty covers hardware defects and functional failures under normal operating conditions, including I/O point failures, communication port faults, and power supply section failures. It does not cover damage caused by incorrect wiring, overvoltage events, or physical impact. To initiate a warranty claim, contact NANKMOS at [email protected] with the unit serial number and a description of the fault. Replacement units are dispatched from in-stock inventory to minimize downtime.
