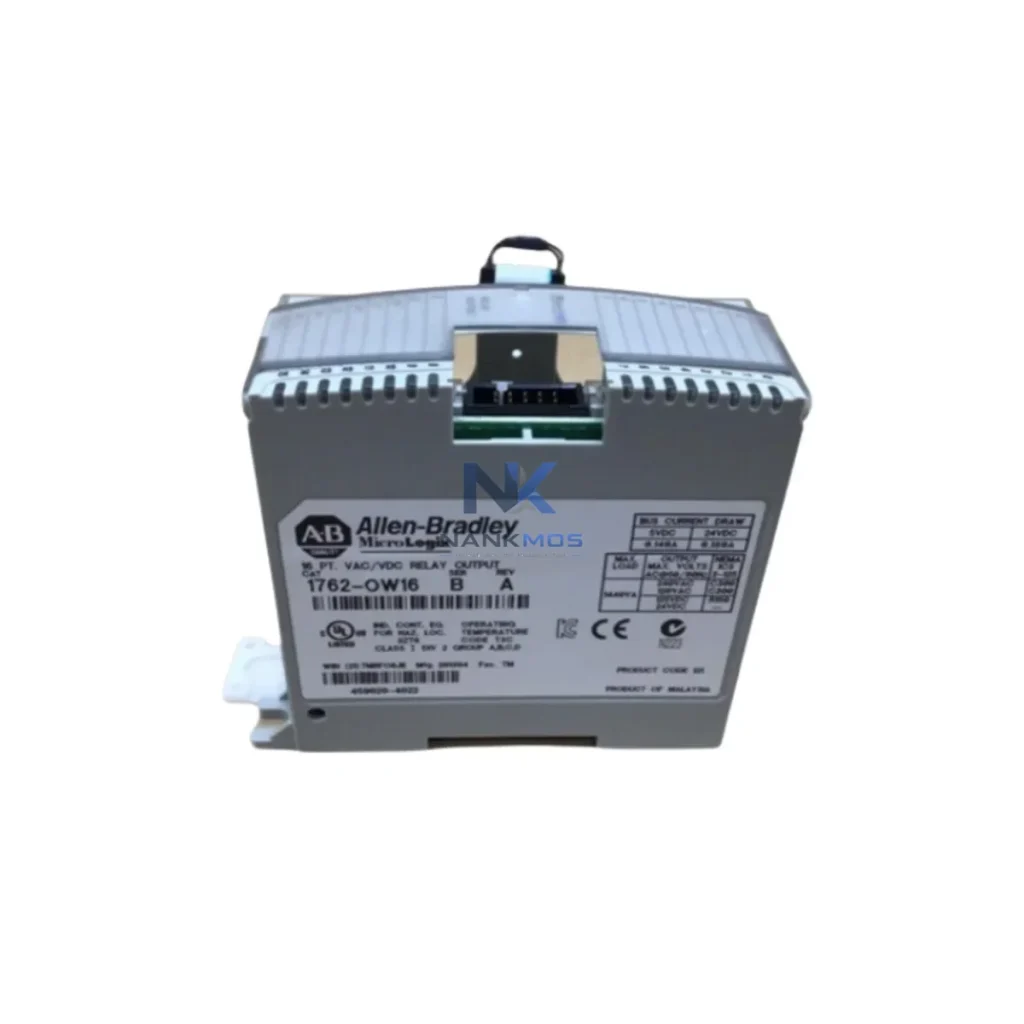

Allen-Bradley 1762-OW16 Relay Output Module

Product Details

1762-OW16 Product Description

The Allen-Bradley 1762-OW16 is a 16-point relay output module engineered for the MicroLogix 1200 and MicroLogix 1500 platform, delivering precise load switching and energy-aware output control across demanding industrial environments. Designed to minimize unnecessary power cycling and reduce thermal stress on connected actuators, the 1762-OW16 plays a central role in energy-efficient automation architectures where every switching event must be purposeful, measurable, and aligned with production line throughput targets.

With isolated relay contacts rated for both AC and DC loads, the 1762-OW16 provides the flexibility to interface with a wide range of field devices — from solenoid valves and motor starters to indicator panels and safety interlocks — without introducing cross-circuit interference or excessive standby draw. Its compact MicroLogix expansion form factor allows seamless integration into existing control cabinets, reducing wiring complexity and the associated energy losses from oversized or redundant output infrastructure.

In a well-structured energy-conscious control architecture, the 1762-OW16 operates as the final switching layer between the MicroLogix 1200 or 1500 CPU and the field load network. The MicroLogix 1200 CPU module executes the ladder logic that governs when each of the 16 relay outputs energizes, ensuring that loads are activated only when process conditions demand it — eliminating the idle-state energy draw that accumulates across multi-shift production schedules.

Upstream, a 1762-IQ16 digital input module feeds real-time process signals — limit switches, proximity sensors, and pushbutton states — back to the CPU, enabling closed-loop output control that responds to actual machine state rather than fixed timers. This feedback-driven approach directly reduces unnecessary relay cycling, extending contact life and lowering the thermal load within the control enclosure.

For applications requiring analog process feedback, the 1762-IF4 analog input module can be paired alongside the 1762-OW16 to monitor current draw, temperature, or pressure signals, allowing the MicroLogix program to implement demand-based load switching. When integrated with a PowerFlex 525 variable frequency drive on motor-driven loads, the relay outputs from the 1762-OW16 can manage bypass contactors, brake release signals, and auxiliary power circuits — coordinating with the drive's own energy-saving algorithms to minimize peak demand.

Communication to supervisory systems is handled via the MicroLogix 1500's built-in RS-232 DF1 port or an optional 1761-NET-ENI Ethernet interface, enabling the 1762-OW16's output states to be monitored in real time by a FactoryTalk View SE HMI or a SCADA platform. Operators can visualize load status, identify circuits with abnormal switching frequency, and implement remote load-shedding routines without physical intervention on the production floor.

For distributed I/O architectures, the 1762-OW16 can be deployed as a remote expansion node alongside a 1762-OB16 transistor output module, segmenting high-frequency switching loads (handled by solid-state outputs) from low-frequency, high-current relay-switched loads — a topology that reduces heat generation and improves overall panel energy efficiency. A 1606-XLP power supply provides stable, low-ripple 24V DC backplane power to the entire 1762 expansion rack, ensuring that relay coil actuation does not introduce voltage transients that could affect adjacent analog or communication modules.

Factory energy audits consistently identify uncontrolled output switching as a primary source of avoidable energy waste. The 1762-OW16, when programmed with structured load management logic in the MicroLogix environment, enables production engineers to implement time-of-use load scheduling, staggered motor start sequences, and automatic de-energization of non-critical circuits during planned downtime windows — all without hardware changes.

The module's relay contact isolation architecture means that leakage current — a persistent issue with solid-state output modules in high-impedance load circuits — is eliminated. This is particularly valuable in applications where sensitive instrumentation shares a common power rail with switched inductive loads, as relay isolation prevents the low-level interference that can corrupt sensor readings and trigger nuisance faults in downstream control loops.

From a thermal management perspective, the 1762-OW16's 2.9W backplane consumption is among the lowest in its output class, contributing minimally to cabinet heat load. In high-density panel designs where thermal budget is constrained, this allows engineers to add output capacity without upgrading enclosure cooling infrastructure — a direct capital and operating cost saving.

Predictive maintenance integration is supported through the MicroLogix program's ability to count relay actuations per output point. By logging switching cycles against manufacturer-rated contact life, maintenance teams can schedule proactive module replacement before contact degradation causes unplanned downtime — a practice that protects production line throughput and avoids the energy inefficiency of emergency restart sequences.

NANKMOS maintains ready inventory of the 1762-OW16 to support rapid replacement scenarios. All units undergo pre-shipment functional testing across all 16 output points under rated load conditions, with contact resistance and isolation integrity verified before dispatch. A 12-month warranty covers all units against manufacturing defects, providing procurement teams with the confidence to standardize on this module across multi-line installations.

Q1: How does the 1762-OW16 contribute to measurable energy savings on a production line? The 1762-OW16 enables the MicroLogix controller to implement demand-driven output switching — loads are energized only when process logic requires it. Combined with staggered start sequences and automatic de-energization during idle periods, facilities typically report a reduction in unnecessary relay actuation cycles and associated inductive switching losses. The hard-contact relay architecture also eliminates the leakage current present in solid-state alternatives, which accumulates to measurable waste across large I/O counts.

Q2: Is the 1762-OW16 compatible with both MicroLogix 1200 and MicroLogix 1500 systems? Yes. The 1762-OW16 is a standard 1762 expansion module compatible with both the MicroLogix 1200 and MicroLogix 1500 platforms. It connects via the 1762 expansion bus and is recognized automatically by RSLogix 500 / Studio 5000 Logix Designer during I/O configuration. No additional hardware adapters are required.

Q3: What is the recommended replacement or upgrade path if higher switching frequency is required? For applications requiring switching frequencies above the relay's rated cycle life, the 1762-OB16 transistor output module is the recommended solid-state alternative within the same 1762 expansion family. For applications requiring both relay and transistor outputs in a single rack, a mixed I/O configuration using both modules is fully supported by the MicroLogix platform.

Q4: What testing and warranty coverage does NANKMOS provide for the 1762-OW16? Every 1762-OW16 unit shipped by NANKMOS undergoes pre-shipment testing across all 16 relay output points, verifying contact closure, isolation resistance, and backplane communication integrity. Units are covered by a 12-month warranty against manufacturing defects from the date of shipment. In-stock units are available for same-week dispatch to minimize production line downtime exposure.
