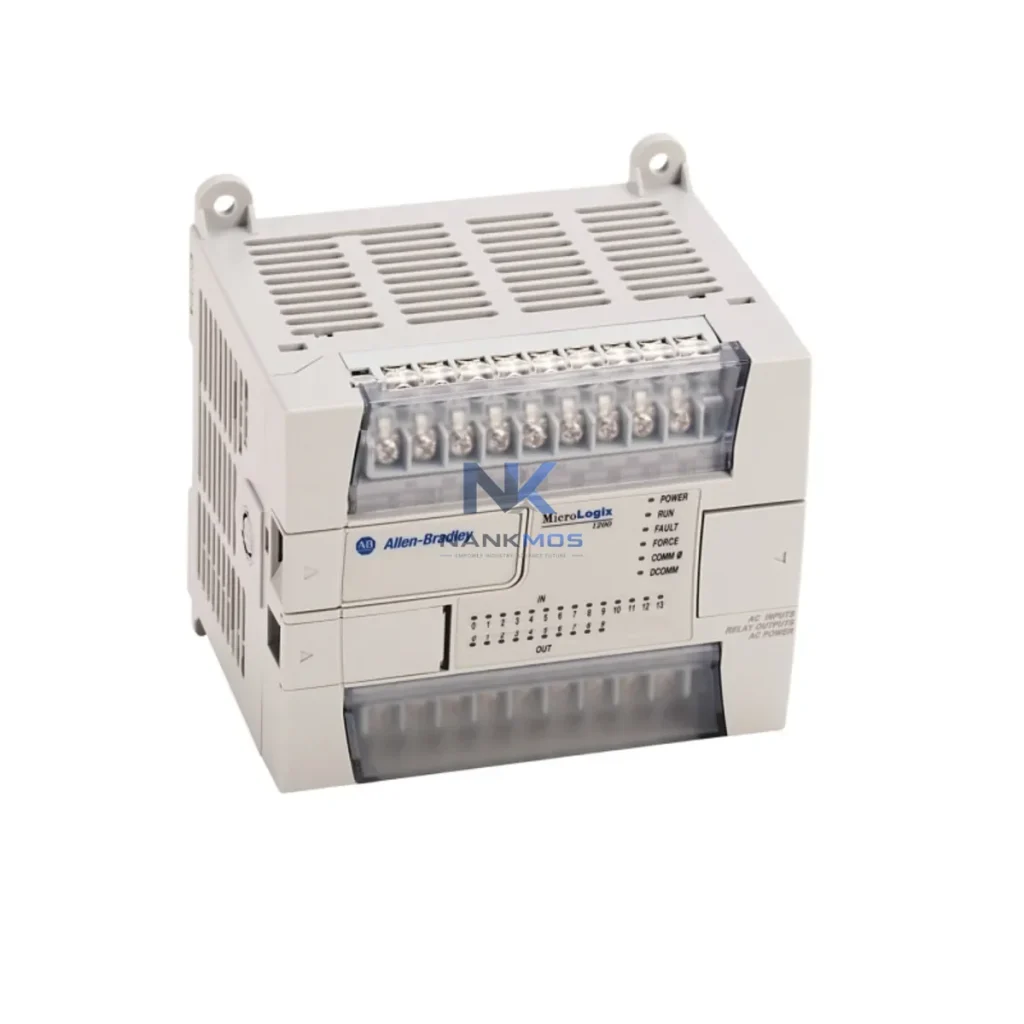

Allen-Bradley 1763-L16DWD Programmable Logic Controller

Product Details

1763-L16DWD Product Description

The Allen-Bradley 1763-L16DWD is a MicroLogix 1100 series programmable logic controller engineered for seamless industrial network integration across modern smart factory environments. Combining onboard Ethernet/IP communication with DH-485 and Modbus RTU protocol support, this compact PLC serves as a critical data link between field-level devices and upper-layer control systems — enabling real-time signal acquisition, protocol conversion, and continuous data flow from the machine floor to SCADA and MES platforms.

In today's connected production environments, the 1763-L16DWD functions as more than a standalone controller. It acts as a network-aware automation node capable of bridging legacy serial devices with modern Ethernet-based architectures. Whether deployed in discrete manufacturing, process control, or utility monitoring applications, this unit delivers the communication reliability and protocol flexibility that smart factory data pipelines demand.

From sensor-level signal capture through to HMI visualization and remote diagnostic access, the 1763-L16DWD supports the full data chain required for transparent, responsive, and scalable industrial operations. All units are pre-shipment tested and backed by a 12-month warranty, with verified stock available for immediate global dispatch.

The 1763-L16DWD is designed to operate at the intersection of field instrumentation and plant-wide network infrastructure. In a typical smart factory deployment, the data flow begins at the sensor and actuator layer — where proximity switches, temperature transmitters, pressure transducers, and motor feedback signals are wired directly into the controller's 10 DC input channels. The onboard ladder logic engine processes these signals in real time, executing control decisions at scan cycle speeds appropriate for discrete and light process applications.

At the network layer, the 1763-L16DWD's Ethernet/IP port connects directly to managed industrial Ethernet switches — such as the Stratix 2000 or Stratix 5700 series — enabling the controller to participate in a plant-wide EtherNet/IP network alongside other Allen-Bradley assets. This allows seamless peer-to-peer messaging with CompactLogix L-series controllers, ControlLogix L7x platforms, and PowerFlex 525 or PowerFlex 755 variable frequency drives, all sharing a common network backbone without requiring additional protocol conversion hardware.

For legacy device integration, the DH-485 port enables the 1763-L16DWD to communicate with older SLC 500 series controllers, Panel View 300 or Panel View 600 HMI terminals, and DH-485-compatible remote I/O adapters. This backward compatibility is essential in brownfield automation sites where capital equipment cannot be immediately replaced, yet data transparency across the full production line is required for OEE tracking and predictive maintenance programs.

The Modbus RTU capability extends connectivity further — allowing the 1763-L16DWD to poll energy meters, variable speed drives from third-party vendors, and serial-based sensors that remain common in utilities, water treatment, and building automation applications. Data collected via Modbus is mapped into the controller's data table and made available upstream via Ethernet/IP, effectively acting as a lightweight protocol gateway without additional middleware.

At the SCADA and MES layer, RSLinx Classic or RSLinx Enterprise provides the OPC-DA or OPC-UA data bridge between the 1763-L16DWD and supervisory platforms such as FactoryTalk View SE, Ignition SCADA, or Wonderware System Platform. Tag data — including I/O states, counter values, timer accumulations, and analog process variables — is published to the SCADA server at configurable polling rates, enabling real-time dashboards, alarm management, and historical trending. For remote diagnostic access, the Ethernet/IP port supports MSG instruction-based communication, allowing engineers to read and write controller data from remote Studio 5000 sessions without physical access to the panel.

Edge computing integration is also supported: the 1763-L16DWD can feed data to edge gateways such as the Moxa MGate series or Advantech ADAM-3600, which aggregate multi-node data streams and forward processed datasets to cloud analytics platforms or on-premise data historians. This positions the 1763-L16DWD as a capable node within IIoT-enabled architectures, contributing real-time machine data to digital twin models and AI-driven process optimization systems.

One of the most persistent challenges in industrial automation is protocol fragmentation — production lines that combine equipment from multiple vendors, each communicating over incompatible networks. The 1763-L16DWD addresses this directly by supporting three distinct communication protocols within a single compact housing. Sites running mixed Ethernet/IP and Modbus RTU environments no longer require dedicated protocol converters at every node; the controller itself bridges these domains, reducing panel complexity and potential failure points.

Data silos — isolated machines or production cells that cannot share status information with plant-wide systems — are eliminated when the 1763-L16DWD is deployed as the local controller. Its Ethernet/IP connectivity ensures that every I/O point, counter, and process variable is accessible to SCADA, MES, and ERP systems in real time. This transparency supports production line visibility initiatives, enabling shift supervisors and plant managers to monitor OEE metrics, cycle counts, and fault histories without relying on manual data collection.

Remote monitoring and diagnostics are critical for reducing unplanned downtime. The 1763-L16DWD supports remote program upload/download and online monitoring via RSLogix 500 or Studio 5000 over Ethernet, allowing maintenance engineers to diagnose faults, adjust setpoints, and verify I/O states from a central engineering workstation or even a secure remote connection. Alarm tracking is managed through the SCADA layer, with fault codes and I/O status changes logged with timestamps for root cause analysis and compliance reporting.

System scalability is addressed through the MicroLogix 1100's expansion capability. Additional I/O can be added via 1762-series expansion modules — including analog input modules for temperature or pressure monitoring, and additional digital I/O for expanded machine control — without replacing the base controller. This modular approach protects capital investment while allowing production capacity to grow incrementally.

Q1: Does the 1763-L16DWD support simultaneous Ethernet/IP and Modbus RTU communication?Yes. The 1763-L16DWD can operate Ethernet/IP on its RJ-45 port and Modbus RTU on its RS-232/RS-485 serial port concurrently. This allows the controller to collect data from serial field devices while simultaneously publishing that data upstream to an Ethernet/IP network or SCADA system, without requiring additional gateway hardware.

Q2: What is the maximum network latency for real-time data exchange over Ethernet/IP?In standard Ethernet/IP implicit messaging (I/O messaging) configurations, the 1763-L16DWD supports requested packet intervals (RPI) as low as 10 ms, suitable for most discrete control and monitoring applications. For time-critical applications, network infrastructure quality — including managed switches with QoS configuration — should be evaluated to minimize jitter and packet loss.

Q3: Is the 1763-L16DWD compatible with third-party SCADA platforms beyond FactoryTalk?Yes. Via RSLinx Classic or RSLinx Enterprise acting as an OPC-DA/OPC-UA server, the 1763-L16DWD is compatible with any OPC-compliant SCADA or HMI platform, including Ignition by Inductive Automation, Wonderware (AVEVA System Platform), Citect SCADA, and WinCC. Direct Modbus TCP polling is also supported by many third-party platforms.

Q4: What pre-shipment testing and warranty coverage is provided?Every 1763-L16DWD unit supplied by NANKMOS undergoes functional pre-shipment testing, including communication port verification, I/O channel validation, and firmware version confirmation. All units are covered by a 12-month warranty from the date of shipment, with technical support available for integration, configuration, and fault diagnosis throughout the warranty period.
