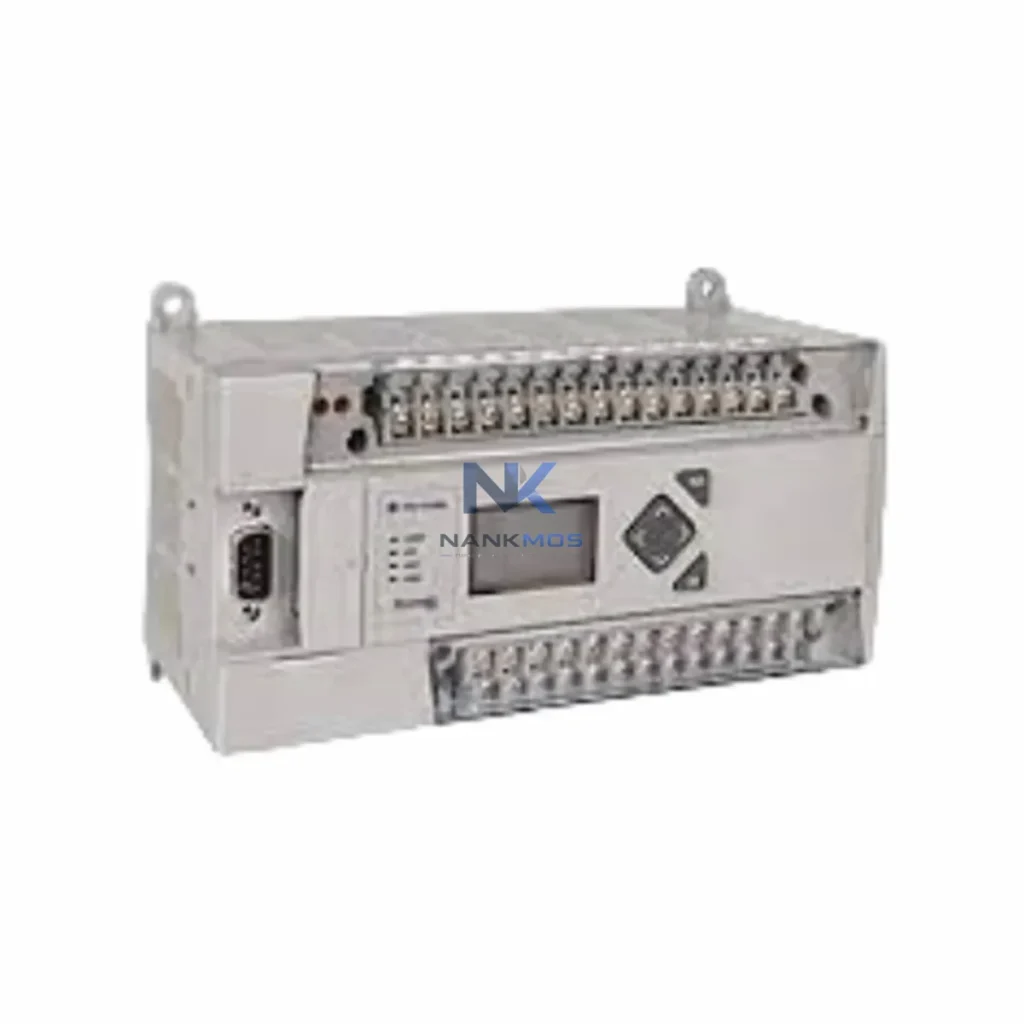

Allen-Bradley 1766-L32BWA PLC Controller

Product Details

1766-L32BWA Product Description

The Allen-Bradley 1766-L32BWA is a high-performance MicroLogix 1400 series programmable logic controller engineered for energy-conscious industrial environments. Designed to deliver precise load management, real-time motor control, and adaptive drive coordination, this controller serves as the intelligent core of smart production lines where energy efficiency and operational continuity are non-negotiable. With its compact form factor and robust I/O architecture, the 1766-L32BWA enables manufacturers to reduce unnecessary power consumption, minimize thermal load on control panels, and sustain consistent production throughput across demanding duty cycles.

Built on Allen-Bradley's proven MicroLogix platform, the 1766-L32BWA integrates seamlessly into existing Rockwell Automation control architectures. Its onboard Ethernet port supports EtherNet/IP communication, enabling direct data exchange with SCADA systems, energy management platforms, and supervisory HMI terminals. This connectivity allows plant engineers to monitor real-time power draw, track load trends, and implement demand-response strategies without additional gateway hardware. The controller's embedded analog and digital I/O channels provide direct interfacing with power monitoring modules, current transformers, and field sensors, giving the system a complete picture of energy consumption at the machine level.

Effective energy management in modern production facilities requires more than a capable controller — it demands a coordinated ecosystem of intelligent components working in concert. The 1766-L32BWA is designed to operate as the central decision-making node within such an ecosystem. When paired with a PowerFlex 525 variable frequency drive, the controller can issue speed reference commands based on real-time load feedback, ensuring that motors operate at optimal efficiency points rather than fixed full-speed settings. This dynamic drive coordination alone can reduce motor energy consumption by 20–40% in variable-torque applications such as fans, pumps, and conveyors.

For power quality monitoring, the 1766-L32BWA interfaces directly with Allen-Bradley PowerMonitor 500 units via RS-485 Modbus RTU, enabling continuous acquisition of voltage, current, power factor, and harmonic distortion data. This data feeds into the controller's ladder logic routines, which can trigger load-shedding sequences, alert operators via a PanelView Component HMI, or log events to a connected FactoryTalk View SCADA platform. The integration of 1492-AIFM analog interface modules extends the controller's reach to field-level sensors, including temperature transmitters and pressure transducers that signal thermal stress conditions before they escalate into unplanned downtime.

In multi-axis motion environments, the 1766-L32BWA coordinates with Kinetix 300 servo drives through pulse-train or analog reference outputs, synchronizing axis movement to minimize simultaneous peak current draw — a key strategy for reducing demand charges on industrial power tariffs. The controller's high-speed counter inputs also support direct connection to incremental encoders and proximity sensors, enabling precise cycle-time measurement and production rate optimization without additional counting modules. When integrated with a 1769-L33ER CompactLogix controller in a distributed architecture, the MicroLogix 1400 can serve as a remote I/O concentrator, offloading field-level data acquisition and local interlocking from the primary controller to reduce network latency and improve system responsiveness.

Communication flexibility is a defining strength of the 1766-L32BWA. Its dual-port RS-232/RS-485 interface supports simultaneous connection to a barcode scanner or RFID reader on one port and a remote I/O expansion module such as the 1762-IQ16 on the other, enabling tool identification and energy zone mapping within a single controller scan. EtherNet/IP connectivity allows the unit to publish energy data tags directly to a Kepware OPC-UA server, bridging the gap between the plant floor and enterprise energy management systems without custom middleware.

Production line energy optimization is not a single-point intervention — it is a continuous process of measurement, analysis, and adaptive control. The Allen-Bradley 1766-L32BWA supports this process at every stage. During startup sequences, the controller implements soft-start logic that staggers motor energization across multiple zones, preventing inrush current spikes that stress power distribution infrastructure and inflate peak demand billing. During steady-state operation, the controller monitors cycle times against target throughput rates and adjusts conveyor speeds, actuator dwell times, and pneumatic valve sequences to eliminate idle energy consumption between production cycles.

Thermal load management is addressed through the controller's ability to monitor cabinet temperature via analog input channels connected to PT100 resistance temperature detectors. When ambient temperatures approach threshold limits, the 1766-L32BWA can activate cooling fans, reduce drive output frequencies, or initiate controlled shutdowns of non-critical loads — all without operator intervention. This proactive thermal management extends the service life of power semiconductors in connected drives and reduces the frequency of heat-related component failures that cause unplanned production stoppages.

Predictive maintenance integration is another dimension of the 1766-L32BWA's energy optimization capability. By logging motor run-hours, start counts, and fault events to onboard data files, the controller builds a historical record that maintenance teams can analyze to identify degrading components before they fail. Vibration data from 4–20 mA accelerometer transmitters connected to the analog inputs can be trended over time, providing early warning of bearing wear in pumps and fans that would otherwise consume increasing amounts of energy as mechanical efficiency declines. This data-driven maintenance approach reduces both energy waste and spare parts consumption, contributing to a lower total cost of ownership over the equipment lifecycle.

All units are sourced from verified supply channels, pre-shipment tested under operational conditions, and backed by a 12-Month Warranty. Stock is maintained for immediate dispatch, supporting both planned procurement schedules and urgent replacement requirements in active production environments.

Q1: How does the 1766-L32BWA contribute to measurable energy savings on a production line? The 1766-L32BWA enables demand-based load control, motor speed optimization via VFD coordination, and idle-state output suppression. When integrated with power monitoring modules and configured with energy-aware ladder logic, facilities typically observe reductions in peak demand charges and overall kWh consumption within the first operational quarter.

Q2: Is the 1766-L32BWA compatible with third-party drives, HMIs, and SCADA systems? Yes. The controller supports Modbus RTU over RS-485, DF1 over RS-232, and EtherNet/IP, making it compatible with a broad range of third-party variable frequency drives, HMI terminals, and SCADA platforms. Native compatibility with Rockwell Automation components such as PowerFlex drives and PanelView HMIs provides the tightest integration with the least configuration overhead.

Q3: What is the recommended replacement or upgrade path for aging MicroLogix 1000 or 1100 installations? The 1766-L32BWA is a direct functional upgrade from MicroLogix 1000 and 1100 controllers, offering expanded I/O capacity, EtherNet/IP connectivity, and enhanced analog capabilities. Program migration is supported via RSLogix 500, and the physical footprint is compatible with standard DIN rail mounting in existing control panels, minimizing retrofit costs.

Q4: What testing and warranty coverage is provided with each unit? Every 1766-L32BWA unit undergoes pre-shipment functional testing covering I/O channel verification, communication port integrity, and power supply performance. Each unit is covered by a 12-Month Warranty from the date of shipment. In-stock units are available for same-day or next-business-day dispatch to minimize production downtime during emergency replacements.
