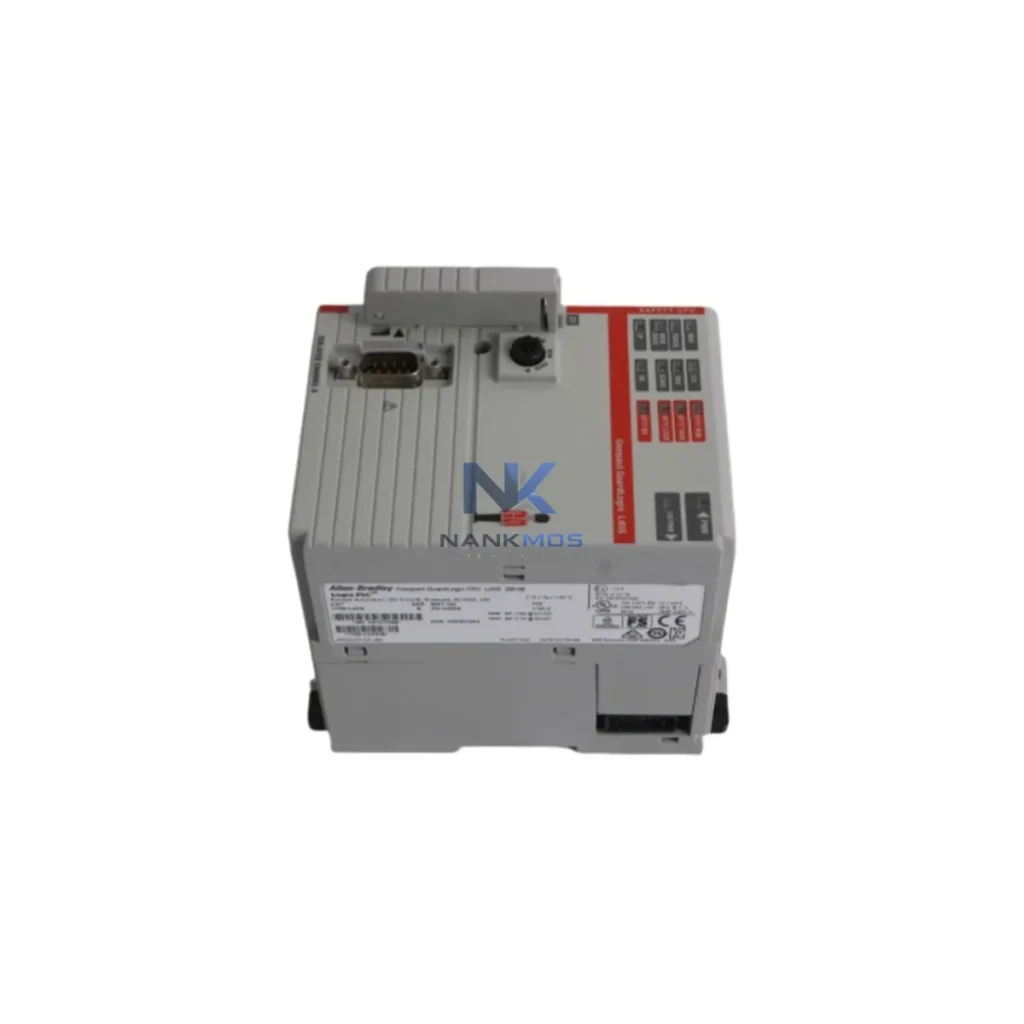

Allen-Bradley 1768-L45 PLC Controller

Product Details

1768-L45 Product Description

The Allen-Bradley 1768-L45 is a high-performance CompactLogix programmable logic controller engineered for demanding industrial network environments where real-time data integrity, protocol interoperability, and seamless SCADA/HMI integration are non-negotiable. As a core node in the Rockwell Automation CompactLogix 1768 series, the 1768-L45 delivers the processing power and communication bandwidth required to anchor a fully connected smart factory data chain — from field-level sensor acquisition through to enterprise-level data visualisation and remote diagnostics.

In modern industrial automation sites, the controller is no longer simply a logic executor. It is the central data broker between field devices, remote I/O networks, HMI panels, SCADA platforms, variable frequency drives, edge gateways, and upstream MES or ERP systems. The 1768-L45 fulfils this role with native EtherNet/IP connectivity, supporting both implicit (I/O) and explicit (information) messaging across a standard Ethernet backbone — eliminating the need for proprietary cabling and enabling direct integration with plant-wide Ethernet infrastructure.

The 1768-L45 sits at the intersection of field-level signal acquisition and plant-wide data distribution. Understanding its role requires tracing the full data chain from sensor to system.

Signal Acquisition Layer: At the field level, distributed sensors — including proximity switches, pressure transmitters, temperature probes, and photoelectric detectors — feed analogue and digital signals into local I/O modules. The 1768-L45 interfaces directly with 1769 CompactLogix I/O modules (such as the 1769-IQ16 digital input and 1769-OF4 analogue output modules) mounted on the same chassis, providing deterministic scan-cycle processing of field data with sub-millisecond response times. For remote field zones, the controller communicates with 1734 POINT I/O remote I/O adapters over EtherNet/IP, extending the I/O network across the plant floor without additional controller hardware.

Protocol Conversion and Network Bridging: Many brownfield automation sites operate legacy devices on DF1 serial or DH-485 networks. The 1768-L45 supports integration of these legacy segments through 1761-NET-AIC Advanced Interface Converters and 1747-KFC15 ControlNet-to-DH+ bridges, enabling protocol translation without replacing existing field hardware. For DeviceNet-connected devices — including smart motor starters, valve manifolds, and distributed I/O blocks — the 1768-SDN DeviceNet Scanner module extends the controller's network reach, consolidating device data into the EtherNet/IP backbone.

Drive and Motion Coordination: In variable-speed drive applications, the 1768-L45 communicates with PowerFlex 755 variable frequency drives over EtherNet/IP using the DriveLogix integration profile, enabling closed-loop speed and torque control with real-time feedback. Drive fault data, energy consumption metrics, and operational status are continuously logged to the controller's tag database, making this information available to SCADA and HMI systems without additional data concentrators.

HMI Integration: Operator interface panels — including PanelView Plus 7 HMI terminals — connect directly to the 1768-L45 over EtherNet/IP using FactoryTalk View ME software. Tag-based data binding ensures that process variables, alarm states, and production counters displayed on the HMI are always synchronised with the controller's live tag database, eliminating polling delays and data inconsistency.

SCADA and Edge Gateway Connectivity: At the supervisory layer, the 1768-L45 publishes real-time process data to SCADA platforms — including FactoryTalk View SE and third-party systems such as Ignition SCADA — via OPC-DA or EtherNet/IP CIP connections. For sites deploying IIoT edge architectures, Moxa MGate MB3170 protocol gateways or similar edge gateway devices can bridge EtherNet/IP data to MQTT or OPC-UA streams, enabling cloud-based data visualisation and remote diagnostics without modifying the controller programme. Industrial managed switches — such as those in the Stratix 5700 series — provide the network segmentation, VLAN configuration, and ring redundancy (DLR) required to maintain deterministic communication across the EtherNet/IP backbone.

Remote Diagnostics and Alarm Management: The 1768-L45 supports remote programme monitoring and online editing via Studio 5000 Logix Designer over EtherNet/IP, allowing maintenance engineers to diagnose faults, adjust parameters, and review alarm histories without physical access to the control panel. Alarm data is time-stamped at the controller level and forwarded to FactoryTalk Historian or equivalent data historians for trend analysis, predictive maintenance scheduling, and regulatory compliance reporting.

Protocol Fragmentation: Sites running mixed networks — EtherNet/IP alongside legacy DF1, DH-485, or DeviceNet segments — face data silos where field device information cannot reach SCADA or MES systems. The 1768-L45, combined with appropriate bridge and scanner modules, consolidates these fragmented networks under a single EtherNet/IP backbone, making all device data accessible through a unified tag namespace.

Data Island Elimination: Standalone PLCs operating without network connectivity create data islands that prevent production transparency. Migrating to the 1768-L45 with EtherNet/IP connectivity enables every process variable, counter, and alarm state to be published to SCADA, HMI, and historian systems in real time, providing full production-line visibility from a single supervisory interface.

Remote Monitoring Gaps: In multi-site or geographically distributed facilities, local-only monitoring creates response delays when faults occur. The 1768-L45's EtherNet/IP connectivity, combined with secure VPN infrastructure, enables remote programme access, live tag monitoring, and fault acknowledgement from any authorised workstation — reducing mean time to repair (MTTR) and minimising unplanned downtime.

Production Line Transparency: OEE improvement requires granular, real-time data on machine availability, performance, and quality. The 1768-L45 provides the data acquisition foundation for OEE dashboards by continuously logging cycle times, reject counts, downtime events, and shift production totals to connected historian and MES systems.

Alarm Tracking and System Expansion: As production lines expand, alarm management complexity grows. The 1768-L45 supports structured alarm and event (SAE) programming within Studio 5000, enabling alarm prioritisation, suppression, and shelving — ensuring operators receive actionable alerts rather than alarm floods. The modular CompactLogix 1768 architecture also supports incremental system expansion: additional I/O modules, communication adapters, and motion modules can be added to the existing chassis without controller replacement, protecting capital investment as automation requirements evolve.

Q1: What communication protocols does the Allen-Bradley 1768-L45 support natively? The 1768-L45 features a built-in EtherNet/IP port supporting both implicit I/O messaging and explicit CIP messaging. Legacy protocol support — including DF1 serial and DH-485 — is available via the controller's serial port or through expansion bridge modules. DeviceNet connectivity is achieved by adding a 1768-SDN scanner module to the chassis.

Q2: Can the 1768-L45 integrate with third-party SCADA systems beyond Rockwell's FactoryTalk platform? Yes. The 1768-L45 communicates over standard EtherNet/IP CIP, which is supported by OPC-DA and OPC-UA servers from multiple vendors. Third-party SCADA platforms — including Ignition, Wonderware, and Citect — can connect to the 1768-L45 via OPC server middleware, enabling full tag read/write access without proprietary software dependencies.

Q3: How does the 1768-L45 support remote diagnostics and online programme changes? Studio 5000 Logix Designer supports online connection to the 1768-L45 over EtherNet/IP, allowing engineers to monitor live tag values, force I/O states, and make online programme edits without stopping the controller. Remote access is typically secured via site VPN infrastructure, and all online changes are logged with user credentials and timestamps for audit trail compliance.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1768-L45? All Allen-Bradley 1768-L45 units supplied by NANKMOS carry a 12-month warranty covering hardware defects and communication failures. Each unit undergoes functional testing prior to shipment — including power-on verification, communication port validation, and firmware version confirmation — ensuring the controller arrives ready for installation. In-stock units are available for immediate dispatch. For technical pre-sales support or post-sales warranty claims, contact [email protected] or +86 18359268345.
