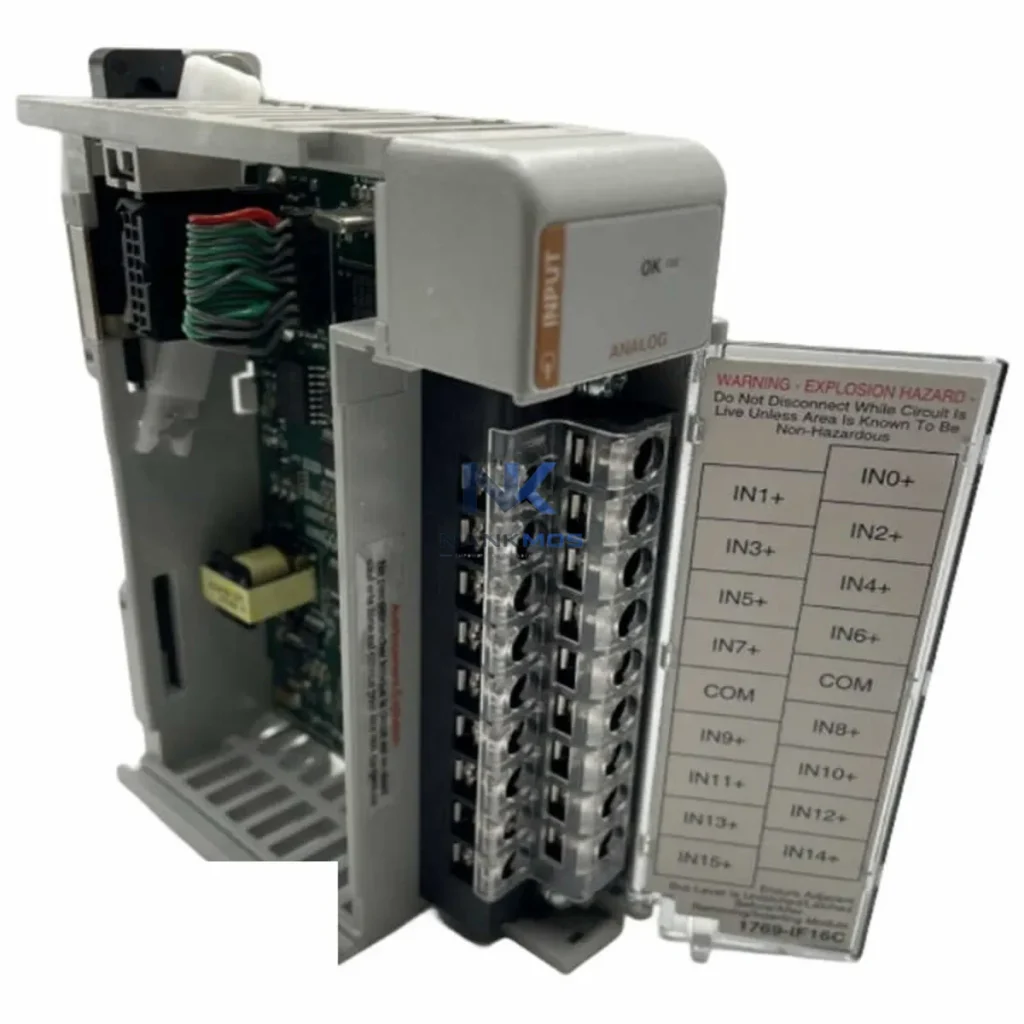

Allen-Bradley 1769-IF16C Analog Input Module

Product Details

1769-IF16C Product Description

The Allen-Bradley 1769-IF16C is a 16-channel analog current input module engineered for the CompactLogix platform, delivering precision signal acquisition that forms the backbone of energy-aware industrial automation. Designed to interface directly with current-loop transmitters operating at 0–20 mA or 4–20 mA, this module enables real-time energy data collection across motor drives, power distribution panels, and process equipment — making it an essential component in any factory-wide energy optimization strategy.

In modern smart production lines, accurate analog signal capture is the first step toward meaningful energy control. The 1769-IF16C feeds live current readings into the CompactLogix L-series PLC, where ladder logic or structured text routines can calculate instantaneous power consumption, detect load anomalies, and trigger corrective actions before inefficiencies escalate into downtime or energy waste. When paired with a PowerFlex 525 or PowerFlex 755 variable frequency drive, the module's high-resolution 16-bit input data allows the PLC to dynamically adjust motor speed in response to actual load demand — eliminating the fixed-speed energy penalty that accounts for a significant share of industrial electricity costs.

The 1769-IF16C integrates seamlessly within the 1769 CompactLogix backplane alongside complementary I/O modules such as the 1769-OB16 digital output module and the 1769-OF4 analog output module, enabling closed-loop control architectures that respond to both analog process variables and discrete equipment states. This tight integration reduces wiring complexity, minimizes signal latency, and supports deterministic scan times — all of which contribute to tighter energy budgets and more predictable production throughput.

Deploying the 1769-IF16C within a power-aware automation architecture unlocks a layered approach to energy management that spans from field-level sensing to enterprise-level reporting. At the field level, current-loop sensors and transducers connected to the module's 16 channels continuously stream load data into the CompactLogix processor. The PLC then correlates this data with outputs from a 1769-IQ16 digital input module monitoring equipment run/stop states, creating a comprehensive picture of which assets are consuming energy and whether that consumption is justified by production output.

For motor-intensive applications, the 1769-IF16C works in concert with PowerFlex 523 or PowerFlex 755T drives via EtherNet/IP. The drive reports actual output current and torque back to the PLC, while the analog input module captures upstream power quality signals — together enabling the controller to implement energy-saving algorithms such as sleep mode activation during low-demand periods, soft-start sequencing to reduce inrush current, and load-shedding routines during peak tariff windows. These strategies can reduce motor system energy consumption by 20–40% in variable-load applications such as conveyor systems, pump stations, and HVAC units.

Integration with a PanelView Plus 7 HMI allows operators to visualize real-time energy dashboards built from the 1769-IF16C's channel data. Trend screens can display per-zone power consumption, highlight channels exceeding baseline thresholds, and log energy events for shift-level reporting. When connected to a Rockwell Automation FactoryTalk View SCADA system, the same data feeds into plant-wide energy KPIs, enabling maintenance teams to identify chronic overconsumption patterns and schedule predictive maintenance before motor degradation leads to unplanned downtime.

The module also supports integration with a 1756-EN2T EtherNet/IP communication module in larger ControlLogix architectures, allowing the 1769-IF16C's data to be aggregated across multiple production cells into a unified energy management system. This cross-cell visibility is critical for facilities pursuing ISO 50001 energy management certification or targeting specific kWh-per-unit production metrics.

Production line energy optimization begins with measurement, and the 1769-IF16C provides the measurement infrastructure that makes everything else possible. By capturing 16 simultaneous analog current signals at 16-bit resolution, the module enables the CompactLogix system to build a granular energy map of the production floor — identifying which machines, zones, or process steps consume disproportionate energy relative to their output contribution.

In practice, this means a packaging line controller can detect that a labeling station motor is drawing 15% more current than its baseline — a signal that may indicate mechanical friction, bearing wear, or misalignment. Rather than waiting for a catastrophic failure that halts the entire line, the PLC can flag the anomaly, log it to the FactoryTalk Historian, and alert maintenance via the PanelView HMI or a connected SCADA notification system. This predictive maintenance capability directly reduces unplanned downtime, which is consistently cited as one of the largest hidden energy costs in manufacturing — idle upstream equipment continues consuming standby power while the line waits for repairs.

Thermal load management is another area where the 1769-IF16C delivers measurable value. By monitoring the current draw of cooling fans, chillers, and heat exchangers connected to the analog input channels, the PLC can implement temperature-responsive control strategies that run cooling equipment only when thermal loads justify it. This eliminates the energy waste of fixed-schedule cooling cycles and reduces the thermal stress on sensitive electronics, extending equipment service life and reducing replacement costs.

Line throughput optimization also benefits from the module's high-speed data acquisition. In synchronized multi-axis systems where servo drives and stepper motors must coordinate precisely, the 1769-IF16C provides the analog feedback layer that allows the CompactLogix motion controller to verify that each axis is operating within its energy envelope. Deviations from expected current profiles can indicate tooling wear, product jams, or calibration drift — all of which, if left unaddressed, degrade both production quality and energy efficiency simultaneously.

Every 1769-IF16C unit supplied by NANKMOS is sourced from authorized distribution channels, undergoes pre-shipment functional testing, and is backed by a 12-Month Warranty. In-stock inventory ensures rapid dispatch to minimize production line downtime, with global shipping available to support international manufacturing operations.

Q1: How does the 1769-IF16C contribute to energy savings in a CompactLogix system?The module provides 16 channels of high-resolution analog current input, enabling the CompactLogix PLC to monitor real-time load data from motors, drives, and process equipment. This data supports demand-responsive control strategies — such as VFD speed adjustment and load-shedding — that directly reduce energy consumption without sacrificing production output.

Q2: Is the 1769-IF16C compatible with PowerFlex variable frequency drives and EtherNet/IP networks?Yes. The 1769-IF16C operates on the CompactLogix backplane and communicates via EtherNet/IP through the controller. It is fully compatible with PowerFlex 525, PowerFlex 755, and PowerFlex 755T drives, as well as FactoryTalk View, FactoryTalk Historian, and third-party SCADA systems that support EtherNet/IP or OPC-UA data exchange.

Q3: Can the 1769-IF16C replace older analog input modules in existing CompactLogix installations?The 1769-IF16C is a direct form-fit-function replacement for earlier 1769-series analog current input modules. Before substitution, verify backplane slot compatibility and firmware revision requirements in the CompactLogix system. NANKMOS technical support can assist with cross-reference validation and configuration guidance prior to installation.

Q4: What testing and warranty coverage is provided with each unit?Every 1769-IF16C supplied by NANKMOS undergoes pre-shipment functional testing to verify channel accuracy, input range switching, and backplane communication integrity. Each unit is covered by a 12-Month Warranty against manufacturing defects and operational failures under normal industrial use conditions. In-stock availability supports fast order fulfillment for both planned procurement and emergency replacement scenarios.
