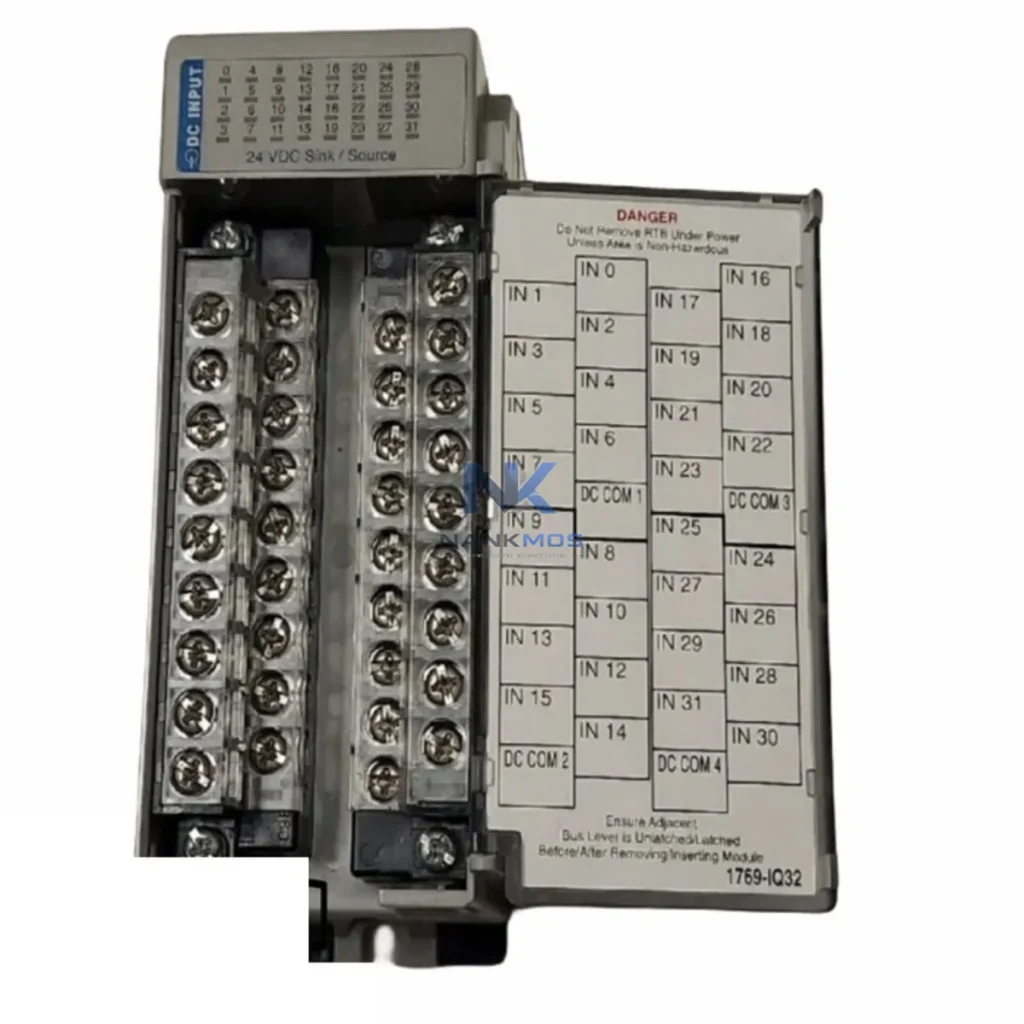

Allen-Bradley 1769-IQ32 Digital Input Module

Product Details

1769-IQ32 Product Description

The Allen-Bradley 1769-IQ32 is a 32-point, 24VDC sinking digital input module engineered for the CompactLogix 1769 backplane architecture. Designed to serve as the primary field-signal acquisition layer in energy-conscious automation systems, the 1769-IQ32 captures real-time device status from motors, actuators, limit switches, and proximity sensors — delivering the precise input data that PLCs require to execute load-aware control logic, reduce idle-state energy consumption, and maintain consistent production line throughput.

In modern smart manufacturing environments, every watt counts. The 1769-IQ32 enables the CompactLogix L-series processor to make millisecond-level decisions based on accurate field conditions, eliminating unnecessary motor run-time, reducing thermal load on drive systems, and preventing energy waste caused by undetected fault states or stalled equipment. When paired with a PowerFlex 525 or PowerFlex 755 variable frequency drive, the 1769-IQ32 provides the discrete feedback signals that allow the drive to modulate motor speed in direct response to process demand — a foundational element of any energy optimization strategy on the plant floor.

The 1769-IQ32 is most effective when integrated as part of a layered, power-aware control architecture. In a typical CompactLogix-based system, the module occupies a slot on the 1769-L33ER or 1769-L36ERM processor backplane alongside analog input modules such as the 1769-IF4 and output modules such as the 1769-OB32 — together forming a complete I/O subsystem capable of monitoring and responding to both discrete and analog energy signals across the production cell.

For motor control applications, the 1769-IQ32 reads run-confirm, fault, and speed-reached feedback signals from PowerFlex 525 drives via hardwired discrete I/O, enabling the CompactLogix processor to implement energy-saving sequencing logic: shutting down non-critical motors during low-demand periods, staggering motor starts to reduce peak inrush current, and triggering drive sleep modes when process sensors — such as Rockwell Automation 42EF photoelectric sensors or 871TM inductive proximity sensors — confirm that no material is present in the work zone.

In energy management panel applications, the 1769-IQ32 works alongside power monitoring modules such as the PowerMonitor 5000 to provide the discrete status signals that complete the energy data picture. While the PowerMonitor 5000 captures kWh, power factor, and harmonic data, the 1769-IQ32 delivers the on/off state of every connected load — enabling the 1769-L33ER processor to correlate energy consumption with specific equipment states and production events. This data feeds directly into FactoryTalk View SE HMI dashboards and upstream SCADA systems, giving energy managers the visibility they need to identify waste, benchmark efficiency, and validate improvement initiatives.

Communication between the CompactLogix system and plant-level SCADA or MES platforms is handled via EtherNet/IP, with the 1769-L36ERM processor acting as the EtherNet/IP adapter. The 1769-IQ32 input data is mapped into the processor's I/O tree and made available to FactoryTalk Historian for long-term energy trend analysis. For installations requiring DeviceNet connectivity to legacy field devices, a 1769-SDN DeviceNet scanner module can be added to the same backplane, extending the reach of the energy monitoring architecture without requiring additional controllers.

Production line energy optimization begins with accurate, real-time knowledge of equipment state — and the 1769-IQ32 is the module that delivers that knowledge at scale. With 32 input channels on a single backplane slot, it provides the highest density of discrete field-signal acquisition available in the CompactLogix 1769 family, minimizing the number of modules required to monitor a full production cell and reducing both hardware cost and backplane power draw.

In practice, the 1769-IQ32 enables several high-impact energy optimization strategies. First, it supports idle-stop and sleep-mode sequencing: when all 1769-IQ32 inputs associated with a conveyor zone report no material presence for a configurable dwell period, the CompactLogix processor commands the associated PowerFlex 525 drive to ramp down to a pre-set energy-saving speed or enter sleep mode — resuming full speed only when a new material-present signal is detected. This single strategy can reduce conveyor drive energy consumption by 20–40% in intermittent-flow applications.

Second, the 1769-IQ32 supports predictive maintenance workflows by monitoring motor auxiliary contacts and thermal overload relay status. When a thermal overload trips, the 1769-IQ32 immediately reports the fault to the CompactLogix processor, which logs the event with a timestamp in FactoryTalk Historian and triggers an alarm on the FactoryTalk View SE HMI. Maintenance teams can then investigate the root cause — whether overloading, inadequate cooling, or bearing wear — before the fault escalates to an unplanned shutdown. Preventing even one unplanned shutdown per quarter can recover thousands of dollars in lost production and wasted energy from restart transients.

Third, the 1769-IQ32 enables production line takt-time optimization by providing the processor with accurate cycle-complete and part-present signals from end-of-line sensors. With this data, the CompactLogix system can dynamically adjust conveyor speeds, robot trigger timing, and press cycle initiation to maintain optimal throughput without over-driving equipment — reducing mechanical wear, heat generation, and energy consumption simultaneously.

All units are drawn from verified in-stock inventory, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty. Replacement units are available for immediate dispatch, minimizing exposure to production downtime in the event of module failure.

Q1: How does the 1769-IQ32 contribute to measurable energy savings on a production line?The 1769-IQ32 provides the discrete field-state data that enables the CompactLogix processor to implement load-shedding, idle-stop, and drive sleep-mode logic. By accurately reporting the on/off status of every connected device, it allows the control system to eliminate unnecessary motor run-time and reduce peak demand — directly lowering kWh consumption and utility costs. Energy savings are measurable via the PowerMonitor 5000 before and after optimization logic is deployed.

Q2: Is the 1769-IQ32 compatible with existing CompactLogix and MicroLogix systems?Yes. The 1769-IQ32 is fully compatible with all CompactLogix 1769-L-series processors and can also be used with MicroLogix 1500 systems via a 1769-ADN DeviceNet adapter. It is configured through Studio 5000 Logix Designer (CompactLogix) or RSLogix 500 (MicroLogix), and no firmware changes are required for integration into an existing 1769 backplane system.

Q3: Can the 1769-IQ32 replace an older or discontinued Allen-Bradley digital input module?The 1769-IQ32 is a current-production module and serves as the standard replacement for earlier 1769-series 24VDC sinking input modules. For systems migrating from SLC 500 or PLC-5 platforms, the 1769-IQ32 combined with a CompactLogix processor provides a direct upgrade path with improved I/O density, faster response times, and EtherNet/IP connectivity. Contact us to confirm compatibility with your specific backplane configuration before ordering.

Q4: What does the 12-Month Warranty cover, and how quickly can replacement units ship?Every 1769-IQ32 unit is pre-shipment tested and verified operational before dispatch. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement units are held in verified in-stock inventory and are available for same-day or next-business-day dispatch, ensuring minimal disruption to production operations in the event of a module fault.
