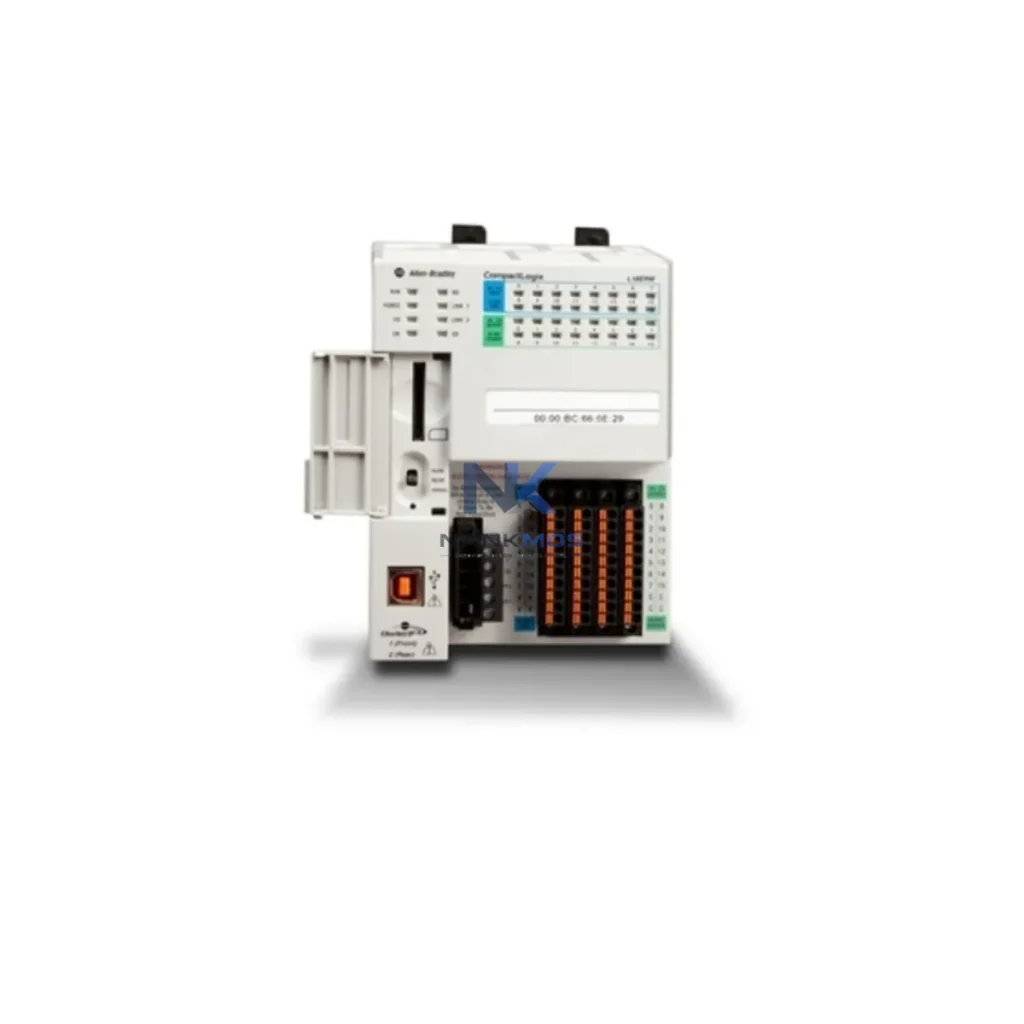

Allen-Bradley 1769-L18ER-BB1B Programmable Logic Controller

Product Details

1769-L18ER-BB1B Product Description

The Allen-Bradley 1769-L18ER-BB1B is a CompactLogix 5370 L1 series programmable logic controller engineered for energy-conscious industrial automation. Designed to reduce unnecessary power draw across multi-axis production environments, this controller delivers deterministic scan-cycle performance while actively supporting load management strategies that lower operating costs and extend equipment service life. With EtherNet/IP as its native communication backbone, the 1769-L18ER-BB1B integrates seamlessly into modern smart factory architectures, enabling real-time visibility into energy consumption, motor status, and drive feedback across the entire production line.

In a fully integrated energy-optimization architecture, the 1769-L18ER-BB1B acts as the central decision node coordinating multiple subsystems to eliminate wasteful energy consumption. When paired with a PowerFlex 525 or PowerFlex 755 variable frequency drive, the controller dynamically adjusts motor speed references based on real-time load demand, preventing motors from running at full speed during low-throughput intervals. This drive coordination alone can reduce motor energy consumption by 20–40% in variable-load applications such as conveyor systems, pump stations, and fan arrays.

The onboard analog inputs allow direct connection to current transducers or voltage sensors, enabling the 1769-L18ER-BB1B to monitor power draw at the machine level without requiring a separate power monitoring module in smaller cells. For larger installations, it communicates over EtherNet/IP with dedicated energy monitoring devices such as the PowerMonitor 5000 or PowerMonitor 1000, aggregating consumption data that feeds into FactoryTalk Energy Manager or third-party SCADA platforms for plant-wide energy dashboards.

The controller's dual EtherNet/IP ports support Device Level Ring (DLR) topology, maintaining network resilience without managed switches — reducing both infrastructure cost and the latency that can cause unnecessary drive restarts. Connected 1769 CompactLogix expansion I/O modules, including 1769-IQ16 digital input and 1769-OB16 digital output modules, extend the controller's reach to field devices such as proximity sensors, photoelectric sensors, and solenoid valves, all of which contribute to precise machine sequencing that avoids energy-wasting false starts and over-travel.

For servo-driven axes, the 1769-L18ER-BB1B coordinates with Kinetix 350 or Kinetix 5500 servo drives via the integrated motion on EtherNet/IP (IME) framework. Servo energy regeneration during deceleration phases can be captured and redistributed within the DC bus, reducing net energy draw during high-cycle-rate pick-and-place or press operations. The controller's motion planner ensures smooth velocity profiles that minimize mechanical shock and thermal stress on both the drive and motor windings.

HMI integration through a PanelView Plus 7 or PanelView 800 terminal gives operators real-time feedback on energy KPIs — current draw, cycle energy cost, and cumulative shift consumption — directly at the machine. This visibility supports operator-driven energy conservation behaviors and provides the data foundation for ISO 50001 energy management compliance reporting.

Production line energy waste typically originates from three sources: motors running at unnecessary speeds, equipment idling between production batches, and uncoordinated startup sequences that cause demand spikes. The 1769-L18ER-BB1B addresses all three through programmable load management routines embedded directly in the controller logic.

Staggered startup sequencing — a standard ladder logic or structured text routine in Studio 5000 Logix Designer — prevents simultaneous motor inrush currents that inflate peak demand charges on utility bills. By introducing controlled time delays between drive enable commands, the controller keeps instantaneous power draw within contracted demand limits, directly reducing energy costs without any hardware changes.

During scheduled downtime or shift changeovers, the controller executes configurable sleep-mode routines that command connected PowerFlex drives to coast-stop non-critical motors, de-energize heating elements, and reduce conveyor speeds to minimum maintenance levels. These routines are triggered by production schedule data received from the plant MES or SCADA system via EtherNet/IP messaging, ensuring that energy reduction actions are synchronized with actual production status rather than fixed timers.

Predictive maintenance integration further reduces unplanned downtime energy costs. By monitoring vibration feedback from smart sensors connected through 1734 POINT I/O modules or directly via EtherNet/IP-enabled condition monitoring devices, the 1769-L18ER-BB1B can flag abnormal motor load signatures that indicate bearing wear or coupling misalignment — faults that cause motors to draw 10–30% more current than normal before catastrophic failure. Early detection allows scheduled maintenance during planned stops, avoiding the energy and production losses associated with emergency breakdowns.

Thermal load management is another key benefit. By coordinating drive output frequency with actual mechanical load rather than running motors at fixed speeds, the controller reduces heat generation in both the motor windings and the drive's power stage. Lower thermal loads extend insulation life, reduce cooling system energy consumption, and decrease the frequency of thermal-trip faults that interrupt production rhythm and require energy-intensive restart sequences.

All stock units of the 1769-L18ER-BB1B available through NANKMOS are sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty. Inventory is maintained ready-to-ship to minimize project lead times and support urgent replacement requirements in live production environments.

Q1: How does the 1769-L18ER-BB1B contribute to measurable energy savings on a production line? The controller enables energy savings through three primary mechanisms: variable speed drive coordination via EtherNet/IP (reducing motor energy by matching speed to load), staggered startup sequencing (reducing peak demand charges), and idle-state sleep routines (cutting standby consumption during non-production periods). When integrated with a PowerFlex 525 or PowerFlex 755 drive and a PowerMonitor energy meter, the system provides quantifiable kWh data to validate savings against baseline measurements.

Q2: Which drive and I/O systems are compatible with this controller? The 1769-L18ER-BB1B is compatible with the full Allen-Bradley EtherNet/IP ecosystem, including PowerFlex 4M, PowerFlex 523, PowerFlex 525, and PowerFlex 755 variable frequency drives; Kinetix 350 and Kinetix 5500 servo drives; 1769 CompactLogix expansion I/O modules; and 1734 POINT I/O distributed I/O platforms. It is programmed and commissioned using Rockwell Automation's Studio 5000 Logix Designer software.

Q3: Can this unit replace an existing CompactLogix controller without reprogramming? In most cases, a 1769-L18ER-BB1B can replace an equivalent CompactLogix L1-series controller with minimal program modification, provided the I/O point count and memory requirements are within specification. The existing Studio 5000 project file can be retargeted to the new controller revision. NANKMOS recommends verifying firmware compatibility and I/O module catalog numbers before replacement to ensure a seamless transition.

Q4: What does the 12-Month Warranty cover and how is pre-shipment testing conducted? Every 1769-L18ER-BB1B unit shipped by NANKMOS undergoes pre-shipment functional testing that verifies power-up behavior, communication port operation, and I/O point integrity. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units are packaged in anti-static protective materials and shipped with documentation. For warranty claims or technical support, contact [email protected].
