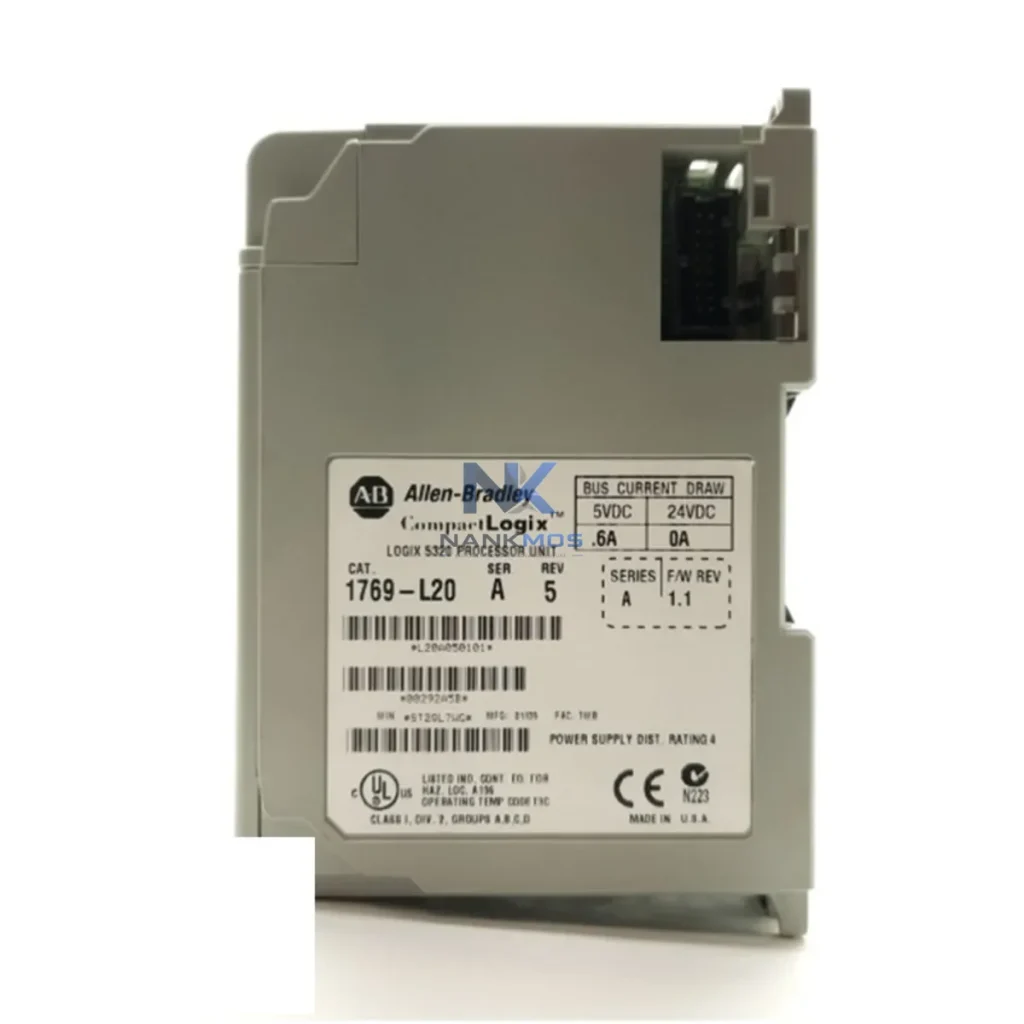

Allen-Bradley 1769-L20 PLC Processor

Product Details

1769-L20 Product Description

The Allen-Bradley 1769-L20 CompactLogix PLC is a high-performance, energy-control processor engineered for smart production lines where power efficiency, load management, and real-time device coordination are mission-critical. As part of Rockwell Automation's CompactLogix 1769 series, the 1769-L20 delivers deterministic control with a compact footprint, making it the preferred choice for manufacturers seeking to reduce idle-state energy consumption, minimize thermal load, and maximize equipment utilization across multi-axis drive systems and distributed I/O architectures.

Designed for seamless integration with EtherNet/IP networks, the 1769-L20 communicates natively with PowerFlex 525 and PowerFlex 755 variable frequency drives, enabling closed-loop speed regulation and energy-proportional motor control. By dynamically adjusting drive output based on real-time load feedback, the controller eliminates over-speed operation and reduces reactive power draw — directly lowering kWh consumption per production cycle. When paired with the PowerFlex 755 in energy-savings mode, measurable reductions in motor heat generation and bearing wear extend mean time between failures (MTBF) and reduce unplanned downtime.

The 1769-L20 supports the 1769-IQ16 and 1769-OB16 digital I/O modules for high-density field device connectivity, enabling precise sequencing of conveyors, actuators, and safety interlocks without introducing unnecessary scan-cycle overhead. For analog energy monitoring, the 1769-IF4 analog input module integrates current transducers and power quality sensors directly into the controller's data table, providing per-zone energy visibility without a separate SCADA gateway. This data feeds directly into FactoryTalk View SE HMI dashboards, where operators can monitor real-time kW demand, identify load imbalances, and trigger demand-response actions during peak tariff windows.

Deploying the 1769-L20 within a power-aware automation architecture begins with establishing a unified control backbone. The controller's EtherNet/IP port connects to a Stratix 5700 managed switch, enabling ring-topology redundancy and deterministic packet delivery to all field devices. Upstream, a 1783-ETAP EtherNet/IP tap provides passive network monitoring without interrupting live traffic — critical for energy audit trails in ISO 50001-aligned facilities.

For servo-driven axes, the 1769-L20 coordinates with Kinetix 5500 servo drives via integrated motion on EtherNet/IP (IMEC), synchronizing multi-axis positioning with energy-optimized velocity profiles. Regenerative braking energy from deceleration cycles is captured and redistributed through the shared DC bus, reducing net energy draw from the supply rail. The 1769-L20's motion planner calculates jerk-limited trajectories that minimize peak current demand, directly reducing the sizing requirements for upstream 1606-XLP power supplies.

On the power monitoring side, the PowerMonitor 5000 energy meter connects via EtherNet/IP to deliver per-feeder kW, kVAR, and power factor data into the controller's tag database. This enables the 1769-L20 to execute demand-limiting logic — automatically shedding non-critical loads such as auxiliary conveyors or HVAC compressors when instantaneous demand approaches contracted capacity thresholds. The result is a measurable reduction in peak demand charges without impacting throughput.

For distributed I/O in remote panel locations, the 1734-AENT POINT I/O EtherNet/IP adapter extends the 1769-L20's I/O reach without additional controller hardware, reducing panel footprint and associated cooling load. Temperature sensors wired to 1769-IF4 analog inputs provide thermal monitoring of motor windings and drive heatsinks, enabling predictive maintenance alerts before thermal derating occurs.

Production line energy optimization with the 1769-L20 centers on three pillars: load scheduling, drive coordination, and thermal management. During low-demand periods — shift changes, scheduled breaks, or recipe transitions — the controller executes energy-saving routines that ramp down PowerFlex 525 drives to minimum sustainable speed, reducing motor iron losses and fan energy by up to 30% compared to fixed-speed operation.

The 1769-L20's task scheduling architecture separates time-critical motion tasks from lower-priority energy management tasks, ensuring that demand-response logic never interferes with production sequencing. Periodic tasks running at 100 ms intervals poll the PowerMonitor 5000 for demand data and adjust drive speed references accordingly, creating a closed-loop energy management system entirely within the PLC program — no external energy management server required.

For facilities integrating with SCADA systems such as FactoryTalk Historian or Ignition SCADA, the 1769-L20 publishes energy KPIs — OEE, specific energy consumption (kWh/unit), and demand factor — via EtherNet/IP tags accessible to any OPC-UA or EtherNet/IP client. This enables plant-level energy dashboards that correlate production rate with energy intensity, identifying inefficient operating windows and supporting continuous improvement initiatives.

Thermal load reduction is achieved by coordinating drive deceleration ramps with ventilation schedules. The 1769-L20 monitors ambient temperature via 1769-IF4 analog inputs and adjusts drive carrier frequencies dynamically — lower carrier frequencies reduce switching losses and heatsink temperatures in high-ambient environments, extending drive service life and reducing cooling energy. Combined with predictive maintenance alerts triggered by vibration data from IO-Link sensors, the system minimizes unplanned stops that waste energy through repeated cold-start cycles.

Every 1769-L20 unit shipped by NANKMOS undergoes full functional testing under load conditions, verifying communication integrity, I/O response times, and program execution before dispatch. Stock is maintained for immediate shipment, supporting fast replacement in breakdown scenarios where production downtime costs far exceed component cost. All units carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q1: How does the 1769-L20 contribute to measurable energy savings on a production line?The 1769-L20 enables load-proportional drive control by coordinating with PowerFlex 525 and PowerFlex 755 VFDs in real time. By adjusting motor speed to match actual process demand rather than running at fixed speed, the system reduces motor iron losses, reactive power draw, and heat generation — typically yielding 15–30% energy reduction in variable-load applications such as conveyor systems, pumps, and fans.

Q2: Is the 1769-L20 compatible with existing Rockwell Automation infrastructure?Yes. The 1769-L20 is fully compatible with the CompactLogix 1769 I/O module family, including 1769-IQ16, 1769-OB16, 1769-IF4, and 1769-OF2 modules. It communicates natively over EtherNet/IP with PowerFlex drives, Kinetix servo drives, FactoryTalk View HMI, and PowerMonitor energy meters. Existing Studio 5000 Logix Designer programs can be migrated with minimal modification.

Q3: What is the recommended replacement procedure for a failed 1769-L20 in a live production environment?NANKMOS recommends maintaining a tested spare on-site. Replacement involves exporting the existing program from Studio 5000, swapping the controller module, restoring the program via USB or EtherNet/IP, and verifying I/O mapping and drive configurations before resuming production. All NANKMOS-supplied units are pre-tested and ship with verified firmware, minimizing recommissioning time.

Q4: What warranty and stock availability does NANKMOS provide for the 1769-L20?NANKMOS provides a 12-month warranty on all 1769-L20 units, covering manufacturing defects and functional failures under standard industrial operating conditions. Units are held in stock for immediate dispatch, with outgoing inspection records available upon request. For bulk orders or scheduled replenishment programs, contact NANKMOS directly to arrange supply agreements.
