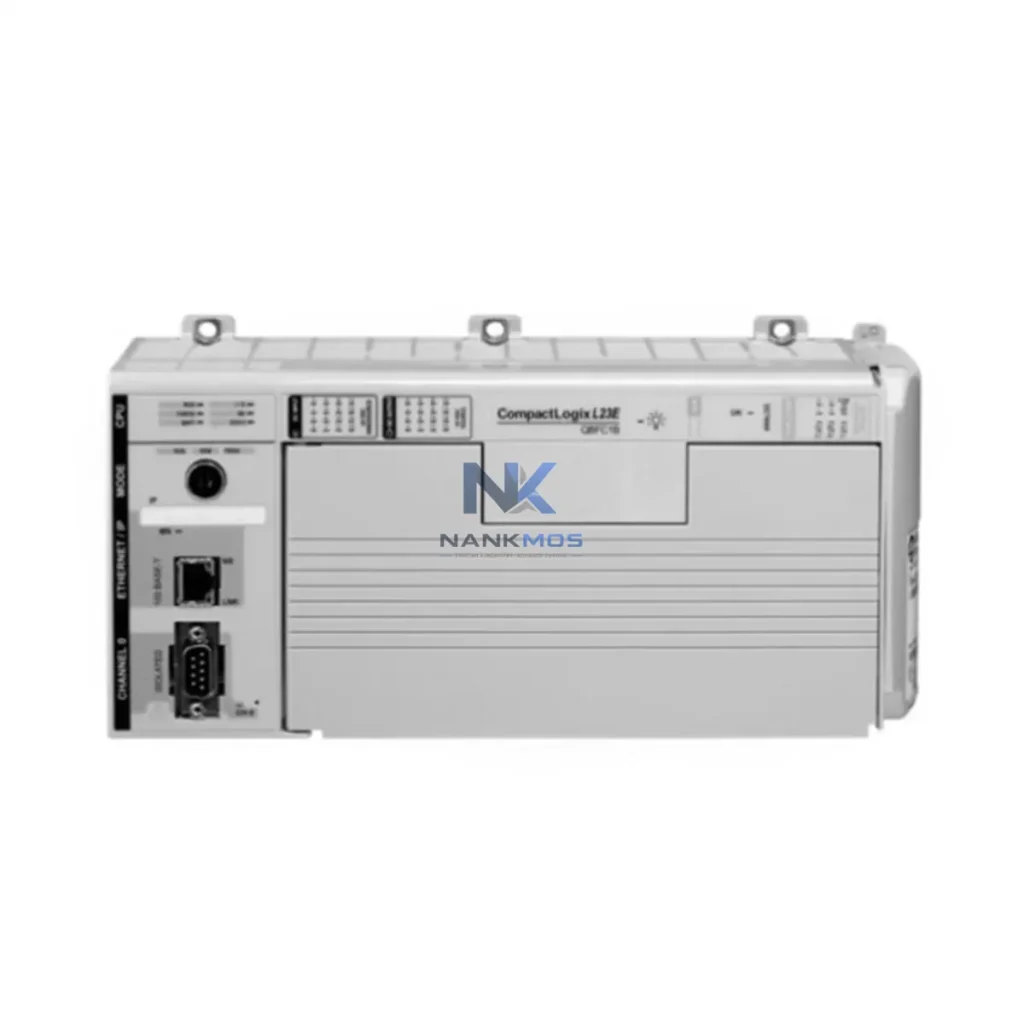

Allen-Bradley 1769-L23E-QB1B PLC Controller

Product Details

1769-L23E-QB1B Product Description

The Allen-Bradley 1769-L23E-QB1B is a CompactLogix series programmable logic controller engineered for high-integrity EtherNet/IP communication in demanding smart factory environments. Designed to serve as the central data-processing node across production lines, this controller bridges field-level devices and upper-layer supervisory systems with deterministic, low-latency network performance. Whether coordinating motion sequences, managing distributed I/O, or feeding real-time process data into SCADA dashboards, the 1769-L23E-QB1B delivers the connectivity backbone that modern industrial automation demands.

In a connected factory architecture, data originates at the sensor and actuator layer — pressure transmitters, proximity switches, variable-frequency drives, and servo feedback signals — and must travel reliably through the control layer to reach HMI panels, MES platforms, and cloud-based analytics engines. The 1769-L23E-QB1B sits at the heart of this data chain, executing ladder logic and structured text programs while simultaneously managing EtherNet/IP I/O messaging, explicit messaging to peer controllers, and CIP-based communication with upstream SCADA servers. Its dual-port EtherNet/IP interface supports linear, ring, and star topologies, enabling flexible network design without additional switching hardware in smaller cells.

A typical smart factory deployment built around the 1769-L23E-QB1B begins at the field device layer. Sensors — including 4–20 mA analog transmitters, IO-Link-capable proximity sensors, and thermocouple input modules from the 1769 Compact I/O family such as the 1769-IF4 analog input module — feed real-time process values directly into the controller's local I/O bus. These signals are scanned at deterministic cycle times, ensuring that process deviations trigger immediate logic responses without communication latency.

At the drive and motion layer, the 1769-L23E-QB1B communicates over EtherNet/IP with Allen-Bradley PowerFlex 525 and PowerFlex 755 variable-frequency drives, exchanging speed references, torque feedback, and fault status in real time. This eliminates the need for dedicated analog wiring between the controller and drive panels, reducing installation cost and enabling centralized parameter management from the Logix Designer programming environment. For coordinated motion applications, the controller can be paired with Kinetix 5500 servo drives via the same EtherNet/IP backbone, supporting multi-axis synchronization across packaging, assembly, and conveyor systems.

Distributed remote I/O expansion is handled through 1734 POINT I/O adapter modules connected over EtherNet/IP, allowing the 1769-L23E-QB1B to manage I/O nodes located across large production floors without running dedicated fieldbus cabling. Each POINT I/O node reports its status back to the controller, and any module fault is immediately surfaced in the controller's diagnostic buffer — a critical capability for rapid fault isolation during production incidents.

At the network infrastructure layer, managed industrial Ethernet switches — such as the Stratix 5700 series — provide the switching fabric that connects the 1769-L23E-QB1B to HMI panels, peer PLCs, and the plant network. The Stratix 5700's IGMP snooping and QoS features ensure that EtherNet/IP multicast I/O traffic is prioritized and contained, preventing network congestion that could affect controller scan times. For sites requiring protocol translation between EtherNet/IP and legacy Modbus RTU or PROFIBUS DP devices, a ProSoft Technology MVI56E-MNET or similar gateway module can be inserted into the CompactLogix chassis, enabling the 1769-L23E-QB1B to natively read and write data from third-party field instruments without custom driver development.

At the supervisory layer, the 1769-L23E-QB1B publishes live tag data to SCADA platforms including FactoryTalk View SE and third-party systems such as Ignition by Inductive Automation via OPC-UA or direct EtherNet/IP drivers. Operators at HMI stations — running PanelView Plus 7 terminals — receive real-time process graphics, alarm banners, and trend displays sourced directly from the controller's tag database. This tight integration between the PLC tag namespace and the HMI display layer eliminates data mapping errors and accelerates commissioning.

For edge analytics and remote diagnostics, the controller's EtherNet/IP interface allows edge gateway devices — such as the Moxa UC-8112 or similar IIoT gateways — to poll controller tags at configurable intervals and forward aggregated data to cloud platforms or on-premise historians. This enables predictive maintenance workflows where drive current signatures, motor temperature trends, and cycle count data are analyzed for anomaly detection without modifying the PLC program or interrupting production.

Protocol fragmentation is one of the most persistent challenges in brownfield automation sites. Legacy Modbus RTU devices, PROFIBUS DP instruments, and newer EtherNet/IP nodes often coexist on the same production floor, creating data silos that prevent unified monitoring. The 1769-L23E-QB1B addresses this through its serial port — supporting DF1 and DH-485 communication — combined with add-on gateway modules that translate legacy protocols into the CIP data model. This allows older field devices to be integrated into the EtherNet/IP network without hardware replacement, protecting existing capital investment while enabling full data visibility.

Remote monitoring gaps are eliminated through the controller's native EtherNet/IP connectivity. Plant managers and maintenance engineers can access live controller diagnostics, I/O status, and program execution data remotely via FactoryTalk Remote Access or VPN-secured connections to the plant network. Alarm history, fault logs, and trend data are continuously available, enabling off-site engineers to diagnose production issues and push program updates without traveling to the facility — a capability that significantly reduces mean time to repair (MTTR) for distributed manufacturing sites.

Production line transparency is achieved by mapping all critical process variables — cycle times, reject counts, energy consumption, and equipment utilization — into the controller's tag database and publishing them to MES and ERP systems via standard OPC-UA or REST API middleware. This creates a continuous, auditable data record that supports ISO 9001 quality management requirements and enables real-time OEE (Overall Equipment Effectiveness) calculation at the line level.

System scalability is built into the CompactLogix architecture. As production requirements grow, additional 1769 Compact I/O modules can be added to the local chassis, and additional remote I/O nodes can be connected over EtherNet/IP without modifying the controller hardware. The 1769-L23E-QB1B's 1 MB program memory and 1 MB data memory provide substantial headroom for expanding control logic, and its support for Produced/Consumed tags enables peer-to-peer data sharing with other CompactLogix or ControlLogix controllers across the plant network.

Q1: What communication protocols does the 1769-L23E-QB1B support, and is it compatible with third-party SCADA systems? The 1769-L23E-QB1B natively supports EtherNet/IP (CIP) over its dual-port Ethernet interface and DF1/DH-485 over its RS-232 serial port. It is compatible with any SCADA or HMI platform that supports EtherNet/IP or OPC-DA/UA drivers, including Ignition, WinCC, Wonderware, and FactoryTalk View SE. Third-party protocol translation (Modbus TCP, PROFIBUS) is achievable via gateway modules installed in the CompactLogix chassis.

Q2: How does the controller handle network instability or communication timeouts in a live production environment? The 1769-L23E-QB1B implements CIP connection timeout detection with configurable RPI (Requested Packet Interval) settings per I/O connection. On communication loss, the controller can be programmed to hold last state, go to a safe default output state, or trigger an alarm routine — all configurable in Logix Designer. The Device Level Ring (DLR) topology support provides automatic network fault recovery in ring configurations, typically restoring communication within milliseconds of a cable or switch failure.

Q3: Can the 1769-L23E-QB1B support remote diagnostics and firmware updates without interrupting production? Yes. The controller supports online program edits and tag monitoring via RSLogix 5000 / Studio 5000 Logix Designer over EtherNet/IP without stopping the controller. Remote access to controller diagnostics, I/O status, and fault logs is available through FactoryTalk Remote Access or standard VPN infrastructure. Firmware updates require a controller mode change and brief restart, which should be scheduled during planned maintenance windows.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1769-L23E-QB1B? All 1769-L23E-QB1B units supplied by NANKMOS carry a 12-month warranty covering hardware defects and communication failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including power-on verification, EtherNet/IP port communication check, and I/O bus integrity test — before dispatch. In-stock units are available for immediate shipment, with lead times confirmed at order placement. For technical pre-sales support or post-delivery issues, contact [email protected] or +86 18359268345.
