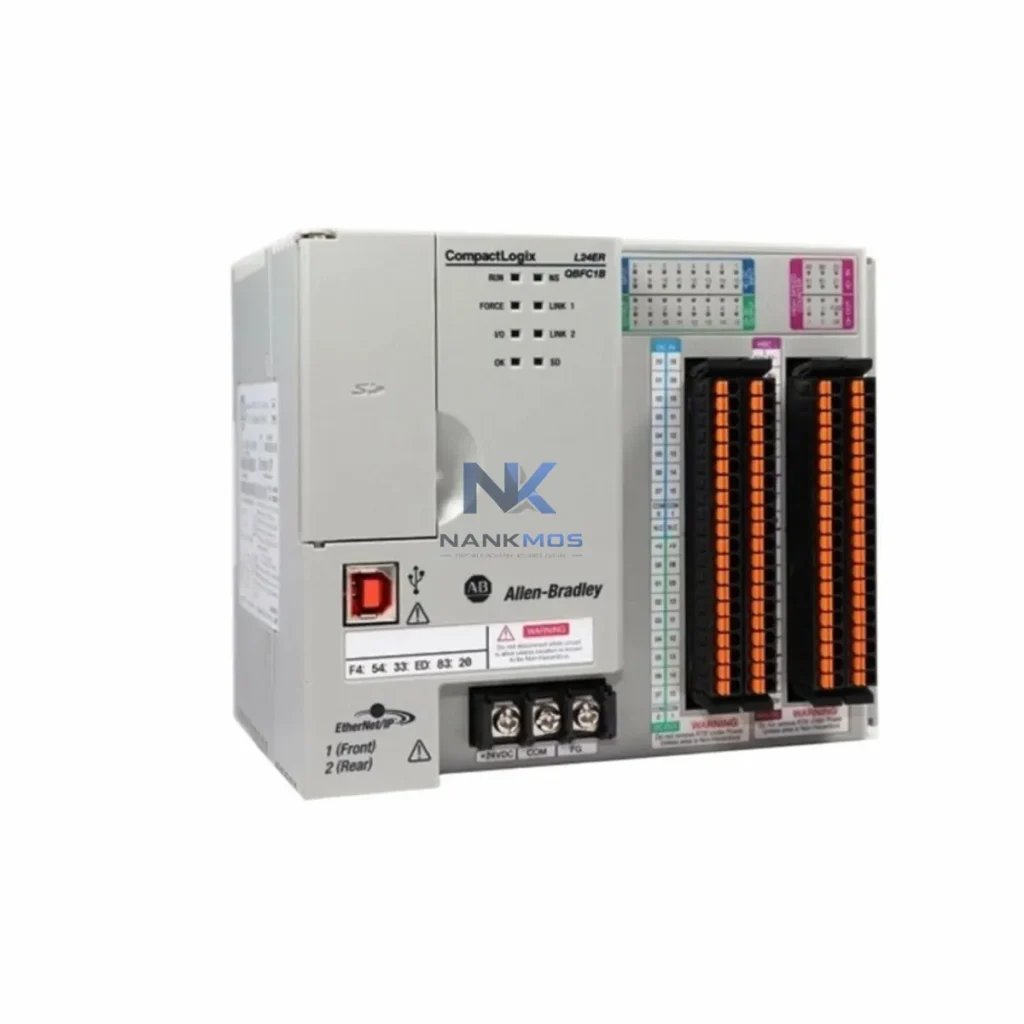

Allen-Bradley 1769-L24ERQBFC1B PLC Controller

Product Details

1769-L24ERQBFC1B Product Description

The Allen-Bradley 1769-L24ERQBFC1B is a CompactLogix series programmable logic controller engineered for energy-conscious industrial environments where load management, drive coordination, and production-line efficiency are mission-critical. Designed to operate within Rockwell Automation's Integrated Architecture, this controller delivers deterministic scan-cycle performance while minimizing idle-state power draw — making it a cornerstone component for factories pursuing measurable reductions in energy consumption per unit output.

At its core, the 1769-L24ERQBFC1B combines a dual Ethernet/IP port topology with an onboard USB programming interface, enabling seamless integration into distributed control networks without additional communication hardware. Its EtherNet/IP backbone supports real-time data exchange with PowerFlex 525 and PowerFlex 755 variable frequency drives, allowing the controller to dynamically adjust motor speed references in response to live load signals — a direct mechanism for reducing reactive power losses and thermal stress on drive components. When paired with a PowerMonitor 5000 power quality meter, the 1769-L24ERQBFC1B can ingest per-phase energy telemetry and execute demand-response logic that curtails non-essential loads during peak tariff windows.

The controller's 1769 CompactLogix I/O bus supports a broad range of 1769 analog and digital expansion modules, including the 1769-IF4 analog input module for process variable acquisition and the 1769-OB16 digital output module for actuator control. These modules feed structured data into the controller's tag-based memory architecture, where energy-aware ladder logic or function block programs can implement closed-loop load-shedding routines. Integration with a PanelView Plus 7 HMI terminal over EtherNet/IP provides operators with real-time energy dashboards, alarm acknowledgment workflows, and shift-based consumption trending — reducing the cognitive load on floor personnel while keeping energy KPIs visible at the machine level.

For motion-intensive applications, the 1769-L24ERQBFC1B coordinates axis references to Kinetix 5500 servo drives via the CIP Motion protocol, enabling synchronized multi-axis positioning with regenerative braking energy recovery. This coordination eliminates the velocity overshoot and re-acceleration cycles that inflate energy consumption in indexing and pick-and-place cells. The controller's task scheduler supports periodic, event-driven, and continuous task types, allowing engineers to isolate high-frequency motion tasks from lower-priority energy-logging routines without sacrificing scan determinism.

Communication flexibility extends to PROFIBUS, DeviceNet, and serial protocols through 1769 communication modules, enabling the 1769-L24ERQBFC1B to act as a gateway controller in legacy retrofit projects where older drives, sensors, and I/O blocks must be preserved. This interoperability reduces the capital expenditure of energy-upgrade projects by allowing incremental modernization rather than full-line replacement. SCADA connectivity via RSLinx Classic or FactoryTalk Historian enables long-term energy data archiving, supporting ISO 50001 energy management audits and continuous improvement cycles.

In production-line rhythm optimization, the 1769-L24ERQBFC1B's high-speed counter inputs and time-stamped event capture allow precise measurement of machine cycle times, enabling engineers to identify bottlenecks that force upstream equipment to idle at full power while waiting for downstream clearance. By tightening inter-station handshake timing through coordinated output sequencing, the controller reduces the aggregate idle-power duration across a line — a compounding efficiency gain that becomes significant at scale. Predictive maintenance routines embedded in the controller logic can monitor motor current signatures via 1769 analog inputs connected to current transformers, flagging bearing wear or rotor imbalance before they escalate into unplanned downtime events that waste both energy and production capacity.

Every 1769-L24ERQBFC1B unit shipped by NANKMOS undergoes full functional verification including I/O loop checks, communication port validation, and program execution testing prior to dispatch. Stock is maintained for immediate fulfillment, and each unit is covered by a 12-Month Warranty against manufacturing defects. This warranty covers controller hardware, firmware integrity, and communication port functionality — providing procurement teams with the confidence to specify the 1769-L24ERQBFC1B as a long-cycle replacement component in energy optimization projects.

Deploying the 1769-L24ERQBFC1B within a power-aware automation architecture begins with establishing a high-integrity EtherNet/IP backbone that connects the controller to all energy-consuming field devices. PowerFlex 525 drives handling conveyor and pump loads receive speed reference commands directly from the controller's output tags, eliminating the latency of intermediate relay logic and enabling sub-second response to load-change events. For higher-power spindle and servo applications, Kinetix 5500 servo drives on the CIP Motion network receive coordinated position and velocity profiles that minimize acceleration energy spikes through jerk-limited trajectory planning.

The 1769-IF4 analog input module connected to the CompactLogix local I/O bus aggregates 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors, feeding the controller's energy model with real-time process state data. When process variables indicate low-demand conditions — such as reduced flow requirements during off-peak production windows — the controller automatically steps down drive frequency references on PowerFlex 755 units, reducing motor shaft power in proportion to the affinity law relationship between speed and power consumption. A 1769-OB16 digital output module manages contactor and soft-starter control for auxiliary loads such as cooling fans and hydraulic power units, enabling the controller to sequence these loads based on thermal demand rather than fixed timers.

The 1734 POINT I/O modules distributed across the production line communicate with the 1769-L24ERQBFC1B via EtherNet/IP adapter nodes, extending the controller's reach to remote machine stations without running dedicated I/O cables back to the main panel. This distributed topology reduces wiring losses and simplifies energy sub-metering by allowing each POINT I/O node to be associated with a specific energy consumption zone in the SCADA historian. A 1783-ETAP EtherNet/IP tap module provides passive network monitoring capability, enabling network health diagnostics without interrupting live production traffic.

The 1769-L24ERQBFC1B contributes to factory-wide energy optimization through three primary mechanisms: demand-side load management, drive-system efficiency coordination, and predictive maintenance-driven uptime improvement. On the demand side, the controller's scheduled task architecture allows energy managers to program time-of-use load profiles that automatically reduce non-critical drive speeds and defer batch processing tasks to off-peak tariff periods — directly reducing peak demand charges without manual operator intervention.

Drive-system efficiency coordination is achieved through the controller's tight integration with PowerFlex variable frequency drives. By maintaining motor operating points within the high-efficiency region of the drive's V/Hz curve — rather than allowing drives to run at fixed full-speed setpoints — the 1769-L24ERQBFC1B can reduce motor energy consumption by 20–40% on variable-torque loads such as pumps, fans, and compressors. This efficiency gain compounds across multi-drive production lines where several motors operate simultaneously.

Predictive maintenance integration reduces unplanned downtime — one of the largest hidden energy costs in manufacturing, as idle production lines with powered-up equipment consume energy without generating output. The controller's analog input channels, connected to current transformers monitoring motor winding currents, enable continuous motor health trending. Deviations from baseline current signatures trigger maintenance alerts in the FactoryTalk View SCADA system, allowing maintenance teams to schedule interventions during planned downtime windows rather than responding reactively to failures. This proactive approach stabilizes production-line rhythm, reduces restart energy surges, and extends the service life of connected drive and motor assets.

Q1: What energy savings can be expected when using the 1769-L24ERQBFC1B to coordinate PowerFlex drives? A: On variable-torque loads (pumps, fans, conveyors), coordinated speed control via the 1769-L24ERQBFC1B typically yields 20–40% motor energy reduction compared to fixed-speed operation. Actual savings depend on load profile, duty cycle, and baseline drive configuration. A site energy audit prior to deployment is recommended to establish measurable baselines.

Q2: Is the 1769-L24ERQBFC1B compatible with existing CompactLogix 5370 I/O modules and expansion chassis? A: Yes. The 1769-L24ERQBFC1B is fully compatible with the 1769 CompactLogix I/O module family, including 1769-IF4, 1769-OF4, 1769-IQ16, and 1769-OB16 modules. It also supports 1734 POINT I/O and 1756 ControlLogix I/O via EtherNet/IP adapter nodes, enabling flexible system expansion without controller replacement.

Q3: What is the recommended replacement or upgrade path for older CompactLogix L2 controllers? A: The 1769-L24ERQBFC1B is a direct form-fit-function replacement for earlier 1769-L23E series controllers. Program migration from RSLogix 5000 to Studio 5000 Logix Designer is straightforward, with most existing ladder logic and function block programs converting without modification. For applications requiring higher memory or additional axes, the 1769-L30ER or 1769-L33ER offer upward migration paths within the same CompactLogix platform.

Q4: What does the 12-Month Warranty cover, and what is the testing process before shipment? A: Every 1769-L24ERQBFC1B unit undergoes pre-shipment functional testing covering processor boot verification, EtherNet/IP port communication validation, onboard I/O loop checks, and firmware version confirmation. The 12-Month Warranty covers hardware defects in the processor module, communication ports, and onboard I/O circuitry. Warranty claims are processed with a target response time of 3 business days. Units in stock are available for same-day dispatch upon order confirmation.
