Allen-Bradley 1769-L35E Communication Gateway

Product Details

1769-L35E Product Description

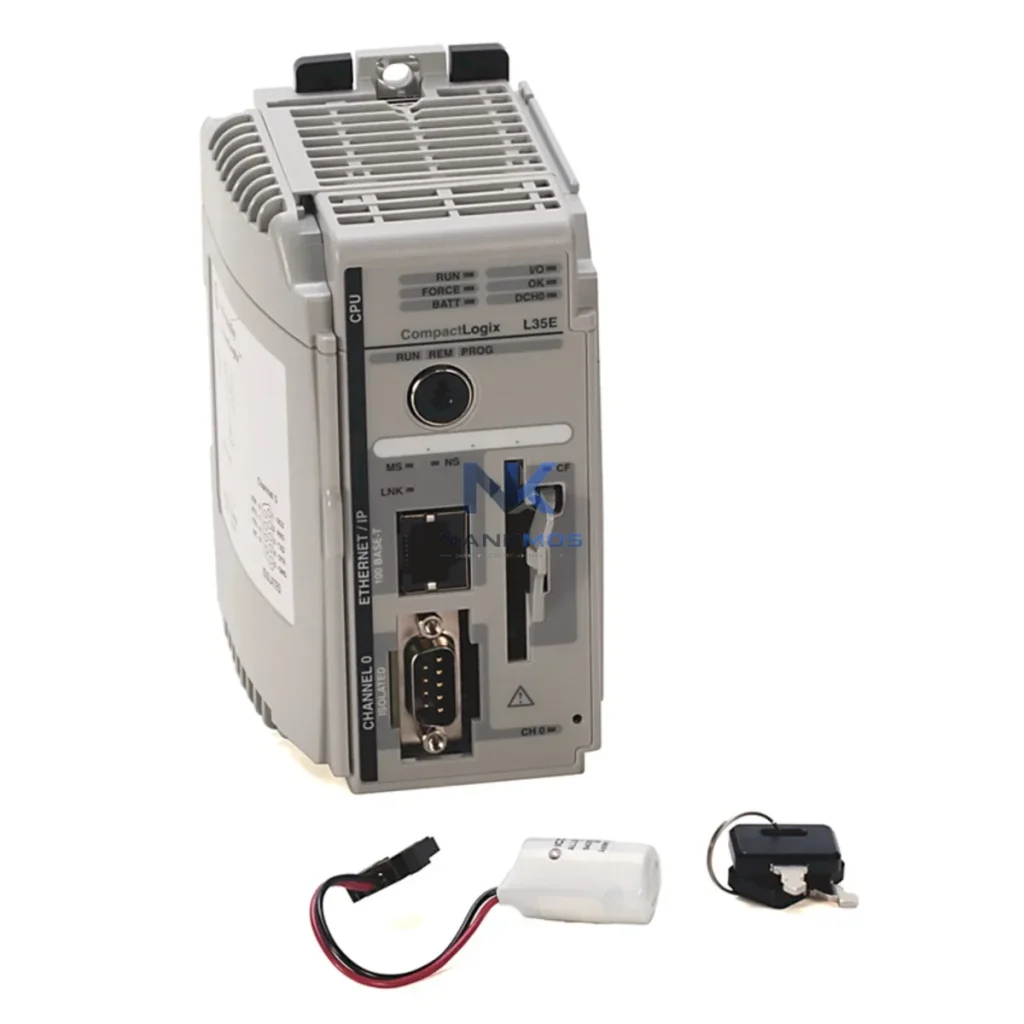

The Allen-Bradley 1769-L35E is a CompactLogix 5335E controller with an integrated EtherNet/IP communication port, purpose-built for industrial data connectivity in smart factory environments. As a network-linked automation controller and gateway, the 1769-L35E bridges field-level devices — sensors, actuators, remote I/O modules — with supervisory systems including SCADA platforms, HMI terminals, and MES layers. Its dual-role architecture as both a programmable logic controller and an EtherNet/IP communication node makes it a cornerstone component in modern industrial network design, enabling seamless data flow from the production floor to enterprise-level analytics and visualization systems.

In a connected factory architecture, the 1769-L35E sits at the intersection of real-time control and network intelligence. It communicates natively over EtherNet/IP using the Common Industrial Protocol (CIP), allowing deterministic, high-speed data exchange with upstream SCADA servers, Rockwell Automation FactoryTalk View HMI stations, and downstream field devices. When paired with 1769 CompactLogix I/O expansion modules — such as the 1769-IQ16 digital input module or the 1769-OF4 analog output module — the controller aggregates process signals from temperature sensors, pressure transmitters, and flow meters, converting raw field data into structured network packets for real-time monitoring and alarm management.

Protocol conversion is a critical function in heterogeneous automation environments. The 1769-L35E supports EtherNet/IP as its primary network protocol, but within a broader system architecture it frequently operates alongside Modbus TCP gateways, PROFIBUS DP adapters, and DeviceNet scanners. For sites running legacy serial devices, an AnyBus communicator or a ProSoft Technology MVI56E communication module can bridge older RS-232/RS-485 Modbus RTU instruments into the EtherNet/IP network managed by the 1769-L35E, eliminating data silos and enabling unified visibility across mixed-protocol production lines.

Remote diagnostics and predictive maintenance are increasingly central to smart factory operations. The 1769-L35E supports remote access via Rockwell Automation's FactoryTalk Remote Access and standard EtherNet/IP diagnostic services, allowing maintenance engineers to monitor controller health, review fault logs, and execute program changes without physical site visits. When integrated with a Stratix 5700 industrial managed switch or a Cisco IE 4000 series switch, the network infrastructure provides VLAN segmentation, Quality of Service (QoS) prioritization, and port mirroring for traffic analysis — ensuring that real-time control traffic is never disrupted by diagnostic or data-logging workloads.

Data visualization and OEE (Overall Equipment Effectiveness) reporting depend on reliable, low-latency data pipelines. The 1769-L35E feeds live process data — cycle times, fault counts, throughput rates, energy consumption — into FactoryTalk Historian or third-party SCADA platforms such as Ignition by Inductive Automation or Wonderware System Platform. From there, data flows to dashboards, KPI reports, and alarm notification systems, giving operations managers real-time transparency into production performance. For edge computing scenarios, the 1769-L35E can interface with an Allen-Bradley Logix 5000 edge gateway or a third-party IIoT edge device to pre-process data locally before forwarding aggregated metrics to cloud analytics platforms.

System scalability is a key design consideration for growing automation sites. The 1769-L35E supports up to 16 local 1769 CompactLogix I/O modules and can communicate with distributed I/O racks via EtherNet/IP adapter modules such as the 1734 POINT I/O system. This architecture allows engineers to expand the control system incrementally — adding remote I/O nodes, variable frequency drives (VFDs) such as the PowerFlex 525 or PowerFlex 755, and smart motor controllers — without redesigning the network backbone. The controller's 1.5 MB user memory and 0.69 ms/K boolean execution speed ensure that expanded systems maintain deterministic scan times even as the I/O count grows.

Every 1769-L35E unit supplied by NANKMOS undergoes pre-shipment functional testing, including communication port verification, I/O scan integrity checks, and firmware version confirmation. Units are shipped with original packaging and documentation, and are covered by a 12-month warranty against manufacturing defects. Stock is maintained for fast dispatch, supporting urgent replacement requirements on active production lines. Global shipping is available with full export documentation.

A typical smart factory deployment built around the 1769-L35E begins at the field level, where 1769-IQ16 digital input modules and 1769-IF4 analog input modules collect discrete and analog signals from proximity sensors, thermocouples, and pressure transmitters installed on production equipment. These signals are processed by the 1769-L35E's control logic and simultaneously made available on the EtherNet/IP network for upstream consumption.

At the network layer, a Stratix 5700 managed industrial Ethernet switch aggregates traffic from the 1769-L35E, remote 1734 POINT I/O adapter nodes, and PowerFlex 525 variable frequency drives — all communicating over EtherNet/IP. The switch's IGMP snooping and QoS configuration ensures that time-critical I/O data receives bandwidth priority over background diagnostic traffic. For sites requiring wireless connectivity to mobile HMI panels or handheld devices, a Cisco Catalyst IW6300 industrial wireless access point can extend the EtherNet/IP network without introducing latency penalties.

At the supervisory layer, FactoryTalk View SE running on a dedicated SCADA server polls the 1769-L35E via EtherNet/IP at configurable scan rates, displaying real-time process values, trend charts, and alarm states on operator workstations. Alarm events — such as motor overcurrent, temperature exceedance, or communication loss — are logged with timestamps and forwarded to maintenance personnel via email or SMS notification through the SCADA alarm management system. For sites using third-party SCADA platforms, the 1769-L35E's standard CIP object model ensures compatibility with Ignition OPC-UA drivers and Wonderware InTouch DAServer connections.

At the data historian and analytics layer, FactoryTalk Historian SE or OSIsoft PI System collects tagged process data from the 1769-L35E at high-frequency intervals, enabling long-term trend analysis, OEE calculation, and predictive maintenance modeling. This data pipeline — from field sensor through PLC controller, industrial switch, SCADA server, and historian — represents the complete smart factory data chain that the 1769-L35E anchors at the control and communication level.

Protocol Fragmentation: Many production sites operate a mix of legacy Modbus RTU devices, DeviceNet sensors, and modern EtherNet/IP components. The 1769-L35E, combined with a ProSoft Technology MVI56E-MNET Modbus TCP/IP communication module or an AnyBus X-gateway, consolidates these disparate protocols into a unified EtherNet/IP data stream, eliminating the data silos that prevent holistic production visibility.

Remote Monitoring Gaps: Sites without remote access infrastructure face extended downtime when faults occur outside business hours. The 1769-L35E's EtherNet/IP connectivity, combined with FactoryTalk Remote Access or a VPN-enabled industrial router, enables engineers to remotely interrogate controller fault logs, review I/O status, and push program corrections — reducing mean time to repair (MTTR) without requiring on-site presence.

Production Line Transparency: Without structured data collection, production managers rely on manual reporting and lagging indicators. By feeding the 1769-L35E's process data into a FactoryTalk Historian or Ignition-based dashboard, operations teams gain real-time OEE metrics, shift-by-shift throughput comparisons, and automated downtime categorization — transforming raw PLC data into actionable business intelligence.

System Expansion Without Redesign: As production capacity grows, adding new equipment to a fixed-architecture control system is costly. The 1769-L35E's modular 1769 I/O expansion architecture and EtherNet/IP adapter support allow engineers to add remote I/O nodes, new drive connections, and additional sensor inputs incrementally, preserving the existing network topology and minimizing integration risk.

Q: What is the maximum EtherNet/IP communication speed of the 1769-L35E? A: The 1769-L35E supports 10/100 Mbps EtherNet/IP communication. For most CompactLogix applications — including I/O scanning, HMI polling, and SCADA data collection — 100 Mbps provides ample bandwidth with sub-millisecond latency for time-critical control tasks.

Q: Is the 1769-L35E compatible with third-party SCADA platforms such as Ignition or Wonderware? A: Yes. The 1769-L35E uses the standard Common Industrial Protocol (CIP) over EtherNet/IP, which is supported by Ignition's Allen-Bradley EtherNet/IP driver, Wonderware's DAServer, and most major SCADA/HMI platforms. No additional protocol conversion hardware is required for EtherNet/IP-native connections.

Q: Can the 1769-L35E be accessed remotely for diagnostics and program changes? A: Yes. The controller supports remote access via Rockwell Automation's FactoryTalk Remote Access software and standard RSLogix 5000 / Studio 5000 online connections over EtherNet/IP. For secure remote access over the internet, a VPN-enabled industrial router or Tosibox Lock device is recommended to protect the control network perimeter.

Q: What warranty and testing does NANKMOS provide for the 1769-L35E? A: Every 1769-L35E unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects. Prior to shipment, each unit undergoes functional testing including communication port verification and firmware confirmation. Units are dispatched with original packaging and full documentation. For urgent replacement requirements, expedited shipping is available globally.
