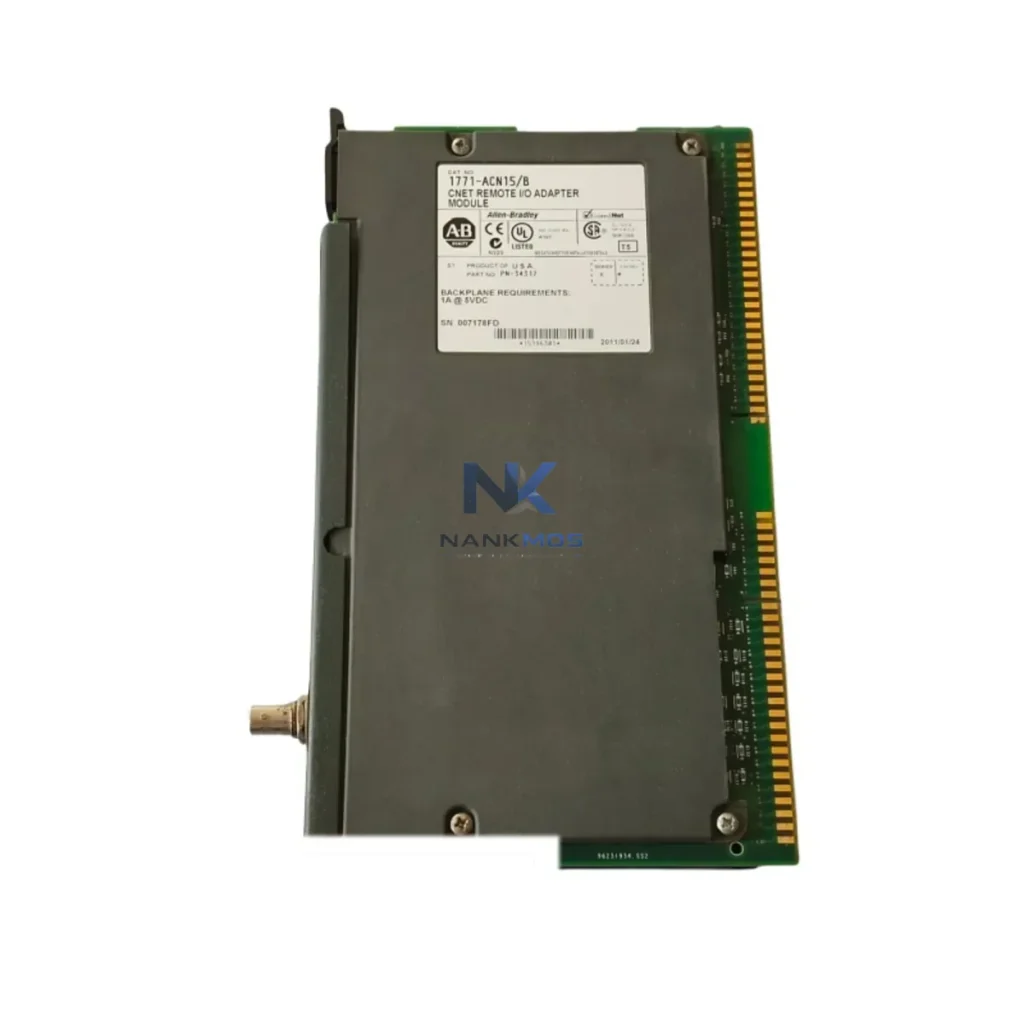

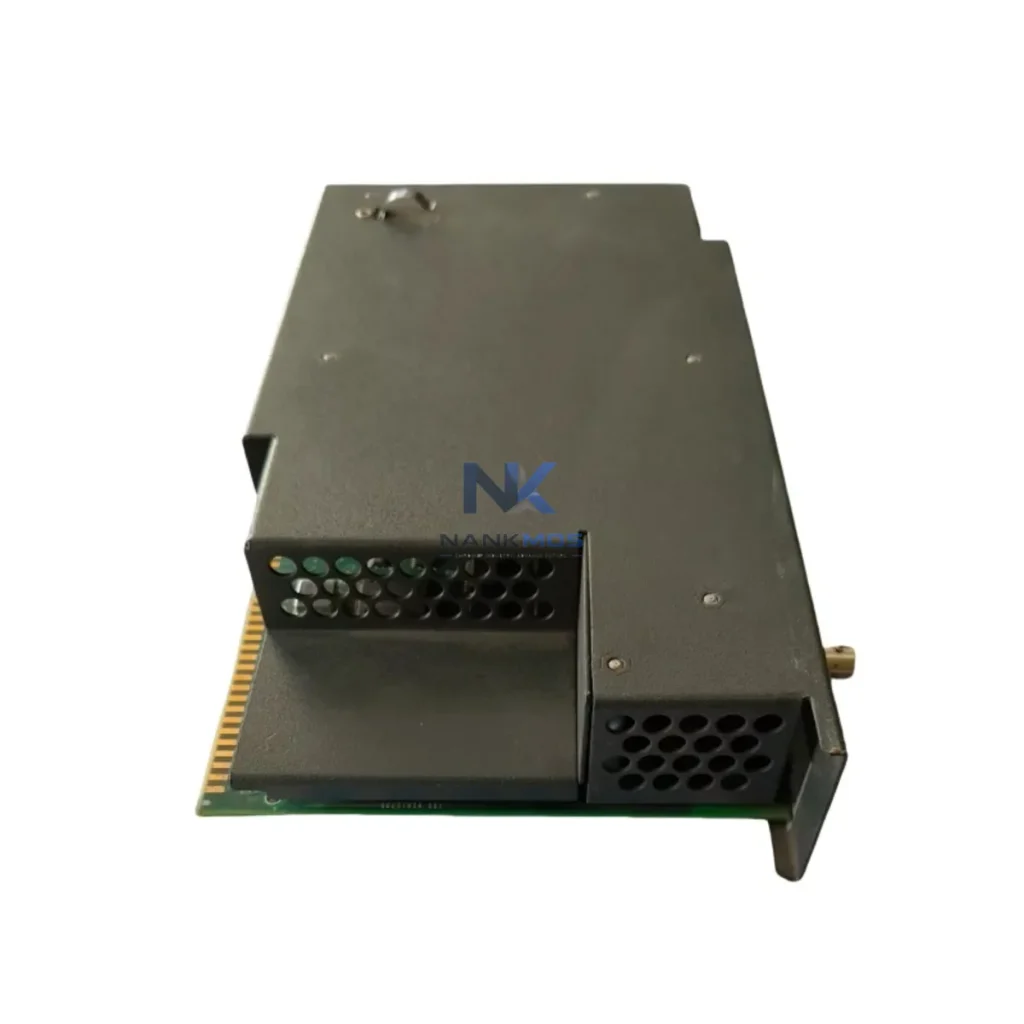

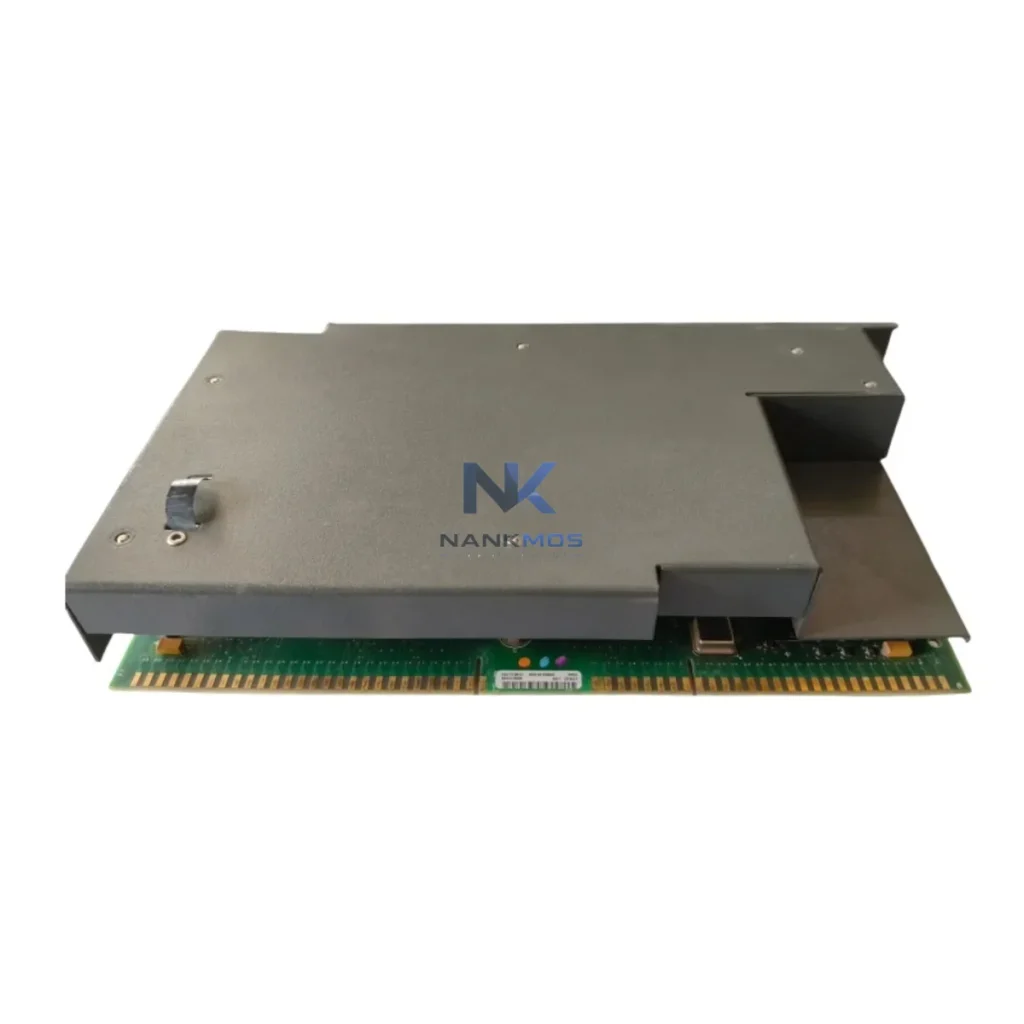

Allen-Bradley 1771-ACN15 ControlNet I/O Adapter Module

Product Details

1771-ACN15 Product Description

The Allen-Bradley 1771-ACN15 is a high-performance ControlNet I/O Adapter Module engineered for seamless integration within Rockwell Automation's PLC-5 control architecture. Designed to serve as a critical node in distributed I/O networks, the 1771-ACN15 bridges the control layer and the field I/O layer through the ControlNet communication protocol, enabling deterministic, high-speed data exchange across complex industrial automation platforms. Whether deployed in continuous process control, discrete manufacturing, or hybrid automation environments, this adapter delivers the signal integrity, network stability, and modular expandability that modern industrial control systems demand.

In today's industrial landscape, no component operates in isolation. The 1771-ACN15 is purpose-built to function as a cohesive element within a layered automation architecture — coordinating with CPU modules, power supplies, communication gateways, HMI systems, and field devices to form a unified, high-availability control platform. Its role extends beyond simple I/O connectivity: it actively contributes to system redundancy, diagnostic transparency, and long-term maintainability across the full lifecycle of the installation.

The 1771-ACN15 achieves its full potential when deployed as part of a coherent, multi-layer automation architecture. At the control layer, the Allen-Bradley PLC-5 processor — such as the 1785-L40B or 1785-L80B — serves as the central intelligence, executing ladder logic and managing scheduled ControlNet communication. The 1771-ACN15 adapter connects the remote I/O chassis to this CPU over the ControlNet trunk, ensuring that field signals are delivered with deterministic timing and minimal jitter, which is essential for motion-critical and process-critical applications.

At the I/O layer, the adapter interfaces directly with 1771-series I/O modules installed in the same chassis — including digital input modules such as the 1771-IB16, digital output modules such as the 1771-OB16, and analog signal modules such as the 1771-IF4 for 4–20 mA process signal acquisition. These modules populate the 1771 backplane, and the 1771-ACN15 manages all scheduled and unscheduled data transfers between the chassis and the ControlNet network, maintaining signal consistency even under high I/O load conditions.

At the communication layer, the ControlNet network topology supported by the 1771-ACN15 can be extended using Rockwell's 1786-RPA/B ControlNet Repeater for long-distance trunk runs, or integrated with a 1788-CN2DN ControlNet-to-DeviceNet Linking Device to bridge field-level device networks. For installations requiring EtherNet/IP integration at the supervisory level, a 1756-ENBT EtherNet/IP Bridge Module in a ControlLogix chassis can serve as the upper-layer gateway, enabling seamless data visibility from the PLC-5 I/O network up to SCADA and MES platforms.

At the power layer, the 1771 chassis housing the 1771-ACN15 is typically powered by a 1771-P4S or 1771-P7 power supply module, which provides regulated 5 VDC and 24 VDC backplane power. Proper power supply sizing is critical in multi-module chassis configurations, and NANKMOS recommends verifying total backplane current draw against the selected power supply's rated output before commissioning.

At the HMI layer, operator interface terminals such as the PanelView 1000 or PanelView Plus 6 can be networked via ControlNet or EtherNet/IP to provide real-time visualization of I/O states managed by the 1771-ACN15 adapter. This enables operators to monitor field device status, acknowledge alarms, and initiate manual overrides without interrupting the deterministic I/O scan cycle.

For redundancy-critical applications, the 1771-ACN15 supports dual-media ControlNet configurations using redundant coaxial trunk cables, ensuring that a single cable fault does not interrupt I/O communication. This architecture is commonly paired with redundant PLC-5 CPU configurations using the 1785-CHBM Hot Backup Module, providing both controller-level and network-level fault tolerance in high-availability process environments.

Manufacturing & Discrete Automation: In automotive assembly lines and general discrete manufacturing, the 1771-ACN15 enables distributed I/O architectures that reduce panel wiring complexity and improve system modularity. Remote I/O chassis can be positioned close to machine zones, minimizing field cable runs while maintaining high-speed, deterministic communication back to the central PLC-5 controller.

Power Generation & Utilities: In power plant auxiliary systems and substation automation, the 1771-ACN15 provides reliable I/O connectivity for motor control centers, valve actuators, and protection relay interfaces. Its deterministic ControlNet communication ensures that critical status signals — such as breaker positions and transformer temperatures — are delivered to the control system within defined scan cycle windows.

Petrochemical & Refining: In continuous process environments such as refineries and chemical plants, the 1771-ACN15 supports distributed I/O for flow control loops, pressure transmitters, and emergency shutdown (ESD) interfaces. Its compatibility with 1771-series analog I/O modules makes it well-suited for 4–20 mA signal acquisition across multi-zone process units.

Water & Wastewater Treatment: Municipal water treatment facilities rely on distributed I/O architectures to monitor pump stations, flow meters, and chemical dosing systems across geographically dispersed sites. The 1771-ACN15 enables remote I/O chassis deployment at field locations while maintaining centralized PLC-5 control, reducing the need for local controllers at each pump station.

Mining & Metals: In mineral processing and smelting operations, the 1771-ACN15 supports I/O connectivity for conveyor systems, crusher controls, and furnace management. Its robust industrial design and wide operating temperature range make it suitable for the harsh electrical environments typical of mining control rooms and motor control centers.

Q1: Is the 1771-ACN15 compatible with both PLC-5 and ControlLogix platforms? The 1771-ACN15 is specifically designed for the Allen-Bradley PLC-5 platform and the 1771 I/O chassis system. It communicates over ControlNet and is managed by a PLC-5 processor configured as the ControlNet scanner. While ControlLogix systems can also communicate over ControlNet using the 1756-CNB or 1756-CNBR bridge modules, the 1771-ACN15 itself is a 1771-backplane device and is not directly installed in a ControlLogix chassis. Migration projects from PLC-5 to ControlLogix can retain existing 1771 I/O chassis and 1771-ACN15 adapters as remote I/O nodes on the ControlNet network, preserving the field wiring investment.

Q2: What are the key considerations for commissioning the 1771-ACN15 in a new or expanded ControlNet network? Successful commissioning of the 1771-ACN15 requires proper ControlNet network configuration using RSNetWorx for ControlNet software, which is used to schedule the network, assign Node Addresses (1–99), and define the Network Update Time (NUT). Each 1771-ACN15 node must be assigned a unique node address via the onboard rotary switches before power-up. The ControlNet trunk must be properly terminated at both ends with 75-ohm BNC terminators, and cable segment lengths must comply with ControlNet physical layer specifications. NANKMOS recommends performing a full network health check using RSNetWorx diagnostics after installation to verify scheduled connection integrity before handing over to operations.

Q3: What warranty and supply assurance does NANKMOS provide for the 1771-ACN15? NANKMOS provides a 12-Month Warranty on all 1771-ACN15 units shipped, covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm backplane communication, ControlNet port integrity, and module identification. NANKMOS maintains inventory of legacy Rockwell Automation 1771-series components to support ongoing maintenance, system expansions, and emergency replacement requirements. For time-critical projects, expedited shipping options are available to minimize system downtime. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
