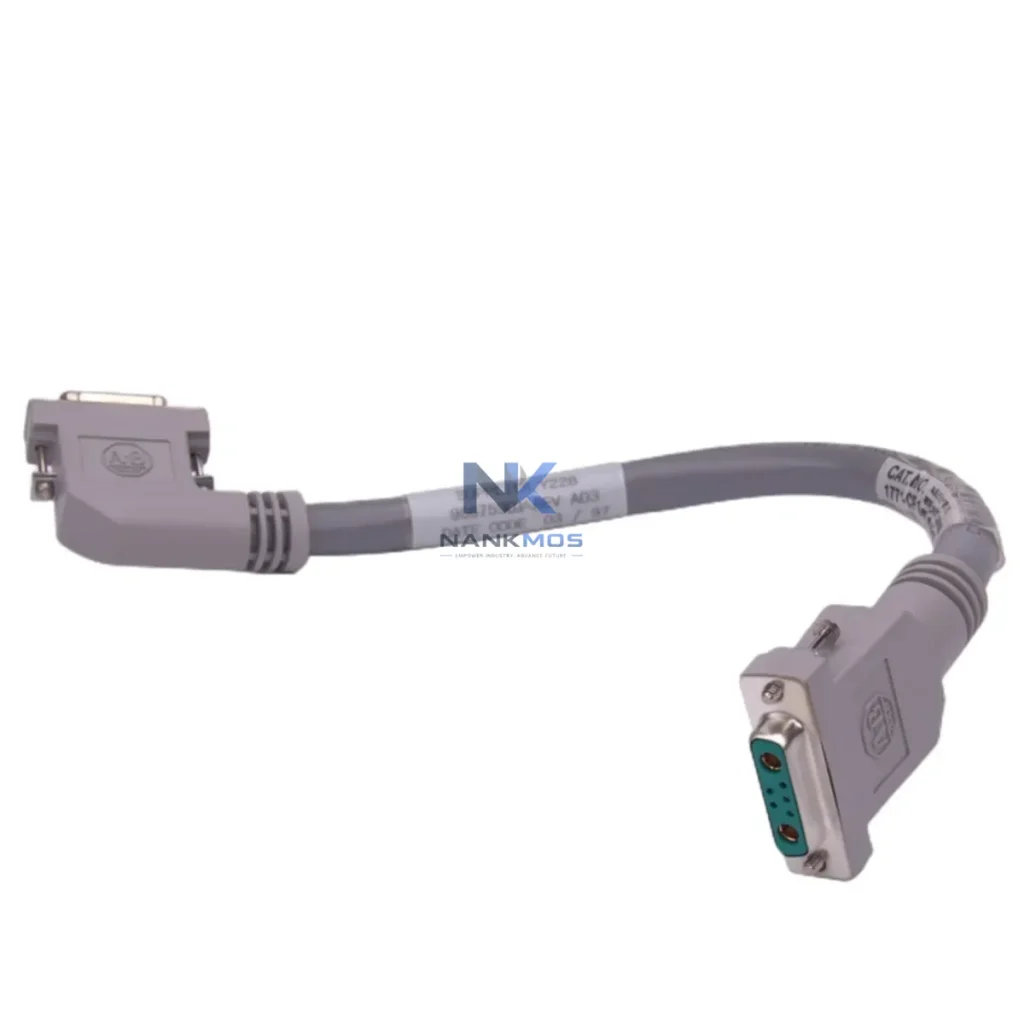

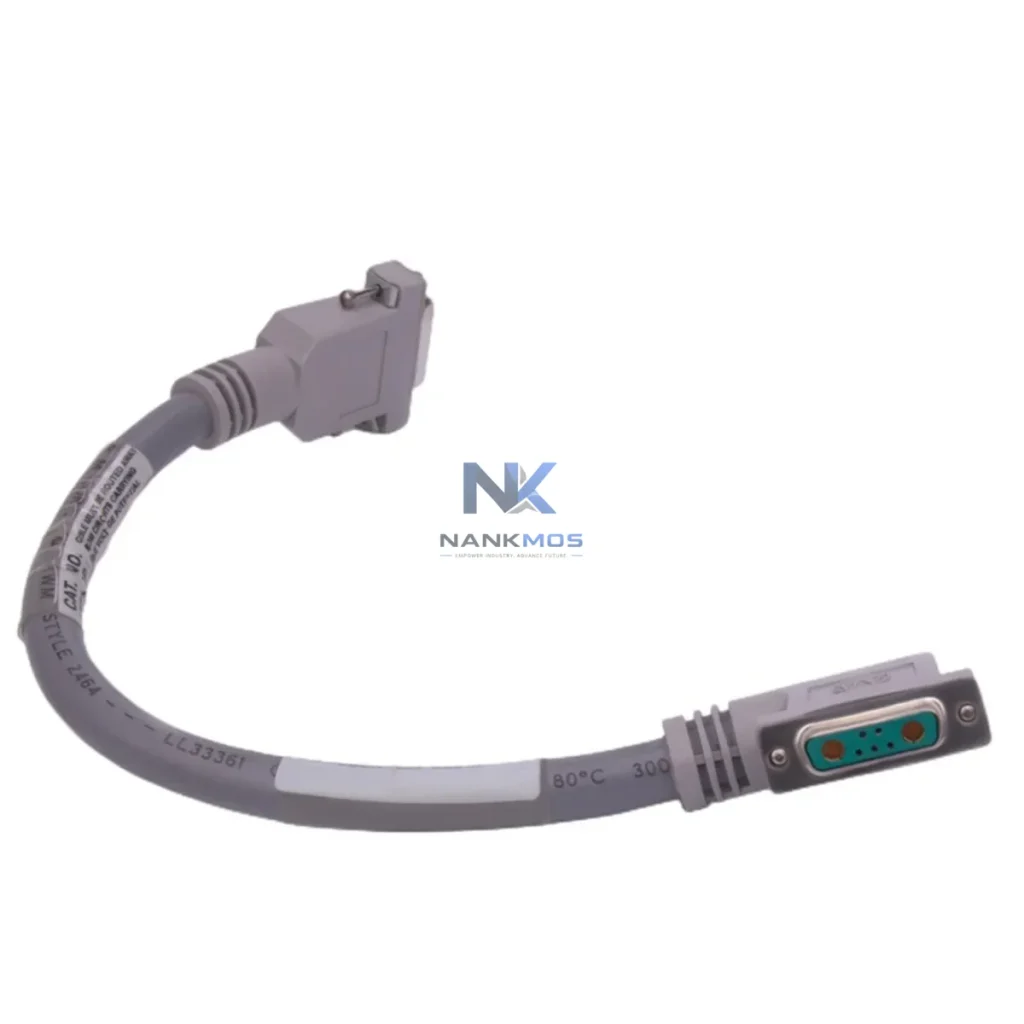

Allen-Bradley 1771-CP1 I/O Chassis Cable

Product Details

1771-CP1 Product Description

The Allen-Bradley 1771-CP1 is a dedicated I/O chassis interconnect cable engineered for the 1771 I/O platform, the backbone of Rockwell Automation's PLC-5 control architecture. In modern smart production environments where energy efficiency and uptime are paramount, the 1771-CP1 plays a critical role in maintaining low-latency, high-integrity signal transmission between I/O chassis and processor modules. By ensuring clean, uninterrupted data flow across the control backplane, this cable directly supports energy-aware automation strategies — reducing signal retries, eliminating communication faults that trigger unnecessary actuator cycling, and enabling the PLC-5 processor to execute energy optimization routines without interruption.

Designed for demanding industrial environments, the 1771-CP1 supports the full range of 1771 I/O modules including digital input/output, analog, and specialty modules used in motor control centers, variable frequency drive (VFD) command loops, and distributed energy monitoring panels. Its shielded construction minimizes electromagnetic interference from high-power drive systems such as the PowerFlex 700 and PowerFlex 40 series, ensuring that energy metering signals and load feedback data remain accurate even in electrically noisy plant floors.

In a fully integrated energy-aware control architecture, the 1771-CP1 serves as the physical communication link that enables the PLC-5 processor to coordinate real-time energy decisions across the production line. When paired with the 1771-IFE analog input module, the system can continuously sample current and voltage signals from power monitoring transducers, feeding live load data into the PLC-5 scan cycle. This allows the controller to dynamically adjust setpoints on connected PowerFlex 40 variable frequency drives, reducing motor speed during low-demand periods and cutting unnecessary kWh consumption without sacrificing throughput.

The 1771-CP1 also supports integration with the 1771-OFE analog output module, which provides 4–20 mA command signals to servo valve actuators and proportional control elements in hydraulic and pneumatic systems — components that account for a significant share of plant energy budgets when improperly managed. By maintaining clean backplane communication, the cable ensures that the 1336 PLUS II drive series receives accurate torque and speed references, preventing over-current events that generate excess heat and degrade motor insulation over time.

For facilities running Rockwell's FactoryTalk View SCADA platform or integrating with third-party energy management systems via the 1785-KE Data Highway Plus communication module, the 1771-CP1 ensures that I/O data is delivered to the supervisory layer without latency or frame errors. This is especially critical when the SCADA system is executing demand-response algorithms that shed non-critical loads during peak tariff windows. The 1771-SDN DeviceNet Scanner module, when installed in the same 1771 chassis, further extends the energy monitoring reach to field-level devices such as smart motor starters and intelligent circuit breakers, all dependent on the chassis cable's signal integrity.

Panel builders integrating the 1771 platform with modern 24 VDC industrial power supplies from the 1606-XLP series benefit from the 1771-CP1's compatibility with low-voltage backplane architectures, reducing overall panel heat load and improving mean time between failures (MTBF) for the entire control cabinet assembly.

Production line energy optimization begins at the control layer, and the 1771-CP1 is a foundational component in that strategy. When I/O chassis cables degrade or introduce intermittent faults, the PLC-5 processor enters fault recovery routines that stall the scan cycle, causing downstream drives and actuators to hold their last commanded state — often at full power — until communication is restored. This idle-at-full-load condition is one of the most common and least visible sources of energy waste in legacy automation systems.

By replacing worn or counterfeit cables with a genuine 1771-CP1, maintenance teams eliminate this failure mode entirely. The result is a stable scan cycle that allows the PLC-5 to execute energy-saving ladder logic routines on schedule: ramping down conveyor drives during product gaps, cycling off auxiliary cooling fans during low-production shifts, and triggering demand-limit alarms before peak tariff thresholds are breached. These routines, while simple in logic, depend entirely on the reliability of the I/O data path — which the 1771-CP1 provides.

For facilities pursuing ISO 50001 energy management certification or implementing OEE (Overall Equipment Effectiveness) improvement programs, the 1771-CP1 supports the data integrity requirements of continuous energy monitoring. Accurate, fault-free I/O communication ensures that energy KPIs reported to the plant historian and MES layer reflect true operating conditions, enabling engineering teams to identify inefficient equipment, optimize maintenance schedules, and reduce unplanned downtime — all of which translate directly into lower energy cost per unit produced.

Each 1771-CP1 unit supplied by NANKMOS is sourced from verified supply channels, undergoes outgoing inspection and functional testing prior to shipment, and is backed by a 12-Month Warranty covering manufacturing defects and premature failure under normal operating conditions. In-stock units are available for prompt dispatch to support both planned maintenance windows and emergency replacement scenarios.

Q1: How does the 1771-CP1 contribute to energy savings on a PLC-5 production line? The 1771-CP1 maintains reliable backplane communication between the PLC-5 processor and 1771 I/O modules, ensuring that energy optimization routines — such as VFD speed reduction during low-demand periods and load shedding during peak tariff windows — execute without interruption. Communication faults caused by degraded cables force the controller into recovery cycles that hold actuators and drives at full power, wasting energy. A genuine 1771-CP1 eliminates this failure mode.

Q2: Is the 1771-CP1 compatible with all 1771 I/O chassis configurations? Yes. The 1771-CP1 is designed for use across the full range of 1771 I/O chassis sizes and is compatible with all standard 1771 I/O modules including digital, analog, and specialty types. It is also compatible with chassis-resident communication modules such as the 1771-SDN DeviceNet Scanner and the 1785-KE Data Highway Plus adapter.

Q3: What is the recommended replacement interval, and how do I verify cable condition? Rockwell Automation recommends inspecting chassis cables during scheduled preventive maintenance cycles, typically every 12–24 months in high-vibration or high-temperature environments. Signs of degradation include intermittent I/O faults, increased PLC scan time variability, and unexplained communication errors logged in the fault table. Proactive replacement with a 1771-CP1 before failure prevents unplanned downtime and the associated energy waste of emergency restart procedures.

Q4: What warranty and testing does NANKMOS provide for the 1771-CP1? All 1771-CP1 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and premature failure under normal industrial operating conditions. Each unit undergoes outgoing functional testing prior to shipment to verify signal continuity and shielding integrity. In-stock inventory is available for immediate dispatch, with standard lead times applying to non-stock configurations.
