Allen-Bradley 1771-IBD Digital Input Module

Product Details

1771-IBD Product Description

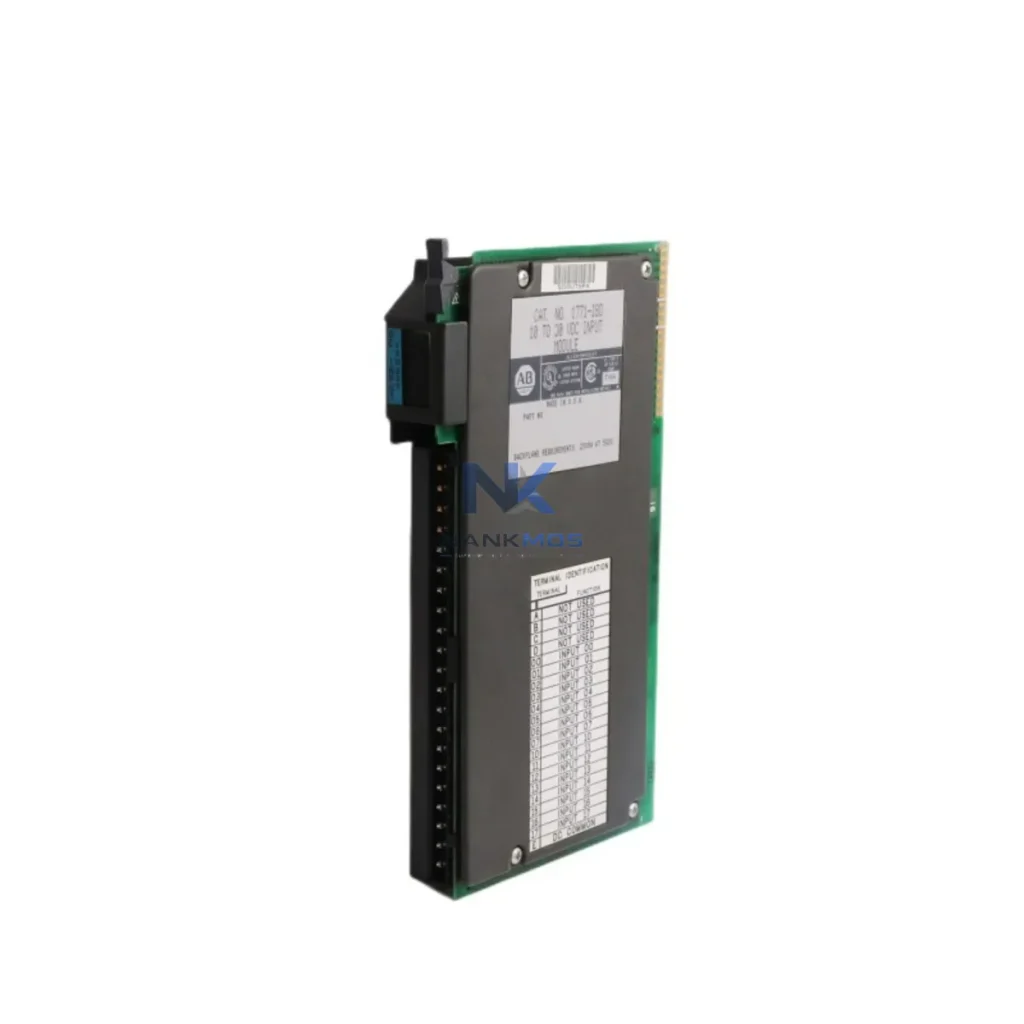

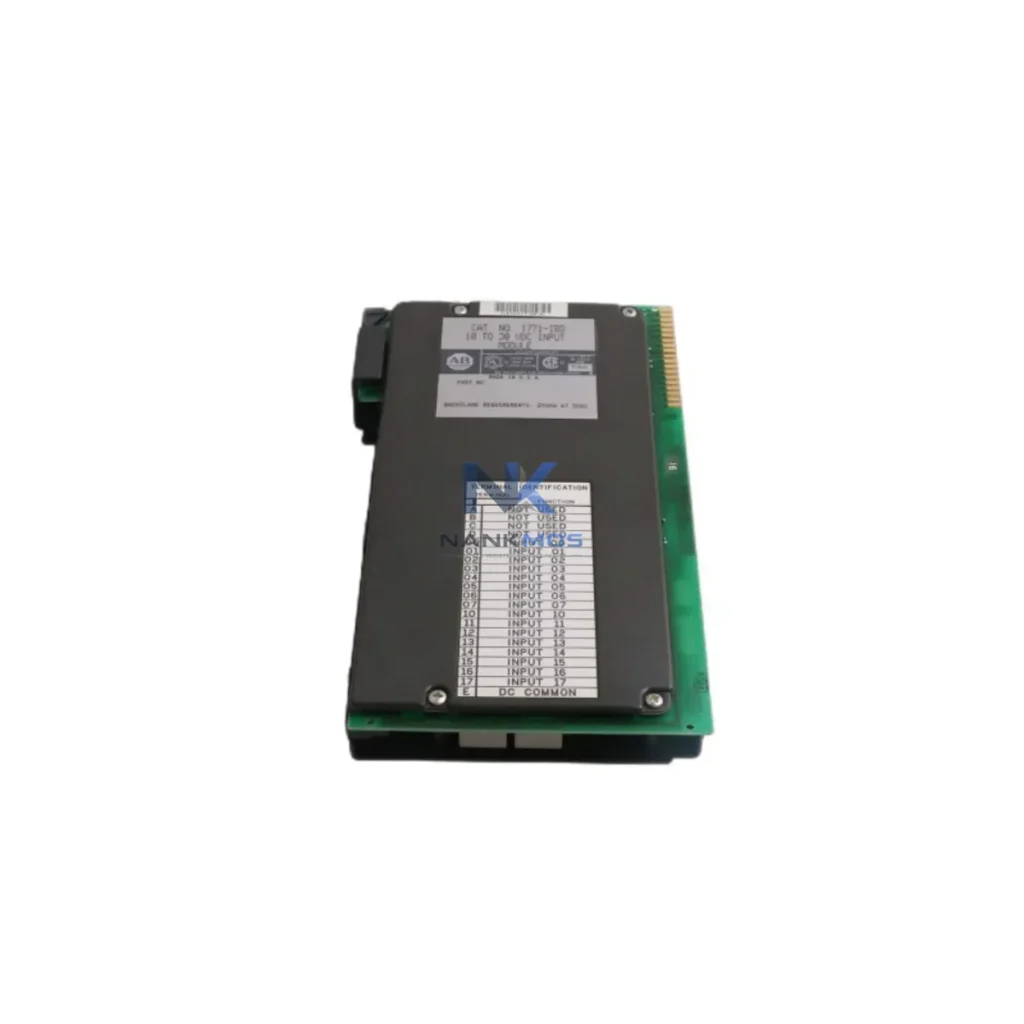

The Allen-Bradley 1771-IBD is a 16-point, 24VDC digital input module engineered for the PLC-5 I/O chassis, delivering reliable field-signal acquisition at the foundation of every smart factory data chain. In modern industrial environments where production transparency and real-time diagnostics are non-negotiable, the 1771-IBD serves as the critical first node — converting discrete field signals from sensors, limit switches, proximity detectors, and push-button stations into structured digital data that the PLC-5 processor can act upon immediately. Its role extends far beyond simple signal conditioning: it anchors the upstream data flow that feeds SCADA dashboards, HMI displays, and cloud-based analytics platforms with the ground-truth status of every machine on the production floor.

Deployed across automotive assembly lines, chemical processing plants, water treatment facilities, and discrete manufacturing cells, the 1771-IBD integrates seamlessly into the Allen-Bradley PLC-5 backplane architecture. The module occupies a single I/O slot and communicates over the PLC-5 parallel backplane bus, ensuring deterministic scan-cycle performance with no additional protocol overhead. When paired with a 1771-ASB remote I/O adapter, the 1771-IBD can be extended to remote I/O racks distributed across large plant floors, enabling centralized PLC control over geographically dispersed field devices without sacrificing signal integrity or scan-time predictability.

In a fully connected smart factory, the 1771-IBD sits at the signal-acquisition layer — the very beginning of the industrial data chain. Field devices such as inductive proximity sensors, photoelectric sensors, and mechanical limit switches wire directly into the module's 16 input terminals. The 1771-IBD captures each discrete ON/OFF state and maps it into the PLC-5 data table, where the processor executes ladder logic in real time. This data then propagates upward through the automation stack.

For plants running a Data Highway Plus (DH+) network, the PLC-5 processor communicates peer-to-peer with other Allen-Bradley controllers — including the SLC 500 series and MicroLogix platforms — sharing input status data across production zones. Where Ethernet connectivity is required for modern SCADA integration, a 1761-NET-ENI or a 1784-PKTX communication interface bridges the PLC-5 to an Ethernet/IP backbone, allowing RSLinx Classic or FactoryTalk Linx to establish live data connections with FactoryTalk View SE supervisory stations or third-party SCADA platforms such as Ignition by Inductive Automation.

Remote I/O expansion is handled through the 1771-ASB remote I/O adapter, which allows 1771-IBD modules installed in remote chassis to communicate back to the host PLC-5 over a dedicated Remote I/O cable. This architecture is common in large-footprint facilities — stamping plants, bottling lines, and conveyor systems — where field devices are hundreds of meters from the main control panel. The 1771-ASB ensures that every input state captured by the 1771-IBD is faithfully transmitted to the host processor without scan-time degradation.

At the HMI layer, operators interact with 1771-IBD input data through PanelView terminals or modern PanelView Plus 7 displays, where real-time input status, alarm states, and interlock conditions are visualized on process mimics. When an input point changes state unexpectedly — a conveyor jam, a safety gate opened, a level switch tripped — the PLC-5 generates an alarm that propagates through the FactoryTalk Alarms and Events server to the SCADA historian, creating a timestamped audit trail for root-cause analysis and regulatory compliance.

For facilities transitioning toward IIoT architectures, an edge gateway such as the Moxa MGate or a Kepware KEPServerEX OPC-UA server can poll the PLC-5 data table — including all 1771-IBD input states — and publish structured data to cloud platforms or MES systems via MQTT or OPC-UA. This enables remote diagnostics, predictive maintenance dashboards, and production KPI visualization without modifying the existing PLC-5 control program. The 1771-IBD thus becomes a data source not just for local control, but for enterprise-wide operational intelligence.

Protocol Fragmentation: Many legacy plants run mixed environments where PLC-5 systems coexist with newer ControlLogix or CompactLogix controllers. The 1771-IBD's Remote I/O compatibility allows it to be read by ControlLogix processors via a 1756-DHRIO or 1756-RIO bridge module, eliminating the need to replace functional I/O hardware during controller migrations. This preserves capital investment while enabling protocol unification at the controller level.

Data Silos and Production Transparency: Without proper integration, 1771-IBD input data remains trapped in the PLC-5 data table, invisible to plant managers and maintenance teams. By connecting the PLC-5 to a FactoryTalk Historian or OSIsoft PI server, every input transition — machine cycle complete, part present, door closed — becomes a time-series data point available for OEE calculation, downtime analysis, and shift reporting. Production transparency is achieved without replacing the existing I/O infrastructure.

Remote Monitoring and Alarm Tracking: In unmanned substations or remote pump stations, the 1771-IBD provides the discrete input layer for monitoring equipment status — motor running, valve open, fault present. Combined with a cellular or fiber-connected remote I/O adapter, maintenance teams receive real-time alarm notifications via SCADA, reducing response time and preventing unplanned downtime. Alarm history stored in the SCADA historian supports trend analysis and predictive maintenance scheduling.

System Expansion Without Disruption: The 1771 I/O platform supports hot-swap-capable chassis configurations in certain PLC-5 variants, and the modular slot architecture allows additional 1771-IBD modules to be added as production lines expand. New field devices can be wired into spare input points without modifying existing ladder logic, and the PLC-5's data table automatically reflects the new inputs on the next scan cycle.

Q1: What communication protocols does the 1771-IBD support for SCADA integration?The 1771-IBD communicates over the PLC-5 parallel backplane bus natively. For SCADA integration, the PLC-5 processor connects to SCADA systems via Data Highway Plus (DH+), Remote I/O (RIO), or Ethernet/IP through communication interface modules such as the 1784-PKTX or 1761-NET-ENI. OPC-DA and OPC-UA connectivity is available through RSLinx Classic or KEPServerEX drivers, enabling integration with FactoryTalk View SE, Wonderware System Platform, and Ignition SCADA without protocol conversion at the I/O level.

Q2: Can the 1771-IBD be used with ControlLogix or CompactLogix systems?Yes, through bridge modules. A 1756-DHRIO or 1756-RIO module installed in a ControlLogix chassis allows the ControlLogix processor to read 1771-IBD input data from a remote PLC-5 I/O chassis over a Remote I/O or DH+ network. This is a common migration strategy that preserves existing 1771 I/O investments while upgrading the control platform to the Logix5000 architecture.

Q3: How is network stability ensured in large-scale Remote I/O deployments?The 1771-ASB remote I/O adapter uses a dedicated, shielded Remote I/O cable with defined baud rates (57.6K, 115.2K, or 230.4K bps) and a deterministic polling protocol. Network stability is maintained through proper cable termination, grounding, and adherence to maximum cable length specifications. In critical applications, redundant Remote I/O networks can be configured using dual 1771-ASB adapters to eliminate single points of failure.

Q4: What pre-shipment testing and warranty coverage does NANKMOS provide for the 1771-IBD?Every 1771-IBD unit shipped by NANKMOS undergoes functional testing prior to dispatch, verifying all 16 input channels, backplane communication, and LED indicator operation. Each unit is covered by a 12-month warranty from the date of shipment. In-stock units are available for same-week dispatch, and our technical team provides pre-sales application support to confirm compatibility with your specific PLC-5 chassis and I/O configuration.
