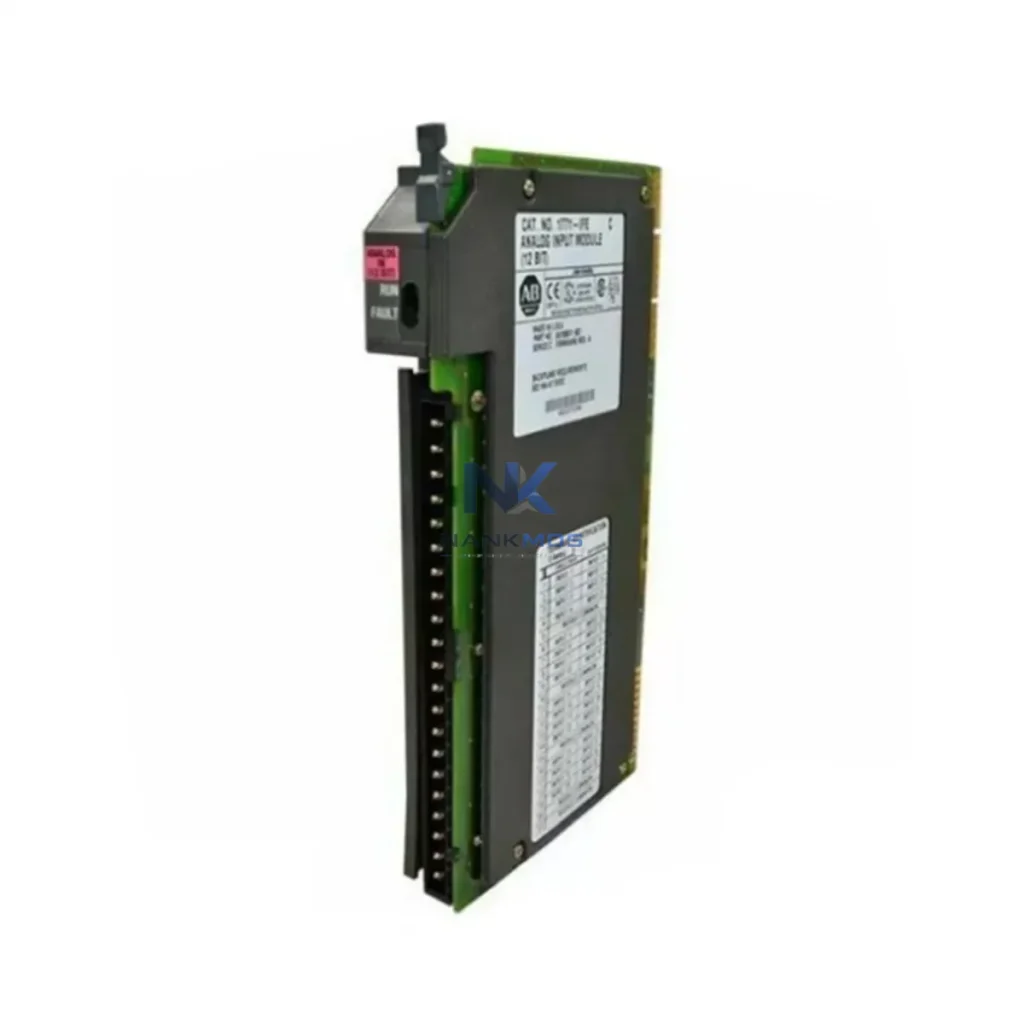

Allen-Bradley 1771-IFEK Analog Input Module

Product Details

1771-IFEK Product Description

The Allen-Bradley 1771-IFEK is a high-resolution analog input module engineered for the PLC-5 programmable controller platform, delivering precise process variable acquisition that forms the foundation of effective energy control and load management in industrial environments. By accurately capturing voltage and current signals from field instruments, the 1771-IFEK enables control systems to make real-time, data-driven decisions that reduce unnecessary energy consumption, minimize thermal loading on drive systems, and stabilize production line throughput.

In modern smart manufacturing facilities, the quality of analog signal data directly determines the efficiency of every downstream control action. When the 1771-IFEK feeds clean, calibrated input data into the PLC-5 processor, the controller can execute tighter PID loops, optimize variable-frequency drive (VFD) speed references, and coordinate servo drive positioning with far greater accuracy — all of which translate into measurable reductions in wasted energy and mechanical wear.

The 1771-IFEK does not operate in isolation — its value is realized through tight integration with the broader automation and energy management architecture on the production floor. Within a PLC-5 chassis, the module works alongside the 1771-OFE analog output module to form a closed-loop control pair: the IFEK reads process variables such as motor current draw, pressure, flow rate, or temperature, while the OFE issues corrective analog commands to actuators and drives. This feedback-command cycle is the core mechanism by which energy waste is identified and corrected in real time.

On the drive side, the 1771-IFEK's 4–20 mA output data is commonly routed to PowerFlex 700 or PowerFlex 40 variable-frequency drives as speed reference or torque limit signals. When a motor is running at a load below its rated capacity — a common source of energy waste in pump and fan applications — the PLC-5 can use IFEK feedback to command the VFD to reduce output frequency, directly cutting kilowatt-hour consumption without sacrificing process performance. In servo-driven axes, the same signal chain interfaces with Kinetix 6000 servo drives via the 1756 ControlLogix bridge, enabling coordinated multi-axis motion with energy-optimized acceleration and deceleration profiles.

For power quality and energy metering, the 1771-IFEK integrates naturally with PowerMonitor 3000 or PowerMonitor 5000 units. These power monitoring modules output 4–20 mA analog signals representing real power (kW), reactive power (kVAR), and power factor — all of which the IFEK captures and delivers to the PLC-5 for logging, alarming, and demand-side management. When power factor drops below a configured threshold, the PLC can automatically shed non-critical loads or adjust drive operating points to bring the facility back within utility contract limits, avoiding demand penalty charges.

On the I/O and field instrument side, the 1771-IFEK accepts signals from Rosemount 3051 pressure transmitters, thermocouple-to-current converters, and flow transmitters, providing the process data needed to run energy-efficient control strategies such as cascade control, feedforward compensation, and model-predictive load balancing. When paired with a 1771-SDN DeviceNet scanner or a 1756-ENBT EtherNet/IP bridge module, the analog data collected by the IFEK can be forwarded upstream to FactoryTalk View HMI stations and FactoryTalk Historian SCADA servers, where energy KPIs are trended, reported, and benchmarked against production targets.

Factories that have integrated the Allen-Bradley 1771-IFEK into their energy management strategy report measurable improvements across three key dimensions: energy consumption per unit of output, unplanned downtime frequency, and equipment utilization rates.

Reducing Energy Consumption: The module's 12-bit resolution ensures that even small deviations in motor current or process pressure are detected and acted upon before they escalate into sustained overload conditions. Overloaded motors running at elevated current draw are one of the largest sources of avoidable energy waste in manufacturing. By giving the PLC-5 accurate, high-resolution current feedback, the 1771-IFEK enables the controller to trim VFD output frequency or adjust pump discharge pressure setpoints in real time, keeping motors operating in their highest-efficiency band. In facilities with multiple pump or fan systems, this alone can reduce motor energy consumption by 15–30% compared to fixed-speed operation.

Minimizing Downtime and Thermal Load: Thermal stress is the leading cause of premature failure in analog input modules, drive systems, and motor windings. The 1771-IFEK's low backplane power draw (≤ 1.5 W) minimizes its own contribution to chassis thermal load, while its accurate temperature and current monitoring capabilities allow the PLC-5 to implement predictive maintenance logic — triggering maintenance alerts when motor winding temperatures trend upward or when drive output current approaches derating thresholds. This predictive approach replaces reactive, breakdown-driven maintenance with scheduled interventions, reducing mean time between failures (MTBF) and keeping production lines running at their designed throughput rate.

Stabilizing Production Line Throughput: In high-speed assembly and packaging lines, inconsistent analog signal quality leads to erratic PID control, which manifests as speed fluctuations, reject rate spikes, and energy-intensive re-work cycles. The 1771-IFEK's differential input architecture and hardware filtering suppress common-mode noise from VFD switching transients and motor cable capacitance, delivering stable, repeatable analog readings that allow the PLC-5 to maintain tight speed and tension control across the entire production line. The result is a more consistent line rate, lower scrap rates, and a reduction in the energy consumed per good unit produced.

Inventory Availability and Supply Readiness: NANKMOS maintains tested, inspected stock of the 1771-IFEK to support rapid replacement in production-critical applications. Each unit undergoes functional verification before dispatch, ensuring that replacement modules restore full analog input performance without requiring extended commissioning time. Fast availability reduces the energy and productivity cost of extended downtime events caused by module failure.

Q1: How does the 1771-IFEK contribute to measurable energy savings on a production line? The 1771-IFEK provides the PLC-5 with accurate, high-resolution analog feedback from motors, drives, and process instruments. This data enables the controller to optimize VFD speed references, adjust load setpoints, and implement demand-side management strategies that keep equipment operating in its highest-efficiency range. In pump and fan applications, this typically reduces motor energy consumption by 15–30% compared to fixed-speed operation.

Q2: Is the 1771-IFEK compatible with modern energy management and SCADA systems? Yes. While the 1771-IFEK is a PLC-5 platform module, its analog data can be bridged to modern systems via 1756-ENBT EtherNet/IP or 1771-SDN DeviceNet gateway modules. This allows IFEK process data to be consumed by FactoryTalk View HMI, FactoryTalk Historian, and third-party SCADA or Energy Management Systems (EMS) for real-time energy KPI monitoring and reporting.

Q3: What is the recommended replacement or upgrade path if the 1771-IFEK is no longer available? For facilities migrating from PLC-5 to ControlLogix, the functional equivalent is the 1756-IF8 analog input module, which offers higher channel density and native EtherNet/IP connectivity. NANKMOS can advise on migration planning and stocks both legacy 1771-IFEK units for direct replacement and 1756-series modules for platform upgrades.

Q4: What testing and warranty coverage is provided with each 1771-IFEK unit? Every 1771-IFEK unit supplied by NANKMOS is functionally tested and inspected prior to shipment. Each module is covered by a 12-month warranty against defects in materials and workmanship. In the event of a warranty claim, NANKMOS provides prompt replacement support to minimize production disruption.
