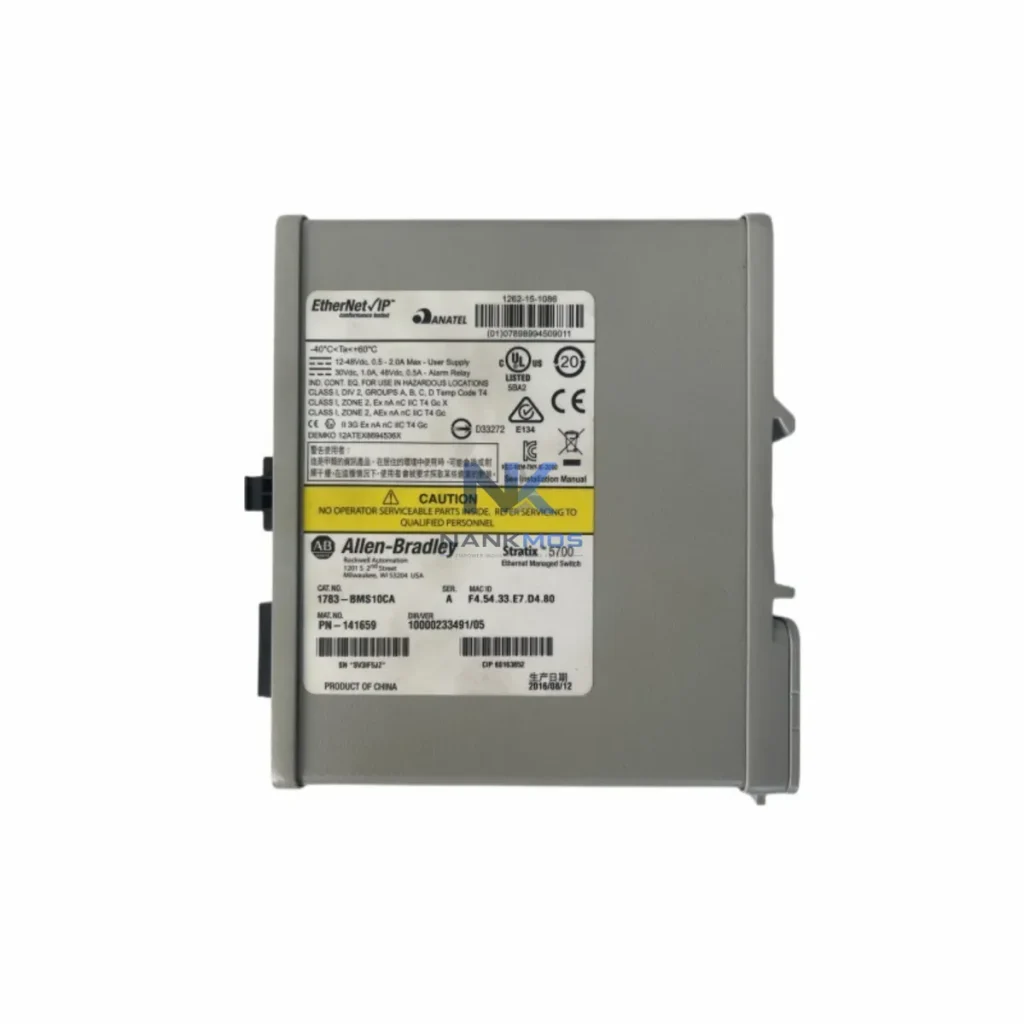

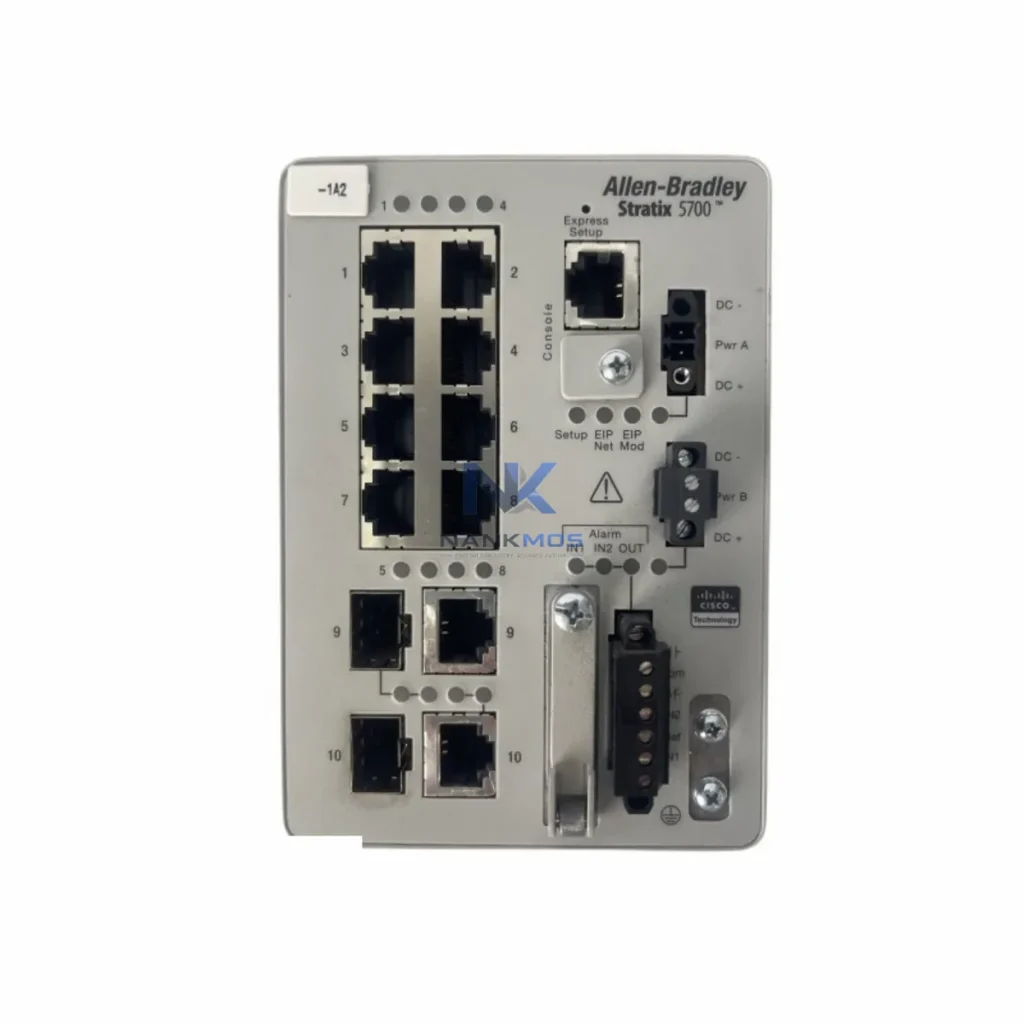

Allen-Bradley 1783-BMS10CA Managed Ethernet Switch

Product Details

1783-BMS10CA Product Description

The Allen-Bradley 1783-BMS10CA is a system-ready managed Ethernet switch engineered for deployment within Rockwell Automation's Stratix 5700 series — a purpose-built industrial networking platform designed to meet the rigorous demands of modern control architecture. As a core component of the EtherNet/IP communication layer, the 1783-BMS10CA delivers deterministic network performance, advanced traffic management, and seamless integration across multi-tier automation systems. Whether deployed in a ring topology for redundancy, a star topology for centralized I/O aggregation, or a linear topology for sequential machine control, this switch provides the network backbone that keeps every layer of the control hierarchy synchronized and responsive.

Engineered for industrial environments, the 1783-BMS10CA supports DIN-rail or panel mounting, operates across extended temperature ranges, and is built to withstand the vibration, EMI, and humidity conditions common to manufacturing floors, power substations, water treatment facilities, and process control plants. Its managed feature set — including IGMP snooping, QoS prioritization, VLAN segmentation, and RSTP/DLR (Device Level Ring) support — ensures that time-sensitive control traffic is always prioritized over general data traffic, preserving the real-time responsiveness that PLC-to-I/O and PLC-to-HMI communications demand.

The 1783-BMS10CA is not a standalone device — it is a network infrastructure node that binds together every functional layer of a Rockwell Automation control system. In a typical ControlLogix or CompactLogix architecture, the switch connects the 1756-L8x or 1769-L3x series PLCs to distributed I/O racks, remote adapter modules, and field devices via EtherNet/IP. The 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules installed in the ControlLogix chassis rely on the 1783-BMS10CA to route CIP (Common Industrial Protocol) packets with minimal latency, ensuring that scan cycle integrity is maintained even under high network load.

At the I/O layer, the switch aggregates traffic from 1734 POINT I/O adapters, 1756 ControlLogix I/O modules, and 1769 CompactLogix expansion I/O, all of which communicate upstream to the controller via EtherNet/IP. The DLR capability of the 1783-BMS10CA is particularly valuable in linear machine topologies where ring redundancy eliminates single points of network failure — a critical requirement in continuous process environments where an unplanned network outage translates directly to production loss.

At the HMI layer, PanelView Plus 7 terminals and FactoryTalk View SE clients connect through the 1783-BMS10CA to access real-time process data from the PLC. VLAN segmentation ensures that HMI traffic is isolated from I/O traffic, preventing bandwidth contention that could degrade operator display refresh rates. At the drive layer, PowerFlex 525 and PowerFlex 755 variable frequency drives with embedded EtherNet/IP adapters connect directly to the switch, enabling parameter monitoring, fault diagnostics, and speed reference commands from the PLC without requiring separate fieldbus wiring.

For systems requiring network-level redundancy beyond DLR, the 1783-BMS10CA can be paired with a Stratix 5410 or Stratix 8300 distribution switch to form a hierarchical network architecture — separating the cell/area zone from the site-level network in compliance with the Purdue Model (ISA-95). Signal isolation modules such as the 1492-AIFM series terminal blocks and 1606-XLP power supplies complete the installation by providing clean, regulated 24 VDC power and signal conditioning at the field device level.

Manufacturing & Assembly Lines: In automotive body-in-white welding lines and discrete assembly systems, the 1783-BMS10CA provides the EtherNet/IP backbone connecting robot controllers, servo drives, vision systems, and safety PLCs. Its QoS prioritization ensures that safety-critical I/O traffic from GuardLogix safety controllers is never delayed by general data traffic, maintaining SIL 2 / PLe system integrity across the network.

Power Generation & Electrical Substations: In power utility applications, the switch supports SCADA integration by connecting protection relays, RTUs, and energy meters to the control network. Its VLAN capability isolates protection traffic from monitoring traffic, and its Class I Division 2 certification allows deployment in areas with potentially explosive atmospheres — common in gas-insulated switchgear (GIS) substations.

Water & Wastewater Treatment: Municipal water treatment plants deploy the 1783-BMS10CA to network distributed pump stations, chemical dosing systems, and filtration control panels. The switch's DIN-rail form factor fits standard control panel layouts, and its extended temperature rating accommodates outdoor pump station enclosures where ambient temperatures fluctuate seasonally.

Oil, Gas & Petrochemical: In upstream and midstream oil and gas applications, the switch connects wellhead controllers, compressor PLCs, and pipeline SCADA nodes. Its ATEX Zone 2 / Class I Div 2 rating makes it suitable for installation in classified hazardous areas without requiring additional explosion-proof enclosures, reducing installation cost and complexity.

Mining & Metals Processing: In underground mining and surface ore processing, the 1783-BMS10CA networks conveyor drive systems, crusher PLCs, and ventilation control panels. Its rugged construction withstands the high-vibration, high-dust environments typical of mining operations, and its managed feature set enables remote diagnostics from the surface control room without requiring on-site technician presence.

Q1: Is the 1783-BMS10CA compatible with both ControlLogix and CompactLogix platforms? Yes. The 1783-BMS10CA is fully compatible with all Rockwell Automation EtherNet/IP-enabled controllers, including the ControlLogix 1756 series, CompactLogix 1769 series, and Micro850 controllers. It communicates via standard CIP (Common Industrial Protocol) over EtherNet/IP and requires no special configuration beyond standard IP addressing and VLAN setup. The switch is pre-configured for Rockwell Automation environments via the Cisco IOS-based Stratix management interface, which integrates directly with Studio 5000 Logix Designer for topology discovery and network health monitoring.

Q2: How does the DLR (Device Level Ring) feature improve system availability in production environments? DLR provides sub-50 ms network recovery in the event of a single cable or node failure within a ring topology. Unlike traditional RSTP ring recovery (which can take several seconds), DLR's rapid recovery time is transparent to the PLC scan cycle, meaning that I/O connections are maintained without triggering controller faults or production stops. This makes the 1783-BMS10CA particularly valuable in high-availability applications such as continuous process lines, packaging machinery, and safety-critical systems where even brief network interruptions are unacceptable.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability? Every 1783-BMS10CA supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including port connectivity, VLAN configuration, and power input validation. NANKMOS maintains dedicated inventory of Stratix 5700 series components to support both immediate project requirements and long-term MRO (Maintenance, Repair & Operations) needs. For system integrators and end users managing multi-year maintenance contracts, NANKMOS offers scheduled inventory reservation to ensure component availability aligns with planned maintenance windows.
