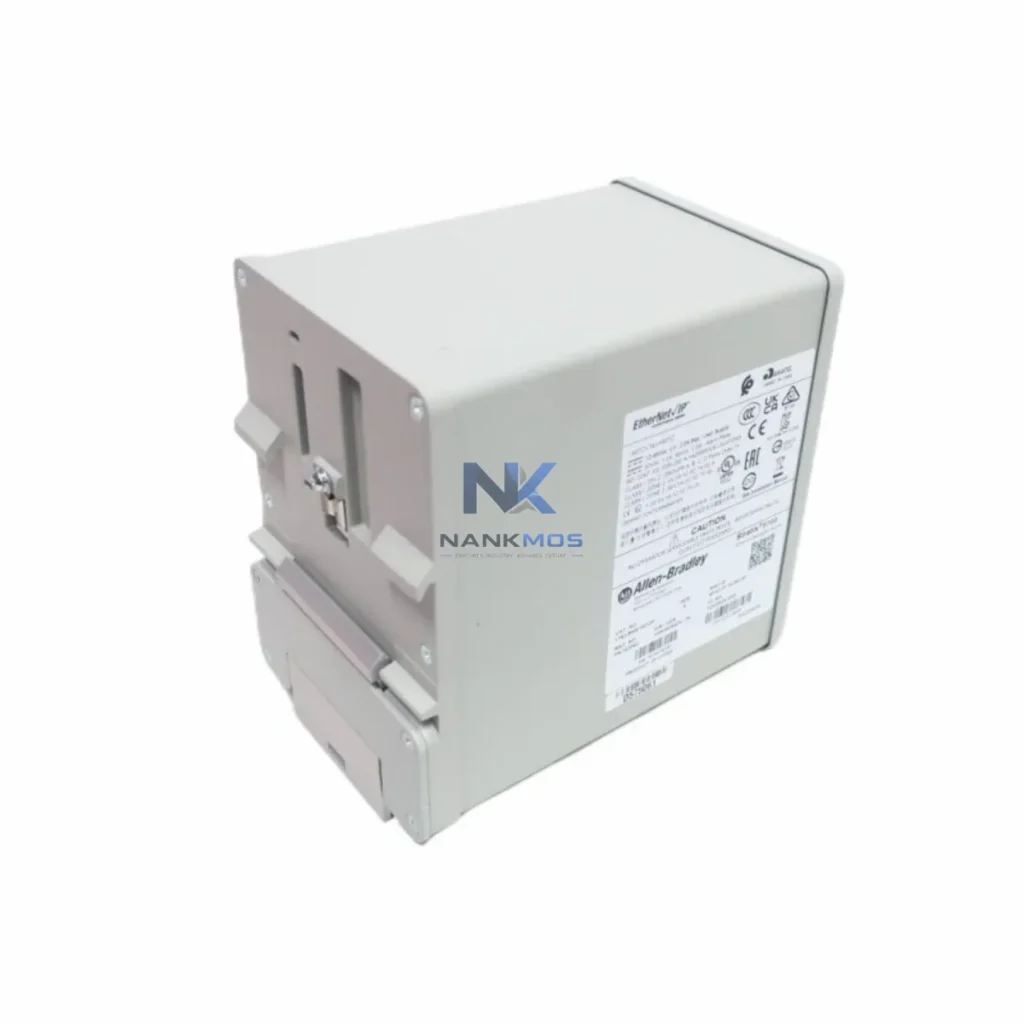

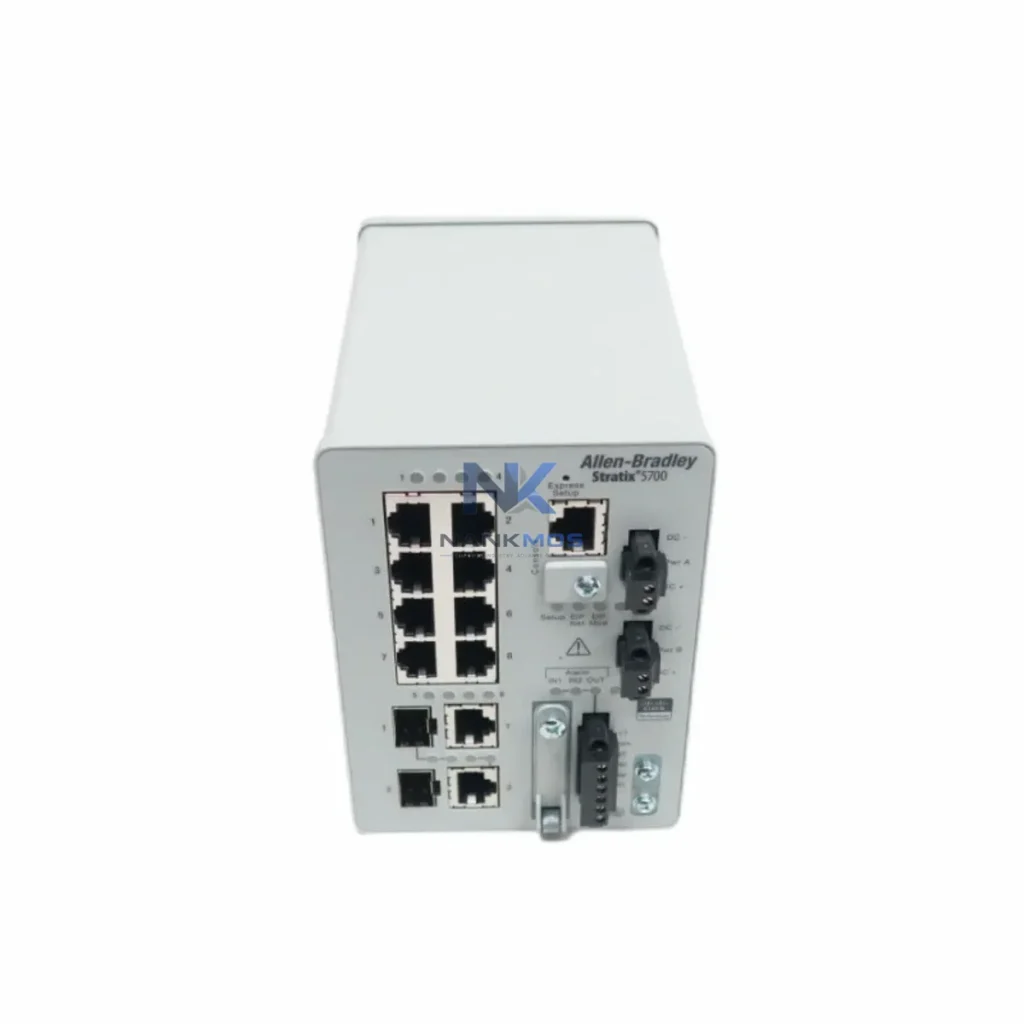

Allen-Bradley 1783-BMS10CGP Managed Ethernet Switch

Product Details

1783-BMS10CGP Product Description

The Allen-Bradley 1783-BMS10CGP is a Stratix 5700 series managed Ethernet switch engineered for seamless integration within Rockwell Automation's Integrated Architecture framework. Designed to serve as the communications backbone of industrial control systems, this switch delivers deterministic network performance, advanced diagnostics, and scalable topology support across manufacturing, energy, process, and infrastructure environments. Its role within a layered automation platform extends far beyond simple data routing — it actively enables system coherence, redundancy, and long-term maintainability across every control layer.

In modern industrial automation, network infrastructure is no longer a passive conduit. The 1783-BMS10CGP participates directly in the control architecture by supporting EtherNet/IP traffic prioritization, Device Level Ring (DLR) topology, and IGMP snooping for multicast management. These capabilities ensure that time-sensitive I/O data from distributed field devices reaches the ControlLogix or CompactLogix controller without latency-induced faults, maintaining system integrity even under high-traffic conditions.

Configured and monitored through Rockwell's Studio 5000 Logix Designer and FactoryTalk Network Manager, the 1783-BMS10CGP integrates natively into the same engineering environment used to program PLCs, configure drives, and manage HMI applications. This unified toolchain reduces commissioning time, simplifies fault isolation, and supports predictive maintenance workflows — all critical factors in reducing unplanned downtime across long-lifecycle industrial installations.

Every unit is pre-shipment tested and backed by a 12-Month Warranty, ensuring operational confidence from day one. Contextual Integration support means the switch is validated for deployment alongside Allen-Bradley ControlLogix 1756 series processors, CompactLogix 5380 controllers, POINT I/O 1734 distributed modules, PowerFlex 755 drives, PanelView Plus 7 HMI terminals, and 1783-ETAP Ethernet Tap modules — forming a cohesive, vendor-consistent automation platform.

The 1783-BMS10CGP is purpose-built for deployment within Rockwell Automation's Integrated Architecture, where every layer of the control system communicates over a unified EtherNet/IP network. At the control layer, it connects directly to ControlLogix 1756-L8x processors and CompactLogix 5380 controllers, providing the high-availability network backbone required for deterministic scan-cycle communication. The switch's DLR support enables ring-topology redundancy without additional hardware, reducing single-point-of-failure risk across the control network.

At the I/O layer, the switch aggregates traffic from POINT I/O 1734-AENT EtherNet/IP adapter modules and Flex I/O 1794-AENT distributed I/O nodes, ensuring that analog and digital field signals are delivered to the controller with consistent timing. For motion and drive integration, the switch supports PowerFlex 755 and PowerFlex 525 variable frequency drives operating over EtherNet/IP, enabling coordinated multi-axis control without dedicated motion networks.

HMI connectivity is maintained through PanelView Plus 7 graphic terminals, which rely on the switch's QoS prioritization to ensure display refresh rates remain stable even during peak network load. At the communications gateway layer, the switch interfaces with 1783-ETAP Ethernet Tap modules for passive network monitoring and with Stratix 5400 managed switches for uplink aggregation in larger plant-wide architectures.

Power architecture integration is supported through 1606-XLP series power supplies, which provide the regulated 24V DC rail required by the switch and co-located I/O modules. For signal isolation in mixed-voltage environments, 1492-AIFM analog interface modules and signal conditioners are commonly deployed alongside the switch to protect network integrity from electrical noise. The result is a fully coherent, vendor-consistent automation platform where the 1783-BMS10CGP serves as the communications hub connecting every functional layer.

Discrete Manufacturing: In automotive assembly and electronics production lines, the 1783-BMS10CGP manages EtherNet/IP traffic between robot controllers, servo drives, vision systems, and safety PLCs. Its DLR topology ensures that a single cable fault does not interrupt production, while IGMP snooping prevents multicast flooding from degrading I/O response times across high-density panel installations.

Power Generation & Utilities: Substation automation and power distribution control systems require deterministic communication between protection relays, RTUs, and SCADA servers. The switch's RSTP convergence and VLAN segmentation capabilities allow engineers to isolate protection-critical traffic from general supervisory data, maintaining system reliability under fault conditions.

Oil, Gas & Petrochemical: In hazardous area installations classified as Class I Division 2 / Zone 2, the 1783-BMS10CGP's ATEX certification enables direct panel-mount deployment without additional enclosure upgrades. It supports communication between safety instrumented systems (SIS), DCS controllers, and field transmitters across geographically distributed process units.

Water & Wastewater Treatment: Remote pump stations and treatment facilities benefit from the switch's low-power 24V DC operation and wide operating temperature range, enabling reliable network performance in outdoor or partially conditioned enclosures. Integration with CompactLogix controllers and POINT I/O modules supports distributed SCADA architectures across large treatment campuses.

Mining & Metals: Conveyor control systems, crusher automation, and smelter process control require robust network infrastructure capable of operating in high-vibration, high-dust environments. The switch's DIN rail mounting, conformal coating options, and industrial-grade components ensure long service life in demanding mining applications.

Q1: Is the 1783-BMS10CGP compatible with existing ControlLogix and CompactLogix architectures without firmware upgrades? Yes. The 1783-BMS10CGP is natively compatible with ControlLogix 1756 and CompactLogix 5370/5380 platforms running current Studio 5000 firmware. The switch is recognized as a managed network device within the Logix Designer project tree, enabling integrated diagnostics and port-level monitoring without requiring separate network management software. For DLR ring configurations, ensure all ring participants support DLR supervisor or ring node roles as defined in the EtherNet/IP specification.

Q2: How does the switch support redundancy and fault recovery in a production environment? The 1783-BMS10CGP supports Device Level Ring (DLR) topology, which provides sub-millisecond fault recovery for ring-connected devices. In the event of a single cable or node failure, the DLR supervisor (typically the ControlLogix controller or a dedicated 1783-ETAP module) reconfigures the ring path within the recovery time window, maintaining I/O communication without controller faulting. For uplink redundancy, the dual combo SFP/copper uplink ports can be configured for RSTP-based redundant uplinks to aggregation switches such as the Stratix 5400.

Q3: What is the warranty coverage and how is inventory availability managed for long-term maintenance contracts? Every 1783-BMS10CGP unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and operational failures under normal industrial operating conditions. Units are tested prior to shipment using functional verification procedures that validate port connectivity, switching performance, and power input compliance. For long-term maintenance contracts and MRO (Maintenance, Repair & Operations) programs, NANKMOS maintains dedicated inventory reserves to support scheduled replacement cycles and emergency spares requirements. Contact our technical team to discuss volume availability and lead-time commitments for your facility's maintenance schedule.
