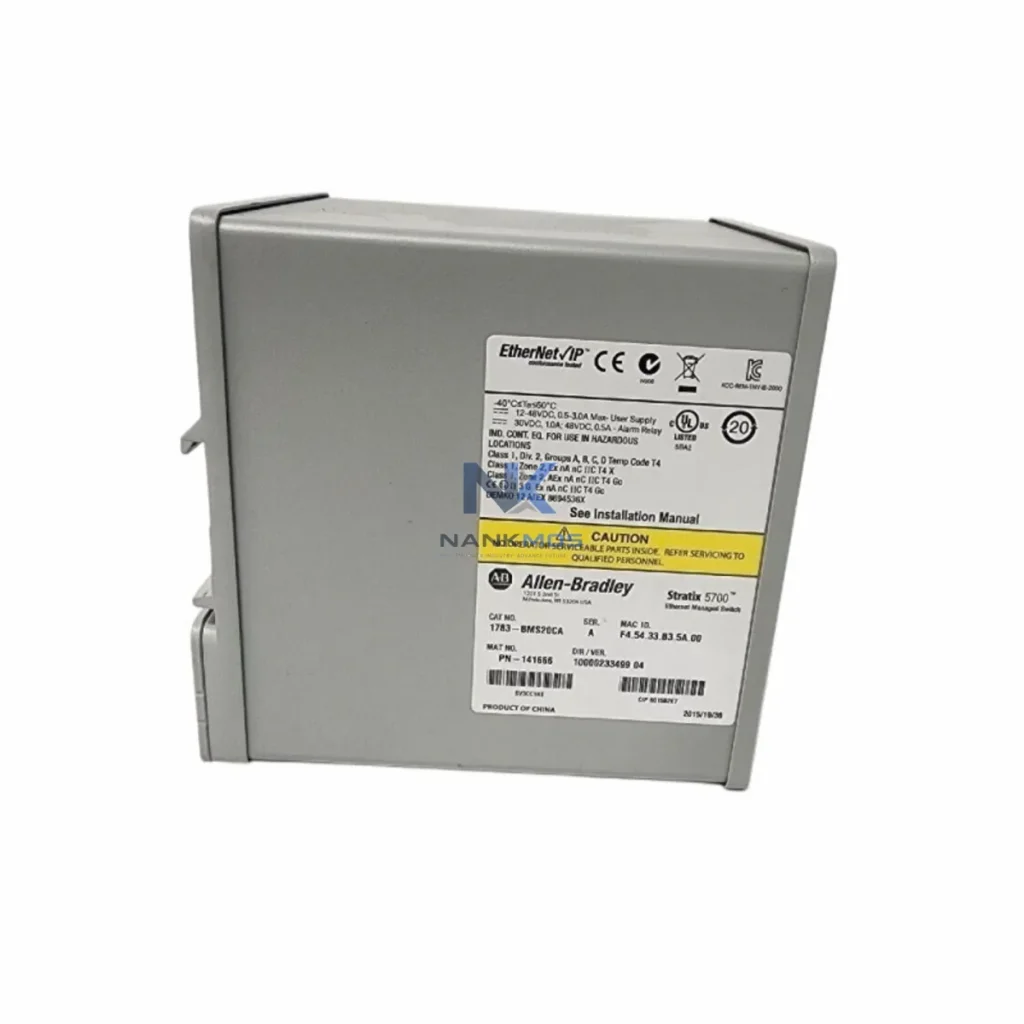

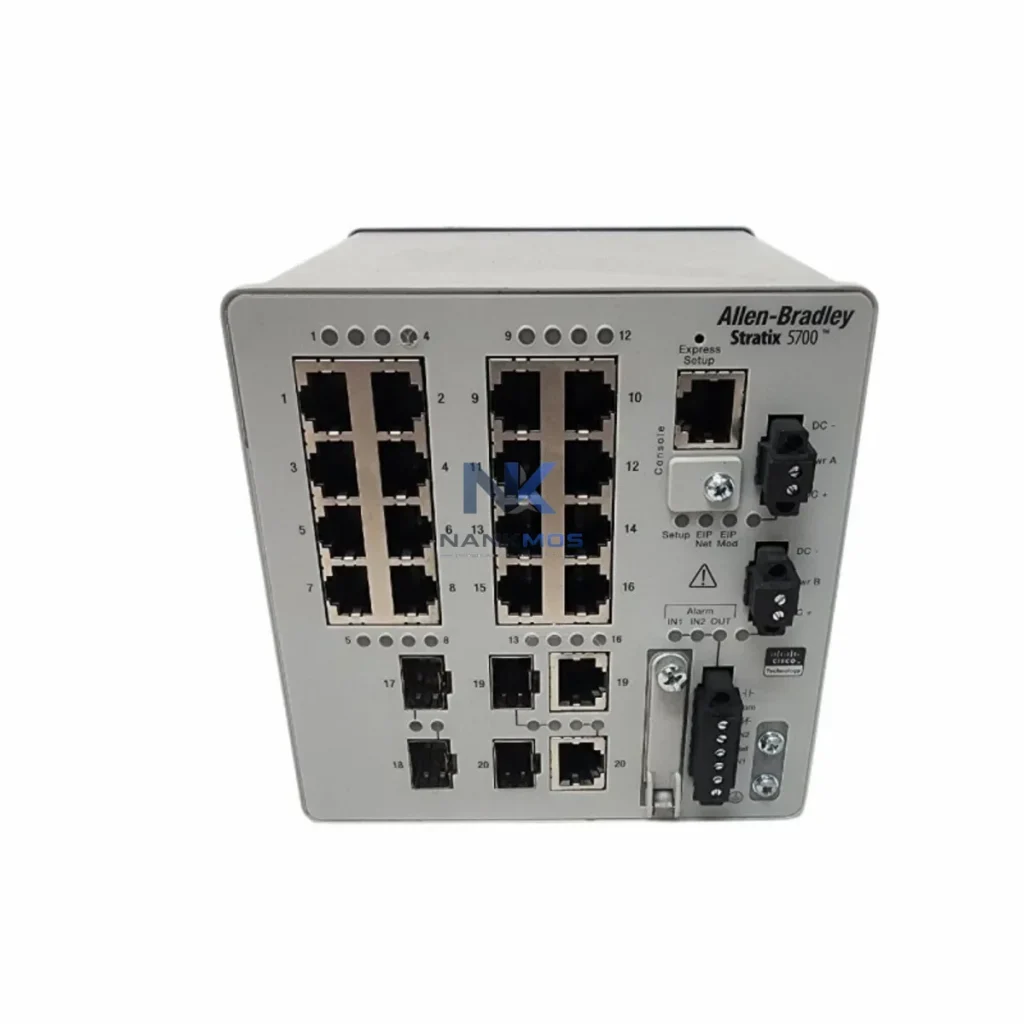

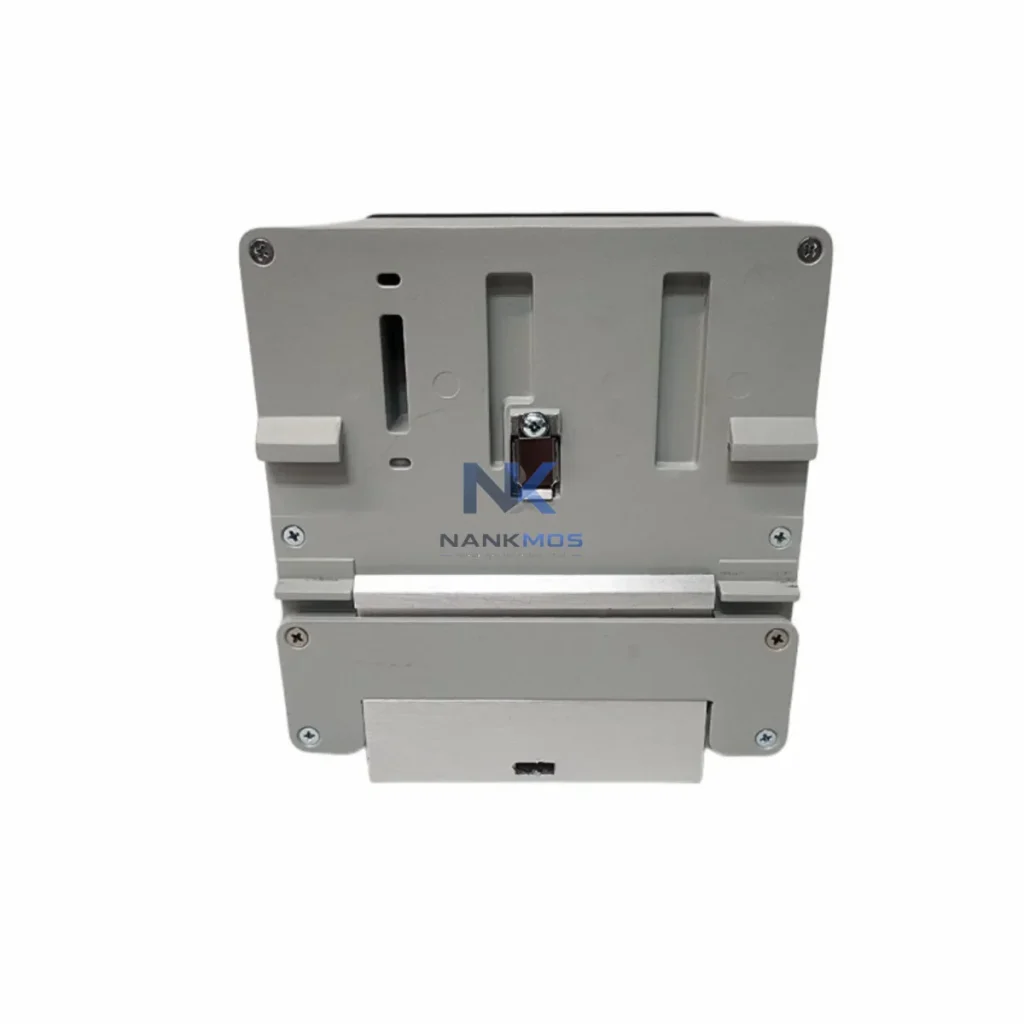

Allen-Bradley 1783-BMS20CA Managed Ethernet Switch

Product Details

1783-BMS20CA Product Description

The Allen-Bradley 1783-BMS20CA is a 20-port managed Ethernet switch from the Stratix 5700 series, engineered to serve as the backbone of industrial data communication in smart factory environments. Designed for seamless integration within Rockwell Automation's Connected Enterprise architecture, this switch enables high-speed, deterministic data flow between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, and edge computing gateways. With native support for EtherNet/IP and PROFINET protocols, the 1783-BMS20CA eliminates the communication barriers that fragment automation data across heterogeneous plant networks, delivering a unified, transparent, and scalable connectivity layer from the sensor level to the enterprise cloud.

In a modern smart factory, data integrity and network determinism are not optional — they are the foundation of operational efficiency. The 1783-BMS20CA addresses this requirement by providing advanced traffic management features including IGMP snooping, QoS prioritization, VLAN segmentation, and Rapid Spanning Tree Protocol (RSTP). These capabilities ensure that time-critical EtherNet/IP I/O traffic from Allen-Bradley CompactLogix or ControlLogix PLC controllers reaches its destination without latency spikes or packet loss, even in high-density network topologies where dozens of devices compete for bandwidth simultaneously.

The switch's role in the connected factory data flow begins at the field level, where sensors, actuators, and distributed I/O modules — such as Allen-Bradley Point I/O or FLEX I/O adapters — generate continuous streams of process data. The 1783-BMS20CA aggregates these signals across its copper and fiber ports, forwarding structured EtherNet/IP packets upstream to the control layer. At the control layer, ControlLogix L8x or CompactLogix L3x processors consume this data in real time, executing ladder logic and function block programs that govern machine behavior. The switch's QoS engine ensures that controller-to-I/O cyclic traffic is always prioritized over less time-sensitive data such as HMI screen refreshes or historian uploads.

Moving up the automation pyramid, the 1783-BMS20CA connects the control layer to SCADA and MES platforms via its uplink ports. Wonderware System Platform, FactoryTalk View SE, or Ignition SCADA servers poll tag data from PLCs through the switch fabric, enabling real-time visualization of production KPIs, alarm states, and energy consumption metrics on operator workstations and mobile dashboards. The switch's VLAN architecture isolates SCADA traffic from field-level I/O traffic, preventing broadcast storms and unauthorized cross-segment access — a critical requirement for IEC 62443 cybersecurity compliance in industrial networks.

Remote diagnostics and predictive maintenance workflows depend on the 1783-BMS20CA's ability to maintain stable, always-on connectivity between edge devices and cloud analytics platforms. Allen-Bradley Stratix 5900 security appliances or Cisco IE3400 industrial routers can be deployed upstream of the 1783-BMS20CA to provide encrypted VPN tunnels for remote access, allowing maintenance engineers to interrogate PLC fault logs, drive parameters on PowerFlex 755 variable frequency drives, and sensor health data from IO-Link masters without physical site visits. This remote diagnostic capability dramatically reduces mean time to repair (MTTR) and supports condition-based maintenance strategies that extend equipment lifecycle.

The 1783-BMS20CA also plays a pivotal role in integrating third-party devices that communicate over PROFINET, enabling interoperability with Siemens ET 200SP distributed I/O, SICK safety controllers, or Balluff RFID readers within a unified EtherNet/IP backbone. Protocol-aware edge gateways such as the Moxa MGate MB3660 or ProSoft Technology PLX51-MBTCP-MBS can be connected through the switch to bridge legacy Modbus RTU or serial devices into the modern Ethernet fabric, eliminating data silos that previously prevented holistic plant visibility.

For data visualization and historian integration, the switch provides the reliable transport layer that connects OSIsoft PI System data collectors or Kepware KEPServerEX OPC-UA servers to the plant network. High-frequency tag data from motion controllers, pressure transmitters, and flow meters is streamed through the 1783-BMS20CA to historian databases, where it feeds analytics dashboards, SPC charts, and OEE calculation engines. This end-to-end data chain — from sensor to historian to dashboard — is only possible when the network layer delivers the throughput, determinism, and uptime that the 1783-BMS20CA is built to provide.

Every 1783-BMS20CA unit shipped by NANKMOS undergoes pre-shipment functional testing to verify port connectivity, VLAN configuration integrity, and EtherNet/IP communication readiness. Stock is maintained for immediate dispatch, and each unit is covered by a 12-month warranty against manufacturing defects, ensuring procurement confidence for MRO buyers, system integrators, and OEM machine builders operating under tight project timelines.

A complete smart factory data chain built around the 1783-BMS20CA begins at the field instrumentation layer. Pressure transmitters, temperature sensors, and proximity switches connected to Allen-Bradley Point I/O 1734-AENT Ethernet adapters feed real-time process values into the switch fabric at cyclic intervals as short as 1 ms. The switch's IGMP snooping engine ensures that multicast EtherNet/IP I/O traffic is delivered only to the subscribing ControlLogix L85E controller, preventing unnecessary broadcast flooding across the 20-port topology.

At the machine control layer, CompactLogix L33ER processors managing conveyor drives, robotic cells, and packaging lines exchange implicit I/O data with PowerFlex 755 variable frequency drives through the 1783-BMS20CA. The switch's QoS configuration assigns the highest priority queue to CIP motion and I/O traffic, while HMI polling from PanelView Plus 7 terminals is assigned a lower priority queue — ensuring that machine control is never compromised by operator interface activity. VLAN segmentation further isolates the motion control subnet from the plant-wide SCADA network, reducing attack surface and broadcast domain size simultaneously.

At the supervisory layer, FactoryTalk View SE servers and Ignition SCADA gateways connect through the 1783-BMS20CA's uplink ports to aggregate tag data from multiple PLC controllers across the production floor. Alarm events generated by safety PLCs — such as the Allen-Bradley GuardLogix 5580 — are forwarded through the switch to the SCADA alarm management server, where they are logged, escalated via email or SMS, and archived for regulatory compliance reporting. The switch's port mirroring feature enables a network packet analyzer to capture and decode EtherNet/IP traffic for troubleshooting without disrupting live production.

For edge computing and IIoT integration, an Allen-Bradley Edge Data Server or a third-party Moxa UC-8112 industrial computer connects to the 1783-BMS20CA to run local analytics, OEE calculations, and anomaly detection algorithms at the plant edge — reducing latency compared to cloud-only architectures. Preprocessed data is then forwarded via MQTT or OPC-UA to cloud platforms such as Rockwell FactoryTalk Analytics or Microsoft Azure IoT Hub, completing the data chain from sensor to enterprise dashboard.

Many industrial facilities operate with fragmented network architectures where legacy serial devices, proprietary fieldbus segments, and modern Ethernet islands coexist without a unified communication backbone. The 1783-BMS20CA resolves these data gaps by providing a managed, protocol-aware Ethernet fabric that can accommodate both native EtherNet/IP devices and protocol-converted legacy equipment through gateway modules. Protocol inconsistency — where a Modbus RTU flow meter cannot communicate directly with an EtherNet/IP PLC — is addressed by connecting a ProSoft Technology PLX51-MBTCP-MBS gateway through the switch, transparently bridging the serial device into the Ethernet network without PLC program changes.

Data island problems, where production data is trapped in standalone machine controllers with no path to the SCADA or MES layer, are eliminated by the switch's ability to route EtherNet/IP traffic between previously isolated network segments. Remote monitoring challenges — particularly in multi-building or multi-site facilities — are addressed through the switch's fiber uplink ports, which support single-mode fiber runs of up to 15 km, enabling a single managed network to span large campus environments without signal degradation. Production line transparency is achieved through the switch's SNMP v3 management interface, which feeds port utilization, error counters, and link state data to network management systems such as Cisco DNA Center or Rockwell FactoryTalk Network Manager, providing a real-time map of every connected device and its communication health.

Alarm tracking and system expansion are simplified by the switch's scalable VLAN architecture, which supports up to 255 VLANs — allowing new production lines, robotic cells, or quality inspection stations to be added to the network without redesigning the existing topology. Each new segment is assigned its own VLAN, ensuring traffic isolation and security from day one of commissioning.

Q1: Does the 1783-BMS20CA support both EtherNet/IP and PROFINET simultaneously? The 1783-BMS20CA is a managed Ethernet switch that transports standard IEEE 802.3 Ethernet frames, making it inherently compatible with both EtherNet/IP and PROFINET traffic simultaneously. Both protocols operate over standard Ethernet and can coexist on the same switch fabric when proper VLAN segmentation and QoS policies are applied to prioritize time-critical traffic from each protocol domain.

Q2: What is the maximum network latency for EtherNet/IP I/O traffic through the 1783-BMS20CA? The 1783-BMS20CA is designed for store-and-forward switching with hardware-accelerated QoS, delivering port-to-port latency well under 10 microseconds for high-priority EtherNet/IP I/O frames under normal load conditions. This is sufficient for the majority of discrete and process control applications with RPI (Requested Packet Interval) settings as low as 1 ms.

Q3: Can the 1783-BMS20CA be managed remotely for diagnostics and configuration? Yes. The switch supports SNMP v1/v2c/v3, Telnet, SSH, and a web-based GUI for remote management. When deployed behind a Stratix 5900 security appliance or a Cisco IE3400 router with VPN capability, authorized engineers can remotely access the switch management interface to review port statistics, reconfigure VLANs, update firmware, and diagnose connectivity issues without requiring a physical site visit.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1783-BMS20CA? Every 1783-BMS20CA unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to dispatch, each unit undergoes functional port testing and EtherNet/IP communication verification. In-stock units are available for same-week shipment, supporting urgent MRO procurement and minimizing production downtime for facilities requiring rapid replacement of failed network infrastructure.
