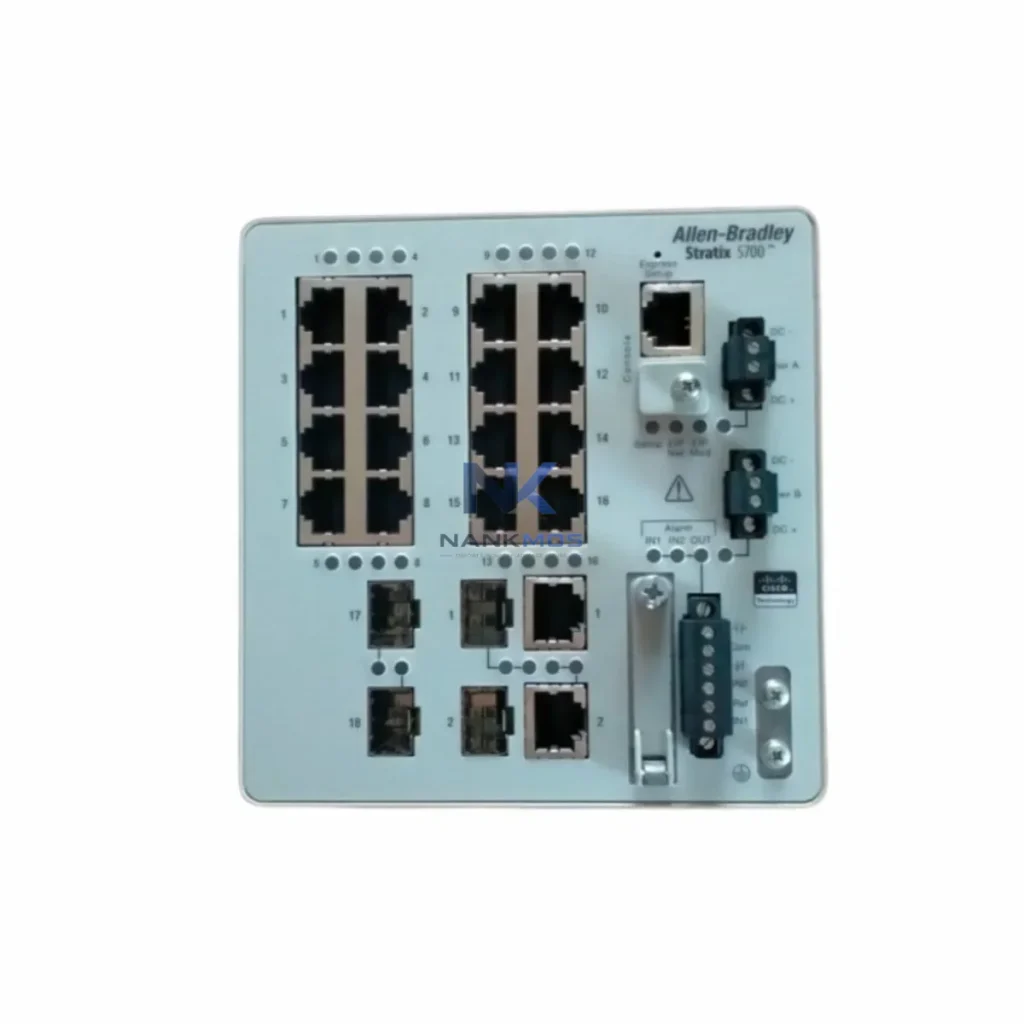

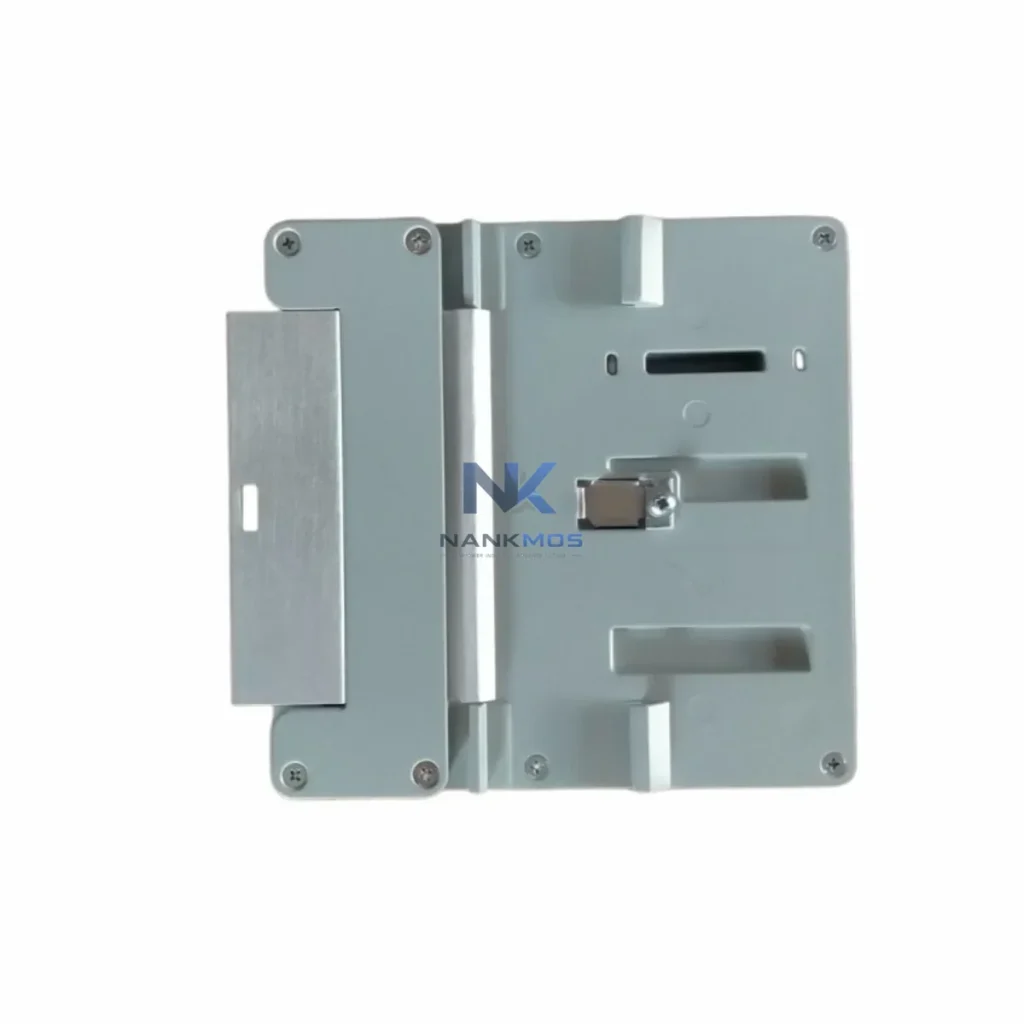

Allen-Bradley 1783-BMS20CGN Managed Ethernet Switch

Product Details

1783-BMS20CGN Product Description

The Allen-Bradley 1783-BMS20CGN is a high-performance managed Ethernet switch engineered as a core networking component within the Stratix 5700 platform. Designed for demanding industrial automation environments, this switch delivers deterministic Layer 2/Layer 3 communication across multi-tier control architectures. Its role extends beyond simple packet forwarding — it serves as the communication backbone that binds the control layer, I/O layer, HMI layer, and field device layer into a coherent, diagnostically transparent system. With support for EtherNet/IP, PROFINET-compatible topologies, and ring redundancy protocols including REP and DLR (Device Level Ring), the 1783-BMS20CGN ensures that signal integrity and network uptime are maintained even under fault conditions. Backed by a 12-Month Warranty and engineered for Contextual Integration across Rockwell Automation's Integrated Architecture, this switch is a proven choice for engineers building scalable, maintainable, and high-availability industrial networks.

In modern control system design, the communication layer is no longer a passive conduit — it is an active participant in system health, diagnostics, and performance. The 1783-BMS20CGN supports IGMP snooping for multicast traffic management, VLAN segmentation for traffic isolation between control zones, and QoS prioritization to ensure time-critical EtherNet/IP I/O traffic is never delayed by bulk data transfers. These capabilities make it an ideal fit for architectures where PLCs, drives, safety controllers, and HMI panels must coexist on a shared network without interference.

The 1783-BMS20CGN is most effective when deployed as part of a fully integrated Rockwell Automation control architecture. At the control layer, it connects directly to Allen-Bradley ControlLogix 1756-L85E or CompactLogix 5380 CPUs, providing the high-bandwidth, low-latency backbone required for real-time I/O scanning and peer-to-peer controller messaging. The switch's DLR support enables ring topology deployment with distributed I/O modules such as the 1734 POINT I/O series and 1756 ControlLogix I/O adapters, eliminating single points of failure in the field network.

For power distribution integrity, the 1783-BMS20CGN operates alongside 1606-XLP power supplies, which deliver regulated 24V DC with active power factor correction — ensuring the switch and connected field devices receive stable, noise-free power even in electrically harsh environments. In HMI-intensive applications, the switch supports simultaneous connections to PanelView Plus 7 terminals and FactoryTalk View SE servers, enabling operators to monitor real-time process data without impacting controller scan times.

Drive integration is equally seamless: PowerFlex 755 and PowerFlex 525 variable frequency drives connect via EtherNet/IP, with the 1783-BMS20CGN managing multicast group membership through IGMP snooping to prevent drive status broadcasts from flooding the control network. For safety-critical zones, the switch can be segmented via VLAN to isolate GuardLogix 5580 safety controller traffic from standard process control traffic, maintaining SIL 2/3 integrity without requiring a separate physical network.

In larger architectures, the 1783-BMS20CGN integrates with Stratix 8000 modular managed switches at the cell/area zone level, and with Stratix 5400 switches at the site-level backbone, forming a hierarchical network that mirrors the ISA-95 automation pyramid. Communication gateways such as the 1783-ETAP EtherNet/IP tap modules and 1756-EN2T EtherNet/IP communication modules bridge legacy DeviceNet and ControlNet segments into the modern EtherNet/IP fabric managed by the 1783-BMS20CGN.

Manufacturing & Assembly Lines: In automotive and electronics assembly, the 1783-BMS20CGN manages real-time communication between robot controllers, servo drives, vision systems, and MES interfaces. Its QoS capabilities ensure that motion control I/O packets receive deterministic delivery, while VLAN segmentation isolates quality inspection data from production control traffic.

Power Generation & Utilities: Substations and power distribution facilities rely on the switch's REP ring redundancy to maintain communication continuity during cable faults or switch failures. Integration with protective relays, RTUs, and SCADA systems via Modbus TCP and SNMP monitoring ensures that grid operators maintain full situational awareness at all times.

Petrochemical & Refining: In hazardous process environments, the 1783-BMS20CGN supports PlantPAx DCS architectures where redundant controller pairs (1756-L85E with 1756-RM2 redundancy modules) require a network switch capable of handling high-frequency I/O updates without packet loss. Its industrial-grade temperature tolerance and DIN-rail form factor suit control room and field junction box installations alike.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the switch to connect distributed pump stations, flow meters, and chemical dosing controllers across geographically dispersed sites. The switch's SNMP v3 management capability enables centralized network health monitoring from a FactoryTalk AssetCentre server, reducing the need for on-site maintenance visits.

Mining & Metals: In underground mining and surface processing operations, the 1783-BMS20CGN's wide DC input range and robust thermal design ensure reliable operation in environments with significant voltage fluctuations and temperature extremes. It supports communication between conveyor drive systems, crusher PLCs, and plant-wide historians for production optimization.

Q1: Is the 1783-BMS20CGN compatible with existing Stratix 5700 ring topologies using DLR?Yes. The 1783-BMS20CGN natively supports Device Level Ring (DLR) as both a ring supervisor and ring node. It can be inserted into existing DLR rings without reconfiguring the ring supervisor, provided the ring supervisor firmware is at v4.x or later. For new deployments, Rockwell Automation recommends configuring the 1783-BMS20CGN as the ring supervisor when it is the highest-capability switch in the ring.

Q2: How does this switch integrate with Studio 5000 Logix Designer for network diagnostics?The 1783-BMS20CGN supports Add-On Profiles (AOPs) for Studio 5000, enabling engineers to configure and monitor the switch directly from the Logix Designer environment. Port status, VLAN assignments, and ring health indicators are accessible as controller tags, allowing ladder logic or structured text routines to trigger alarms or initiate failover procedures based on network events — without requiring a separate network management tool.

Q3: What are the warranty terms and long-term supply availability for the 1783-BMS20CGN?Every 1783-BMS20CGN unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and operational failures under normal industrial use conditions. Units are pre-shipment tested for port functionality, power input range, and management interface accessibility. NANKMOS maintains stock of the 1783-BMS20CGN and its Stratix 5700 series counterparts to support both new project deployments and MRO (Maintenance, Repair & Operations) replacement requirements. For volume procurement or long-term supply agreements, contact our engineering sales team directly.
