Allen-Bradley 1783-BMS20CL

Product Details

1783-BMS20CL Product Description

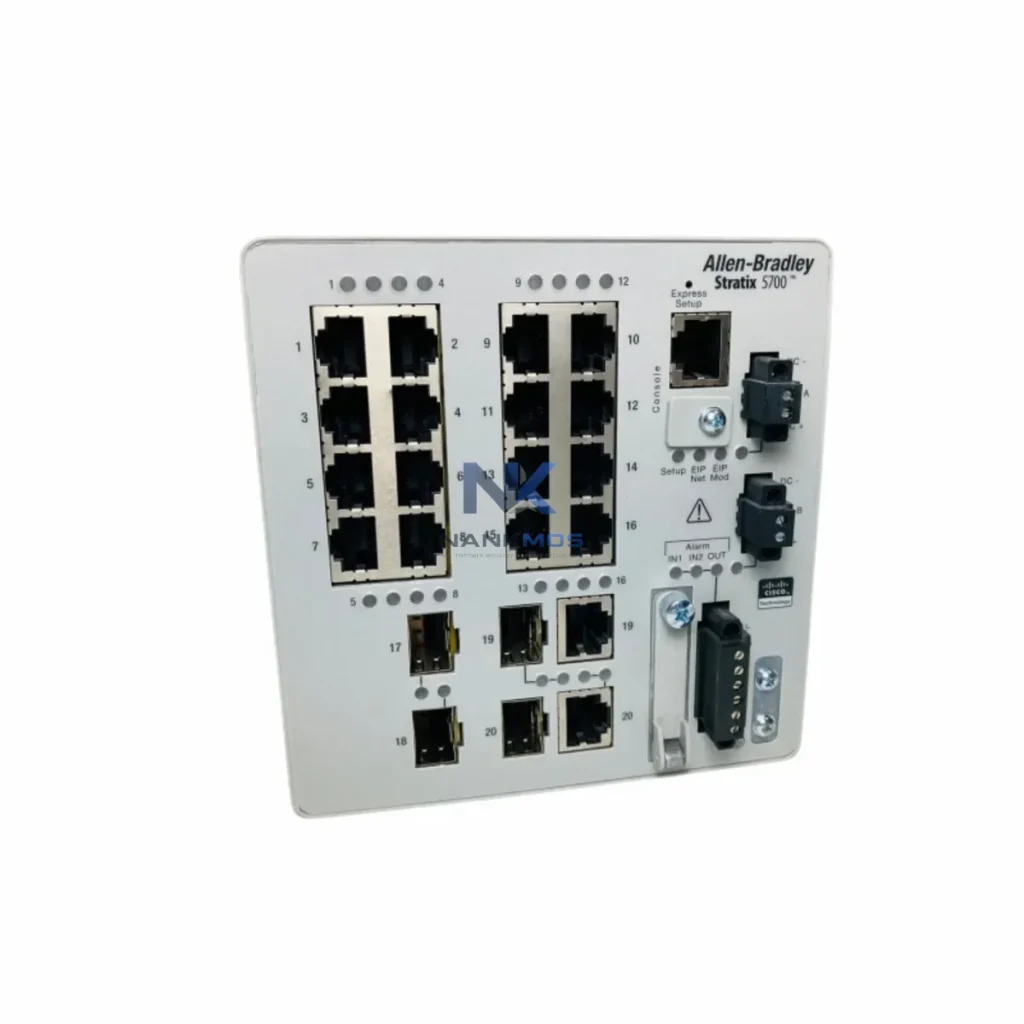

The Allen-Bradley 1783-BMS20CL is a 20-port managed Ethernet switch from the Stratix 5700 series, engineered specifically for industrial automation environments where network reliability, deterministic communication, and energy-efficient data routing are mission-critical. Designed to integrate seamlessly into EtherNet/IP-based control architectures, this switch delivers the bandwidth management, VLAN segmentation, and Quality of Service (QoS) capabilities required to sustain high-throughput production line communication while minimizing unnecessary network load and associated energy overhead.

In modern smart manufacturing facilities, the network infrastructure is no longer a passive conduit — it is an active participant in energy optimization. The 1783-BMS20CL enables precise traffic prioritization between PLCs, HMIs, servo drives, and SCADA systems, ensuring that time-sensitive control packets are never delayed by lower-priority data streams. This deterministic behavior directly reduces cycle time variance, stabilizes production line rhythm, and eliminates the energy waste associated with retransmissions, communication faults, and unplanned downtime.

The 1783-BMS20CL operates as the communication backbone connecting every energy-relevant node on the production floor. In a typical deployment, it links Allen-Bradley ControlLogix or CompactLogix PLCs to downstream field devices, enabling real-time data exchange that supports both process control and energy monitoring. When paired with PowerFlex 755 variable frequency drives, the switch ensures that speed reference commands and drive status feedback are transmitted with minimal latency, allowing the VFD to respond instantly to load changes and avoid energy-wasting over-speed conditions.

Kinetix 5700 servo drives connected through the 1783-BMS20CL benefit from the switch's IGMP snooping and multicast management capabilities, which prevent unnecessary broadcast traffic from saturating the network and consuming processing resources on motion controllers. This is particularly valuable in multi-axis servo systems where coordinated motion profiles must be maintained with microsecond precision to avoid mechanical stress and energy spikes.

The switch also supports direct integration with PanelView Plus HMI terminals, providing operators with real-time visibility into drive states, motor load percentages, and alarm conditions — all of which are essential inputs for manual energy optimization decisions. When connected to a SCADA system via the same EtherNet/IP backbone, the 1783-BMS20CL enables centralized energy data aggregation from power monitoring modules such as the PowerMonitor 5000, allowing facility managers to identify high-consumption nodes and implement demand-response strategies without additional wiring infrastructure.

For I/O integration, the switch supports Point I/O and Flex I/O adapters communicating over EtherNet/IP, enabling distributed sensor data — including temperature, current, and vibration signals — to be routed efficiently to the PLC without creating network congestion. This distributed I/O architecture reduces the need for long cable runs, lowering both installation cost and resistive energy losses. Communication modules such as the 1783-ETAP EtherNet/IP tap can be used alongside the 1783-BMS20CL to provide device-level network diagnostics without interrupting live production traffic.

Energy optimization in industrial environments is fundamentally a communication problem: machines waste energy when they lack accurate, timely information about load conditions, upstream demand, and downstream capacity. The 1783-BMS20CL addresses this at the network layer by ensuring that every control signal, sensor reading, and drive command reaches its destination with the reliability and speed required for closed-loop energy management.

By implementing VLAN segmentation, the switch isolates high-priority control traffic from general IT network traffic, preventing bandwidth contention that could delay PLC scan cycles and cause motors or drives to operate outside their optimal efficiency windows. QoS policies configured on the 1783-BMS20CL ensure that EtherNet/IP I/O traffic — which carries real-time motor current feedback, encoder positions, and thermal sensor data — is always prioritized over non-critical communications.

In production lines where multiple PowerFlex variable frequency drives manage conveyor motors, pump systems, or compressor loads, the 1783-BMS20CL enables coordinated load shedding strategies by maintaining uninterrupted communication between the PLC and all drive nodes simultaneously. When the PLC detects a peak demand condition, it can issue speed reduction commands to non-critical drives within a single scan cycle, reducing instantaneous power draw and avoiding demand charge penalties.

The switch's support for Rapid Spanning Tree Protocol (RSTP) provides automatic network redundancy, ensuring that a single cable or port failure does not interrupt production. Unplanned stops are among the largest sources of energy waste in manufacturing — idle machines consuming standby power, heating systems maintaining temperature in empty zones, and compressed air systems running without productive output. By eliminating single points of network failure, the 1783-BMS20CL directly contributes to higher equipment utilization rates and lower energy-per-unit-produced metrics.

Predictive maintenance strategies also benefit from the 1783-BMS20CL's network management capabilities. By providing stable, high-bandwidth connectivity for vibration sensors, thermal cameras, and motor current analyzers, the switch enables continuous condition monitoring data to flow to analytics platforms without packet loss. Early detection of bearing wear, insulation degradation, or cooling system inefficiency allows maintenance teams to schedule interventions before failures occur, avoiding both emergency energy surges and the extended downtime that follows unplanned breakdowns.

All units are available from verified inventory, pre-tested prior to shipment, and covered by a 12-Month Warranty. Each 1783-BMS20CL is inspected to confirm port integrity, firmware compatibility, and configuration readiness before dispatch, ensuring that your production line network is operational from day one.

Q1: How does the 1783-BMS20CL contribute to energy savings on a production line? The switch reduces energy waste by ensuring deterministic, low-latency communication between PLCs, drives, and sensors. This eliminates retransmission overhead, prevents control delays that cause motors to run inefficiently, and enables real-time load management strategies that reduce peak demand consumption.

Q2: Is the 1783-BMS20CL compatible with existing Allen-Bradley control systems? Yes. The 1783-BMS20CL is fully compatible with ControlLogix, CompactLogix, and GuardLogix PLC platforms, as well as PowerFlex VFDs, Kinetix servo drives, PanelView HMIs, and Point I/O or Flex I/O adapters communicating over EtherNet/IP. It integrates directly into Studio 5000 Logix Designer environments for configuration and diagnostics.

Q3: Can this switch replace an existing unmanaged switch in my automation network? In most cases, yes — the 1783-BMS20CL is a direct upgrade path from unmanaged switches in EtherNet/IP topologies. The managed capabilities (VLAN, QoS, IGMP, RSTP) provide immediate improvements in network determinism and fault tolerance. Configuration is performed via Rockwell Automation's Device Manager interface or through RSLinx Classic / FactoryTalk software.

Q4: What does the 12-Month Warranty cover, and how is the unit tested before shipment? Every 1783-BMS20CL unit undergoes pre-shipment functional testing covering all 20 ports, SFP fiber interfaces, management interface responsiveness, and power input integrity. The 12-Month Warranty covers hardware defects and operational failures under normal industrial use conditions. Units are shipped from verified inventory with full traceability documentation available upon request.
