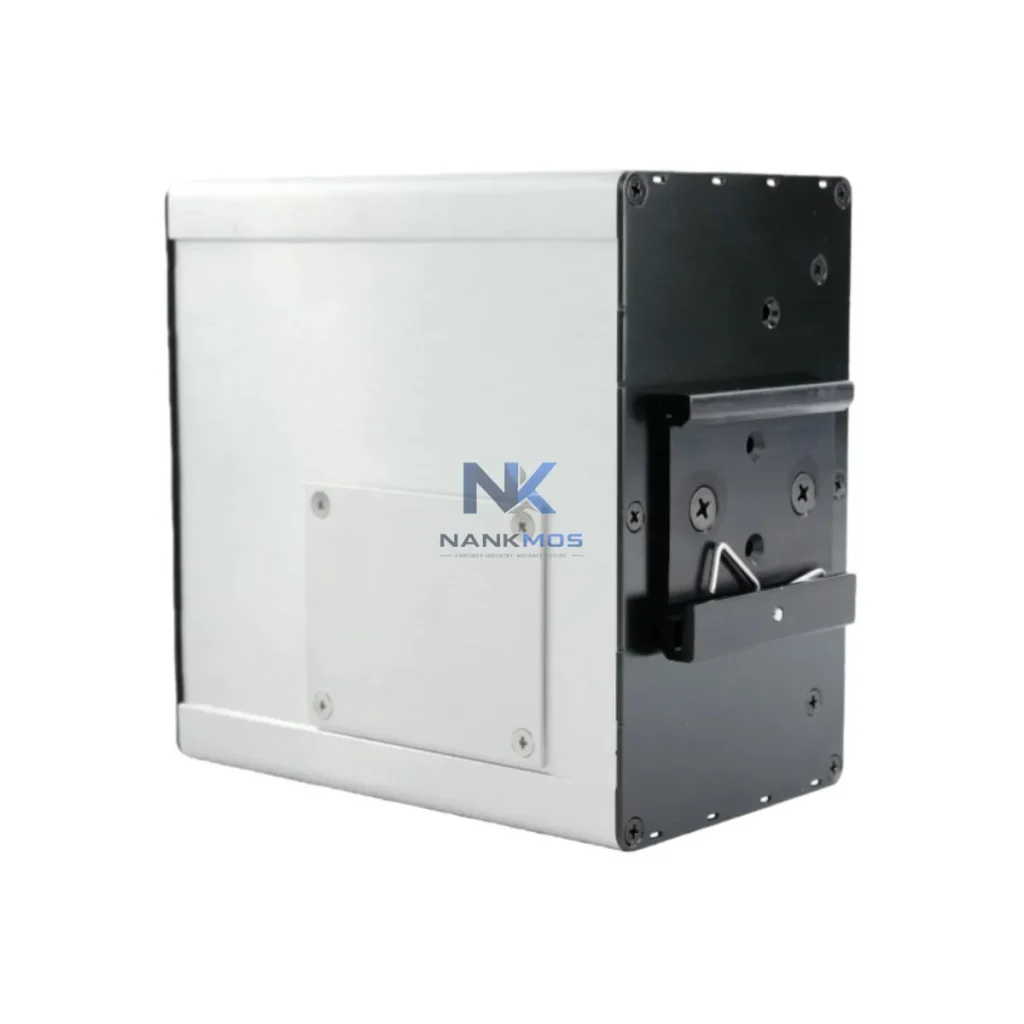

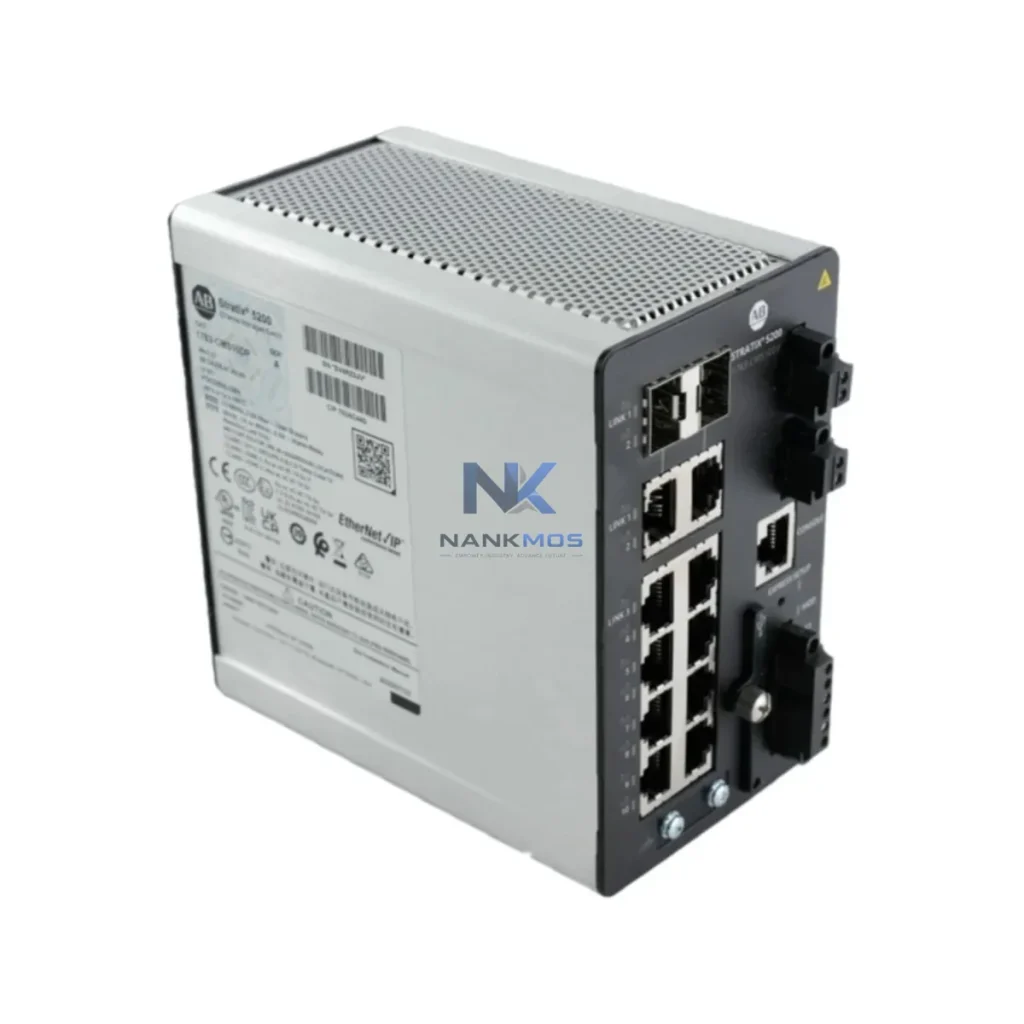

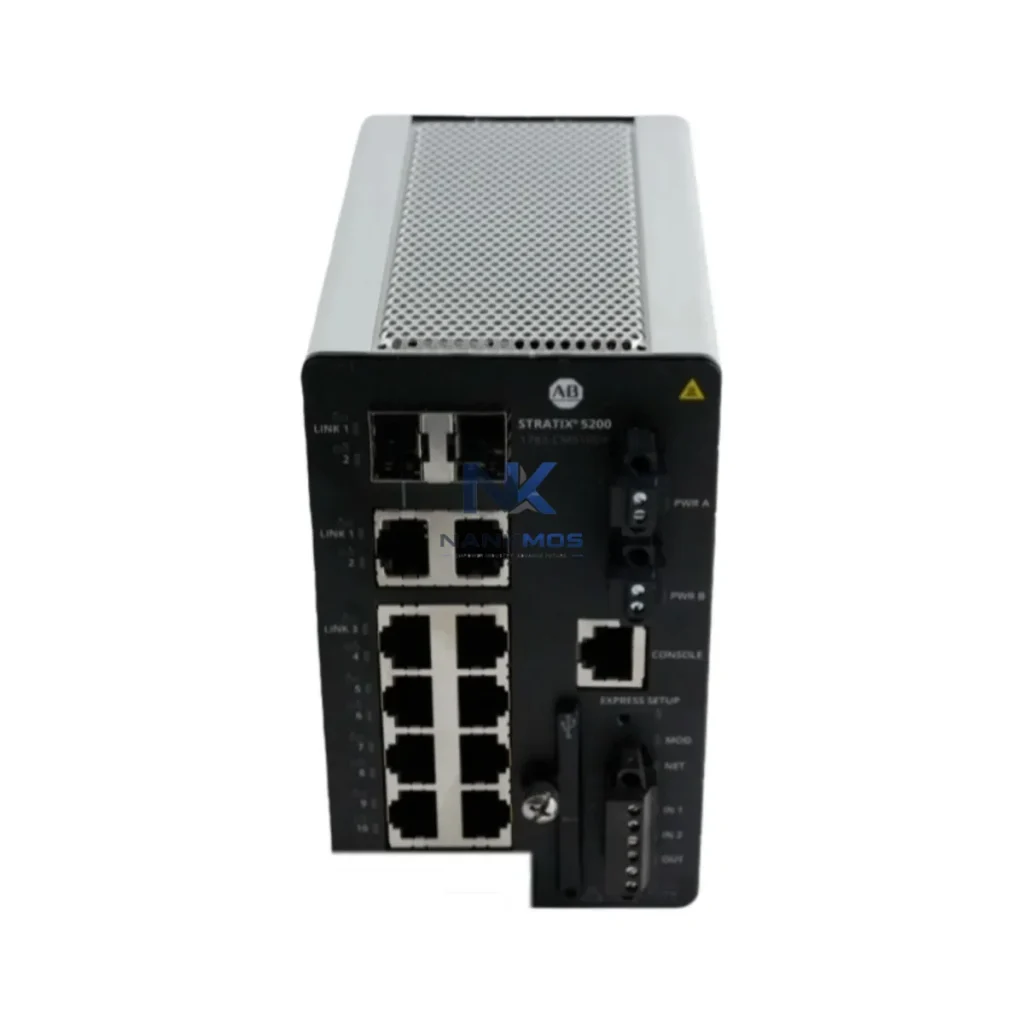

Allen-Bradley 1783-CMS10DP Managed Ethernet Switch

Product Details

1783-CMS10DP Product Description

The Allen-Bradley 1783-CMS10DP is a purpose-engineered managed Ethernet switch designed to operate as a foundational communication layer within Rockwell Automation's Stratix industrial networking architecture. Far from a standalone device, the 1783-CMS10DP functions as a critical node in a fully integrated automation platform — bridging the control layer, I/O layer, communication layer, HMI layer, and field device layer into a coherent, high-availability system. Its role in contextual integration ensures that every connected module, controller, and drive operates with synchronized timing, deterministic data delivery, and consistent network diagnostics across the entire control cabinet and plant floor.

In modern industrial automation, network infrastructure is no longer peripheral — it is the backbone of system performance. The 1783-CMS10DP supports EtherNet/IP with Device Level Ring (DLR) topology, enabling ring-based redundancy that eliminates single points of network failure. This is especially critical in continuous process environments such as petrochemical refining, power generation, water treatment, and mining operations, where unplanned downtime carries severe operational and safety consequences. The switch's managed capabilities allow engineers to configure VLANs, QoS prioritization, and port mirroring — tools that are essential for maintaining signal integrity and traffic segmentation in complex multi-controller architectures.

The 1783-CMS10DP achieves its full value when deployed as part of a complete Rockwell Automation control architecture. At the control layer, it connects directly to ControlLogix or CompactLogix processors — such as the 1756-L73 or 1769-L33ER — providing the high-speed, low-latency Ethernet backbone these controllers require for real-time I/O scanning and peer-to-peer messaging. The switch's QoS configuration ensures that controller-to-controller CIP traffic is prioritized over lower-priority data streams, maintaining deterministic scan cycle performance even under heavy network load.

At the I/O layer, the 1783-CMS10DP facilitates seamless connectivity for distributed I/O modules such as the 1734 POINT I/O adapters and 1756 ControlLogix I/O modules operating over EtherNet/IP. Its IGMP snooping capability prevents multicast flooding, which is essential when multiple I/O adapters are simultaneously publishing data to the controller. This ensures that signal integrity is maintained across all analog and digital I/O channels without network congestion degrading scan performance.

For HMI integration, the switch provides reliable connectivity for PanelView Plus 7 terminals and FactoryTalk View SE SCADA workstations, enabling operators to receive real-time process data with minimal latency. VLAN segmentation allows HMI traffic to be isolated from controller-to-controller communications, reducing the risk of operator interface activity impacting control system performance. This architecture is particularly valuable in large-scale manufacturing facilities where dozens of HMI stations may be active simultaneously.

The communication layer is further strengthened by integration with 1783-ETAP EtherNet/IP tap modules and 1783-US5T unmanaged switches at the field device level, creating a hierarchical network topology that balances cost efficiency with managed performance at critical nodes. For applications requiring wireless extension, the switch integrates with 1783-WAPAK wireless access points, extending the EtherNet/IP network to mobile equipment and remote field panels without compromising network security or determinism.

Power supply reliability is ensured through integration with 1606-XLP power supplies, which provide regulated 24V DC to both the switch and connected field devices. In redundant power architectures, dual-feed configurations prevent power loss from causing network outages, complementing the DLR ring redundancy at the network layer. For drive integration, the switch supports direct EtherNet/IP connectivity to PowerFlex 755 variable frequency drives, enabling closed-loop speed and torque control with full diagnostic visibility from the controller.

Manufacturing & Assembly Lines: In automotive and discrete manufacturing environments, the 1783-CMS10DP serves as the network backbone for multi-robot workcells, conveyor control systems, and vision inspection stations. Its DLR redundancy ensures that a single cable fault does not interrupt production, while VLAN segmentation isolates safety network traffic from standard control communications in compliance with IEC 62443 cybersecurity guidelines.

Power Generation & Utilities: In power plant distributed control systems, the switch provides the communication infrastructure for generator protection relays, turbine control panels, and SCADA integration points. Its managed diagnostics allow maintenance engineers to identify network anomalies before they escalate into process disturbances, supporting the high-availability requirements of grid-connected generation assets.

Petrochemical & Refining: Process control networks in refinery environments demand strict traffic prioritization and network segmentation. The 1783-CMS10DP's VLAN and QoS capabilities ensure that safety instrumented system (SIS) communications are isolated from standard process control traffic, maintaining functional safety integrity levels required by IEC 61511.

Water & Wastewater Treatment: Municipal water treatment facilities rely on geographically distributed control architectures where network reliability directly impacts public health outcomes. The switch's DLR topology and SNMP-based remote diagnostics allow operators to monitor network health across multiple pump stations and treatment zones from a centralized SCADA platform.

Mining & Metals: In underground mining and surface extraction operations, the 1783-CMS10DP provides robust Ethernet connectivity for conveyor drives, crusher controls, and ventilation systems. Its wide operating temperature range and DIN rail mounting make it suitable for harsh electrical room environments where vibration, dust, and temperature extremes are common.

Packaging & Material Handling: High-speed packaging lines require deterministic network performance to synchronize servo drives, vision systems, and reject mechanisms. The switch's EtherNet/IP support and QoS prioritization ensure that motion control data is delivered with the microsecond-level consistency required for coordinated multi-axis motion profiles.

Q1: Is the 1783-CMS10DP compatible with existing ControlLogix and CompactLogix architectures without requiring firmware upgrades? The 1783-CMS10DP is designed for native compatibility with Rockwell Automation's ControlLogix (1756 series) and CompactLogix (1769 series) platforms via standard EtherNet/IP. In most deployment scenarios, no firmware changes are required on the controller side. Network configuration is performed through Cisco IOS-based management interface or Studio 5000 Logix Designer's integrated network topology view, allowing engineers to commission the switch within the existing project environment. For DLR ring configurations, all connected devices must support DLR — verify compatibility of field devices before ring topology deployment.

Q2: How does the 1783-CMS10DP support long-term maintenance efficiency and reduce unplanned downtime in multi-site architectures? The switch's SNMP v1/v2c/v3 support enables integration with enterprise network management systems, providing centralized visibility into port utilization, error rates, and link status across all network nodes. Port mirroring allows maintenance engineers to capture and analyze traffic from specific ports without interrupting live production — a critical capability for diagnosing intermittent communication faults in complex multi-controller systems. Combined with RMON statistics and syslog event logging, the 1783-CMS10DP provides the diagnostic depth required for proactive maintenance programs aligned with IIoT and predictive maintenance strategies.

Q3: What does NANKMOS's 12-Month Warranty cover for the 1783-CMS10DP, and what is the stock availability for urgent project requirements? NANKMOS provides a 12-Month Warranty on the 1783-CMS10DP covering manufacturing defects, electrical component failures, and functional performance under specified operating conditions. Each unit undergoes pre-shipment functional testing to verify port operation, power input performance, and management interface accessibility before dispatch. For urgent project requirements, NANKMOS maintains ready stock of the 1783-CMS10DP with global shipping capability. Contact [email protected] or +86 18359268345 for real-time stock confirmation and expedited shipping arrangements.
