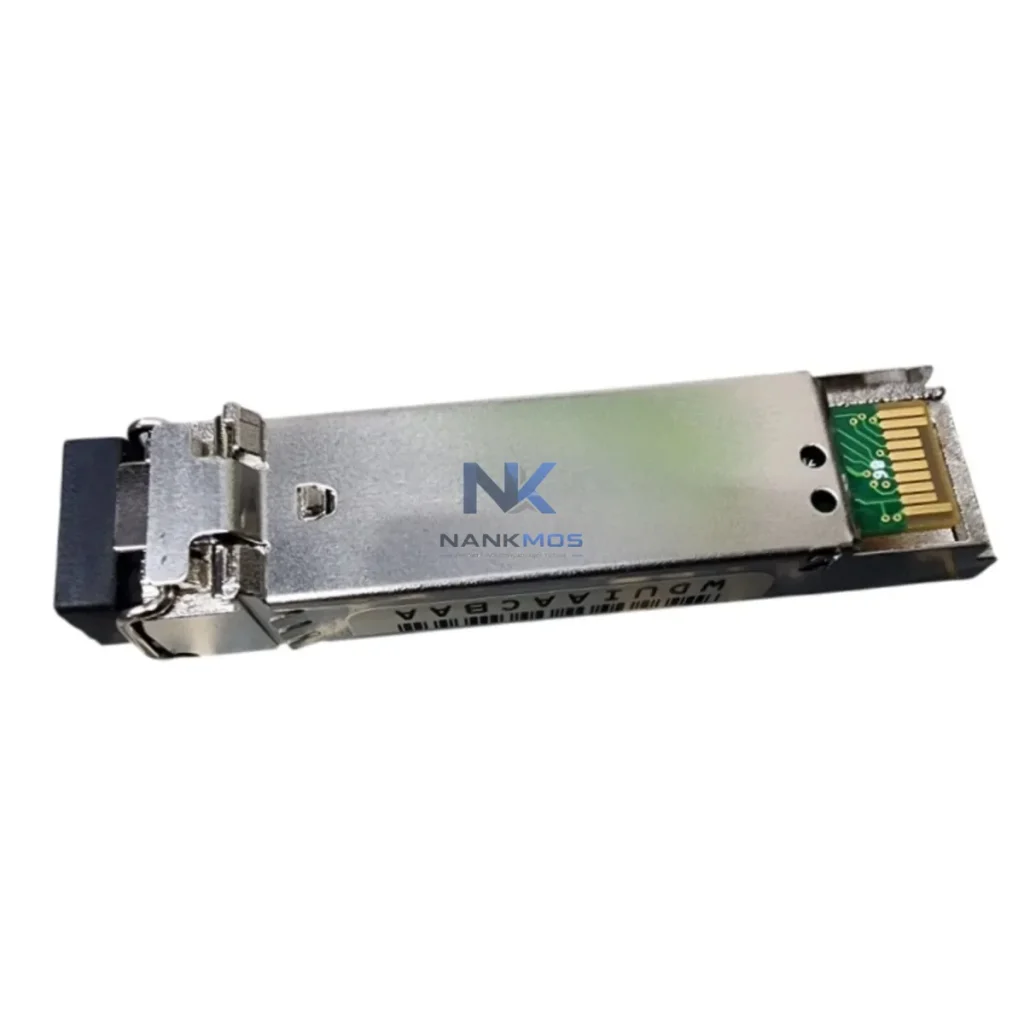

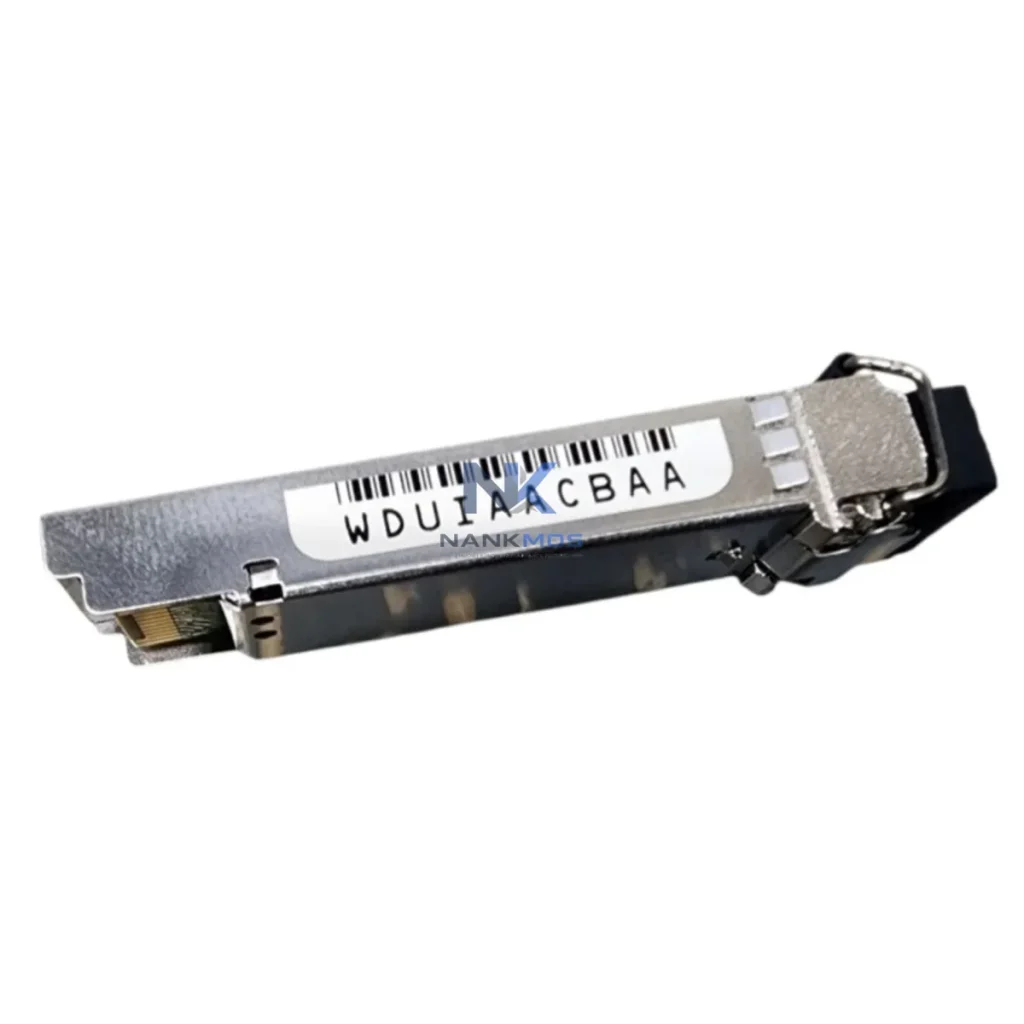

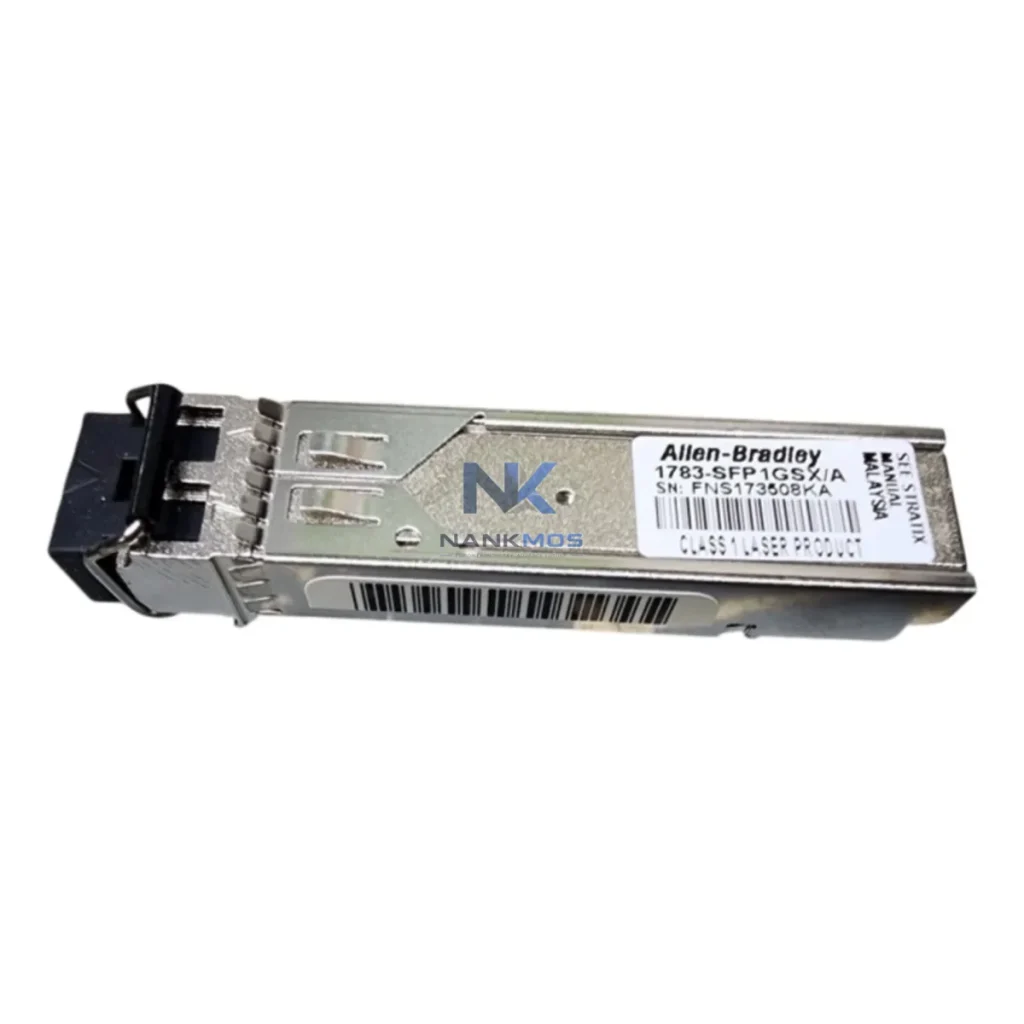

Allen-Bradley 1783-SFP1GSX SFP Transceiver Module

Product Details

1783-SFP1GSX Product Description

In modern smart manufacturing environments, every millisecond of data latency and every dropped packet can translate into production downtime, missed alarms, or compromised safety. The Allen-Bradley 1783-SFP1GSX is a 1000BASE-SX Gigabit Ethernet fiber SFP transceiver module engineered specifically for deployment within Rockwell Automation's Stratix industrial Ethernet switch family. It serves as a critical physical-layer component in the data chain that connects field devices, PLCs, remote I/O, HMIs, SCADA systems, and edge gateways into a unified, high-speed industrial network fabric.

Designed to slot directly into Stratix 5700 and Stratix 5400 managed switches, the 1783-SFP1GSX enables multimode fiber uplinks that extend network reach beyond the limitations of copper cabling — ideal for large plant floors, inter-building backbone connections, and electrically noisy environments where fiber's immunity to EMI is essential. With a full-duplex 1 Gbps transmission rate over 850 nm multimode fiber (LC connector, up to 550 m), this module delivers the bandwidth headroom required for real-time data flows across EtherNet/IP, PROFINET, and Modbus TCP architectures.

The 1783-SFP1GSX sits at the heart of a layered industrial network architecture. At the field level, sensors, actuators, and variable frequency drives (VFDs) — such as the PowerFlex 525 or PowerFlex 755 series — generate continuous process data that must be reliably transported upward through the network stack. This data is first aggregated by remote I/O modules like the 1734 POINT I/O or 1756 ControlLogix I/O chassis, which communicate over EtherNet/IP back to the PLC controller layer.

At the controller tier, Allen-Bradley ControlLogix 1756-L8 or CompactLogix 5380 processors handle real-time logic execution and pass process variables upstream via the Stratix 5700 managed switch — where the 1783-SFP1GSX fiber uplink module provides the high-bandwidth, low-latency backbone connection to the supervisory layer. The Stratix 5700, equipped with this SFP module, acts as a distribution-layer switch bridging the control network to the plant-wide EtherNet/IP backbone.

At the SCADA and HMI layer, platforms such as FactoryTalk View SE or third-party SCADA systems receive real-time tag data from the ControlLogix PLCs via the fiber backbone enabled by the 1783-SFP1GSX. Operators can monitor live process values, trend historical data, and respond to alarm conditions — all with the sub-millisecond network latency that gigabit fiber delivers. For facilities integrating PanelView Plus 7 HMI terminals or FactoryTalk Historian servers, the fiber uplink ensures that data visualization and logging remain uninterrupted even during peak production cycles.

Edge computing nodes — such as the Allen-Bradley Logix 5000 Edge Controller or third-party edge gateways running OPC-UA or MQTT — connect to the Stratix switch infrastructure and leverage the 1783-SFP1GSX's fiber uplink to push pre-processed data to cloud analytics platforms or MES systems. This architecture supports the full IIoT data chain: from raw sensor signal, through protocol conversion and network transport, to real-time visualization and remote diagnostics.

For inter-building or long-distance runs where copper Ethernet would be impractical, the 1783-SFP1GSX enables fiber backbone segments between Stratix 5700 switches deployed in separate electrical rooms or production zones — maintaining network ring redundancy via DLR (Device Level Ring) or RSTP protocols supported natively by the Stratix platform.

Many industrial facilities face persistent challenges: legacy devices speaking incompatible protocols, data siloed within isolated control zones, and limited visibility into remote equipment health. The 1783-SFP1GSX addresses these pain points by enabling a robust, high-speed fiber backbone that unifies previously fragmented network segments.

Protocol fragmentation is resolved by pairing the 1783-SFP1GSX with protocol gateway modules — such as the 1783-ETAP EtherNet/IP tap or third-party Modbus-to-EtherNet/IP converters — that translate legacy serial or fieldbus signals into standard Ethernet packets before they traverse the fiber uplink. This eliminates data islands and ensures that every device, regardless of its native protocol, contributes to the plant-wide data model.

Remote monitoring and diagnostics become practical when the fiber backbone provides the bandwidth and reliability needed for continuous data streaming. With the 1783-SFP1GSX in place, SCADA operators can remotely access PLC diagnostic pages, review I/O fault logs, and push firmware updates to field devices — all without dispatching technicians to the plant floor. Alarm events generated by ControlLogix processors are transmitted in real time to FactoryTalk Alarm and Events servers, enabling rapid fault isolation and mean-time-to-repair (MTTR) reduction.

Production transparency is enhanced through the high-throughput fiber link, which supports simultaneous data flows from multiple PLCs, HMIs, and historian servers without congestion. Line OEE dashboards, energy monitoring systems, and quality inspection cameras can all share the same network infrastructure without competing for bandwidth — a direct result of the gigabit capacity delivered by the 1783-SFP1GSX.

System scalability is built in: as production lines expand, additional Stratix switches with 1783-SFP1GSX modules can be added to extend the fiber ring, maintaining network performance without redesigning the existing architecture. Each unit ships pre-tested and is backed by a 12-month warranty, with in-stock availability for rapid deployment and minimal lead times.

Q1: What is the maximum fiber distance supported by the 1783-SFP1GSX?The 1783-SFP1GSX supports up to 550 meters over OM2 (50/125 µm) multimode fiber using an 850 nm wavelength LC duplex connector. For longer distances, a single-mode SFP variant such as the 1783-SFP1GLX (up to 10 km) should be considered within the Stratix SFP portfolio.

Q2: Is the 1783-SFP1GSX compatible with EtherNet/IP and PROFINET simultaneously?The SFP module itself is protocol-agnostic at the physical layer — it transports standard IEEE 802.3z Gigabit Ethernet frames. Protocol handling (EtherNet/IP, PROFINET, Modbus TCP) is managed by the Stratix 5700 or 5400 switch firmware and the connected PLC or gateway. This means the 1783-SFP1GSX can carry mixed-protocol traffic across the same fiber uplink without configuration changes to the module itself.

Q3: How does this module support remote diagnostics and network stability monitoring?When installed in a Stratix 5700 managed switch, the 1783-SFP1GSX fiber link is monitored via the switch's built-in SNMP, RMON, and Cisco IOS-based management interfaces. Network administrators can track port statistics, optical signal levels, and link state changes through Studio 5000 Logix Designer or FactoryTalk Network Manager — enabling proactive fault detection before network degradation impacts production.

Q4: What warranty and pre-shipment testing does the 1783-SFP1GSX include?Every 1783-SFP1GSX unit supplied by NANKMOS undergoes functional verification and optical performance testing prior to shipment. All units are covered by a 12-month warranty against manufacturing defects. In-stock inventory ensures fast order fulfillment, and our technical team is available to assist with compatibility verification, network design consultation, and post-installation support.
