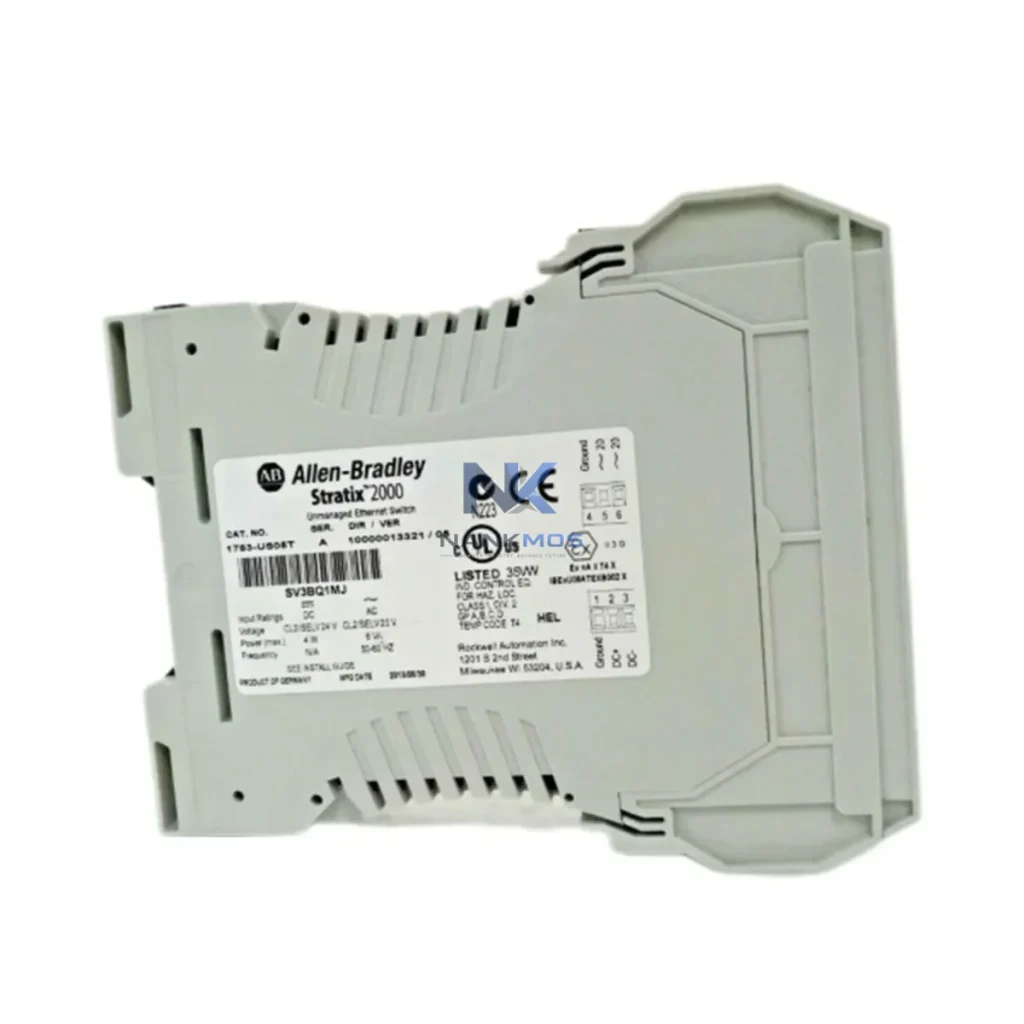

Allen-Bradley 1783-US05T Industrial Ethernet Switch

Product Details

1783-US05T Product Description

The Allen-Bradley 1783-US05T is a 5-port unmanaged industrial Ethernet switch from Rockwell Automation's Stratix 2000 series, purpose-built to deliver reliable, low-latency EtherNet/IP connectivity across the full spectrum of smart factory data flows. From field-level signal acquisition through PLC control loops, remote I/O aggregation, HMI visualization, and SCADA supervisory layers, the 1783-US05T provides the deterministic network backbone that modern industrial automation demands. Its compact DIN-rail form factor, wide operating temperature range, and plug-and-play architecture make it an ideal connectivity node in both greenfield smart factory deployments and brownfield network upgrades where minimizing downtime is critical.

In a fully connected smart factory, the 1783-US05T serves as the critical Ethernet aggregation point where field-level data begins its journey toward actionable intelligence. At the device layer, sensors — including Rockwell Automation 1734 POINT I/O modules and 1756 ControlLogix remote I/O adapters — transmit real-time process values over EtherNet/IP to the switch's downstream ports. The 1783-US05T forwards this data upstream to Allen-Bradley ControlLogix L7x or CompactLogix L3x PLCs, which execute control logic and generate command outputs within deterministic scan cycles.

From the PLC layer, the switch extends connectivity to PanelView Plus 7 HMI terminals, enabling operators to monitor live process variables, acknowledge alarms, and adjust setpoints without leaving the production floor. Simultaneously, the 1783-US05T bridges the control network to FactoryTalk View SE SCADA servers, where historians aggregate time-series data from multiple production cells for trend analysis, OEE calculation, and compliance reporting. For sites deploying edge intelligence, the switch connects to Allen-Bradley Edge Compute Gateways or third-party edge devices running MQTT or OPC-UA translation, enabling cloud-bound data pipelines without disrupting the real-time EtherNet/IP control loop.

Variable frequency drives such as the PowerFlex 525 and PowerFlex 755 connect directly to the 1783-US05T via EtherNet/IP, allowing SCADA systems to read motor speed, torque, energy consumption, and fault codes in real time. This data feeds into predictive maintenance algorithms that flag bearing wear or thermal anomalies before unplanned downtime occurs. Industrial power supplies from the 1606-XLP series provide stable 24 VDC to the switch and connected field devices, ensuring network continuity during voltage transients common in heavy manufacturing environments. For larger network segments, the 1783-US05T uplinks to managed switches in the Stratix 5700 or Stratix 8000 series, which enforce VLAN segmentation, QoS prioritization, and IGMP snooping to protect time-critical EtherNet/IP traffic from bandwidth contention.

Many industrial sites operate with fragmented network architectures — legacy serial devices running Modbus RTU or DF1 alongside modern EtherNet/IP nodes — creating data silos that prevent unified visibility. The 1783-US05T resolves the Ethernet aggregation layer of this challenge by providing a reliable, standards-compliant switching fabric that consolidates multiple EtherNet/IP endpoints onto a single uplink. When paired with protocol gateways such as the ProSoft Technology MVI56E-MNET or HMS Anybus Communicator, the switch enables seamless data bridging between legacy serial instruments and modern EtherNet/IP controllers, eliminating the protocol fragmentation that causes data gaps.

Remote monitoring is another persistent challenge on distributed production sites. By integrating the 1783-US05T into a FactoryTalk Remote Access or VPN-secured network segment, maintenance engineers can connect to PLCs, drives, and I/O modules from off-site locations for remote diagnostics, firmware updates, and parameter adjustments — reducing mean time to repair and eliminating costly site visits. Alarm management is similarly enhanced: with all field devices networked through the 1783-US05T, FactoryTalk Alarms and Events can capture, timestamp, and route alarm notifications to the correct personnel via email or SMS, ensuring no critical event goes unacknowledged. For production transparency, the switch supports real-time data visualization dashboards in FactoryTalk Optix or third-party SCADA platforms, giving plant managers live OEE metrics, energy consumption trends, and batch traceability data. As production capacity grows, additional 1783-US05T units can be daisy-chained or star-connected to expand the network without reconfiguring existing nodes, providing a scalable path to full plant-wide connectivity.

Q1: Does the 1783-US05T support EtherNet/IP implicit (I/O) messaging with ControlLogix PLCs? Yes. The 1783-US05T is fully compliant with IEEE 802.3 and supports EtherNet/IP implicit (cyclic I/O) and explicit (MSG) messaging. It is validated for use with Allen-Bradley ControlLogix L7x, CompactLogix L3x, and MicroLogix 1100/1400 controllers within Rockwell Automation's Integrated Architecture framework.

Q2: What is the maximum network latency introduced by the 1783-US05T in a real-time control loop? As an unmanaged store-and-forward switch, the 1783-US05T introduces sub-millisecond port-to-port latency under normal traffic loads, making it suitable for most EtherNet/IP I/O polling cycles of 10 ms or greater. For applications requiring sub-1 ms determinism, a managed switch with QoS and IGMP snooping — such as the Stratix 5700 — is recommended.

Q3: Can the 1783-US05T be integrated into an existing Stratix 5700 or Stratix 8000 managed network? Yes. The 1783-US05T operates as an access-layer switch and can uplink to any managed Ethernet switch via its standard RJ45 ports. It inherits the VLAN and QoS policies enforced by the upstream managed switch, making it straightforward to deploy as a device-level aggregation node within a hierarchical Stratix network architecture.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1783-US05T? Every 1783-US05T unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional power-on testing and port connectivity verification to confirm compliance with Rockwell Automation specifications. Expedited delivery and in-stock availability ensure minimal lead times for urgent MRO and project requirements.
