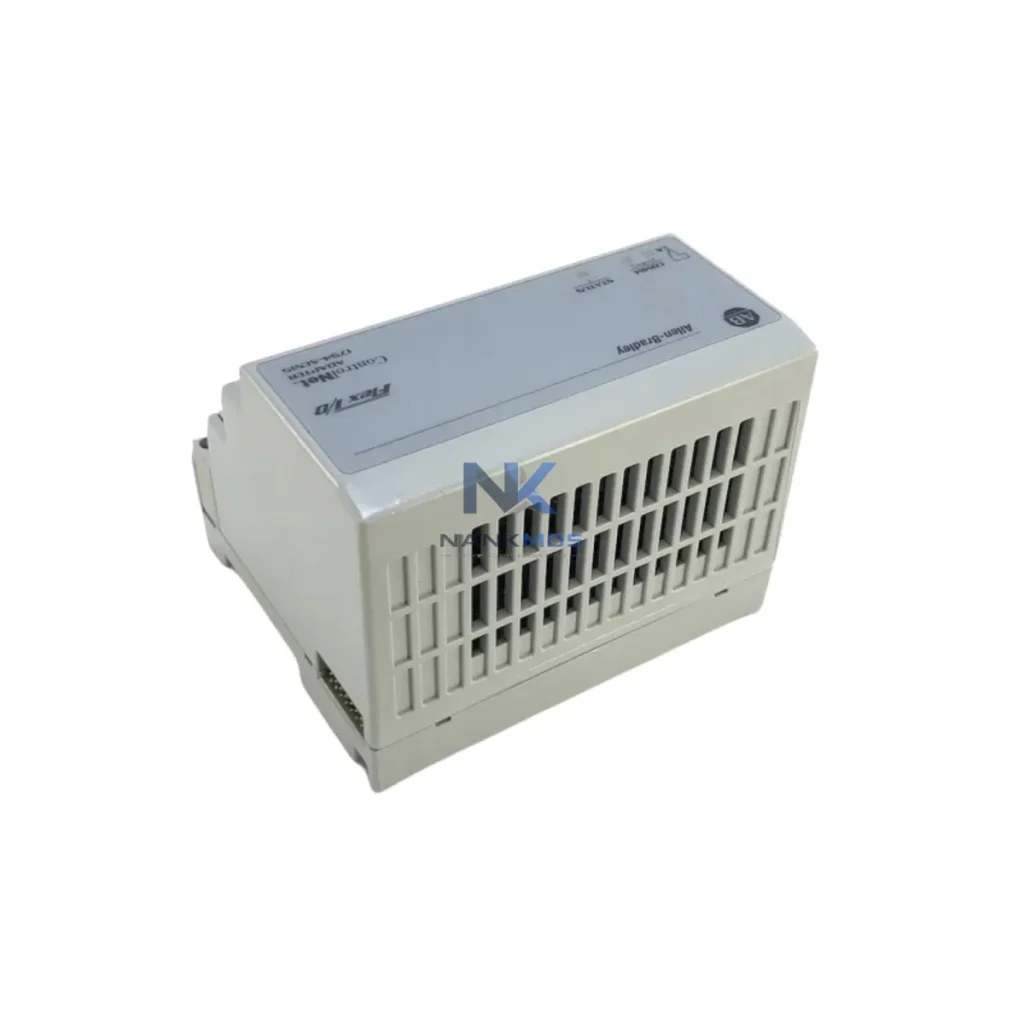

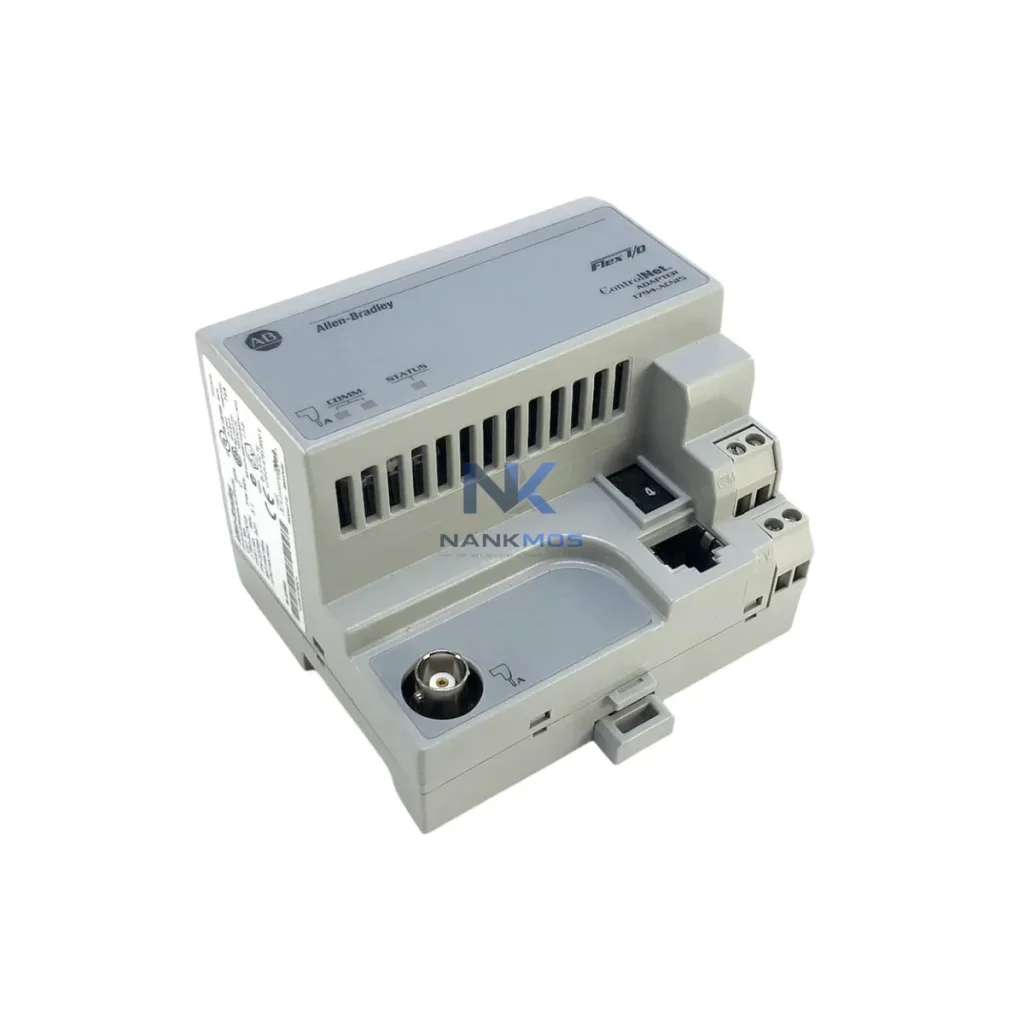

Allen-Bradley 1794-ACN15/C ControlNet Communication Adapter

Product Details

1794-ACN15/C Product Description

The Allen-Bradley 1794-ACN15/C ControlNet Adapter is a high-performance communication interface designed for Flex I/O Series C systems, enabling seamless integration between field-level devices and upper-layer control platforms across industrial ControlNet networks. As a core node in the smart factory data chain, this adapter bridges the gap between distributed I/O modules and Logix-based PLC controllers, delivering deterministic, real-time data transfer with the reliability demanded by continuous production environments.

In modern industrial automation architectures, the flow of data from sensors and actuators through to SCADA dashboards and MES platforms depends on robust, protocol-consistent communication at every layer. The 1794-ACN15/C fulfills this role by connecting Flex I/O terminal bases directly onto the ControlNet backbone, allowing Allen-Bradley ControlLogix and CompactLogix controllers to scan I/O data at scheduled intervals with microsecond-level precision. This deterministic behavior is critical for motion-sensitive applications, high-speed conveyor lines, and process control loops where data latency directly impacts product quality and equipment safety.

Deployed alongside Allen-Bradley 1756-CNB or 1756-CNBR ControlNet Bridge modules in a ControlLogix chassis, the 1794-ACN15/C participates in a structured network topology that supports both scheduled and unscheduled messaging. Scheduled connections handle cyclic I/O updates, while unscheduled messaging supports peer-to-peer data exchange and configuration uploads — enabling remote diagnostics and parameter adjustments without interrupting live production. This dual-mode capability makes the adapter a versatile component in both greenfield smart factory builds and brownfield network upgrades.

The 1794-ACN15/C sits at the intersection of field instrumentation and plant-wide control networks, making it a foundational element in connected factory data flow design. In a typical deployment, field sensors — including pressure transmitters, temperature RTDs, and proximity switches — wire directly into Flex I/O analog and digital input modules mounted on 1794-TB3 or 1794-TB32 terminal bases. The adapter collects this I/O data and transmits it over the ControlNet trunk cable to the upstream ControlLogix controller chassis.

Within the controller chassis, a 1756-CNB ControlNet Bridge module receives the scheduled I/O data and maps it into the controller's I/O tree, where ladder logic or function block programs execute control decisions in real time. Outputs are written back through the same ControlNet path to Flex I/O digital output modules driving solenoid valves, motor starters, and indicator lights on the production floor. This closed-loop data path — from sensor signal to controller decision to actuator response — completes in deterministic scan cycles, ensuring consistent machine behavior regardless of network load.

For variable-speed drive integration, Allen-Bradley PowerFlex 700 or PowerFlex 40 drives equipped with 20-COMM-C ControlNet communication adapters can share the same ControlNet segment as the 1794-ACN15/C, allowing the PLC to command speed references and read drive status — current draw, fault codes, output frequency — within the same scheduled scan. This eliminates the need for separate analog speed reference wiring and centralizes drive diagnostics within the RSLogix 5000 or Studio 5000 programming environment.

At the HMI layer, PanelView Plus terminals connected via EtherNet/IP to the ControlLogix backplane can display real-time I/O values sourced from the Flex I/O modules through the 1794-ACN15/C, giving operators live visibility into field device status without requiring direct field access. SCADA platforms such as FactoryTalk View SE aggregate this data across multiple ControlNet segments, enabling plant-wide dashboards, trend logging, and alarm management from a centralized control room.

For remote monitoring and diagnostics, RSNetWorx for ControlNet provides network scheduling, node commissioning, and live diagnostics for every device on the ControlNet segment — including the 1794-ACN15/C adapter. Maintenance engineers can remotely verify connection status, check scheduled bandwidth utilization, and identify communication faults without visiting the field panel, reducing mean time to repair and supporting predictive maintenance workflows. Integration with FactoryTalk AssetCentre further enables configuration backup and change tracking for the adapter and associated I/O modules, supporting audit compliance and rapid recovery after hardware replacement.

Edge gateway devices such as the Moxa MGate or Rockwell Automation Stratix 5900 can bridge ControlNet data to higher-level EtherNet/IP or MQTT-based cloud platforms, extending the data chain from the 1794-ACN15/C all the way to cloud-based analytics and digital twin environments. This architecture supports IIoT initiatives without requiring replacement of existing ControlNet infrastructure, protecting capital investment while enabling incremental smart factory upgrades.

Many industrial sites operating legacy ControlNet infrastructure face common challenges: protocol fragmentation between older DeviceNet nodes and newer EtherNet/IP devices, data islands where field I/O is not visible to SCADA systems, and limited remote access for fault diagnosis. The 1794-ACN15/C addresses these challenges by providing a stable, standards-compliant ControlNet interface that integrates cleanly with both legacy Logix platforms and current Studio 5000 programming environments.

For sites where ControlNet and EtherNet/IP coexist, the ControlLogix backplane acts as a transparent bridge — data collected by the 1794-ACN15/C over ControlNet is accessible to EtherNet/IP clients through the controller's produced/consumed tag mechanism, eliminating protocol silos without requiring additional gateway hardware. This approach simplifies network architecture, reduces configuration overhead, and ensures that all field data is available to SCADA, MES, and historian platforms regardless of the underlying field bus.

Alarm tracking and event logging are enhanced when the 1794-ACN15/C is integrated with FactoryTalk Historian, which can log I/O state changes and analog values at the scan rate of the ControlNet connection. This provides a time-stamped record of field events that supports root cause analysis after unplanned stops, quality deviations, or safety incidents — transforming raw I/O data into actionable operational intelligence.

System expansion is straightforward: additional Flex I/O modules can be added to the terminal base string up to the adapter's eight-module capacity, and additional 1794-ACN15/C adapters can be added to the ControlNet segment up to the network's node limit. RSNetWorx for ControlNet manages bandwidth allocation automatically, ensuring that new nodes do not disrupt existing scheduled connections — a critical requirement for live production environments where network reconfiguration must be performed without stopping the line.

Every 1794-ACN15/C unit supplied by NANKMOS undergoes pre-shipment functional testing, verifying ControlNet communication establishment, I/O data integrity, and firmware version consistency before dispatch. Units are covered by a 12-month warranty from the date of shipment, with in-stock availability supporting urgent project timelines and MRO replacement requirements.

Q1: What is the maximum number of Flex I/O modules supported by the 1794-ACN15/C?The 1794-ACN15/C supports up to 8 Flex I/O modules per adapter node. For larger I/O counts, additional adapter nodes can be added to the ControlNet segment, each independently scheduled by RSNetWorx for ControlNet.

Q2: Is the 1794-ACN15/C compatible with both ControlLogix and CompactLogix controllers?Yes. The adapter is compatible with any Logix-family controller equipped with a ControlNet scanner module, including 1756-CNB/CNBR for ControlLogix and 1769-SDN-compatible configurations. Programming and I/O mapping are managed through RSLogix 5000 or Studio 5000 Logix Designer.

Q3: Can remote diagnostics be performed on the 1794-ACN15/C without interrupting production?Yes. RSNetWorx for ControlNet supports live network diagnostics, including node status, connection health, and bandwidth utilization, without disrupting scheduled I/O connections. Unscheduled messaging paths allow configuration reads and firmware queries to run concurrently with cyclic I/O traffic.

Q4: What warranty and testing standards apply to units supplied by NANKMOS?All 1794-ACN15/C units are pre-shipment tested for ControlNet communication integrity and I/O data accuracy. A 12-month warranty is provided from the date of shipment, covering hardware defects and communication failures under normal operating conditions. In-stock units are available for same-week dispatch to support urgent MRO and project requirements.
