Allen-Bradley 1794-ACN15 ControlNet Adapter

Product Details

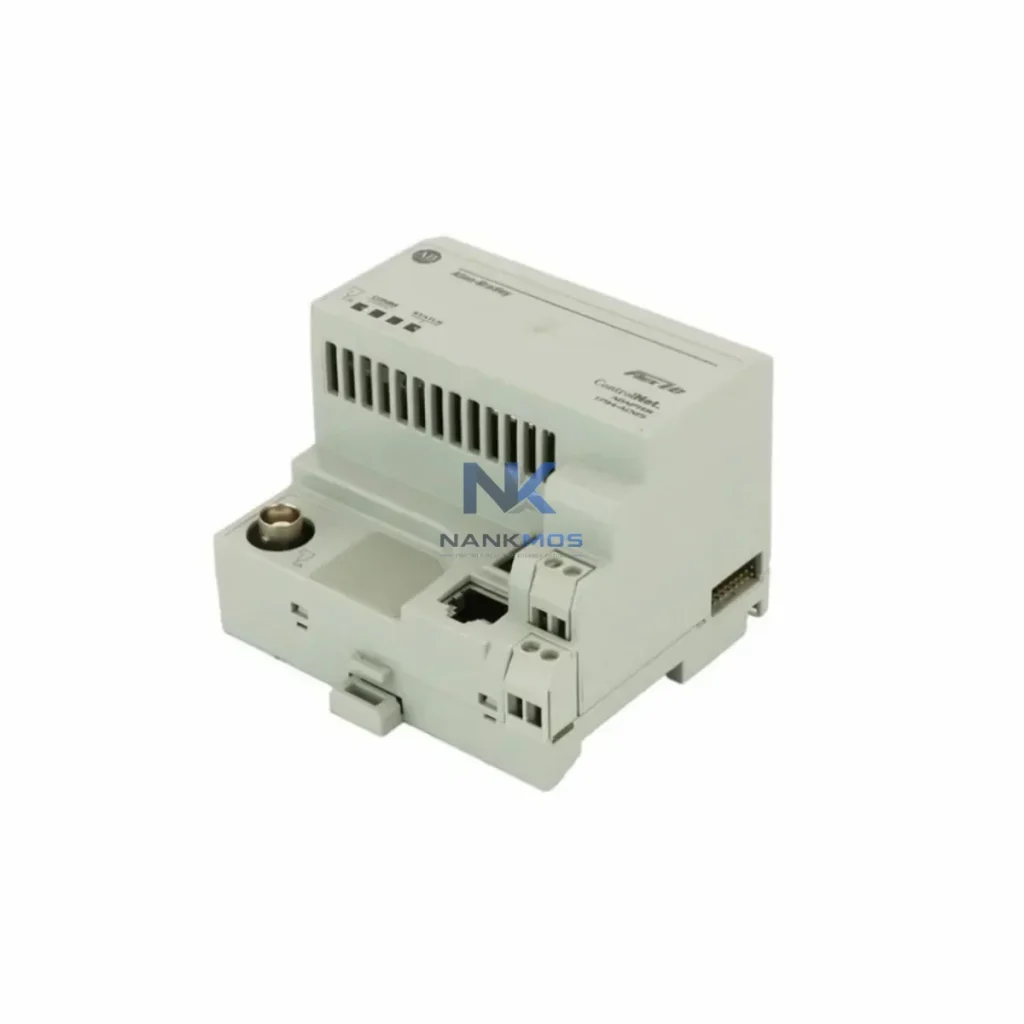

1794-ACN15 Product Description

The Allen-Bradley 1794-ACN15 is a high-performance ControlNet Adapter designed for the 1794 FLEX I/O platform, engineered to deliver precise energy control, deterministic communication, and seamless integration across smart production lines. As industrial facilities push toward leaner energy consumption and higher equipment utilization, the 1794-ACN15 serves as a critical node in the energy-aware automation architecture — bridging field-level I/O data with upper-layer control and monitoring systems in real time.

Built to Rockwell Automation's industrial-grade standards, the 1794-ACN15 supports ControlNet protocol with scheduled and unscheduled messaging, enabling time-critical data exchange between the FLEX I/O terminal base and the control backbone. This deterministic communication model directly reduces idle polling cycles, minimizes unnecessary bus traffic, and contributes to measurable reductions in system-level energy overhead — a key factor in facilities targeting ISO 50001 energy management compliance.

The 1794-ACN15 does not operate in isolation — its energy control value is fully realized when integrated within a coordinated automation architecture. In a typical smart production line, the adapter connects the 1794 FLEX I/O terminal base to a Rockwell ControlLogix L7x or CompactLogix L3x PLC via ControlNet, enabling the controller to execute energy-optimized scan routines that only activate I/O modules when process conditions demand it. This scheduled communication model, managed through RSNetWorx for ControlNet, eliminates the continuous polling overhead common in unmanaged networks.

On the drive side, the 1794-ACN15 works alongside PowerFlex 755 variable frequency drives and PowerFlex 525 compact drives, receiving real-time load feedback from motor control circuits and relaying it to the PLC for adaptive speed and torque management. When motor loads drop below threshold — during conveyor idle periods or between production batches — the PLC can issue reduced-speed commands through the drive network, cutting motor energy consumption by 20–40% without impacting throughput.

Power monitoring is handled upstream by the PowerMonitor 5000 or PowerMonitor 1000 energy metering modules, which feed kWh, power factor, and demand data into the ControlLogix controller via DeviceNet or EtherNet/IP. The 1794-ACN15 complements this by providing granular I/O-level status — valve positions, actuator states, sensor feedback — that the energy management layer uses to correlate equipment activity with power draw. This correlation is essential for identifying energy waste at the machine level rather than the facility level.

On the HMI side, a PanelView Plus 7 or FactoryTalk View SE station displays real-time energy dashboards sourced from the ControlLogix tag database, giving operators visibility into per-zone power consumption and equipment utilization rates. The 1794-ACN15's deterministic ControlNet link ensures that I/O state changes are reflected in the HMI within the scheduled RPI (Requested Packet Interval), supporting accurate, low-latency energy dashboards without data staleness.

For facilities running SCADA or MES integration, the 1794-ACN15 data flows through the ControlLogix backplane to FactoryTalk Historian or third-party OPC-UA servers, enabling long-term energy trend analysis, shift-based consumption reporting, and predictive maintenance scheduling based on I/O cycle counts and communication health metrics.

In high-cycle discrete manufacturing environments — automotive body shops, packaging lines, semiconductor assembly — the 1794-ACN15 enables a production rhythm that is both fast and energy-lean. By supporting up to 48 I/O modules per ControlNet node (across multiple 1794 FLEX I/O terminal bases), the adapter consolidates field device data into a single, bandwidth-efficient network segment. This consolidation reduces the number of active network nodes, lowers aggregate communication power draw, and simplifies the energy audit trail for each production zone.

Thermal load management is a direct beneficiary of the 1794-ACN15's efficient communication model. In traditional polling-based I/O systems, continuous bus activity generates sustained heat in control panel enclosures, increasing HVAC load and accelerating component aging. The ControlNet scheduled messaging model used by the 1794-ACN15 reduces bus utilization during low-demand periods, lowering enclosure thermal output and extending the service life of adjacent components — including power supplies, terminal bases, and I/O modules.

Downtime reduction is another measurable outcome. The 1794-ACN15 supports redundant ControlNet media (coax or fiber), allowing the production line to maintain communication continuity during cable faults or node failures. This redundancy eliminates unplanned stops that would otherwise waste energy on restart sequences, re-homing of servo axes, and re-priming of process equipment. Combined with predictive maintenance data from I/O health diagnostics, facilities can schedule maintenance during planned downtime windows — maximizing equipment utilization and minimizing energy-intensive emergency recovery procedures.

For energy-intensive process industries — oil & gas, chemical, water treatment — the 1794-ACN15 supports integration with safety I/O modules and process analog inputs, enabling the PLC to implement load-shedding strategies during peak demand periods. By monitoring analog signals from pressure transmitters, flow meters, and temperature sensors through the FLEX I/O platform, the controller can dynamically adjust pump speeds, compressor loads, and heating element duty cycles — reducing peak demand charges and improving overall energy efficiency ratios.

Q1: How does the 1794-ACN15 contribute to measurable energy savings on a production line?The 1794-ACN15 uses ControlNet's scheduled messaging to eliminate continuous polling, reducing unnecessary bus activity and associated power overhead. When paired with a ControlLogix PLC and PowerFlex drives, it enables load-responsive motor control that can reduce motor energy consumption by 20–40% during low-demand periods. Energy savings are further quantified through integration with PowerMonitor energy metering modules and FactoryTalk Historian trending.

Q2: Is the 1794-ACN15 compatible with both legacy and modern Rockwell Automation control platforms?Yes. The 1794-ACN15 is compatible with ControlLogix, CompactLogix, PLC-5, and SLC 500 controllers via ControlNet. It supports both scheduled (time-critical) and unscheduled (explicit messaging) communication, making it suitable for mixed-generation control architectures where legacy PLCs coexist with modern Logix-based systems.

Q3: What is the recommended replacement or upgrade path for aging 1794-ACN15 adapters?For facilities migrating from ControlNet to EtherNet/IP, the 1794-AENT or 1794-AENTR (redundant) adapters are the recommended upgrade path within the FLEX I/O platform. However, for sites maintaining ControlNet infrastructure, the 1794-ACN15 remains the current production adapter and is fully supported. NANKMOS maintains verified stock of 1794-ACN15 units for direct replacement without system reconfiguration.

Q4: What pre-shipment testing and warranty coverage does NANKMOS provide for the 1794-ACN15?Every 1794-ACN15 unit shipped by NANKMOS undergoes pre-shipment functional testing, including ControlNet communication verification, backplane power draw measurement, and I/O scan cycle validation. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for same-week dispatch, minimizing production line downtime during unplanned adapter failures.
