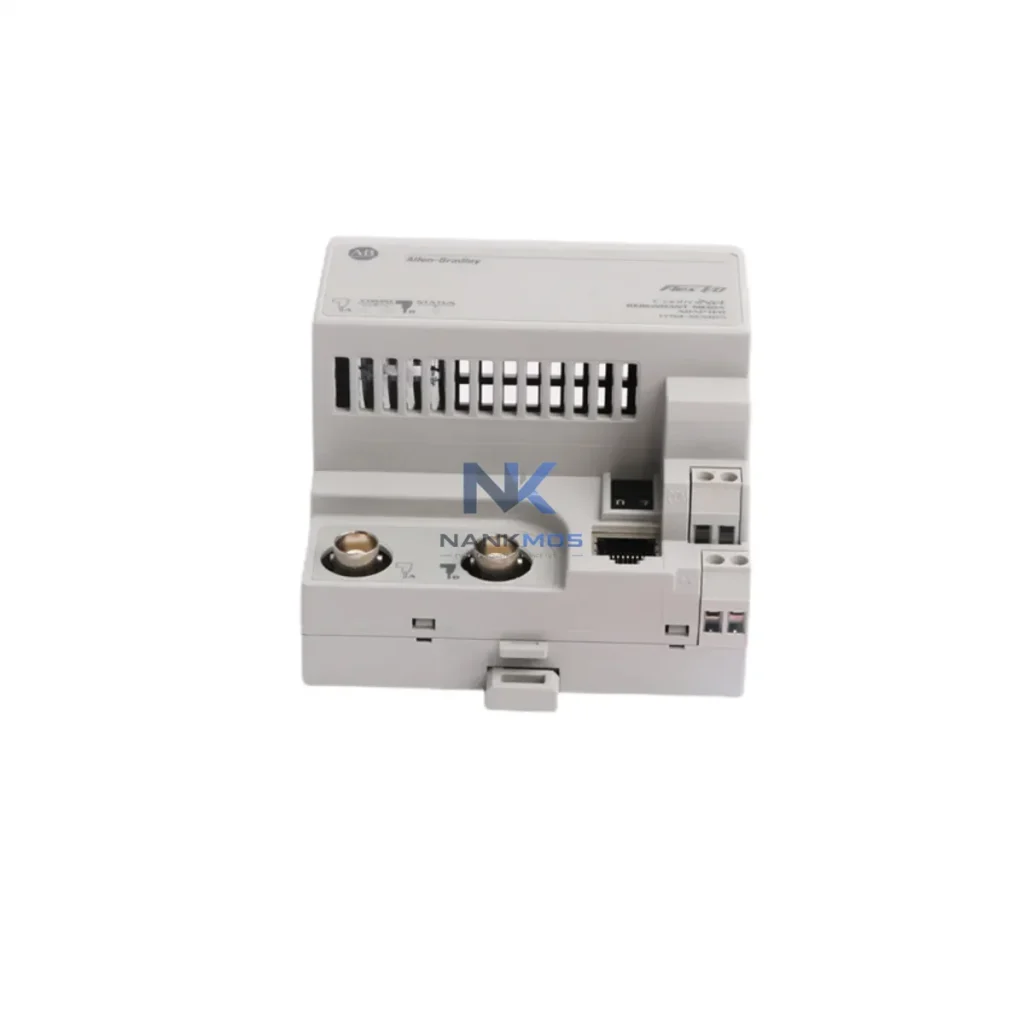

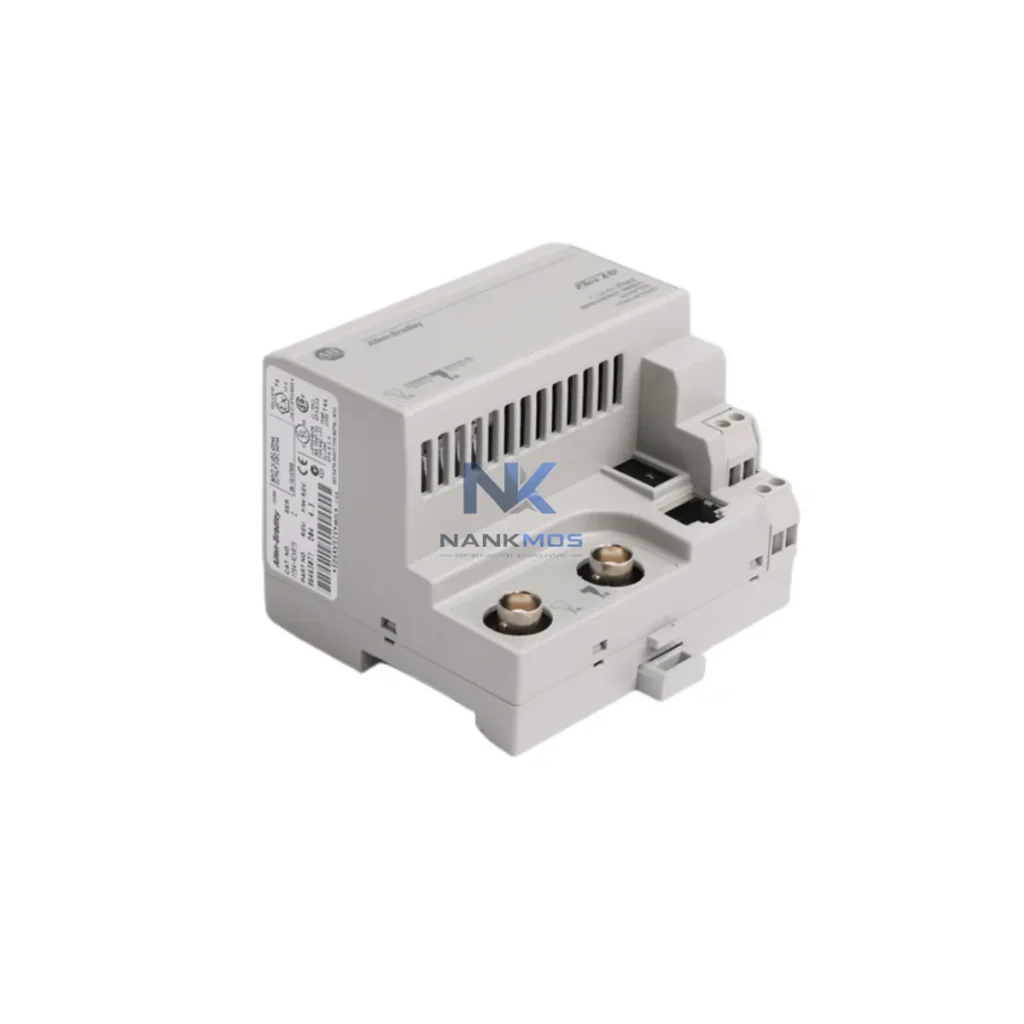

Allen-Bradley 1794-ACNR15 ControlNet Adapter

Product Details

1794-ACNR15 Product Description

The Allen-Bradley 1794-ACNR15 is a high-performance ControlNet adapter designed for the 1794 FLEX I/O platform, engineered to serve as the critical data bridge between field-level devices and upper-layer control systems in modern smart factory environments. By implementing the ControlNet protocol — a deterministic, real-time industrial network standard — the 1794-ACNR15 enables seamless, time-synchronized data exchange across PLCs, remote I/O modules, HMI panels, SCADA systems, and edge gateways. In production environments where millisecond-level response times and uninterrupted data flow are non-negotiable, this adapter delivers the network stability and protocol integrity that automation engineers depend on.

At the heart of its design is the ability to connect distributed 1794 FLEX I/O modules — including digital input/output, analog I/O, and specialty modules — directly onto a ControlNet segment. This eliminates the need for proprietary point-to-point wiring between each field device and the controller, replacing it with a structured, scalable network topology that supports both scheduled (implicit) and unscheduled (explicit) messaging. The result is a leaner, more transparent data architecture that reduces wiring complexity, accelerates commissioning, and simplifies long-term maintenance across multi-zone production lines.

In a fully integrated smart factory, the 1794-ACNR15 sits at the intersection of the physical process layer and the digital intelligence layer. Consider a typical automated assembly line: field sensors — such as photoelectric sensors, proximity switches, and temperature transmitters — feed real-time signals into 1794 FLEX I/O analog and digital input modules. The 1794-ACNR15 adapter collects this distributed I/O data and transmits it over the ControlNet segment to an Allen-Bradley ControlLogix 1756 series PLC, which executes the control logic and issues output commands back through the same network path.

This bidirectional data flow is not limited to a single controller. The ControlNet architecture supported by the 1794-ACNR15 allows multiple PLCs and controllers to share I/O data on the same network segment — a capability known as multicast data sharing — which is essential in coordinated multi-axis or multi-zone production systems. For example, a 1756-CNB ControlNet bridge module installed in a ControlLogix chassis can communicate simultaneously with multiple 1794-ACNR15 adapters deployed across different sections of the production floor, enabling centralized logic execution with distributed I/O collection.

Moving up the data hierarchy, the ControlNet network connects to SCADA and HMI layers through Rockwell's FactoryTalk View or third-party platforms such as Ignition SCADA. Here, the real-time I/O data collected by the 1794-ACNR15 is visualized as live process dashboards, trend charts, and alarm panels. Operators can monitor conveyor speeds, valve positions, motor current draws, and environmental readings from a centralized HMI station — all sourced from FLEX I/O modules networked through the 1794-ACNR15 adapter.

For facilities integrating variable frequency drives (VFDs) such as the Allen-Bradley PowerFlex 755 or PowerFlex 525, the ControlNet network provides the communication backbone for speed reference commands and drive status feedback. Similarly, servo drives and motion controllers within the same ControlNet segment can synchronize their operational states with the broader I/O network, enabling coordinated motion sequences that depend on real-time sensor feedback from FLEX I/O modules.

At the edge layer, industrial gateways — such as the Moxa MGate series or Anybus X-gateway — can bridge ControlNet data to Ethernet/IP or PROFINET segments, extending the reach of the 1794-ACNR15's data collection into cloud-connected MES and ERP platforms. This edge-to-cloud data path supports predictive maintenance analytics, OEE (Overall Equipment Effectiveness) tracking, and remote asset management without disrupting the deterministic performance of the ControlNet layer.

Industrial Ethernet switches, such as the Allen-Bradley Stratix 5700 or Cisco IE series, provide the managed switching infrastructure that segments and prioritizes traffic between ControlNet, EtherNet/IP, and corporate IT networks — ensuring that time-critical I/O data from the 1794-ACNR15 is never delayed by non-deterministic traffic. Power supplies such as the Allen-Bradley 1606-XLP series provide stable 24VDC rail power to the FLEX I/O terminal bases, ensuring uninterrupted operation of the adapter and connected modules even during transient load events.

Protocol Fragmentation: Many legacy production sites operate with a mix of ControlNet, DeviceNet, and serial RS-485 devices that cannot communicate natively. The 1794-ACNR15, when deployed alongside protocol gateway modules such as the 1788-CN2DN (ControlNet-to-DeviceNet linking device), enables unified data collection across heterogeneous device networks — eliminating the data silos that prevent holistic production visibility.

Remote Monitoring Gaps: In large facilities where field devices are distributed across multiple buildings or production zones, the deterministic scheduling of ControlNet ensures that I/O data from remote 1794 FLEX I/O nodes arrives at the controller within guaranteed time windows. This predictability is the foundation for reliable remote diagnostics — maintenance engineers can use RSNetWorx for ControlNet to remotely inspect node health, connection status, and communication error counters without physically accessing the field panel.

Production Line Transparency: By centralizing distributed sensor and actuator data through the 1794-ACNR15 onto a single ControlNet segment, plant managers gain a unified data source for production KPI dashboards. Real-time visibility into cycle times, reject rates, and equipment utilization — all derived from FLEX I/O data — enables data-driven decisions that reduce downtime and improve throughput.

Alarm Tracking and Response: The 1794-ACNR15 supports fast, scheduled I/O updates that enable SCADA systems to detect and log alarm conditions with high temporal resolution. When a pressure sensor exceeds its setpoint or a motor overload relay trips, the event is captured in the FLEX I/O module, transmitted over ControlNet, and logged in the SCADA historian within milliseconds — providing the audit trail needed for root cause analysis and regulatory compliance.

System Scalability: As production capacity grows, additional 1794 FLEX I/O modules can be added to existing terminal bases and immediately recognized by the 1794-ACNR15 adapter after network reconfiguration in RSNetWorx. This modular expansion model avoids the cost and downtime associated with replacing fixed I/O controllers, making the 1794-ACNR15 a long-term investment in scalable automation infrastructure.

Q1: What is the communication latency of the 1794-ACNR15 on a ControlNet network?ControlNet is a deterministic network protocol, meaning the 1794-ACNR15 delivers I/O data updates within a configurable Requested Packet Interval (RPI), typically set between 5ms and 500ms depending on application requirements. For time-critical control loops, RPIs as low as 5ms are achievable, ensuring that the adapter meets the real-time demands of high-speed assembly and process control applications.

Q2: Is the 1794-ACNR15 compatible with both ControlLogix and PLC-5 controllers?Yes. The 1794-ACNR15 is compatible with any Rockwell Automation controller that supports ControlNet communication, including ControlLogix (1756-CNB/CNBR), PLC-5/C (ControlNet-enabled), and SLC 500 with ControlNet scanner modules. Network configuration is performed using RSNetWorx for ControlNet, which supports all of these controller platforms.

Q3: How is network stability maintained in environments with high electrical noise?The 1794-ACNR15 supports dual coaxial BNC ports for redundant ControlNet media, allowing the network to continue operating on the secondary cable if the primary cable is damaged or experiences signal degradation. Additionally, ControlNet's token-passing MAC layer eliminates collision-based retransmissions, providing inherently stable communication in electrically noisy industrial environments such as welding cells and high-voltage switchgear rooms.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed?Every 1794-ACNR15 unit supplied by NANKMOS undergoes functional verification testing prior to shipment, including ControlNet communication initialization, I/O module recognition, and network node address assignment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team at [email protected], with replacement or repair turnaround coordinated to minimize production downtime.
