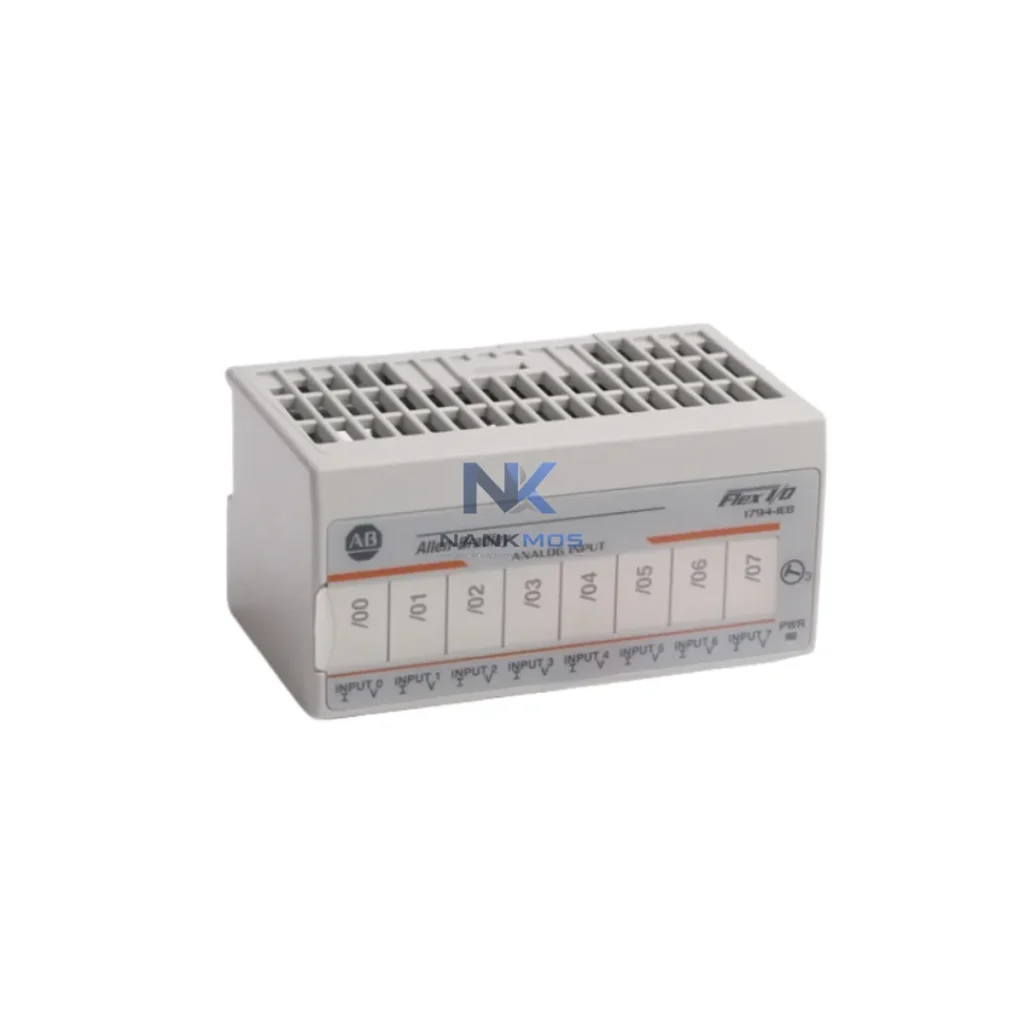

Allen-Bradley 1794-IE8/B Analog Input Module

Product Details

1794-IE8/B Product Description

The Allen-Bradley 1794-IE8/B is an 8-channel analog input module engineered for the Flex I/O platform, delivering precision signal acquisition and seamless integration into modern industrial data networks. Designed to bridge field-level instrumentation with upper-layer control and monitoring systems, the 1794-IE8/B serves as a critical node in the smart factory data chain — converting real-world analog signals from sensors, transmitters, and transducers into structured digital data that feeds PLCs, SCADA platforms, HMI terminals, and edge computing gateways.

In today's connected manufacturing environment, analog input accuracy and network reliability are inseparable. The 1794-IE8/B supports voltage and current input ranges, enabling direct connection to a wide variety of field devices including pressure transmitters, flow meters, temperature sensors, and level transducers. Once signals are digitized, they are transmitted upstream through the Flex I/O backplane to a compatible communication adapter — such as the 1794-AENT (EtherNet/IP adapter) or 1794-ADN (DeviceNet adapter) — enabling the module to participate in high-speed industrial Ethernet or fieldbus networks without additional signal conditioning hardware.

This architecture positions the 1794-IE8/B at the heart of a distributed I/O strategy. Rather than routing analog signals over long cable runs to a centralized controller, the Flex I/O system allows the 1794-IE8/B to be mounted close to the process, minimizing signal degradation and reducing wiring complexity. The digitized data is then transmitted over EtherNet/IP or DeviceNet to a ControlLogix or CompactLogix PLC — such as the 1756-L73 or 1769-L33ER — where it is processed in real time for closed-loop control, alarm management, and production reporting.

The 1794-IE8/B operates as the analog signal entry point in a layered smart factory architecture. At the field level, sensors such as Rosemount 3051 pressure transmitters or Endress+Hauser Promag flow meters output 4–20mA signals that are wired directly into the 1794-IE8/B input terminals. The module digitizes these signals at 16-bit resolution and passes the data across the Flex I/O backplane to a 1794-AENT EtherNet/IP adapter, which encapsulates the process values into standard EtherNet/IP packets for transmission over the plant network.

At the controller layer, a ControlLogix 1756-L73 or CompactLogix 1769-L33ER PLC receives the analog data via implicit messaging, executing ladder logic or function block programs that implement PID control loops, setpoint comparisons, and alarm threshold evaluations. The same data stream is simultaneously available to a FactoryTalk View SE SCADA server or a PanelView Plus 7 HMI terminal, where operators can monitor live process trends, acknowledge alarms, and review historical data logs without interrupting the control cycle.

For facilities implementing IIoT and edge analytics, the 1794-IE8/B data can be routed through an Allen-Bradley Stratix 5700 industrial managed switch to an edge gateway running FactoryTalk Edge or a third-party platform such as Ignition SCADA by Inductive Automation. At this layer, raw analog values are contextualized with asset metadata, aggregated into time-series databases, and visualized on dashboards for production KPI tracking, OEE analysis, and predictive maintenance alerts.

In multi-zone production environments, the 1794-IE8/B can be deployed alongside 1794-OE4 analog output modules and 1794-IB16 digital input modules within the same Flex I/O bank, creating a compact, mixed-signal remote I/O node that handles both measurement and actuation tasks. This reduces panel footprint and simplifies network topology by consolidating multiple I/O types under a single communication adapter and IP address.

For remote diagnostic capability, the EtherNet/IP network path enables the ControlLogix controller to perform continuous module health checks, detecting channel faults, out-of-range inputs, and communication errors in real time. Fault data is logged to the controller's diagnostic buffer and forwarded to the SCADA historian, enabling maintenance teams to perform root-cause analysis and schedule corrective actions before unplanned downtime occurs.

Many industrial facilities face persistent challenges with analog data integration: legacy field devices output signals that are incompatible with modern Ethernet-based control systems, creating data silos that prevent real-time visibility into critical process parameters. The 1794-IE8/B addresses this directly by providing a standards-compliant analog input interface that connects seamlessly to EtherNet/IP and DeviceNet networks, eliminating the need for standalone signal converters or proprietary gateways.

Protocol fragmentation is another common barrier. Sites running mixed networks — with some zones on DeviceNet and others on EtherNet/IP — can deploy the 1794-IE8/B with the appropriate adapter (1794-ADN for DeviceNet, 1794-AENT for EtherNet/IP) to maintain a consistent I/O architecture across all network segments. This adapter-based flexibility means the same module hardware can be redeployed as network infrastructure evolves, protecting capital investment.

For production line transparency, the 1794-IE8/B enables continuous analog monitoring of process variables that were previously only checked during manual rounds. By feeding live data into FactoryTalk Historian or a cloud-connected data lake, operations teams gain access to trend analysis, shift-by-shift performance comparisons, and early warning indicators for equipment degradation — transforming reactive maintenance into a data-driven, predictive model.

Remote diagnostics are particularly valuable for geographically distributed facilities or unmanned substations. With the 1794-IE8/B connected via EtherNet/IP, remote engineers can access module diagnostics, review channel-level fault codes, and verify signal integrity from a central control room or via VPN — reducing the need for on-site visits and accelerating fault resolution.

System scalability is built into the Flex I/O platform. Additional 1794-IE8/B modules can be added to an existing bank without rewiring the communication adapter, and the ControlLogix controller automatically recognizes new modules through the I/O tree configuration in Studio 5000 Logix Designer. This plug-and-expand architecture supports phased production expansions without system downtime.

Q1: What communication protocols does the 1794-IE8/B support, and how does it connect to EtherNet/IP networks?The 1794-IE8/B itself is a backplane-based analog input module and does not have an independent network port. It communicates with the plant network through a Flex I/O communication adapter mounted on the same DIN rail bank. Using the 1794-AENT adapter, the module participates in EtherNet/IP implicit (cyclic) and explicit (message-based) communication with ControlLogix and CompactLogix controllers. For DeviceNet networks, the 1794-ADN adapter provides equivalent connectivity. This adapter-based architecture ensures the module is compatible with both legacy fieldbus and modern industrial Ethernet infrastructures.

Q2: How does the 1794-IE8/B support remote diagnostics and fault detection in SCADA-connected systems?When connected via EtherNet/IP through the 1794-AENT adapter, the 1794-IE8/B exposes channel-level diagnostic data to the ControlLogix controller, including over-range, under-range, and open-wire fault conditions. These diagnostics are accessible in real time through Studio 5000 Logix Designer and can be forwarded to FactoryTalk View SE or any SCADA platform via OPC-UA or FactoryTalk Live Data. Remote engineers can monitor module health, acknowledge faults, and initiate corrective actions without physical access to the panel.

Q3: Can the 1794-IE8/B be integrated into an existing Flex I/O bank alongside digital I/O and analog output modules?Yes. The Flex I/O platform is designed for mixed-module configurations. The 1794-IE8/B can be installed in the same bank as 1794-IB16 digital input modules, 1794-OB16 digital output modules, and 1794-OE4 analog output modules, all sharing a single communication adapter. The ControlLogix or CompactLogix controller manages all modules through a unified I/O tree, simplifying configuration and reducing network overhead. Adding modules to an existing bank requires only a Studio 5000 configuration update — no additional wiring to the communication adapter is needed.

Q4: What warranty and pre-shipment testing does the 1794-IE8/B include?Every 1794-IE8/B unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification testing to confirm analog input accuracy, backplane communication integrity, and channel-level response across the full input range. Units are shipped in anti-static packaging with inspection documentation. In-stock units are available for same-day or next-business-day dispatch to support urgent maintenance and production continuity requirements.
