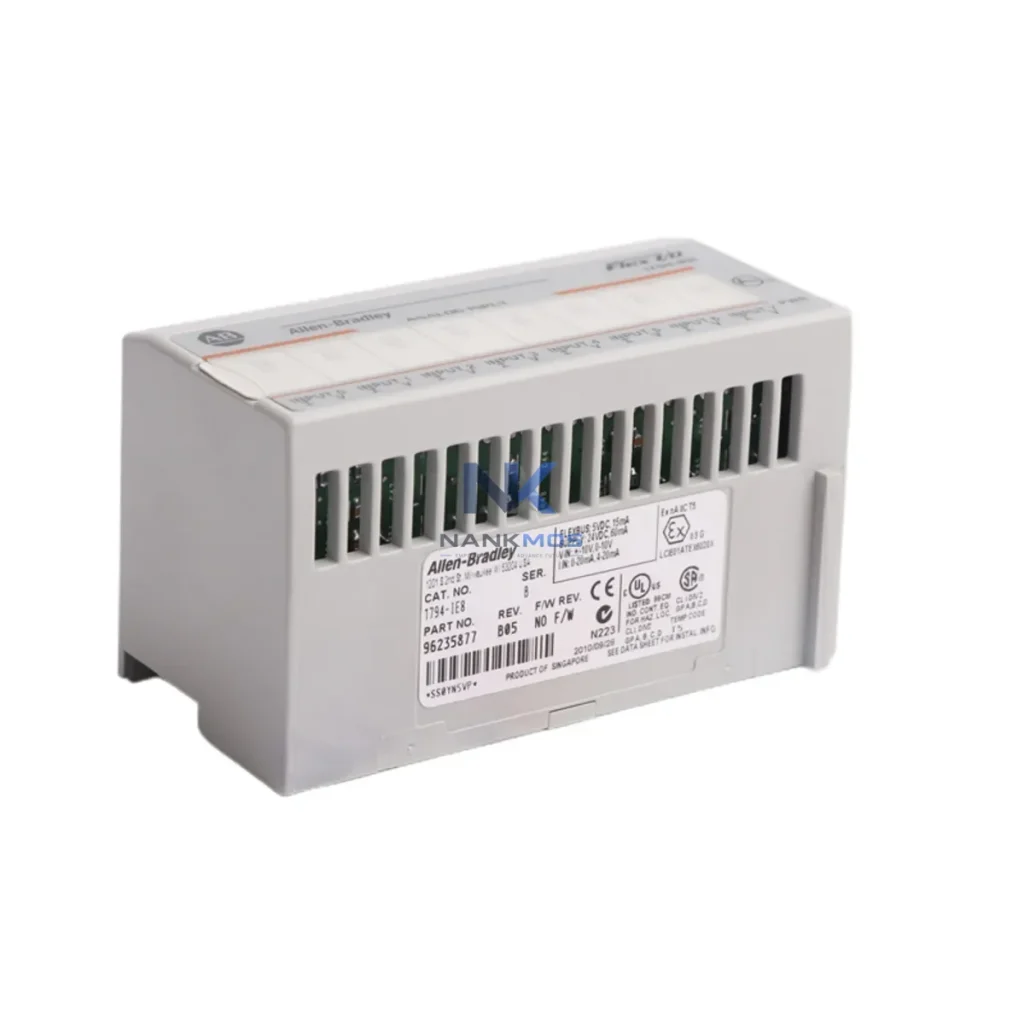

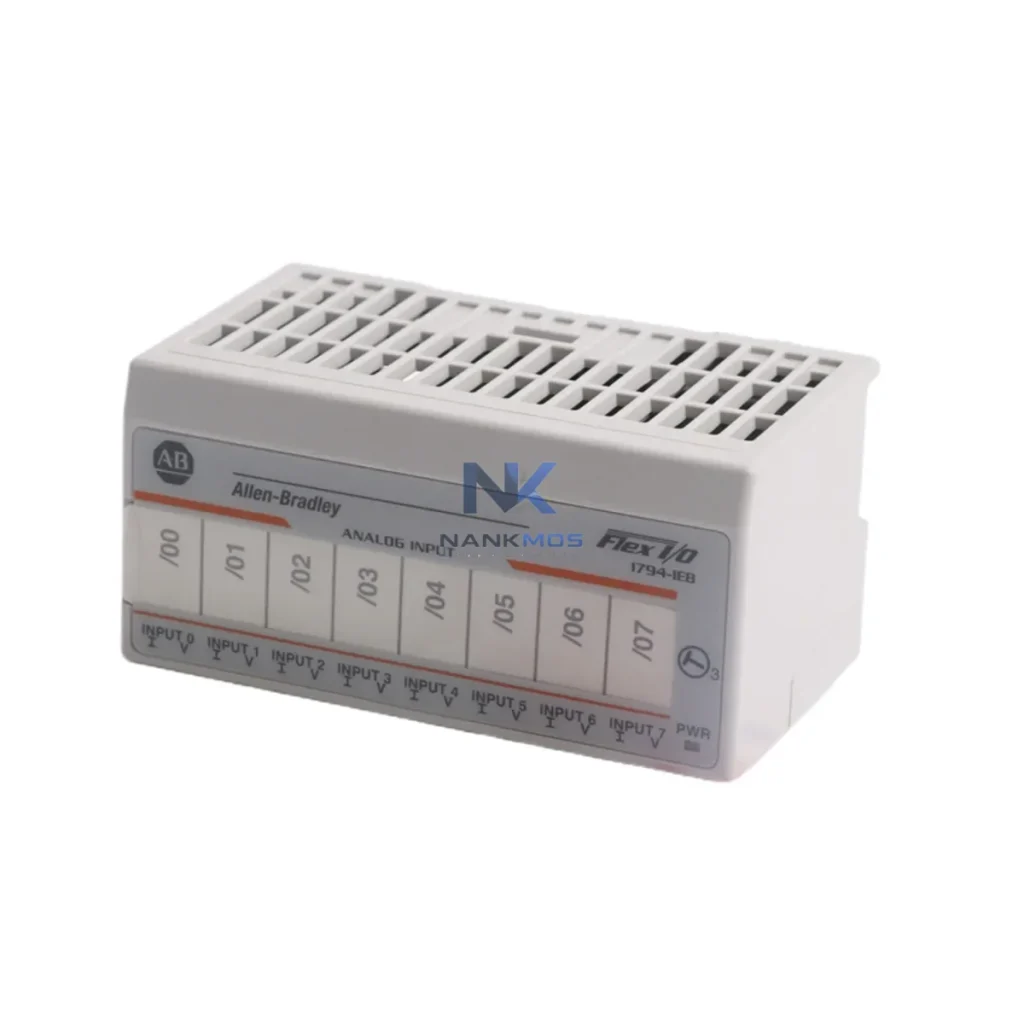

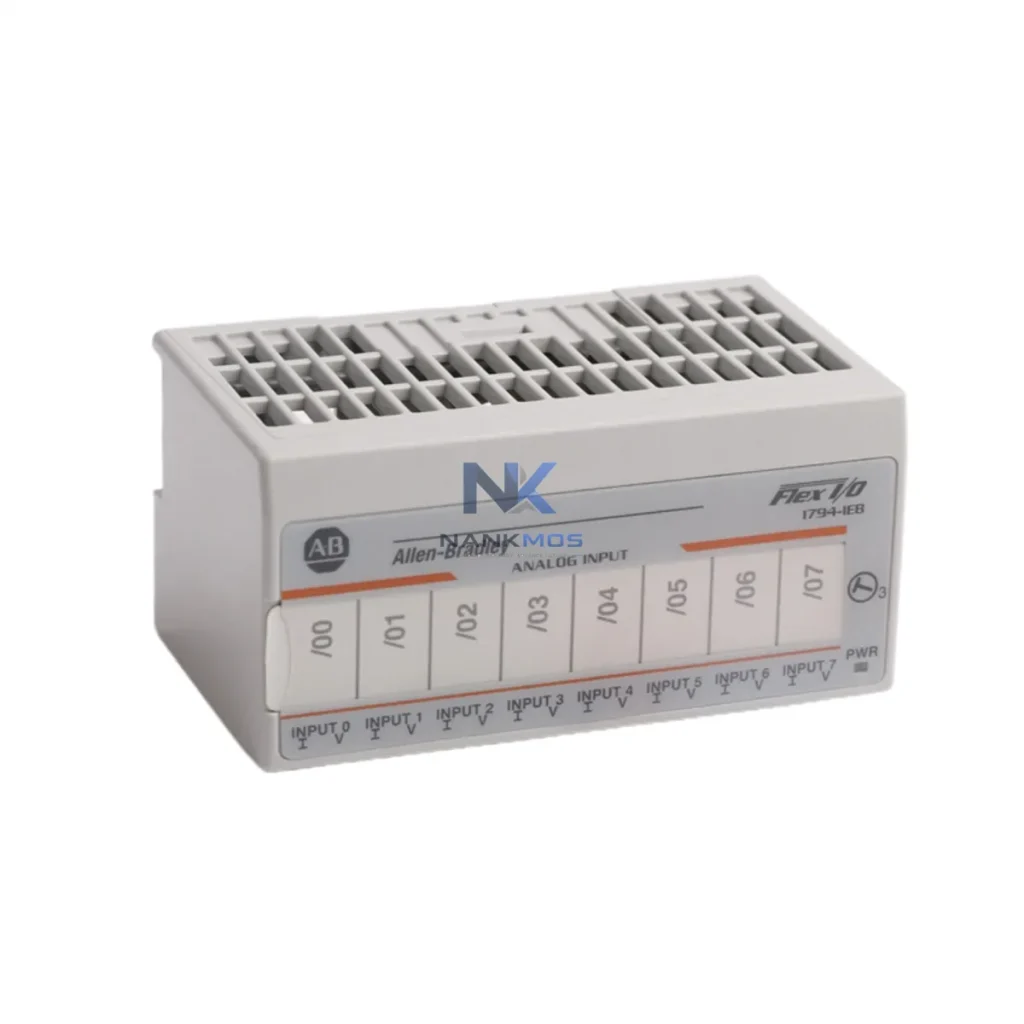

Allen-Bradley 1794-IE8 Analog Input Module

Product Details

1794-IE8 Product Description

The Allen-Bradley 1794-IE8 is an 8-point analog input module from the FLEX I/O platform, engineered to serve as a precision signal acquisition node within distributed industrial control architectures. Designed for seamless integration into Rockwell Automation's ControlLogix and CompactLogix ecosystems, the 1794-IE8 captures real-world process variables — including temperature, pressure, flow, and level — and converts them into structured digital data streams that feed directly into PLC controllers, SCADA systems, and HMI visualization layers. In smart factory environments where data continuity and signal fidelity are non-negotiable, the 1794-IE8 delivers the analog front-end performance required to sustain closed-loop automation and real-time process transparency.

Each of the eight input channels on the 1794-IE8 supports standard industrial signal ranges, enabling direct connection to field transmitters, sensors, and transducers without additional signal conditioning hardware. The module mounts onto the FLEX I/O adapter backplane — such as the 1794-AENT Ethernet/IP adapter or the 1794-ADN DeviceNet adapter — allowing the analog data it collects to be transmitted across high-speed industrial networks to upstream controllers and data historians. This architecture eliminates analog signal degradation over long cable runs and replaces it with deterministic digital communication, a foundational requirement for Industry 4.0 data infrastructure.

In a fully connected smart factory, the 1794-IE8 sits at the critical junction between the physical process layer and the digital control network. Field-mounted sensors — including pressure transmitters, thermocouple signal conditioners, and flow meters — deliver 4–20 mA or 0–10 VDC signals directly into the eight input channels of the 1794-IE8. The module digitizes these analog signals at 12-bit resolution and passes the structured data across the FLEX I/O backplane to the network adapter. When paired with the 1794-AENT EtherNet/IP adapter, the digitized process values are transmitted over a standard industrial Ethernet network at deterministic cycle rates, making them immediately available to a ControlLogix L7x or CompactLogix L3x PLC controller for real-time closed-loop control execution.

From the PLC, process data flows upward through the plant network to SCADA platforms such as Rockwell's FactoryTalk View SE or Inductive Automation's Ignition, where operators monitor live trends, configure alarm thresholds, and generate production reports. The 1794-IE8's data also feeds into historian databases, enabling long-term process analytics and predictive maintenance modeling. In multi-zone production environments, the module integrates alongside remote I/O nodes such as the 1734 POINT I/O series, extending the analog acquisition network to distributed field cabinets without requiring dedicated PLC hardware at each location.

For installations where legacy DeviceNet infrastructure is already in place, the 1794-IE8 connects via the 1794-ADN DeviceNet adapter, allowing the module to participate in existing scanner-based networks managed by a 1756-DNB DeviceNet scanner card in a ControlLogix chassis. This backward compatibility ensures that facilities upgrading from older control architectures can incorporate the 1794-IE8 without a full network redesign. In parallel, variable frequency drives — such as the PowerFlex 525 or PowerFlex 755 — can share the same EtherNet/IP segment, with their speed feedback and current draw data aggregated alongside the 1794-IE8's process inputs for unified energy monitoring and motor protection analytics.

At the edge layer, industrial gateways such as the Moxa MGate series or ProSoft Technology MVI56E communication modules can bridge the 1794-IE8's data from EtherNet/IP into Modbus TCP or MQTT streams, enabling cloud-based IoT platforms and MES systems to consume real-time analog process data without modifying the core PLC program. HMI panels — including the PanelView Plus 7 and PanelView 800 — display the 1794-IE8's channel values as live process graphics, giving operators on the plant floor immediate visual feedback on critical process variables. This end-to-end data chain, from sensor signal to cloud dashboard, represents the full connectivity value of the 1794-IE8 in a modern smart factory deployment.

Many industrial facilities operate with fragmented analog signal infrastructure — field transmitters wired directly to panel-mounted indicators, with no digital pathway to the control system or SCADA layer. The 1794-IE8 resolves this data gap by providing a structured, network-connected analog input front-end that integrates directly into the plant's existing Rockwell Automation control architecture. Rather than relying on manual operator readings or standalone data loggers, the 1794-IE8 delivers continuous, timestamped process data to the PLC and SCADA system, enabling automated alarm generation, trend logging, and exception-based reporting.

Protocol fragmentation is another common challenge in brownfield automation sites, where legacy 4–20 mA loops coexist with newer EtherNet/IP and DeviceNet networks. The 1794-IE8's adapter-based architecture addresses this directly: by selecting the appropriate FLEX I/O network adapter, the same analog input module can participate in DeviceNet, ControlNet, or EtherNet/IP networks, eliminating the need for separate analog-to-digital converter hardware for each protocol segment. This flexibility significantly reduces panel wiring complexity and simplifies network topology documentation.

Remote diagnostics capability is built into the 1794-IE8's network communication layer. When connected via EtherNet/IP, the module exposes channel-level diagnostic data — including over-range detection, under-range detection, and open-wire fault flags — to the ControlLogix PLC and, by extension, to FactoryTalk Diagnostics and remote support tools. Maintenance engineers can identify faulty field transmitters or broken signal cables from the control room or remotely via VPN, reducing unplanned downtime and eliminating unnecessary site visits. For facilities pursuing ISO 55000 asset management compliance or OEE improvement programs, the 1794-IE8's diagnostic transparency provides the process data foundation required to support condition-based maintenance strategies.

Q1: What communication protocols does the Allen-Bradley 1794-IE8 support? The 1794-IE8 itself is a backplane-based analog input module and does not have an onboard network port. Its network protocol is determined by the FLEX I/O adapter it is paired with. Using the 1794-AENT adapter enables EtherNet/IP communication; the 1794-ADN adapter enables DeviceNet; and the 1794-ACN adapter enables ControlNet. This adapter-based design allows the same 1794-IE8 module to be deployed across different network architectures without hardware modification.

Q2: Can the 1794-IE8 be integrated with third-party SCADA systems outside of the Rockwell ecosystem? Yes. When connected via EtherNet/IP using the 1794-AENT adapter, the 1794-IE8's process data is accessible to any SCADA platform that supports EtherNet/IP or OPC-DA/UA communication, including Ignition by Inductive Automation, Wonderware System Platform, and Siemens WinCC. OPC server software such as Kepware KEPServerEX can bridge the EtherNet/IP data to OPC-UA, making it available to MES, historian, and cloud IoT platforms.

Q3: How does the 1794-IE8 support remote diagnostics and predictive maintenance? The 1794-IE8 exposes channel-level diagnostic bits — including over-range, under-range, and open-circuit fault indicators — through its network adapter to the host PLC. These diagnostic tags can be mapped into FactoryTalk View alarm systems or third-party SCADA alarm managers, enabling automated fault notification via email or SMS. Remote access via VPN to the ControlLogix controller allows maintenance engineers to review live channel diagnostics and historical fault logs without requiring a physical site visit.

Q4: What warranty and pre-shipment testing does the 1794-IE8 include? Every 1794-IE8 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures. Prior to shipment, each module undergoes functional verification testing to confirm channel integrity, signal range accuracy, and backplane communication. Units are shipped in anti-static packaging with full documentation. In-stock units are available for same-day or next-business-day dispatch, with global logistics support to manufacturing facilities, system integrators, and MRO procurement teams worldwide.
