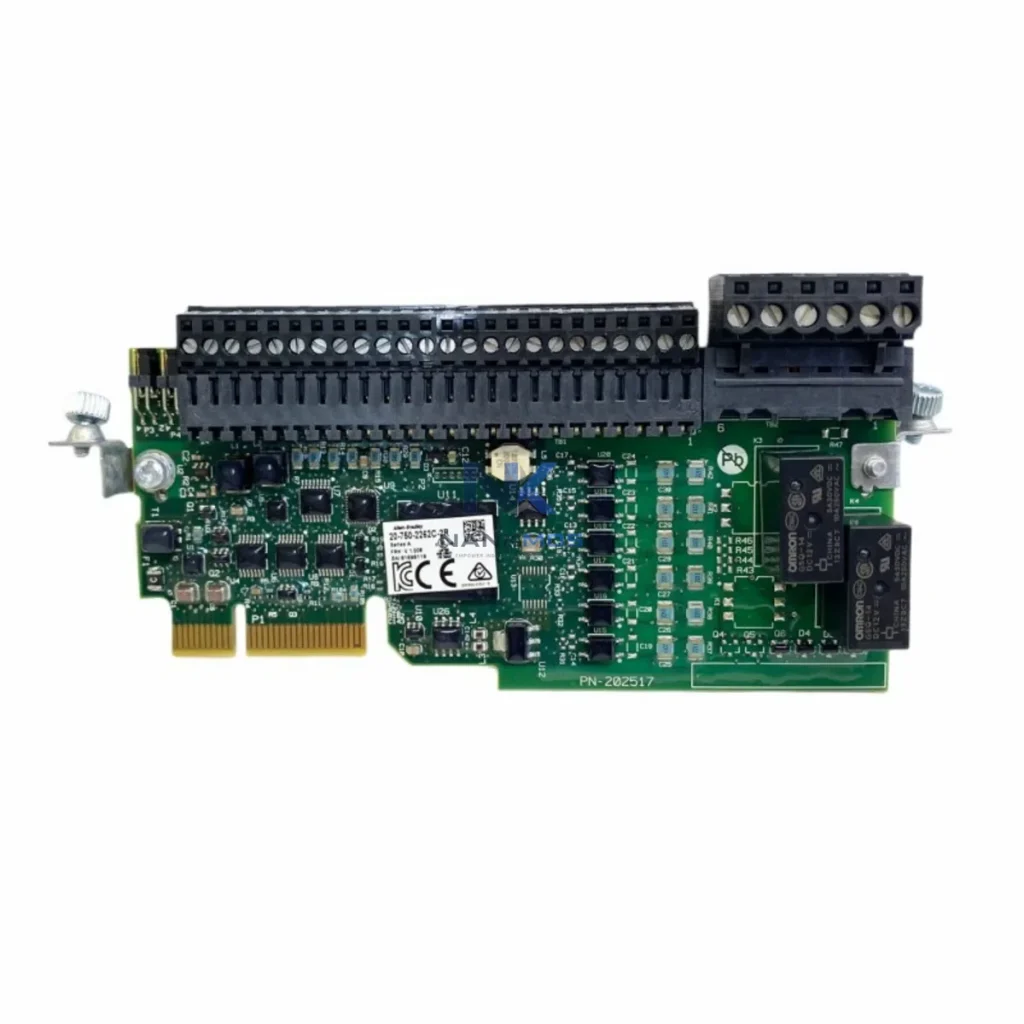

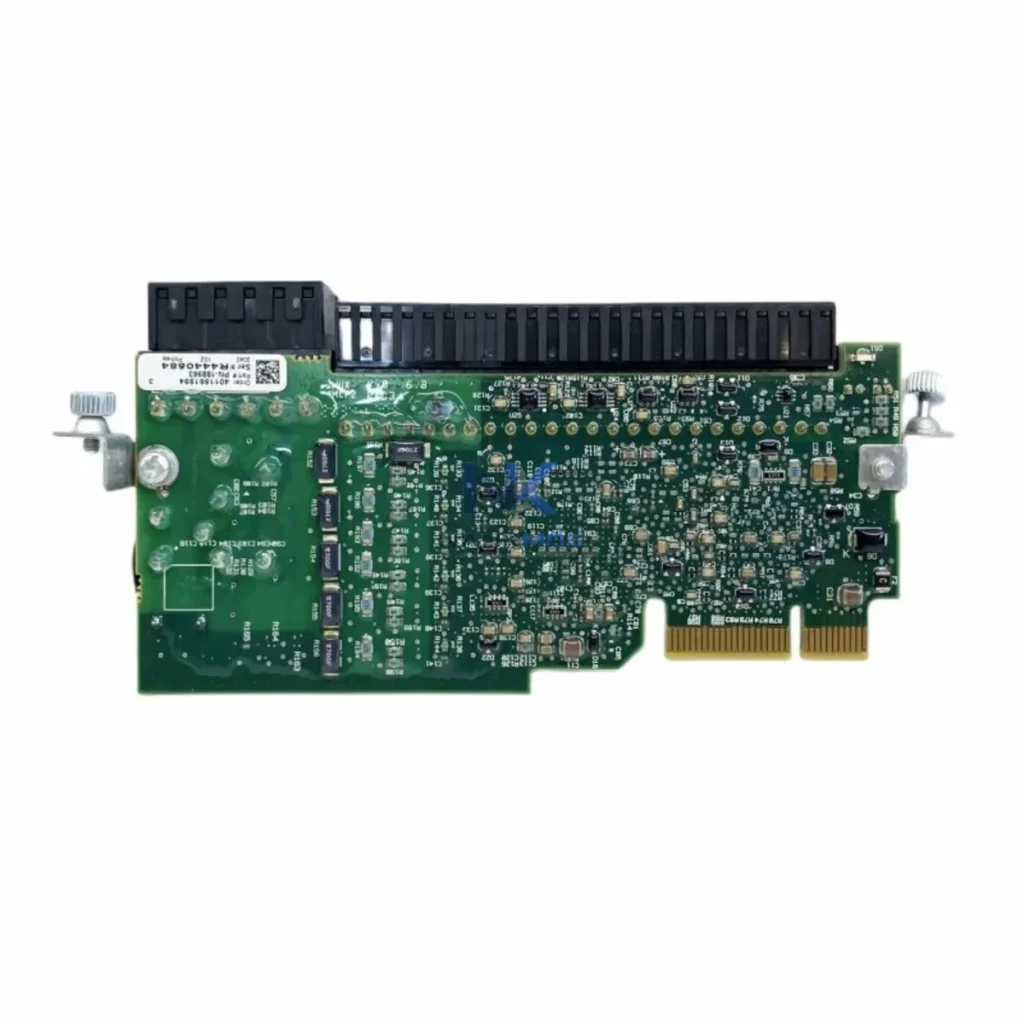

Allen-Bradley 20-750-2262C-2R Safety Option Module

Product Details

20-750-2262C-2R Product Description

The Allen-Bradley 20-750-2262C-2R is a System-Ready Safe Torque-Off (STO) option module engineered for the PowerFlex 750-Series AC drive platform. Within a layered industrial control architecture, this module occupies the critical intersection of the protection layer and the execution layer — ensuring that drive-connected motors can be safely de-energized without removing main power from the drive chassis. Designed to IEC 61508 SIL 2 and EN 954-1 Category 3 standards, the 20-750-2262C-2R delivers deterministic, hardware-enforced safety response that integrates seamlessly into Rockwell Automation's Integrated Architecture framework.

Modern automation systems demand more than isolated safety devices. The 20-750-2262C-2R is architected to function as a cohesive node within a multi-layer control hierarchy. At the control layer, a ControlLogix or CompactLogix safety PLC — such as the 1756-L71S or 1769-L36ERMS — issues STO commands via hardwired safety I/O or through a GuardLogix safety network. The I/O layer, populated with 1791DS or 1732DS ArmorBlock Guard I/O modules, routes dual-channel safety signals to the drive option slot, maintaining signal integrity across the cabinet. At the communications layer, the module operates in concert with a 20-750-DNET DeviceNet or 20-750-ENETR EtherNet/IP option card installed in an adjacent PowerFlex 750 option slot, enabling real-time diagnostic data — including STO status, fault codes, and safety state — to be surfaced at the HMI layer via a PanelView Plus 7 terminal running FactoryTalk View SE.

The power layer supporting the 20-750-2262C-2R installation typically includes a 1606-XLP power supply providing stable 24 VDC logic power to the safety I/O subsystem, while the drive's main power bus remains energized during STO activation — a key architectural advantage that eliminates the mechanical wear and restart delays associated with traditional contactor-based isolation. At the execution layer, the PowerFlex 755 drive frame controlled by this module may be paired with a 20-750-PNET PROFINET option or a 20-750-S1 single-axis safety option for expanded motion safety in coordinated multi-axis systems. Redundancy at the protection layer is further enhanced when the 20-750-2262C-2R is deployed alongside a 440C-CR30 SmartGuard safety relay, providing a secondary hardwired safety channel for Category 4 / PLe applications requiring dual-path verification.

From a maintenance and diagnostics perspective, the 20-750-2262C-2R supports in-situ functional testing without full system shutdown. Safety function proof tests can be executed via the drive's HIM (Human Interface Module) or through Studio 5000 Logix Designer, with test results logged to the controller's diagnostic buffer. This capability directly reduces planned downtime and supports IEC 62061 and ISO 13849-1 compliance documentation requirements. The module's plug-in option card form factor allows field replacement without drive removal, and its firmware is upgradeable via the 20-HIM-A6 or 20-HIM-C6S HIM module, ensuring long-term compatibility with evolving safety standards.

In distributed control architectures — such as those found in automotive body-in-white lines, chemical batch processing, water treatment pump stations, and offshore platform motor control centers — the 20-750-2262C-2R enables zone-based safety partitioning. Individual drive zones can be placed into STO independently, allowing adjacent production cells to continue operating while maintenance personnel access a specific machine zone. This zonal approach, when combined with a GuardLogix 5570 safety controller and a 1791ES CompactBlock Guard I/O network, delivers a scalable, modular safety architecture that grows with the installation without requiring complete system redesign.

NANKMOS maintains verified inventory of the 20-750-2262C-2R with full pre-shipment functional testing, including STO activation verification, dual-channel input continuity checks, and option card communication handshake validation. Each unit ships with a 12-Month Warranty covering manufacturing defects and functional performance. Our Contextual Integration support service provides application-specific guidance for drive option slot configuration, safety PLC tag mapping, and Studio 5000 safety task integration — ensuring your engineering team can commission the safety function on schedule and within budget.

The 20-750-2262C-2R achieves its full architectural value when deployed as part of a coordinated Rockwell Automation Integrated Architecture. A typical system configuration begins with a 1756-L71S GuardLogix 5570 safety controller in a ControlLogix chassis, executing the safety program that governs STO command issuance. Safety I/O is distributed via 1791DS-IB4XOB4 ArmorBlock Guard I/O modules mounted at the machine perimeter, with dual-channel E-stop and light curtain signals wired to the STO input terminals of the 20-750-2262C-2R. The PowerFlex 755 drive hosting the module communicates upstream via a 20-750-ENETR dual-port EtherNet/IP option card, enabling the safety controller to monitor STO status tags in real time within Studio 5000 Logix Designer.

At the HMI layer, a 2711P-T12W21D8S PanelView Plus 7 Standard terminal running FactoryTalk View ME displays drive status, STO state, and active fault codes, giving operators immediate visibility into the safety function status without requiring engineering workstation access. The 24 VDC safety power rail is supplied by a 1606-XLP95E power supply, which provides regulated, diagnostics-capable DC power with output OK relay contacts wired into the safety circuit. For applications requiring expanded motion safety, the 20-750-S1 single-axis safety option card can be installed in an adjacent option slot, extending the safety function to include Safe Stop 1 (SS1) and Safe Limited Speed (SLS) capabilities.

Cabinet-level protection is reinforced by a 440C-CR30 SmartGuard 600 safety relay providing a secondary hardwired safety channel, and a 1492-J series terminal block assembly ensures clean, labeled wiring of the dual-channel STO input circuit. For multi-drive installations, a 20-750-PNET PROFINET option card enables integration into Siemens TIA Portal environments where mixed-vendor architectures require cross-platform safety coordination. This breadth of compatible components confirms the 20-750-2262C-2R as a versatile, platform-agnostic safety module capable of anchoring the protection layer across diverse industrial control architectures.

In automotive manufacturing — specifically body-in-white welding and stamping lines — the 20-750-2262C-2R enables zone-based STO partitioning across multi-robot cells. Each PowerFlex 755 drive controlling a servo-assisted transfer mechanism can be independently placed into STO when a zone gate is opened, while adjacent cells continue production. This zonal safety model, validated against ISO 13849-1 PLe requirements, is a standard design pattern in Tier 1 automotive supplier facilities.

In water and wastewater treatment, the module is deployed on PowerFlex 755 drives controlling high-inertia pump and blower motors. STO activation during maintenance access to wet wells or pump vaults eliminates the risk of inadvertent motor restart, satisfying OSHA lockout/tagout (LOTO) supplementation requirements. The module's fast response time (≤ 20 ms) ensures that safety function activation is deterministic even under high-load operating conditions.

In oil, gas, and petrochemical process facilities, the 20-750-2262C-2R supports SIL 2-rated safety instrumented functions (SIFs) within a Safety Instrumented System (SIS) architecture. When integrated with a Rockwell Automation AADvance or GuardLogix safety controller, the module participates in the safety function loop as the final element, providing verified de-energization of motor-driven compressors, agitators, and conveyor drives upon process demand. Proof test intervals and PFD (Probability of Failure on Demand) calculations are supported by Rockwell's SISTEMA-compatible safety data sheets.

In mining and minerals processing, the module is applied to conveyor drive systems where personnel access to tail pulleys and transfer points requires verified drive de-energization. The module's robust dual-channel architecture and TÜV certification provide the documented safety evidence required by AS 4024 and EN ISO 13849 compliance audits in Australian and European mining operations.

Q1: Can the 20-750-2262C-2R be installed alongside a communication option card in the same PowerFlex 755 drive?Yes. The PowerFlex 755 drive provides multiple option slots (Ports 1–6). The 20-750-2262C-2R is typically installed in Port 4 or Port 5, leaving Port 1 available for a 20-750-ENETR EtherNet/IP card and Port 2 for a 20-750-DNET DeviceNet card. Slot assignment must be configured in Studio 5000 Logix Designer under the drive's option card parameter set. NANKMOS provides application-specific slot configuration guidance as part of our Contextual Integration support service.

Q2: What is the recommended proof test interval for the STO function, and how is it executed without full system shutdown?Rockwell Automation recommends a proof test interval of ≤ 1 year for SIL 2 applications. The functional test can be executed via the drive's HIM module or through a Studio 5000 safety task by commanding STO activation and verifying the drive's response via the safety status tags. The test does not require removal of main power from the drive, allowing the proof test to be completed during a scheduled maintenance window without a full line shutdown. Test results should be logged in the facility's safety management system to support IEC 62061 compliance documentation.

Q3: What warranty and long-term supply assurance does NANKMOS provide for the 20-750-2262C-2R?NANKMOS provides a 12-Month Warranty on all 20-750-2262C-2R units, covering manufacturing defects and verified functional performance. Each unit undergoes pre-shipment testing including STO activation verification, dual-channel input continuity, and option card communication handshake. For long-term supply planning, NANKMOS maintains strategic inventory of PowerFlex 750-Series option modules to support MRO (Maintenance, Repair, and Operations) procurement programs, capital project builds, and emergency replacement requirements. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
