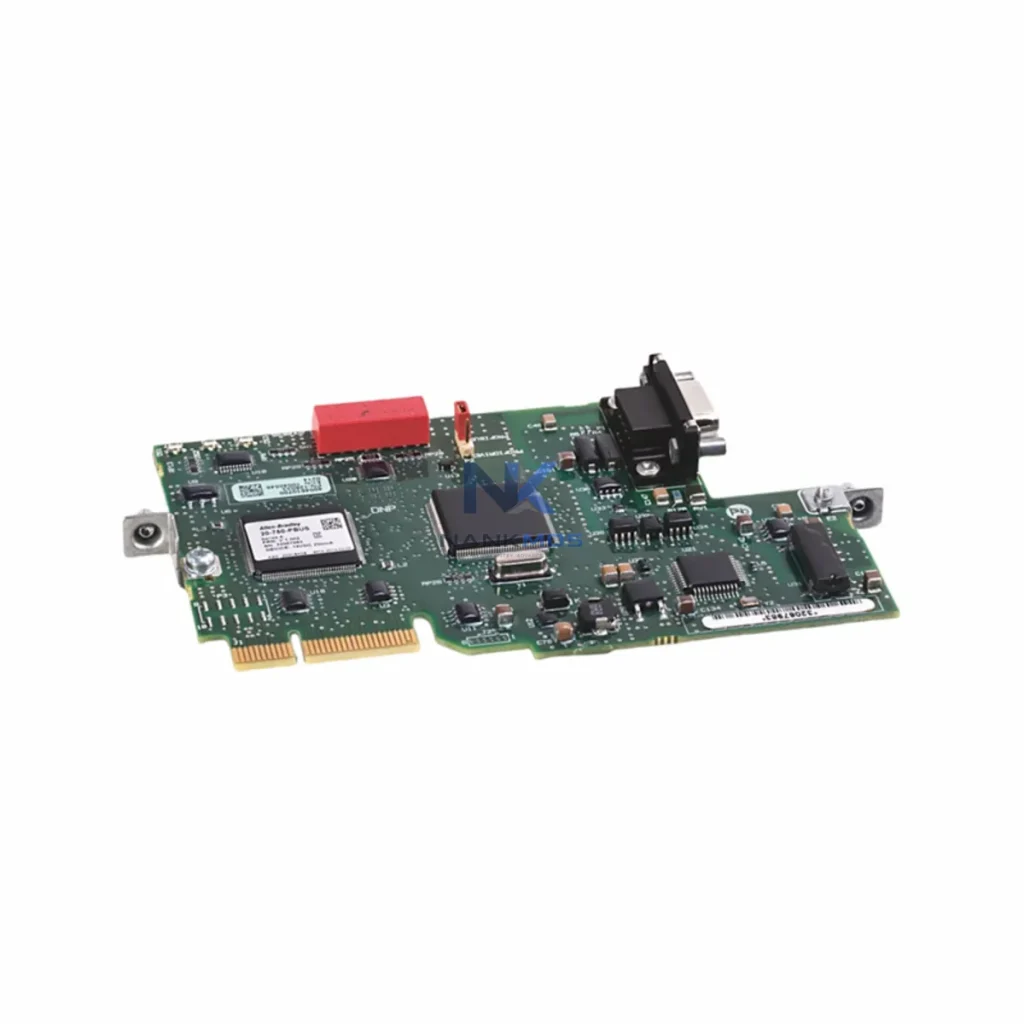

Allen-Bradley 20-750-PBUS Communication Gateway

Product Details

20-750-PBUS Product Description

The Allen-Bradley 20-750-PBUS is a plug-in DeviceNet communication option module engineered specifically for the PowerFlex 750-Series AC drives. Designed to serve as a critical data bridge in smart factory environments, the 20-750-PBUS enables seamless integration between field-level drive systems and upper-layer control networks — including PLCs, SCADA platforms, HMI terminals, and MES systems. By embedding DeviceNet protocol support directly into the PowerFlex 755 or PowerFlex 753 drive chassis, this module eliminates the need for external protocol converters and reduces wiring complexity across the automation network.

In modern industrial connectivity architectures, the 20-750-PBUS acts as the communication backbone between the drive and the plant-wide control system. It transmits real-time process variables — including output frequency, motor current, drive status, fault codes, and speed references — directly over the DeviceNet network to the Logix-family PLC controller, such as the ControlLogix L7x or CompactLogix L3x series. This bidirectional data exchange supports closed-loop control, predictive maintenance triggers, and automated alarm escalation without manual intervention.

From signal acquisition at the motor shaft to data visualization on the SCADA dashboard, the 20-750-PBUS participates in every layer of the smart factory data chain. At the field level, encoder feedback and analog sensor inputs are processed by the PowerFlex 750 drive. The 20-750-PBUS then packages this data into DeviceNet I/O messages and explicit messaging frames, forwarding them upstream to the network scanner — typically a 1756-DNB DeviceNet Bridge module installed in the ControlLogix chassis. From there, data flows into the Studio 5000 Logix Designer environment for real-time logic processing, alarm management, and historian logging.

For remote monitoring and diagnostics, the 20-750-PBUS integrates with FactoryTalk View SE SCADA and FactoryTalk Historian, enabling operators to track drive performance trends, energy consumption, and fault history from centralized control rooms or remote HMI stations. When combined with a Stratix 5700 managed industrial Ethernet switch and a 1783-NATR NAT router, the drive data can be securely tunneled to cloud-based analytics platforms or remote diagnostic portals — supporting predictive maintenance and reducing unplanned downtime.

In distributed automation topologies, the 20-750-PBUS works alongside remote I/O adapters such as the POINT I/O 1734-ADN DeviceNet adapter, allowing field sensors, proximity switches, and digital I/O modules to share the same DeviceNet trunk cable as the PowerFlex 750 drive. This reduces infrastructure cost while maintaining deterministic communication timing across the network segment. The module supports up to 64 nodes on a single DeviceNet network, making it suitable for medium-to-large drive arrays in conveyor systems, pump stations, HVAC plants, and material handling lines.

The 20-750-PBUS also supports explicit messaging for parameter read/write operations, enabling remote configuration of drive parameters — such as acceleration ramp, deceleration ramp, current limit, and speed reference source — directly from the PLC program or from a connected PanelView Plus 7 HMI terminal. This eliminates the need for a local human interface module (HIM) during commissioning and routine maintenance, reducing service time and improving operational efficiency in multi-drive installations.

For edge computing and IIoT deployments, the 20-750-PBUS data stream can be aggregated by an Allen-Bradley Logix 5000 controller and forwarded to an edge gateway device — such as the Cisco IE 4000 industrial router or a third-party MQTT broker — for cloud-based data visualization and analytics. This positions the 20-750-PBUS as a foundational component in Industry 4.0 upgrade projects, where legacy drive systems are being connected to digital twin platforms and OEE monitoring dashboards without full hardware replacement.

A typical smart factory deployment using the 20-750-PBUS begins at the motor control level. The PowerFlex 755 drive receives a speed reference from the ControlLogix L74 PLC via the DeviceNet network, with the 20-750-PBUS handling all protocol framing and network arbitration. Simultaneously, a 1734-ADN POINT I/O DeviceNet adapter on the same network segment collects digital inputs from proximity sensors and limit switches mounted on the conveyor line, feeding this data back to the same PLC scan cycle.

The 1756-DNB DeviceNet Bridge module in the ControlLogix chassis acts as the network master, polling the 20-750-PBUS at configurable RPI rates (typically 10–20 ms) to retrieve drive status words, fault codes, and process feedback values. These values are mapped into the PLC tag database and made available to the FactoryTalk View SE SCADA server over Ethernet/IP, where operators monitor real-time drive performance on graphical mimic displays.

For energy monitoring and power quality analysis, the drive's output current and voltage data — transmitted via the 20-750-PBUS — can be logged by a FactoryTalk Historian server and visualized in trend charts on a PanelView Plus 7 HMI. Alarm thresholds configured in the PLC logic trigger automatic notifications to maintenance teams via the SCADA alarm management system, reducing mean time to repair (MTTR) across the plant.

In multi-drive pump station applications, up to 8–12 PowerFlex 753 drives — each equipped with a 20-750-PBUS module — share a single DeviceNet trunk, with a Stratix 5700 managed switch providing the Ethernet backbone between the PLC rack and the SCADA server room. A 1783-NATR NAT router enables secure remote access for Rockwell Automation TechConnect support engineers to perform remote diagnostics without on-site visits.

Many industrial sites operate with a mix of legacy drives, proprietary fieldbus networks, and modern Ethernet-based control systems — creating data silos that prevent real-time visibility into drive performance and process status. The 20-750-PBUS directly addresses these challenges by providing a standardized DeviceNet interface that integrates the PowerFlex 750 drive into the plant-wide control architecture without requiring custom wiring or external gateways.

Protocol Fragmentation: Sites running mixed fieldbus environments — where some drives use Profibus-DP and others use DeviceNet — often struggle with unified data collection. The 20-750-PBUS standardizes the PowerFlex 750 drive's network interface to DeviceNet, enabling consistent data mapping across all drive nodes on the same network segment and simplifying PLC programming.

Remote Monitoring Gaps: Without a communication module, drive fault data is only accessible locally via the HIM keypad. The 20-750-PBUS enables fault codes, trip history, and drive diagnostics to be read remotely by the SCADA system or by a remote engineer via VPN — eliminating the need for on-site visits for routine diagnostics and fault analysis.

Production Line Transparency: In high-throughput manufacturing lines, real-time visibility into drive speed, torque, and energy consumption is essential for OEE optimization. The 20-750-PBUS streams this data continuously to the PLC and SCADA system, enabling production managers to identify bottlenecks, track energy KPIs, and schedule preventive maintenance based on actual operating hours rather than fixed intervals.

System Scalability: As production capacity expands, additional PowerFlex 750 drives can be added to the existing DeviceNet network with minimal reconfiguration. Each new drive equipped with a 20-750-PBUS module is automatically recognized by the 1756-DNB scanner, reducing commissioning time and integration cost for plant expansion projects.

Q1: What is the maximum communication speed supported by the 20-750-PBUS on a DeviceNet network? The 20-750-PBUS supports DeviceNet data rates of 125 kbps, 250 kbps, and 500 kbps, with automatic baud rate detection. For most industrial applications with cable runs under 100 meters, 500 kbps is recommended for lowest latency. Network timing is deterministic, with typical I/O poll response times of 5–20 ms depending on network load and RPI configuration.

Q2: Is the 20-750-PBUS compatible with both PowerFlex 753 and PowerFlex 755 drives? Yes. The 20-750-PBUS is a plug-in option module compatible with all PowerFlex 750-Series drives, including the PowerFlex 753 and PowerFlex 755. It installs into the peripheral option port (Port 4 or Port 5) of the drive chassis without tools, and is automatically recognized by the drive firmware upon power-up. No additional hardware adapters are required.

Q3: Can the 20-750-PBUS support remote parameter configuration and diagnostics without on-site access? Yes. The 20-750-PBUS supports DeviceNet explicit messaging, which allows PLC programs or SCADA systems to read and write drive parameters remotely over the network. Combined with a VPN-enabled industrial router such as the 1783-NATR, maintenance engineers can perform full remote diagnostics, parameter adjustments, and fault resets without physical access to the drive panel.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 20-750-PBUS? All 20-750-PBUS modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify DeviceNet communication integrity, module recognition by the PowerFlex 750 drive, and firmware version compatibility. In-stock units are available for same-week dispatch. For volume orders or project-specific requirements, contact [email protected] or call +86 18359268345 for a dedicated quotation.
