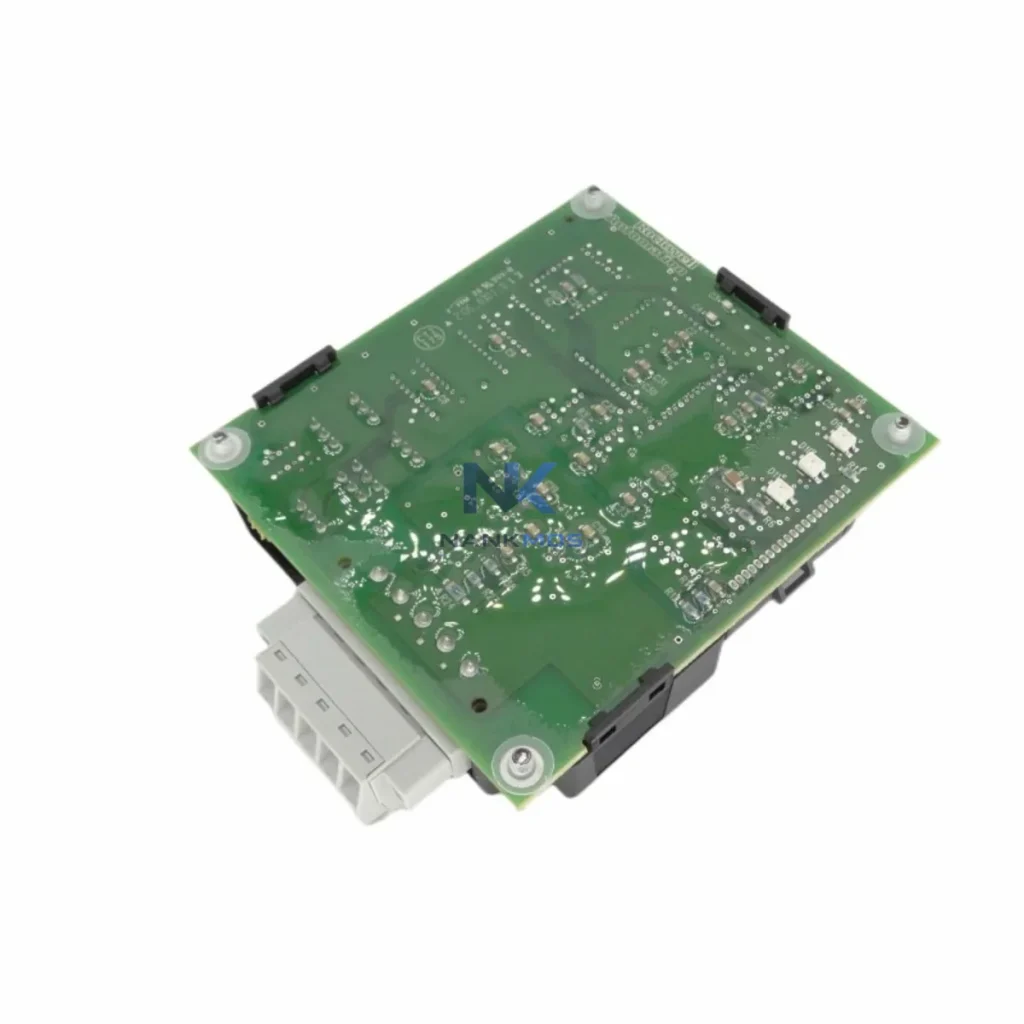

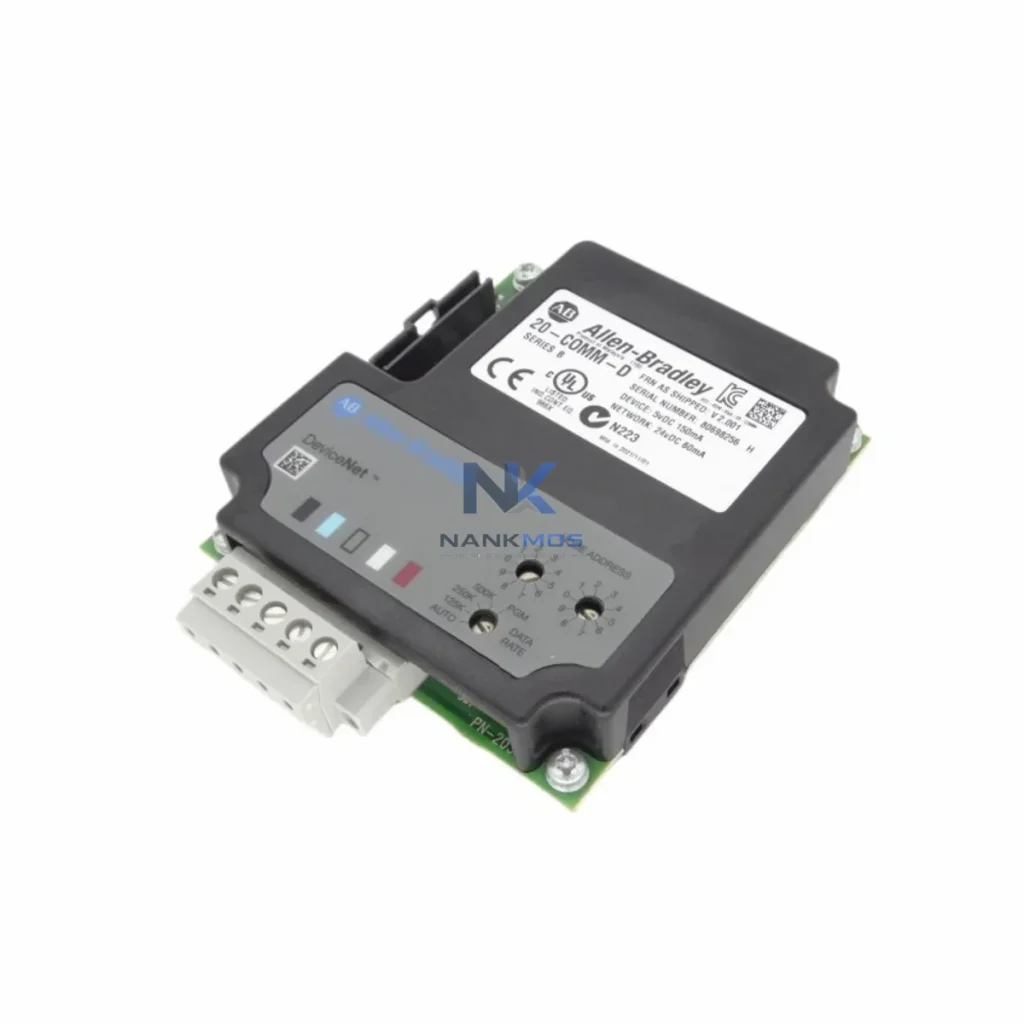

Allen-Bradley 20-COMM-D Communication Adapter

Product Details

20-COMM-D Product Description

The Allen-Bradley 20-COMM-D is a dedicated ControlNet-to-DPI communication adapter engineered for seamless integration within PowerFlex variable frequency drive architectures. Designed to bridge the drive's internal Drive Peripheral Interface (DPI) with a plant-wide ControlNet network, the 20-COMM-D enables deterministic, high-speed data exchange between the drive layer and the supervisory control layer. In modern industrial automation environments where system consistency, signal integrity, and modular scalability are non-negotiable, the 20-COMM-D serves as a critical node in the communication hierarchy — connecting motion control, process regulation, and diagnostic feedback into a unified, coherent architecture.

Within a layered control system, the 20-COMM-D occupies the communication layer, acting as the conduit between the execution layer (PowerFlex 400, PowerFlex 700, PowerFlex 755 drives) and the control layer (ControlLogix or CompactLogix PLCs). Its role extends beyond simple data transport: it enables real-time parameter monitoring, fault diagnostics, speed and torque reference delivery, and drive status feedback — all over a single ControlNet coaxial or fiber segment. This architecture eliminates the need for discrete wiring between the controller and each drive, dramatically reducing panel complexity, commissioning time, and long-term maintenance overhead.

The 20-COMM-D supports both scheduled and unscheduled ControlNet messaging, allowing engineers to configure deterministic I/O updates alongside on-demand explicit messaging for parameter reads and writes. This dual-mode capability is essential in applications where drive coordination must be synchronized with PLC scan cycles, such as in conveyor systems, pump stations, HVAC control panels, and multi-axis positioning lines. The adapter's DPI port provides a direct, high-bandwidth connection to the drive's internal bus, ensuring that control commands and feedback signals are transmitted with minimal latency and maximum fidelity.

From a system architecture perspective, the 20-COMM-D integrates naturally with Rockwell Automation's Integrated Architecture framework. When paired with a 1756-CNB or 1756-CNBR ControlNet Bridge module in a ControlLogix chassis, the adapter enables the PLC to address each drive as a standard I/O device on the ControlNet network. This approach supports redundant network topologies when used with the 1756-CNBR, providing fault-tolerant communication paths that are critical in continuous process industries such as oil and gas, water treatment, and chemical manufacturing. The adapter also supports RSNetWorx for ControlNet configuration, allowing engineers to schedule network bandwidth, assign node addresses, and verify network health from a centralized software environment.

The 20-COMM-D's compatibility with the broader PowerFlex ecosystem means it can be deployed alongside other 20-COMM series adapters — including the 20-COMM-E (EtherNet/IP), 20-COMM-P (PROFIBUS DP), and 20-COMM-C (DeviceNet) — within the same facility, supporting multi-protocol architectures where different production zones operate on different network standards. This flexibility allows system integrators to standardize on PowerFlex drives across the plant while adapting the communication layer to match existing infrastructure, reducing capital expenditure and simplifying spare parts management.

In terms of power architecture, the 20-COMM-D draws its operating power directly from the drive's DPI port, eliminating the need for an external 24 VDC supply. This self-powered design simplifies panel wiring, reduces the load on the control cabinet's power distribution system, and ensures that the adapter remains operational as long as the drive is powered — a key consideration for systems where communication continuity during drive faults or parameter recovery is required. The adapter's compact form factor allows it to be installed directly into the drive's peripheral expansion slot without additional mounting hardware, supporting high-density drive installations in space-constrained control cabinets.

For system commissioning and long-term maintenance, the 20-COMM-D provides onboard LED status indicators that display network connection status, DPI communication health, and fault conditions. These indicators allow field technicians to perform rapid visual diagnostics without connecting a laptop or handheld device, reducing mean time to repair (MTTR) in production environments. When integrated with Studio 5000 Logix Designer and the Add-On Profile (AOP) for PowerFlex drives, the adapter enables full parameter visibility and drive configuration from within the PLC programming environment, streamlining both initial commissioning and ongoing parameter management.

Every 20-COMM-D unit supplied by NANKMOS is sourced from authorized distribution channels, subjected to pre-shipment functional verification, and covered by a 12-Month Warranty. Our inventory management process ensures consistent stock availability, supporting both planned project procurement and urgent replacement scenarios. Fast international shipping and responsive technical support make NANKMOS a reliable supply partner for system integrators, OEMs, and end-user maintenance teams operating PowerFlex-based ControlNet architectures globally.

The 20-COMM-D achieves its full architectural value when deployed as part of a coordinated Rockwell Automation control platform. At the control layer, a 1756-L73 ControlLogix CPU or 1756-L85E serves as the primary program execution engine, managing motion sequences, process logic, and network communication scheduling. The ControlNet network is bridged into the ControlLogix chassis via a 1756-CNB ControlNet Bridge module or its redundant counterpart, the 1756-CNBR, which provides dual-path network resilience for critical process applications.

At the drive layer, the 20-COMM-D connects PowerFlex 700 or PowerFlex 755 drives to the ControlNet segment, enabling the PLC to deliver speed references, torque limits, and control word commands while receiving drive status, output frequency, and fault codes in real time. For applications requiring distributed I/O alongside drive control, 1734 POINT I/O modules on a ControlNet adapter (1734-ACNR) can be co-located on the same network segment, consolidating field wiring and reducing the number of network segments required.

At the HMI layer, a PanelView Plus 7 terminal connected via EtherNet/IP to the ControlLogix system provides operator visualization of drive status, process variables, and alarm conditions — with data sourced directly from the PLC tags populated by the 20-COMM-D's I/O connection. For power distribution and protection, 1606-XLP power supplies provide stable 24 VDC to the I/O and communication infrastructure, while 140M Motor Protection Circuit Breakers protect individual drive feeder circuits. Signal isolation between the ControlNet segment and field instrumentation can be achieved using 855E EtherNet/IP signal towers or dedicated signal isolators, ensuring that noise from high-power drive outputs does not corrupt network communication integrity.

Manufacturing & Assembly Lines: In automotive and discrete manufacturing environments, the 20-COMM-D enables centralized speed and torque control of conveyor drives, indexing tables, and transfer systems from a single ControlLogix program. Deterministic ControlNet scheduling ensures that all drives respond to speed reference updates within a defined network update time, supporting synchronized multi-axis motion without the variability introduced by non-deterministic Ethernet protocols.

Water & Wastewater Treatment: Pump station control systems benefit from the 20-COMM-D's ability to deliver real-time drive diagnostics to SCADA systems via the ControlLogix gateway. Operators can monitor motor current, output frequency, and fault history for each pump drive from a central control room, enabling predictive maintenance scheduling and reducing unplanned downtime in continuous-duty pumping applications.

Oil, Gas & Petrochemical: In hazardous area installations where drives are located in purged and pressurized enclosures remote from the control room, the 20-COMM-D's ControlNet connection provides a reliable, noise-immune communication path over coaxial cable runs of up to 1,000 meters per segment. Redundant ControlNet topologies using the 1756-CNBR ensure that a single cable fault does not interrupt drive control, meeting the availability requirements of continuous process operations.

Mining & Metals: High-power conveyor and hoist drive systems in mining applications require robust communication architectures that can withstand electromagnetic interference from large motors and variable frequency drives. ControlNet's inherent noise immunity and the 20-COMM-D's DPI-powered design make it well-suited for these environments, where cable routing near high-voltage equipment is unavoidable.

Packaging & Material Handling: High-speed packaging lines with multiple coordinated drive axes benefit from the 20-COMM-D's deterministic scheduling, which ensures that speed references for infeed, transfer, and discharge conveyors are updated synchronously with the PLC scan cycle, preventing product jams and maintaining line throughput at rated speeds.

Q1: How many 20-COMM-D adapters can be connected on a single ControlNet segment, and what are the node address limitations? ControlNet supports up to 99 node addresses per segment (nodes 1–99). Each 20-COMM-D occupies one node address on the ControlNet network. In practice, the number of drives per segment is limited by the available scheduled bandwidth, which depends on the network update time (NUT) configured in RSNetWorx for ControlNet. For typical drive applications with 4-word I/O connections, a single ControlNet segment can support 20–40 drive nodes at a 5 ms NUT while maintaining deterministic performance. Additional segments can be added via 1756-CNB bridge modules to scale the architecture beyond these limits.

Q2: Is the 20-COMM-D compatible with both ControlLogix and CompactLogix controllers, and what firmware versions are required? The 20-COMM-D is compatible with ControlLogix controllers (1756-Lxx series) equipped with a 1756-CNB or 1756-CNBR ControlNet bridge module, as well as CompactLogix controllers (1769-Lxx series) with a 1769-ACN or 1769-ACNR ControlNet adapter. Controller firmware version 16.xx or later is recommended for full AOP support in Studio 5000 Logix Designer. The drive firmware version should be verified against the 20-COMM-D release notes to ensure DPI protocol compatibility, particularly for PowerFlex 755 drives running firmware 7.xx or later.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability for the 20-COMM-D? NANKMOS provides a 12-Month Warranty on all 20-COMM-D units covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification prior to dispatch. For long-term spare parts planning, NANKMOS maintains standing inventory of 20-COMM series adapters to support both scheduled maintenance programs and emergency replacement requirements. Our technical team can assist with cross-referencing compatible adapter models for legacy drive installations and advise on migration paths to current-generation communication platforms where applicable. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
