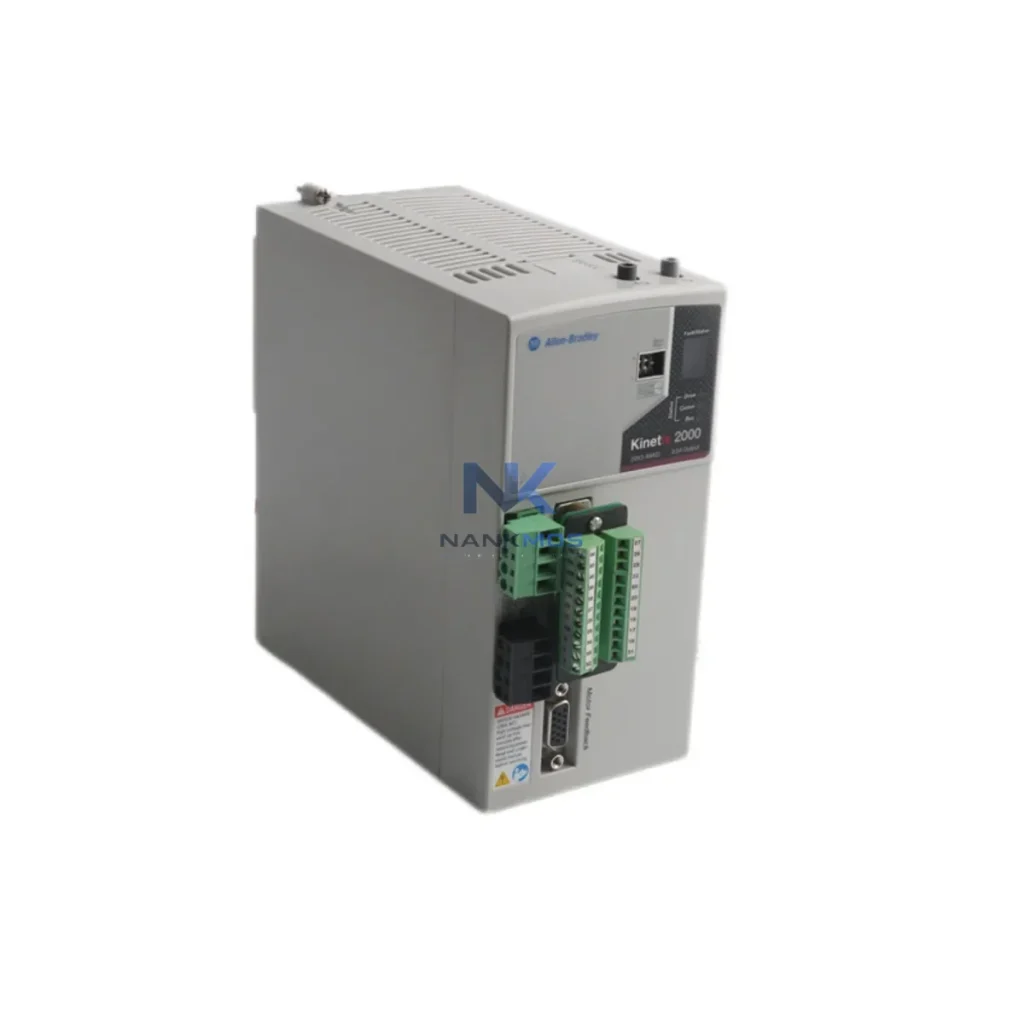

Allen-Bradley 2093-AM02 Servo Drive Axis Module

Product Details

2093-AM02 Product Description

The Allen-Bradley 2093-AM02 is a high-performance axis module within the Kinetix 2000 multi-axis servo drive system, engineered to deliver precise motion control with a strong emphasis on energy efficiency and production line optimization. Designed for integration into demanding industrial environments — including automotive assembly, packaging machinery, semiconductor fabrication, and process manufacturing — the 2093-AM02 enables plant engineers to achieve tighter control over motor energy consumption, reduce thermal loading on drive cabinets, and synchronize multi-axis motion with minimal energy waste. As factories transition toward smart manufacturing and energy management mandates tighten, the 2093-AM02 stands as a critical component in any power-aware automation architecture.

The 2093-AM02 operates as an expansion axis module paired with a Kinetix 2000 integrated axis module (IAM), sharing a common DC bus to enable regenerative energy sharing between axes. When one axis decelerates, the recovered energy is redistributed across the shared bus to power accelerating axes — dramatically reducing net energy draw from the supply. This bus-sharing architecture is central to the energy control strategy of the Kinetix 2000 platform and directly reduces peak demand charges, lowers heat dissipation in the control cabinet, and extends the service life of connected servo motors and power supplies.

In smart production line deployments, the 2093-AM02 interfaces directly with Allen-Bradley ControlLogix and CompactLogix PLCs via the SERCOS interface, enabling deterministic, high-speed motion coordination across multiple axes. The SERCOS communication protocol ensures synchronized position, velocity, and torque commands are delivered with microsecond-level precision, eliminating motion jitter that can cause product defects and unnecessary motor heating. When combined with a Kinetix 2000 IAM such as the 2093-AC05-MP1, the system forms a complete, energy-optimized servo drive platform capable of managing four or more axes from a single power infrastructure.

Deploying the 2093-AM02 within a power-aware automation strategy requires careful integration with upstream and downstream control components. In a typical Kinetix 2000 multi-axis installation, the 2093-AM02 axis module is mounted adjacent to the Kinetix 2000 IAM on a shared power rail, with the DC bus connector linking all modules for regenerative energy exchange. The Allen-Bradley ControlLogix L7x series PLC, running RSLogix 5000 or Studio 5000 Logix Designer, issues coordinated motion commands via the SERCOS ring, ensuring that axis acceleration and deceleration profiles are optimized to maximize regenerative energy recovery.

For comprehensive energy monitoring, the 2093-AM02 system is frequently paired with Allen-Bradley PowerMonitor 5000 units, which track real-time power consumption, power factor, and harmonic distortion at the drive cabinet level. This data feeds into a Rockwell Automation FactoryTalk Energy Manager or a third-party SCADA system, enabling plant operators to identify energy waste patterns, schedule high-load operations during off-peak tariff windows, and generate compliance reports for ISO 50001 energy management audits.

On the motor side, the 2093-AM02 is designed to drive Allen-Bradley MPL (Medium Power Linear) and MPM servo motor families, which feature high-efficiency rare-earth magnets and low-inertia rotor designs that minimize reactive current draw. When the servo motor decelerates — during a packaging machine's dwell phase or a robotic arm's return stroke — the 2093-AM02 captures the back-EMF energy and routes it back to the shared DC bus, where it is immediately available to power an accelerating axis on the same Kinetix 2000 system. This closed-loop energy recycling reduces the net power drawn from the Allen-Bradley 2094-BL75S Bulletin 2094 power rail and lowers the burden on upstream industrial power supplies and distribution transformers.

The 2093-AM02 also integrates seamlessly with Allen-Bradley PanelView Plus HMI terminals, allowing operators to monitor per-axis torque utilization, speed profiles, and fault status in real time. When an axis approaches thermal limits — detected via the drive's internal temperature sensors — the HMI displays an alert, enabling proactive intervention before a thermal shutdown disrupts production. This predictive maintenance capability, combined with FactoryTalk Diagnostics logging, reduces unplanned downtime and keeps production line throughput consistent.

For I/O coordination, the 2093-AM02 system relies on Allen-Bradley POINT I/O and 1734 FLEX I/O modules distributed across the production line to collect sensor feedback — including encoder signals, proximity switches, and load cell data — that informs the motion controller's energy-optimized trajectory planning. By integrating these I/O signals with the Logix motion engine, the system can dynamically adjust servo velocity profiles to match actual load conditions, avoiding the energy waste associated with fixed-speed operation under variable load.

The Allen-Bradley 2093-AM02 contributes to production line energy optimization across three primary dimensions: load management, thermal control, and production rhythm stabilization.

Load Management: By sharing a common DC bus with other Kinetix 2000 axis modules, the 2093-AM02 enables dynamic load balancing across all connected servo axes. Peak current demand is smoothed as regenerative energy from decelerating axes offsets the inrush current of accelerating axes. This reduces the required capacity of upstream power infrastructure — including the facility's main distribution panel and UPS systems — and can eliminate the need for power factor correction capacitor banks in smaller installations.

Thermal Load Reduction: Efficient PWM switching in the 2093-AM02's IGBT output stage minimizes switching losses and reduces heat generation within the drive module. Combined with the regenerative bus architecture, the total heat dissipated in the control cabinet is significantly lower than equivalent systems using individual drives with resistive braking. This reduces the load on cabinet cooling systems — whether forced-air fans or liquid-cooled enclosures — lowering auxiliary energy consumption and extending the service life of all components within the cabinet.

Production Rhythm Stabilization: Consistent, jitter-free motion control delivered by the SERCOS-linked 2093-AM02 ensures that production line cycle times remain stable across shifts and environmental conditions. Unstable motion — caused by drive tuning drift, communication latency, or power supply fluctuations — forces operators to run lines at reduced speeds as a safety margin, wasting both time and energy. The 2093-AM02's deterministic SERCOS communication and robust closed-loop servo control eliminate these instabilities, allowing lines to run at their designed throughput with predictable energy consumption per production cycle.

Predictive Maintenance Integration: The 2093-AM02 continuously monitors internal drive parameters — including bus voltage, output current, switching frequency, and module temperature — and reports fault and warning conditions to the ControlLogix PLC via the SERCOS ring. This data stream supports predictive maintenance programs that schedule drive inspections and component replacements before failures occur, avoiding the energy waste and production losses associated with emergency shutdowns and unplanned restarts.

All units supplied by NANKMOS are sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty. In-stock inventory ensures rapid dispatch to minimize production line downtime for customers requiring urgent replacement or system expansion.

Q1: What energy savings can I expect from deploying the 2093-AM02 in a multi-axis Kinetix 2000 system? The shared DC bus architecture of the Kinetix 2000 platform enables regenerative energy recovery between axes, which can reduce net energy consumption by 15–30% compared to individual drives with resistive braking, depending on the duty cycle and number of axes sharing the bus. Actual savings depend on the specific motion profiles and load characteristics of your application.

Q2: Is the 2093-AM02 compatible with my existing ControlLogix or CompactLogix system? Yes. The 2093-AM02 communicates via the SERCOS interface and is fully compatible with Allen-Bradley ControlLogix and CompactLogix PLCs running RSLogix 5000 or Studio 5000 Logix Designer with the appropriate motion license. It must be paired with a compatible Kinetix 2000 IAM (such as the 2093-AC05-MP1 or 2093-AC05-MP2) to form a complete drive system.

Q3: Can the 2093-AM02 replace an existing axis module in my Kinetix 2000 system without reconfiguring the entire drive rack? In most cases, yes. The 2093-AM02 is a direct replacement for a failed or end-of-life axis module within an existing Kinetix 2000 multi-axis drive system. The replacement module must be configured in Studio 5000 to match the axis parameters of the original module. NANKMOS recommends verifying firmware compatibility between the replacement module and the existing IAM before installation.

Q4: What does the 12-Month Warranty cover, and how does NANKMOS handle warranty claims? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. All units undergo pre-shipment functional testing before dispatch. In the event of a warranty claim, NANKMOS provides a replacement unit or repair service. Contact [email protected] or +86 18359268345 to initiate a warranty claim or request technical support.
