Allen-Bradley 2093-PRS4 Power Rail

Product Details

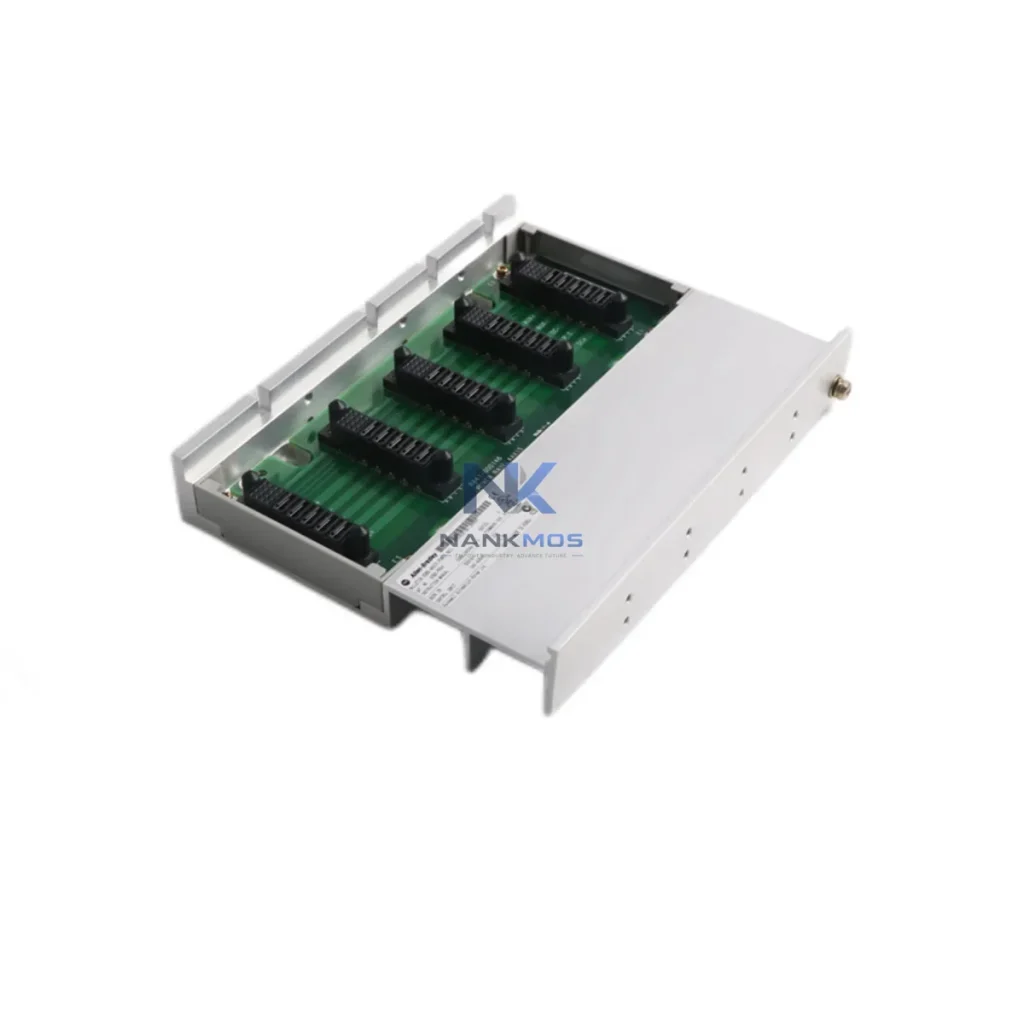

2093-PRS4 Product Description

The Allen-Bradley 2093-PRS4 is a 4-axis shared DC bus Power Rail engineered for the Kinetix 2000 multi-axis servo drive system. Designed to centralize and optimize power distribution across servo axes, the 2093-PRS4 eliminates redundant power conversion stages, reduces heat dissipation, and enables coordinated energy management across high-density production lines. By sharing a common DC bus among up to four servo axes, the rail dramatically reduces the total energy drawn from the AC supply during simultaneous multi-axis motion, making it a cornerstone component in energy-aware servo architectures.

In a fully integrated Kinetix 2000 servo system, the 2093-PRS4 Power Rail serves as the energy backbone connecting multiple axis modules. When paired with Kinetix 2000 inverter modules such as the 2093-AC05-MP1 (single-axis) and 2093-AC05-MP2 (dual-axis), the shared DC bus allows regenerative energy from decelerating axes to be immediately consumed by accelerating axes on the same rail — a process that directly reduces the net power demand from the upstream supply.

The system integrates seamlessly with Allen-Bradley CompactLogix L3x/L4x and ControlLogix L6x/L7x PLCs via the SERCOS fiber-optic motion network, enabling deterministic, synchronized multi-axis control with sub-millisecond cycle times. This tight PLC-to-drive integration allows the controller to orchestrate axis motion profiles that minimize peak current draw — a key strategy for reducing demand charges in industrial facilities.

For power quality monitoring, the 2093-PRS4 installation is typically complemented by a PowerMonitor 1000 or PowerMonitor 5000 power metering module installed at the panel feed, providing real-time kW, kVAR, and harmonic data to the ControlLogix backplane via DeviceNet or EtherNet/IP. This data feeds directly into a Rockwell FactoryTalk Energy Manager or third-party SCADA platform, enabling energy baseline tracking and anomaly detection at the drive level.

On the I/O side, a 1734 POINT I/O or 1756 ControlLogix I/O module handles discrete feedback from thermal sensors, door interlocks, and drive-ready signals, ensuring the PLC can safely sequence axis enable/disable states to prevent inrush current spikes during startup. An Allen-Bradley PanelView Plus 7 HMI provides operators with real-time axis status, bus voltage levels, and fault diagnostics — reducing mean time to repair and keeping production rhythm stable.

For communication transparency across the plant floor, the Kinetix 2000 system supports integration with EtherNet/IP communication modules, allowing drive status, energy counters, and fault codes to be published to a FactoryTalk View SE SCADA system or upstream MES. This end-to-end data visibility supports predictive maintenance scheduling and energy reporting aligned with ISO 50001 energy management frameworks.

The 2093-PRS4 Power Rail addresses one of the most persistent inefficiencies in multi-axis servo installations: isolated per-axis power conversion. In conventional architectures, each servo drive maintains its own AC-to-DC rectifier stage, meaning that regenerative energy from braking axes is dissipated as heat through braking resistors rather than being reused. The shared DC bus topology of the Kinetix 2000 system eliminates this waste by allowing the 2093-PRS4 to circulate regenerative energy between axes in real time.

On high-cycle packaging and assembly lines where axes are continuously accelerating and decelerating in coordinated motion sequences, this energy recirculation can meaningfully reduce the facility's peak demand profile. Lower peak demand translates directly to reduced utility demand charges — often one of the largest line items in an industrial energy bill. Additionally, because less energy is converted to heat, panel cooling requirements are reduced, extending the service life of adjacent components including the drive modules, capacitor banks, and wiring harnesses.

From a production continuity perspective, the centralized bus architecture simplifies fault isolation. If one axis module develops a fault, the remaining axes on the 2093-PRS4 rail can continue operating under PLC supervision, preventing a single-point failure from halting the entire production cell. Combined with the CompactLogix or ControlLogix motion controller's built-in safe torque-off (STO) and safe stop functions, the system supports IEC 62061 and ISO 13849 safety architectures without requiring external safety relays on every axis.

Predictive maintenance is further supported by monitoring DC bus voltage ripple and axis current signatures over time. Deviations from baseline — detectable via the PowerMonitor 5000 or through drive diagnostic registers read by the ControlLogix — can indicate capacitor degradation, bearing wear in connected servo motors, or cable insulation breakdown, allowing maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures.

NANKMOS maintains verified stock of the 2093-PRS4 and conducts pre-shipment functional testing on all servo power rail units. Each unit ships with a 12-Month Warranty covering manufacturing defects and operational failures under normal industrial service conditions. Lead time and quantity availability can be confirmed via RFQ at nankmos.com.

Q1: How does the 2093-PRS4 shared DC bus reduce energy consumption on a production line? The 2093-PRS4 connects up to four Kinetix 2000 axis modules to a common DC bus. When one axis decelerates and generates regenerative energy, that energy is immediately available to power an accelerating axis on the same rail — rather than being burned off as heat in a braking resistor. This recirculation reduces the net AC power drawn from the supply during coordinated multi-axis motion cycles, lowering both energy consumption and peak demand charges.

Q2: Which Allen-Bradley controllers and drive modules are compatible with the 2093-PRS4? The 2093-PRS4 is designed for use with Kinetix 2000 inverter modules including the 2093-AC05-MP1 and 2093-AC05-MP2. It is controlled via Allen-Bradley CompactLogix (L3x, L4x) or ControlLogix (L6x, L7x) PLCs using the SERCOS motion network or analog reference interface. For system replacement or upgrade planning, NANKMOS can advise on compatible axis module configurations based on your existing panel layout.

Q3: What is the pre-shipment testing process and what does the 12-Month Warranty cover? All 2093-PRS4 units stocked by NANKMOS undergo functional verification testing prior to shipment, including DC bus continuity checks and connector integrity inspection. The 12-Month Warranty covers manufacturing defects and component failures arising under normal industrial operating conditions from the date of shipment. Warranty claims are processed directly through NANKMOS; contact [email protected] for RMA procedures.

Q4: Can the 2093-PRS4 be used as a direct replacement in an existing Kinetix 2000 installation? Yes. The 2093-PRS4 is a form-fit-function replacement for existing Kinetix 2000 4-axis power rail installations. No firmware changes to the CompactLogix or ControlLogix controller are required for a like-for-like swap. If you are upgrading from a 3-axis rail configuration or integrating additional axis modules, NANKMOS technical support can review your existing motion task configuration to confirm compatibility before shipment.
