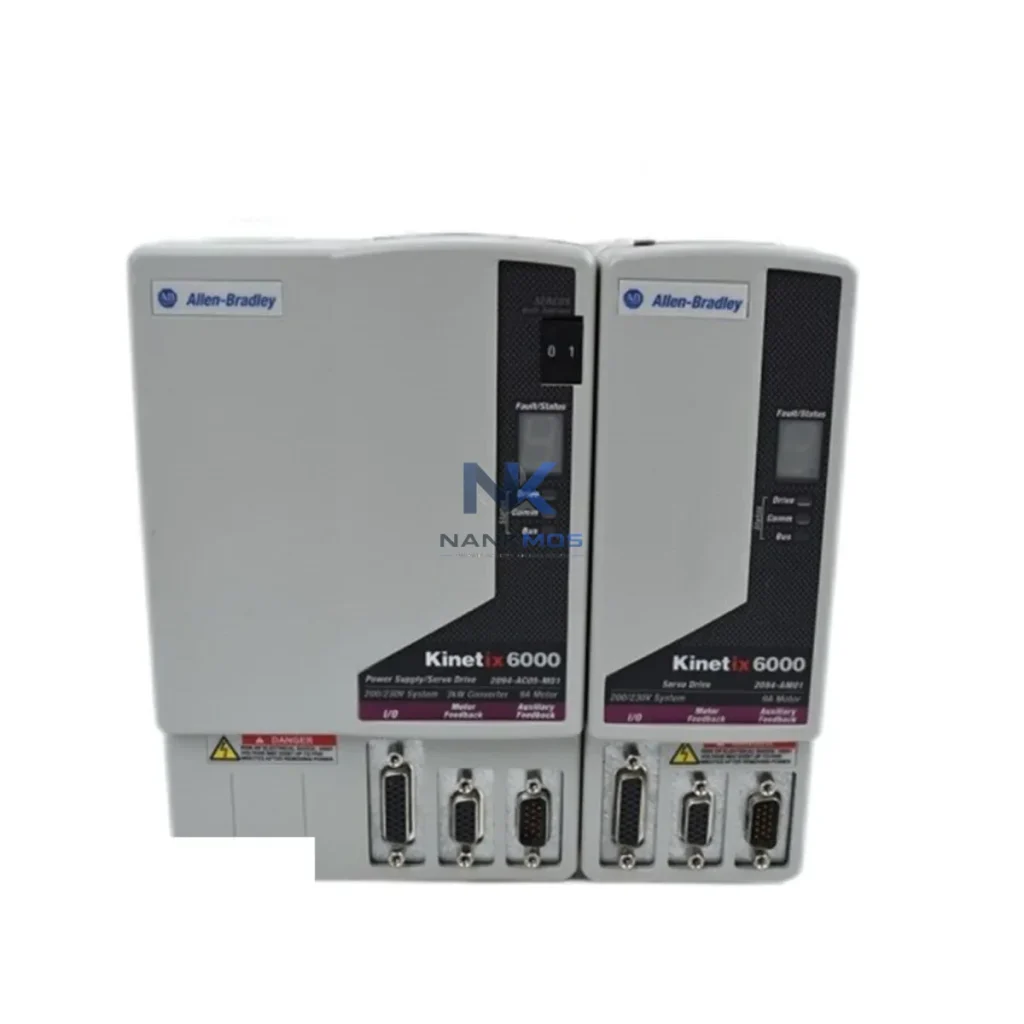

Allen-Bradley 2094-AM01 Servo Drive Axis Module

Product Details

2094-AM01 Product Description

The Allen-Bradley 2094-AM01 is a high-performance axis module within the Kinetix 6000 multi-axis servo drive family, engineered to deliver precise motion control and seamless industrial data connectivity across smart factory environments. Designed for integration into Logix-based control architectures, the 2094-AM01 operates as a shared DC bus axis module, enabling synchronized multi-axis coordination with minimal wiring overhead and maximum network transparency. Its native EtherNet/IP communication backbone ensures real-time data exchange between field-level servo actuators and upper-level control systems, making it a cornerstone component in modern industrial data link design.

In a connected factory, the 2094-AM01 does not operate in isolation. It functions as a critical node in the motion data chain — receiving trajectory commands from a CompactLogix or ControlLogix PLC controller, executing high-resolution position and velocity loops, and feeding back real-time diagnostic data through the EtherNet/IP network to SCADA platforms and HMI terminals. This bidirectional data flow enables production engineers to monitor axis health, torque utilization, fault codes, and thermal status without interrupting machine cycles, supporting the transparency and traceability demands of Industry 4.0 deployments.

The 2094-AM01 axis module sits at the intersection of motion execution and network intelligence. In a typical smart factory deployment, a ControlLogix L7x PLC issues coordinated motion instructions via the EtherNet/IP backbone to the Kinetix 6000 drive system. The 2094-BC07-M power rail, acting as the shared DC bus infrastructure, distributes power to multiple 2094-AM01 axis modules simultaneously, enabling synchronized multi-axis profiles for robotic arms, conveyor indexers, and precision assembly stations.

At the field level, servo feedback signals from Kinetix-compatible linear and rotary actuators are processed by the 2094-AM01 in real time, with position, velocity, and torque data streamed back through the drive's diagnostic interface. This data is aggregated by a Stratix 5700 industrial Ethernet switch, which maintains deterministic network timing across the production cell. From the switch, data flows upstream to a FactoryTalk View SE HMI station, where operators monitor axis performance dashboards and receive alarm notifications for overcurrent, encoder fault, or thermal overload conditions.

For facilities integrating legacy field devices, an Allen-Bradley 1734 POINT I/O module or a 1756-EN2T EtherNet/IP communication module bridges discrete sensor signals — proximity switches, photoelectric sensors, and pneumatic valve feedback — into the Logix data table, where they are correlated with servo axis states for complete machine-level visibility. A FactoryTalk Historian or third-party SCADA gateway then archives time-stamped axis data for OEE analysis, predictive maintenance scheduling, and regulatory compliance reporting.

In distributed manufacturing lines, the 2094-AM01 can be paired with a 1783-ETAP EtherNet/IP tap or a Cisco IE 4000 industrial switch to extend network reach across multiple production zones without sacrificing real-time performance. Edge computing nodes running FactoryTalk Analytics or third-party IIoT platforms can subscribe to axis data streams directly, enabling local anomaly detection and closed-loop process optimization without routing all data to a central server — a critical advantage in high-throughput environments where network latency directly impacts yield.

Many industrial sites face persistent challenges around protocol fragmentation, data silos, and limited remote visibility into servo drive performance. The Allen-Bradley 2094-AM01, operating within the Kinetix 6000 ecosystem and the broader Logix control architecture, directly addresses these pain points through its native EtherNet/IP integration and Logix tag-based data model.

Protocol Unification: Legacy automation cells often mix proprietary motion bus protocols with Ethernet-based control networks. The 2094-AM01 eliminates this fragmentation by operating exclusively on EtherNet/IP with Integrated Motion, ensuring that axis data — position, velocity, torque, fault status — is natively accessible within the Logix tag database without protocol conversion middleware or third-party gateways.

Eliminating Data Silos: In multi-vendor production lines, servo data is frequently trapped within proprietary drive interfaces. The 2094-AM01's Logix integration exposes all axis parameters as standard controller tags, making them immediately available to FactoryTalk View, FactoryTalk Historian, and any OPC-UA or MQTT-capable SCADA platform for cross-system correlation and KPI reporting.

Remote Monitoring and Diagnostics: Maintenance teams can access real-time axis health data — including drive temperature, bus voltage, regenerative energy levels, and fault history — remotely through FactoryTalk Remote Access or VPN-secured SCADA connections, reducing unplanned downtime and enabling predictive maintenance without on-site intervention.

Production Line Transparency: By integrating 2094-AM01 axis data with MES and ERP systems via FactoryTalk Transaction Manager or standard OPC-DA/UA bridges, manufacturers gain end-to-end production transparency — from individual axis cycle counts to line-level throughput metrics — supporting continuous improvement and capacity planning initiatives.

Alarm Tracking and System Expansion: The Kinetix 6000 platform supports scalable axis expansion through the shared DC bus architecture, allowing additional 2094-AM01 modules to be added to an existing power rail without redesigning the control network. Alarm and event data from each axis is centrally logged in the Logix controller and forwarded to SCADA alarm management systems for structured fault analysis and response tracking.

Q1: What communication protocol does the Allen-Bradley 2094-AM01 use, and is it compatible with third-party SCADA systems? The 2094-AM01 uses EtherNet/IP with Integrated Motion on EtherNet/IP (IME), the Rockwell Automation standard for real-time servo control over standard Ethernet infrastructure. All axis data is exposed as Logix controller tags, which are accessible to any OPC-DA, OPC-UA, or MQTT-capable SCADA or MES platform, ensuring broad third-party system compatibility without custom protocol conversion.

Q2: How does the 2094-AM01 support remote diagnostics and predictive maintenance? The module continuously reports axis health parameters — including drive temperature, DC bus voltage, fault codes, and regenerative energy status — through the EtherNet/IP network to the Logix controller. These parameters can be monitored remotely via FactoryTalk Remote Access, VPN-secured HMI connections, or SCADA historian platforms, enabling maintenance teams to detect early-stage faults and schedule interventions before unplanned downtime occurs.

Q3: Can the Kinetix 6000 system be expanded by adding more 2094-AM01 axis modules without redesigning the network? Yes. The Kinetix 6000 shared DC bus architecture allows additional 2094-AM01 axis modules to be mounted on an existing 2094-BC07-M or compatible power rail and configured in the Logix motion group without changes to the EtherNet/IP network topology. Each new axis is automatically recognized as a Logix motion axis tag, minimizing commissioning time and network reconfiguration effort.

Q4: What quality assurance and warranty coverage does NANKMOS provide for the 2094-AM01? Every Allen-Bradley 2094-AM01 unit supplied by NANKMOS undergoes pre-shipment functional testing, including power-on verification and communication interface checks, before dispatch. All units are covered by a 12-month warranty from the date of delivery. In-stock units are available for fast global shipping, with full traceability documentation provided upon request. For technical support or warranty claims, contact [email protected] or call +86 18359268345.
