Allen-Bradley 2094-AM02-S Servo Drive Module

Product Details

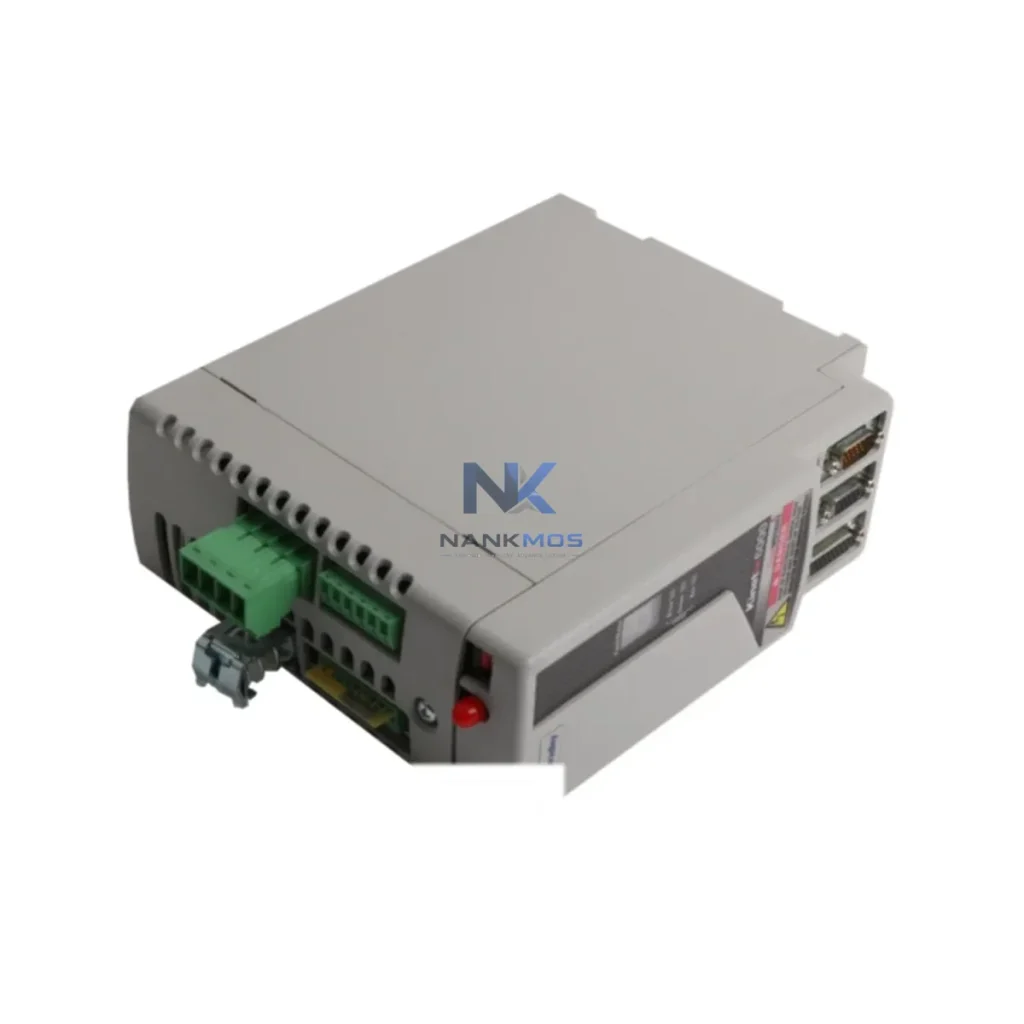

2094-AM02-S Product Description

The Allen-Bradley 2094-AM02-S is a high-performance auxiliary axis module designed for the Kinetix 6000 multi-axis servo drive system. Purpose-built for industrial network integration, this module bridges the gap between field-level motion control and plant-wide data infrastructure. In smart factory environments where real-time data flow, deterministic communication, and seamless SCADA integration are non-negotiable, the 2094-AM02-S delivers the connectivity backbone that modern automation sites demand.

Operating within the Kinetix 6000 drive chassis, the 2094-AM02-S communicates natively over SERCOS (Serial Real-time Communication System) — a fiber-optic, deterministic motion bus that ensures microsecond-level synchronization across multiple servo axes. When paired with a 2094-BC01-MP5-M Kinetix 6000 bus power module and coordinated through a Logix5000 controller such as the ControlLogix 1756-L73, the module participates in a tightly coupled motion network where position, velocity, torque, and fault data are exchanged in real time without latency-induced errors.

For facilities transitioning toward EtherNet/IP-based architectures, the 2094-AM02-S integrates cleanly into Rockwell Automation's Integrated Architecture. The upstream ControlLogix controller handles EtherNet/IP communication to SCADA platforms, MES systems, and historian databases, while the SERCOS ring manages the deterministic servo loop at the drive level. This layered approach — field bus at the motion layer, Ethernet at the supervisory layer — is the foundation of scalable smart factory design.

In a fully connected automation site, the 2094-AM02-S sits at the intersection of motion execution and network intelligence. The data flow begins at the servo motor encoder — typically a Kinetix-compatible feedback device — where position and velocity signals are captured and fed back to the 2094-AM02-S axis module in real time. The module processes this feedback within the SERCOS communication cycle, which operates at update rates as fast as 1 ms, ensuring that the ControlLogix 1756-L73 motion controller receives accurate, time-stamped axis data for closed-loop control.

At the supervisory layer, the ControlLogix controller aggregates motion data from all axes on the SERCOS ring and exposes it to the plant network via EtherNet/IP. A 1783-US8T Stratix 2000 unmanaged switch or a 1783-BMS10CGL Stratix 5700 managed industrial Ethernet switch routes this data to the SCADA server running FactoryTalk Historian or a third-party OPC-UA gateway. From there, production engineers can monitor axis position, drive fault codes, current draw, and cycle counts on FactoryTalk View SE HMI panels or web-based dashboards without interrupting the motion loop.

Remote I/O modules such as the 1734 POINT I/O or 1756 ControlLogix I/O cards extend the data collection perimeter to include proximity sensors, limit switches, and temperature transmitters mounted near the servo-driven mechanism. These signals are time-correlated with axis motion data, enabling root-cause analysis when a fault occurs — for example, correlating a servo following error on the 2094-AM02-S with a mechanical jam detected by a downstream 1734-IB8 digital input module.

For facilities deploying edge computing, an industrial edge gateway running FactoryTalk Edge or a third-party IIoT platform can subscribe to EtherNet/IP tags published by the ControlLogix controller, applying local analytics before forwarding aggregated KPIs to cloud-based MES or ERP systems. Variable frequency drives (VFDs) such as the PowerFlex 755 can be integrated on the same EtherNet/IP network, allowing coordinated control of both servo axes and AC induction motor loads from a single Logix5000 program. This unified network architecture eliminates data silos between motion, process, and power systems.

Many industrial facilities operate with fragmented automation layers — servo drives that communicate only over proprietary motion buses, PLCs that cannot expose real-time axis data to SCADA, and HMI panels that display static snapshots rather than live drive diagnostics. The 2094-AM02-S, when deployed within a properly architected Kinetix 6000 system, directly addresses these gaps.

Protocol Fragmentation: The SERCOS-to-EtherNet/IP bridge provided by the ControlLogix platform means that motion data generated by the 2094-AM02-S is automatically available as standard EtherNet/IP tags. No custom protocol converters or middleware are required. Third-party SCADA systems that support OPC-DA or OPC-UA can consume this data through a FactoryTalk Gateway or KEPServerEX OPC server, resolving protocol incompatibility without hardware changes.

Data Islands and Production Transparency: When multiple 2094-AM02-S modules are deployed across a multi-axis Kinetix 6000 chassis, each axis contributes independently to the SERCOS ring. The ControlLogix controller maintains a unified tag database for all axes, making it straightforward to build production dashboards that display throughput, cycle time, and fault history for every servo axis on the line — eliminating the information silos that plague sites with standalone drives.

Remote Monitoring and Alarm Tracking: Drive fault codes, overcurrent events, and encoder errors generated by the 2094-AM02-S are logged in the ControlLogix controller's fault queue and can be forwarded to FactoryTalk Alarms and Events or a third-party alarm management system. Maintenance teams receive push notifications via email or SMS when a drive fault occurs, enabling remote diagnosis before dispatching a technician — reducing mean time to repair (MTTR) and unplanned downtime.

System Expansion: The modular architecture of the Kinetix 6000 chassis allows additional 2094-AM02-S axis modules to be added as production lines expand. New axes are recognized automatically by the ControlLogix controller upon configuration, and their data is immediately available on the EtherNet/IP network — no rewiring of the supervisory network is required.

Q1: What communication protocol does the 2094-AM02-S use, and is it compatible with modern EtherNet/IP networks? The 2094-AM02-S communicates over the SERCOS fiber-optic motion bus at the drive level. The upstream ControlLogix controller bridges SERCOS data to EtherNet/IP, making all axis data available as standard EtherNet/IP tags accessible by SCADA, HMI, and MES systems. No additional protocol converters are needed for EtherNet/IP integration.

Q2: How does the 2094-AM02-S support remote diagnostics and predictive maintenance? Fault codes, drive status, current draw, and encoder feedback from the 2094-AM02-S are continuously logged in the ControlLogix tag database. These values can be trended in FactoryTalk Historian, visualized on FactoryTalk View SE, or forwarded to cloud analytics platforms via an edge gateway. Remote maintenance teams can diagnose axis faults without physical access to the drive cabinet.

Q3: Can the 2094-AM02-S be integrated into an existing Kinetix 6000 chassis without replacing the bus power module? Yes. The 2094-AM02-S is designed as an auxiliary axis module that slots into an existing Kinetix 6000 chassis alongside the bus power module (e.g., 2094-BC01-MP5-M). Provided the chassis has available slots and the bus power module has sufficient capacity for the additional axis, integration requires only configuration changes in Studio 5000 Logix Designer — no hardware modifications to the existing chassis or SERCOS ring.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 2094-AM02-S? Every 2094-AM02-S unit supplied by NANKMOS is function-tested prior to shipment to verify communication integrity, axis configuration, and drive response. All units carry a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. In-stock units are available for immediate dispatch with full documentation support.
