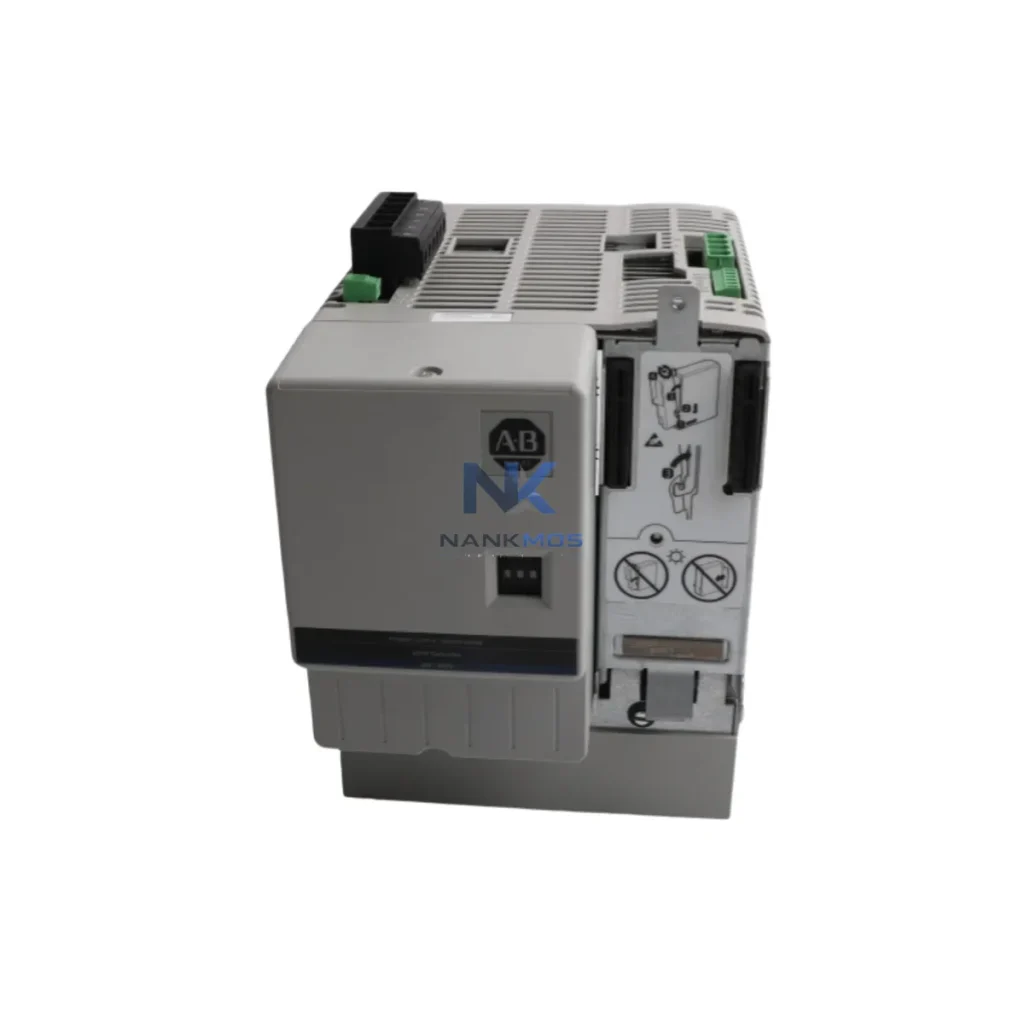

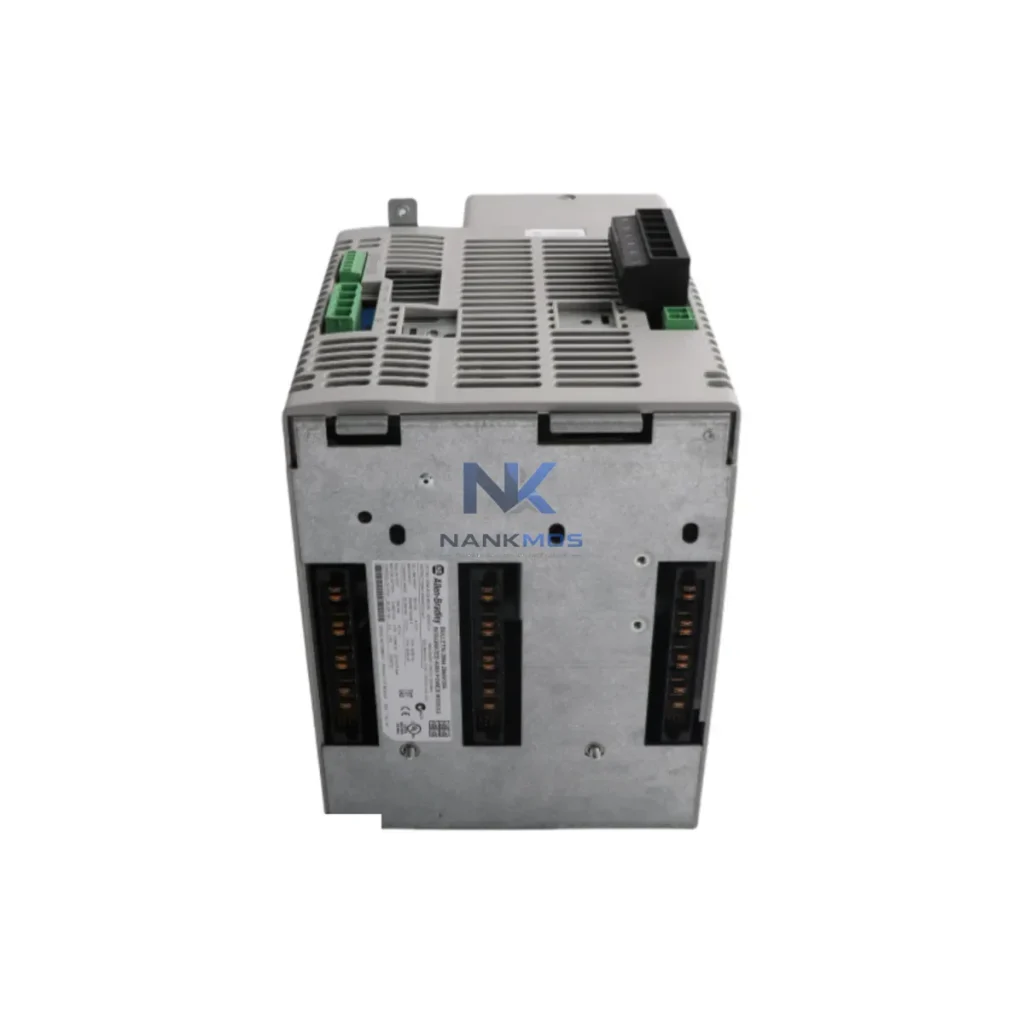

Allen-Bradley 2094-BC04-M03-M Servo Drive Module

Product Details

2094-BC04-M03-M Product Description

The Allen-Bradley 2094-BC04-M03-M is a high-performance servo drive module within the Kinetix 6000 multi-axis servo drive family, engineered by Rockwell Automation for seamless integration into distributed motion control architectures. Designed to operate as a coordinated axis module on a shared DC bus system, the 2094-BC04-M03-M delivers precise torque, velocity, and position control across demanding industrial environments. Its architecture-first design philosophy ensures that every deployment contributes to system-wide coherence — from the control layer through the execution layer — enabling engineers to build scalable, redundancy-capable, and diagnostically transparent automation platforms.

In modern industrial control architecture, no drive operates in isolation. The 2094-BC04-M03-M is purpose-built to function as a coordinated node within a layered automation hierarchy. At the control layer, it interfaces directly with Allen-Bradley ControlLogix and CompactLogix PLCs via the Integrated Motion on EtherNet/IP protocol, enabling deterministic motion commands with sub-millisecond synchronization. At the I/O layer, it accepts feedback from high-resolution encoders and resolvers, translating physical motion data into structured digital signals that flow upward through the control stack. At the communication layer, EtherNet/IP connectivity ensures that the drive participates in the same network fabric as HMI panels, safety controllers, and supervisory SCADA systems — eliminating protocol translation overhead and reducing integration complexity.

The power layer of the Kinetix 6000 system is anchored by the 2094-BMP5-M Bulletin 2094 power rail and shared DC bus architecture, which the 2094-BC04-M03-M leverages to achieve energy-efficient multi-axis coordination. By sharing regenerative energy across axes, the system reduces peak demand on upstream power infrastructure and minimizes heat dissipation within the control cabinet. This shared bus topology also simplifies cabinet layout, reduces wiring density, and supports modular expansion as production requirements evolve.

At the HMI and supervisory layer, the 2094-BC04-M03-M integrates with PanelView Plus 7 operator terminals and FactoryTalk View SE/ME platforms, exposing real-time drive status, fault diagnostics, and axis performance metrics through structured tag databases. Engineers can monitor torque limits, velocity profiles, and thermal status without leaving the unified Logix environment. This contextual integration eliminates the need for separate drive configuration software during routine operations, reducing commissioning time and operator training burden.

For execution-layer coordination, the 2094-BC04-M03-M pairs with Allen-Bradley MPL-series servo motors and MPF-series servo motors, supporting a range of frame sizes and feedback types. The drive's auto-tuning capability and integrated motion planner allow rapid axis commissioning, while its support for electronic gearing and camming enables complex multi-axis synchronization profiles required in packaging lines, printing systems, and precision assembly equipment.

At the protection layer, the drive incorporates hardware over-current, over-voltage, under-voltage, and thermal protection circuits that respond within microseconds to fault conditions. Safe Torque Off (STO) functionality — compliant with IEC 62061 SIL 2 and ISO 13849 PLd — allows the drive to be integrated into machine safety architectures without external contactors, reducing component count and improving safety system response time. The 2094-BC04-M03-M also supports integration with Allen-Bradley GuardLogix safety controllers for coordinated safe-state management across multi-axis systems.

Long-term maintenance efficiency is a core design consideration. The drive's diagnostic event log, accessible via Studio 5000 Logix Designer, records fault history with timestamps and axis state snapshots, enabling root-cause analysis without physical access to the cabinet. Predictive maintenance workflows can be built around the drive's thermal model outputs and load cycle data, allowing maintenance teams to schedule interventions before unplanned downtime occurs. Combined with NANKMOS's 12-Month Warranty and pre-shipment functional testing protocol, the 2094-BC04-M03-M arrives ready for immediate rack installation and commissioning.

The 2094-BC04-M03-M achieves its full performance potential when deployed within a cohesive Rockwell Automation architecture. At the controller level, a 1756-L85E ControlLogix CPU or 1769-L36ERM CompactLogix controller provides the motion coordination engine, executing multi-axis motion programs with deterministic EtherNet/IP scan cycles. The 2094-BMP5-M Kinetix 6000 power module anchors the shared DC bus rail, supplying regulated DC power to the 2094-BC04-M03-M and adjacent axis modules such as the 2094-BC07-M05-M and 2094-BC02-M02-M, enabling energy sharing across coordinated axes.

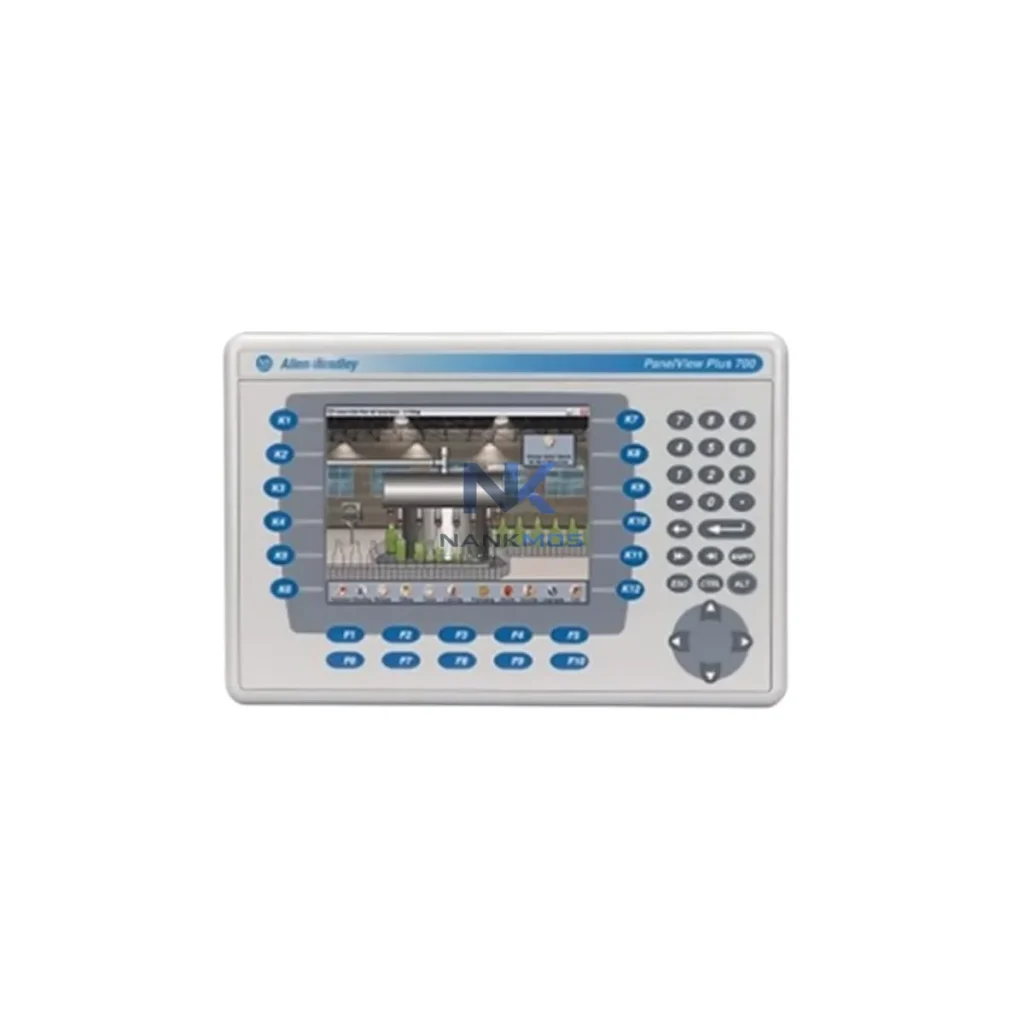

For I/O integration, 1756-IB16 ControlLogix digital input modules and 1756-OF8 analog output modules extend the control system's reach to field sensors and actuators, while 1756-EN2T EtherNet/IP communication modules bridge the motion network to the plant-wide Ethernet backbone. At the HMI layer, a 2711P-T12W21D8S PanelView Plus 7 terminal provides operators with real-time axis status visualization and fault acknowledgment capability. For network infrastructure, an Allen-Bradley Stratix 5700 managed Ethernet switch ensures deterministic EtherNet/IP traffic prioritization across the motion control subnet. Safety integration is completed via a 1756-L73S GuardLogix safety controller, which coordinates STO commands across all Kinetix 6000 axis modules during emergency stop events. Servo motor pairing with MPL-B4530F-MJ72AA Allen-Bradley servo motors completes the execution layer, delivering matched torque-speed characteristics optimized for the 2094-BC04-M03-M's current output profile.

Packaging and Converting Lines: In high-speed packaging machinery, the 2094-BC04-M03-M coordinates film tension control, registration correction, and cut-to-length synchronization across multiple axes. Its electronic camming capability enables flying shear and rotary knife profiles without mechanical gearboxes, reducing maintenance intervals and improving changeover flexibility.

Automotive Assembly and Press Lines: Servo-driven press and transfer systems in automotive body shops rely on the Kinetix 6000 architecture for precise force and position control. The 2094-BC04-M03-M's high-bandwidth current loop enables force-controlled pressing operations with real-time torque monitoring, supporting quality traceability requirements in ISO/TS 16949 environments.

Printing and Web Handling: Gravure and flexographic printing lines use multi-axis Kinetix 6000 systems for register control and tension management. The 2094-BC04-M03-M's low-latency EtherNet/IP feedback loop maintains color registration accuracy at production speeds exceeding 300 m/min.

Process and Chemical Industries: In continuous process plants, the drive supports precision dosing pump control, agitator speed regulation, and extruder torque management. Its STO safety function integrates with process safety systems to achieve safe-state transitions without full system shutdown, maintaining process continuity during partial safety events.

Mining and Mineral Processing: Conveyor positioning systems and crusher feed control applications benefit from the drive's robust thermal management and diagnostic event logging, enabling predictive maintenance scheduling in remote or harsh-environment installations.

Q1: Is the 2094-BC04-M03-M compatible with both ControlLogix and CompactLogix platforms?Yes. The 2094-BC04-M03-M supports Integrated Motion on EtherNet/IP, which is natively supported by ControlLogix (1756-L series) and CompactLogix (1769-L36ERM and above) controllers running Studio 5000 Logix Designer v21 or later. The drive appears as a standard motion axis object in the Logix tag database, requiring no additional driver software for commissioning.

Q2: Can multiple 2094-BC04-M03-M axis modules share a single power rail, and what are the bus sizing constraints?Yes. The Kinetix 6000 shared DC bus architecture allows multiple axis modules — including the 2094-BC04-M03-M — to be mounted on a single 2094-BMP5-M or 2094-BMP5 power rail. Bus sizing must account for the total continuous and peak current demand of all axis modules, plus a 20% derating margin for thermal headroom. Rockwell Automation's Motion Analyzer software provides validated bus sizing calculations for multi-axis configurations.

Q3: What does NANKMOS's 12-Month Warranty cover, and how is pre-shipment testing conducted?NANKMOS's 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each 2094-BC04-M03-M unit undergoes pre-shipment functional testing including DC bus energization verification, axis enable/disable cycle testing, feedback signal integrity check, and STO function validation. Test records are available upon request. For warranty claims or technical support, contact [email protected] or +86 18359268345.
