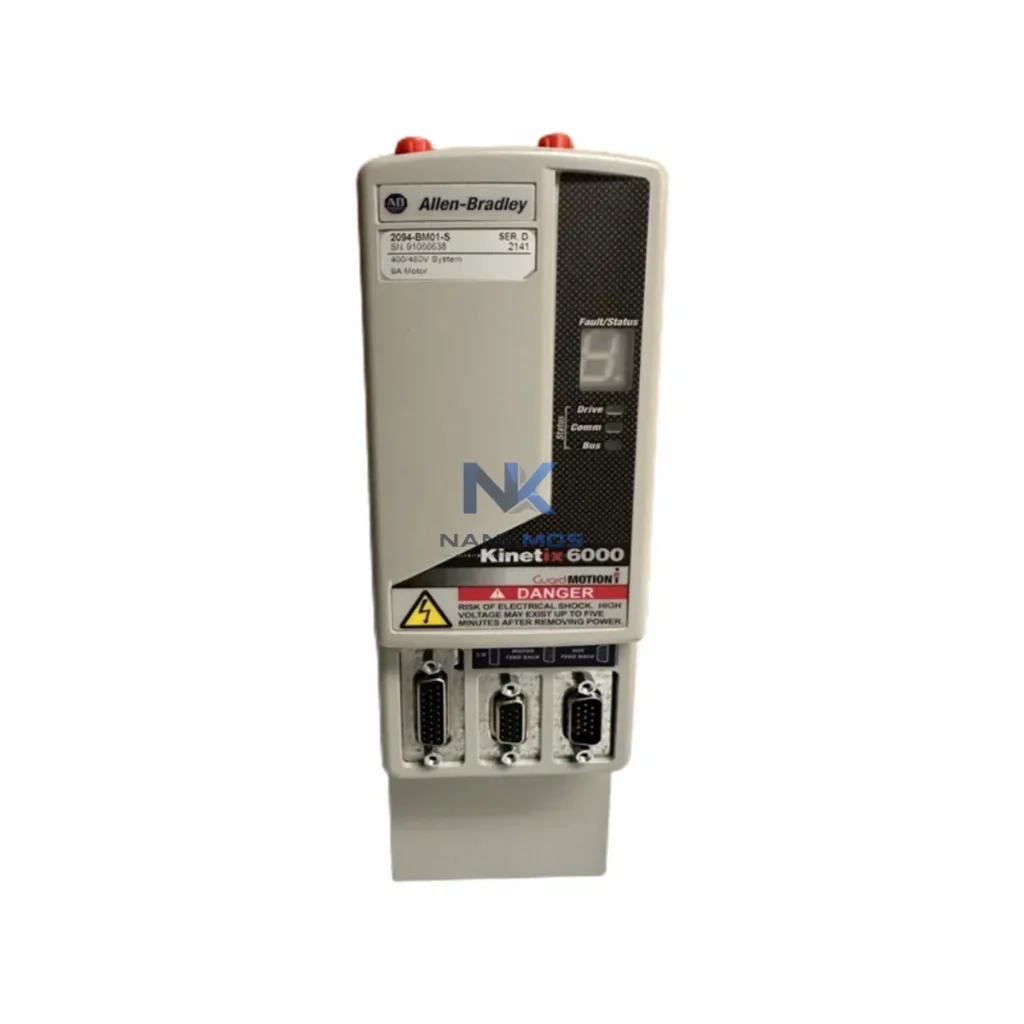

Allen-Bradley 2094-BM01-S Servo Drive Axis Module

Product Details

2094-BM01-S Product Description

The Allen-Bradley 2094-BM01-S is a high-performance servo drive axis module within the Kinetix 6000 multi-axis servo drive family, engineered for precision motion control and seamless integration into smart factory data networks. Designed to operate within Rockwell Automation's Integrated Architecture, this module delivers synchronized multi-axis motion over EtherNet/IP, enabling real-time data exchange between field-level servo actuators, PLC controllers, HMI panels, SCADA systems, and edge gateways. In modern industrial environments where production transparency and remote diagnostics are non-negotiable, the 2094-BM01-S serves as a critical node in the factory data chain — translating physical motion into digital intelligence that flows upward through the automation pyramid.

Whether deployed in high-speed packaging lines, precision CNC machining centers, robotic assembly cells, or automated material handling systems, the 2094-BM01-S provides the motion backbone that connects servo actuators to the broader plant network. Its native EtherNet/IP communication capability ensures that motion status, fault codes, velocity feedback, torque data, and axis diagnostics are continuously available to upstream systems — enabling real-time monitoring, predictive maintenance, and closed-loop process optimization without additional protocol conversion hardware.

In a fully connected smart factory, the 2094-BM01-S sits at the intersection of physical motion and digital data. The data flow begins at the servo motor — where encoder feedback, current draw, and velocity signals are captured in real time by the axis module. This data is processed locally within the Kinetix 6000 chassis and transmitted upstream via EtherNet/IP to a ControlLogix or CompactLogix PLC, such as the 1756-L85E or 1769-L36ERM, which executes the motion program and coordinates multi-axis synchronization across the production cell.

From the PLC, motion status and process variables are published to a FactoryTalk View SE SCADA server or a PanelView Plus 7 HMI terminal, where operators monitor axis position, speed, torque limits, and fault states in real time. Alarm conditions — such as over-current faults, encoder loss, or thermal overload — are immediately flagged on the HMI and logged in the SCADA historian for traceability and root-cause analysis. Alongside the servo axis module, the Kinetix 6000 system typically includes a 2094-BC04-M02-S power rail and 2094-AC09-M03-S integrated axis module, forming a coordinated multi-axis drive architecture that shares a common DC bus for energy efficiency.

For facilities integrating legacy field devices, a 1788-EN2PAR EtherNet/IP-to-PROFIBUS gateway or a 1783-ETAP EtherNet/IP tap can bridge older sensor networks into the same data backbone, ensuring that motion data from the 2094-BM01-S coexists with I/O signals from 1734 POINT I/O remote modules and analog inputs from 1756-IF16 analog input cards. This unified data layer feeds into edge computing platforms — such as a Rockwell FactoryTalk Edge Gateway or a third-party IIoT gateway — where data is aggregated, normalized, and forwarded to cloud-based MES or ERP systems for production scheduling and OEE analysis.

PowerFlex 755 variable frequency drives operating on adjacent conveyor or pump circuits share the same EtherNet/IP network segment, allowing the SCADA system to correlate servo motion events with drive load data for holistic energy monitoring. Industrial managed switches — such as the Stratix 5700 — provide the network infrastructure that ensures deterministic, low-latency communication between all these devices, maintaining the data integrity that smart factory operations demand. Every data point generated by the 2094-BM01-S — from microsecond-level position feedback to daily fault logs — contributes to the digital twin of the production line, enabling continuous improvement and remote diagnostics from any authorized workstation on the plant network.

Many automation sites face persistent challenges: servo drives that operate in isolation, motion faults that go undetected until production stops, and maintenance teams that lack remote visibility into axis health. The 2094-BM01-S directly addresses these data gaps through its native EtherNet/IP integration and CIP Motion protocol support.

Protocol Fragmentation: Sites running mixed networks — EtherNet/IP alongside PROFIBUS, DeviceNet, or Modbus RTU — often struggle to unify motion data with process data. By anchoring the servo layer on EtherNet/IP, the 2094-BM01-S aligns with the dominant industrial protocol, reducing the need for protocol converters and simplifying network architecture.

Data Silos: When servo drives are not connected to the SCADA or MES layer, production managers lose visibility into cycle times, axis utilization, and predictive maintenance windows. The 2094-BM01-S, integrated with a ControlLogix PLC and FactoryTalk Historian, ensures that motion data is continuously archived and available for analysis — eliminating the data silo between the motion layer and the business intelligence layer.

Remote Monitoring and Diagnostics: With EtherNet/IP connectivity, maintenance engineers can remotely access axis diagnostics through Studio 5000 Logix Designer or FactoryTalk AssetCentre, reviewing fault histories, tuning parameters, and firmware versions without physical access to the control panel — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production Line Transparency: By feeding real-time motion data into PanelView HMI dashboards and SCADA trend screens, the 2094-BM01-S enables shift supervisors to track axis performance KPIs, identify degradation trends early, and schedule preventive maintenance during planned downtime windows rather than reacting to unexpected failures.

System Scalability: The Kinetix 6000 shared DC bus architecture allows additional axis modules to be added to the chassis as production requirements grow, without redesigning the network topology. Each new axis module inherits the same EtherNet/IP data path, ensuring that the smart factory data layer scales linearly with the physical expansion of the production line.

All units supplied by NANKMOS are fully tested prior to shipment, with in-stock inventory available for immediate dispatch. Each 2094-BM01-S is covered by a 12-month warranty, providing procurement teams and system integrators with the confidence to specify this module for new installations and replacement projects alike.

Q1: What communication protocol does the Allen-Bradley 2094-BM01-S use, and is it compatible with third-party SCADA systems? The 2094-BM01-S communicates via EtherNet/IP using the CIP Motion protocol, which is natively supported by Rockwell Automation's ControlLogix and CompactLogix PLC platforms. For third-party SCADA systems, EtherNet/IP drivers are available in most major SCADA platforms (including Ignition, Wonderware, and Siemens WinCC), enabling seamless data exchange without custom middleware.

Q2: How does the 2094-BM01-S support remote diagnostics and predictive maintenance? When integrated with a ControlLogix PLC and FactoryTalk software suite, the 2094-BM01-S continuously publishes axis health data — including fault codes, thermal status, encoder feedback quality, and drive utilization — to the SCADA historian. Maintenance teams can access this data remotely via FactoryTalk AssetCentre or Studio 5000 online monitoring, enabling condition-based maintenance scheduling and reducing unplanned downtime.

Q3: Can the 2094-BM01-S be expanded to support additional servo axes without network reconfiguration? Yes. The Kinetix 6000 architecture uses a shared DC bus chassis that supports multiple axis modules on a single power rail. Additional 2094-series axis modules can be added to the chassis and automatically appear on the EtherNet/IP network under the same controller project, making system expansion straightforward without changes to the network switch configuration or IP addressing scheme.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 2094-BM01-S? Every 2094-BM01-S supplied by NANKMOS undergoes functional testing and inspection before dispatch. Units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and operational failures under normal use conditions. In-stock units are available for same-day or next-day dispatch, supporting urgent project timelines and emergency replacement requirements.
