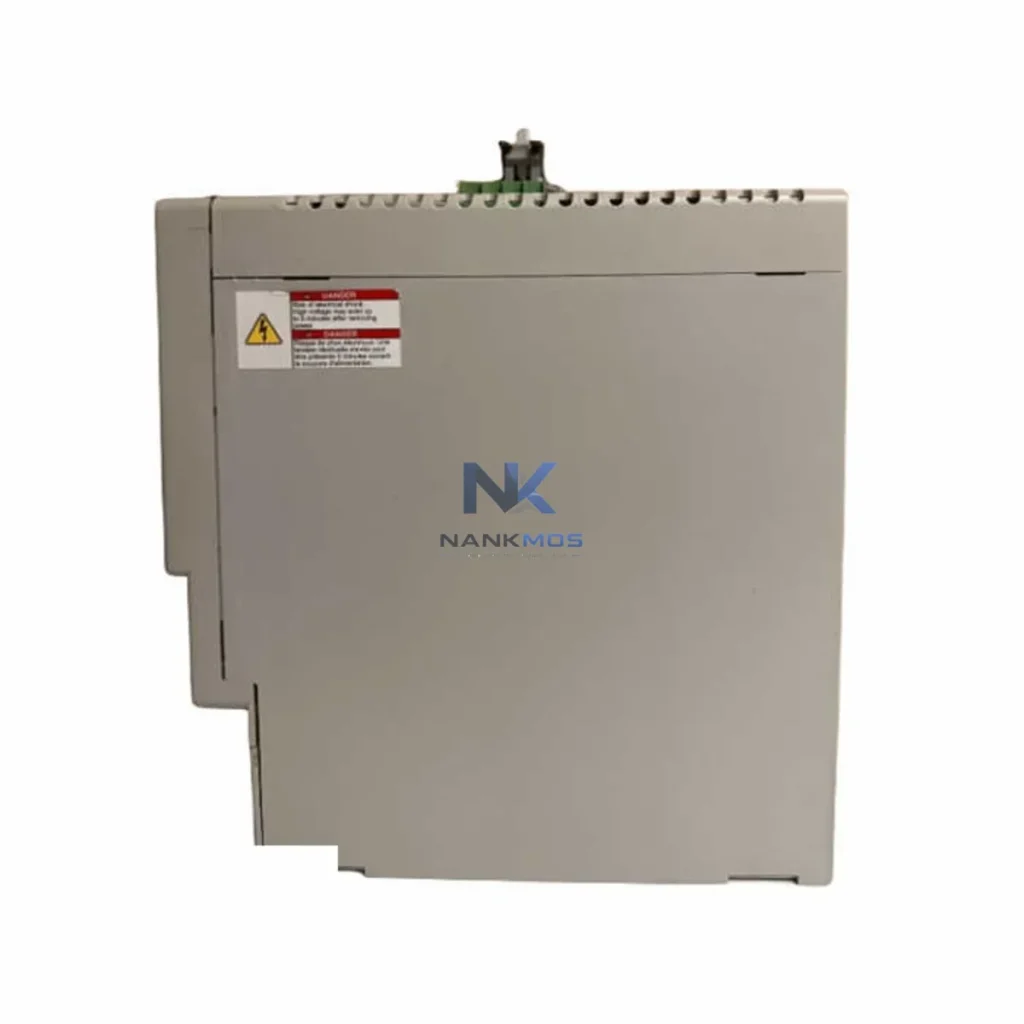

Allen-Bradley 2094-BM02-S Servo Drive Axis Module

Product Details

2094-BM02-S Product Description

The Allen-Bradley 2094-BM02-S is a high-performance servo axis module within the Kinetix 6000 multi-axis servo drive system, engineered to deliver precise energy control, reduced motor losses, and optimized production line throughput. Designed for demanding industrial environments, the 2094-BM02-S integrates seamlessly into energy-aware automation architectures where every watt of consumed power must translate directly into productive mechanical output. With its shared DC bus topology, the module enables regenerative energy exchange between axes — capturing braking energy from decelerating motors and redistributing it to accelerating axes, substantially reducing net energy draw from the supply rail.

For manufacturers operating high-cycle servo applications — robotic assembly, precision packaging, CNC machining, and material handling — the 2094-BM02-S delivers measurable reductions in energy consumption without sacrificing dynamic response. Its tight integration with the Kinetix 6000 power rail and the 1756 ControlLogix PLC platform enables coordinated multi-axis motion profiles that minimize torque ripple, reduce thermal loading on motors, and extend drive service intervals. Every axis module in the Kinetix 6000 family shares a common power infrastructure, meaning the 2094-BM02-S contributes to a leaner, more thermally stable drive cabinet — directly lowering HVAC load and cooling energy overhead in the control enclosure.

The 2094-BM02-S achieves its energy efficiency advantage through deep integration with the broader Kinetix 6000 drive system and the Rockwell Automation control ecosystem. At the motion controller level, the 1756-M02AE motion module within the ControlLogix chassis coordinates axis trajectories, ensuring that acceleration and deceleration profiles across multiple servo axes are synchronized to maximize regenerative energy recovery on the shared DC bus. This coordination is orchestrated through Studio 5000 Logix Designer, where motion cam profiles and electronic gearing routines are programmed to minimize peak current demand — directly reducing energy spikes that stress both the drive and the upstream power distribution system.

On the feedback side, the 2094-BM02-S works with high-resolution encoder feedback devices and compatible Kinetix servo motors — such as the MPL and MPM series — to maintain tight velocity and torque regulation. Accurate feedback minimizes hunting and over-correction cycles that waste energy as heat in the motor windings. The SERCOS fiber optic communication ring connecting the 2094-BM02-S to the motion controller provides deterministic, low-latency command updates, ensuring that the drive responds to load changes with minimal energy-wasting transient overshoot.

For power quality monitoring, the 2094-BM02-S installation is typically paired with a 1426 PowerMonitor or equivalent power measurement module on the 1756 ControlLogix backplane. This allows the SCADA system — commonly RSView32 or FactoryTalk View SE — to log real-time energy consumption per axis, identify inefficient motion profiles, and trigger alerts when drive efficiency degrades below threshold. The 1756-EN2T EtherNet/IP communication module bridges the drive system data to the plant-level energy management network, enabling integration with ISO 50001-aligned energy monitoring platforms.

At the I/O layer, 1756 ControlLogix digital and analog I/O modules capture machine state signals — conveyor position, press cycle status, gripper feedback — that feed into the motion controller's load management logic. When production demand drops, the controller can command the 2094-BM02-S to reduce bus voltage setpoints and enter a low-power standby state, cutting idle energy draw during line changeovers or scheduled micro-stops. A PanelView Plus HMI terminal provides operators with real-time drive status, energy consumption trends, and fault diagnostics — enabling proactive intervention before energy waste escalates into unplanned downtime.

In high-throughput manufacturing environments, servo drive efficiency directly determines the energy cost per unit produced. The 2094-BM02-S addresses this at multiple levels. Its shared DC bus architecture means that when one axis decelerates — for example, a servo-driven press ram returning to home position — the regenerated energy is immediately available to power an adjacent axis beginning its acceleration phase. This intra-system energy recycling reduces the net power drawn from the AC supply, lowering both energy costs and the thermal load on the main power distribution panel.

Beyond energy recycling, the 2094-BM02-S contributes to production line rhythm stability. Precise torque control eliminates mechanical shock loads that cause premature wear on gearboxes, couplings, and ball screws — components whose failure forces unplanned downtime and disrupts production cadence. By maintaining consistent axis positioning accuracy across thousands of cycles, the module supports predictable cycle times that allow production planners to optimize line throughput without energy-wasting speed buffers.

Thermal management is another critical dimension of energy optimization. The 2094-BM02-S's efficient PWM topology reduces switching losses within the drive module itself, lowering the heat rejected into the control cabinet. In large multi-axis installations, this reduction in cabinet heat load can meaningfully reduce the duty cycle of enclosure cooling systems — air conditioners or heat exchangers — that themselves consume significant electrical energy. Over a full production year, the cumulative energy savings from reduced cooling demand can represent a measurable fraction of total drive system operating cost.

For maintenance teams, the 2094-BM02-S supports predictive maintenance strategies through its integration with ControlLogix diagnostic data. Drive fault codes, bus voltage trends, and thermal status registers are accessible via the SERCOS interface and EtherNet/IP gateway, allowing condition monitoring systems to detect early signs of drive degradation — such as rising thermal resistance or increasing current draw for a given torque output — before they result in a production-stopping fault. This predictive visibility reduces both unplanned downtime and the energy waste associated with running degraded equipment at reduced efficiency.

All units supplied by NANKMOS are sourced from verified inventory channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty. Stock is maintained to support rapid deployment for both new installations and emergency replacement scenarios, minimizing production line downtime exposure.

Q1: How does the 2094-BM02-S reduce energy consumption compared to standalone drive architectures? The 2094-BM02-S operates on a shared DC bus within the Kinetix 6000 system, enabling regenerative energy from decelerating axes to be redistributed to accelerating axes in real time. This eliminates the need to dissipate braking energy as heat through resistive braking circuits, reducing both energy waste and cabinet thermal load. In multi-axis applications with coordinated motion profiles, net energy savings of 15–30% compared to individual drive installations are commonly reported.

Q2: Is the 2094-BM02-S compatible with existing ControlLogix and Studio 5000 installations? Yes. The 2094-BM02-S is designed for direct integration with the 1756 ControlLogix platform via the 1756-M02AE motion module and is fully supported in Studio 5000 Logix Designer. It communicates over the SERCOS fiber optic ring, which is standard in Kinetix 6000 multi-axis configurations. Existing motion programs, cam profiles, and axis configuration parameters are compatible without requiring controller firmware upgrades in most installations.

Q3: What is the recommended replacement or upgrade path if the 2094-BM02-S is being retired from an existing system? For systems being migrated to newer Rockwell Automation platforms, the Kinetix 5700 series offers a compatible shared DC bus architecture with enhanced energy monitoring capabilities and EtherNet/IP native communication. However, for facilities maintaining existing Kinetix 6000 infrastructure, direct replacement with a tested 2094-BM02-S unit is the lowest-risk, lowest-cost path to restoring full production capacity. NANKMOS maintains in-stock inventory of the 2094-BM02-S to support rapid replacement without extended lead times.

Q4: What testing and warranty coverage is provided with each unit? Every 2094-BM02-S unit supplied by NANKMOS undergoes pre-shipment functional testing to verify drive initialization, communication interface integrity, and basic axis response. Each unit is covered by a 12-Month Warranty against manufacturing defects and operational failures under normal industrial use conditions. For urgent replacement requirements, expedited shipping options are available to minimize production line downtime.
