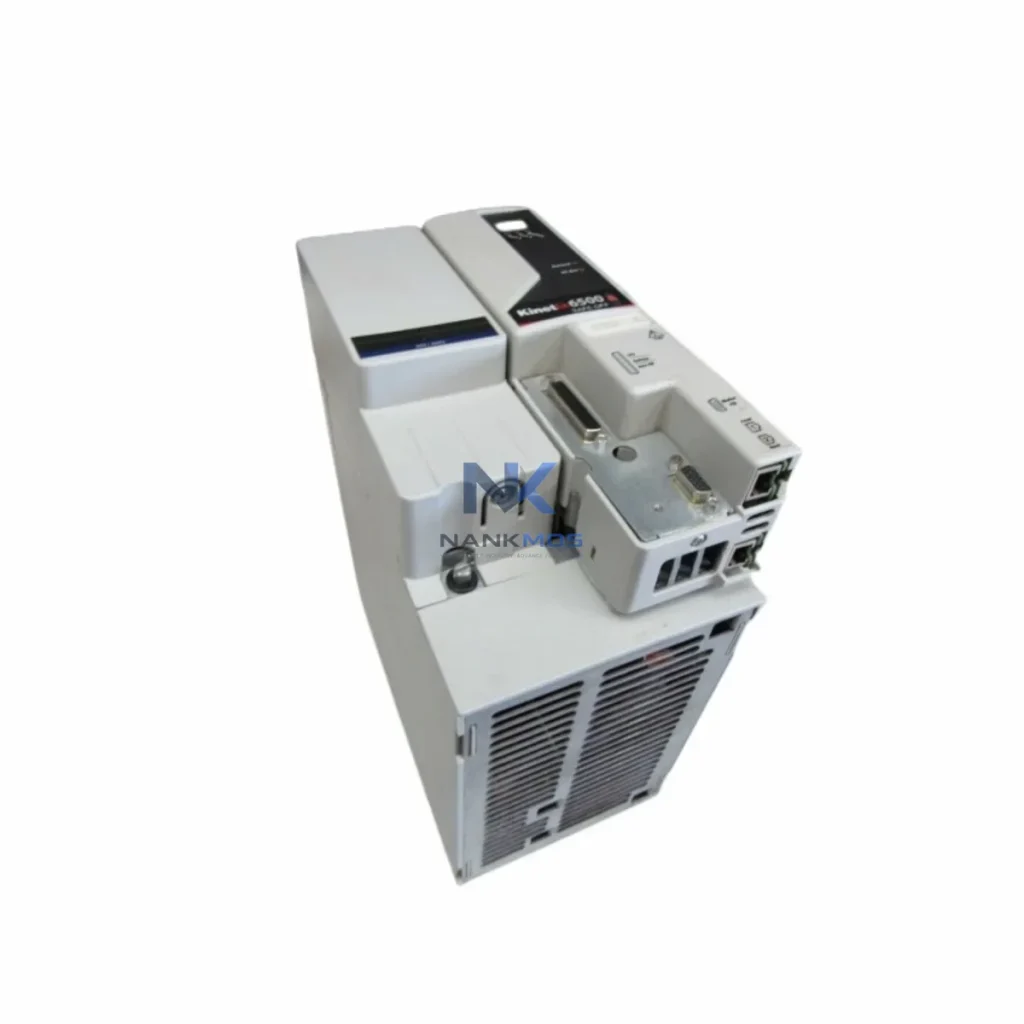

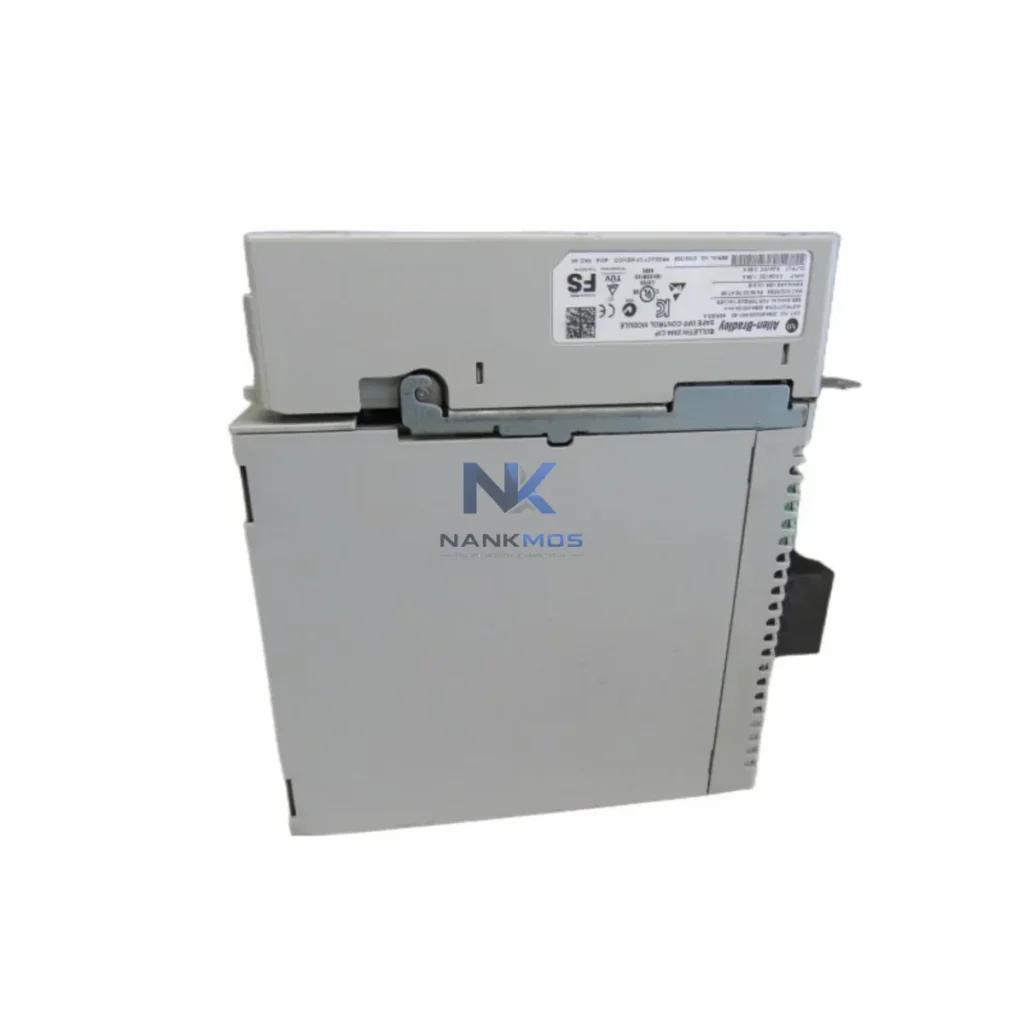

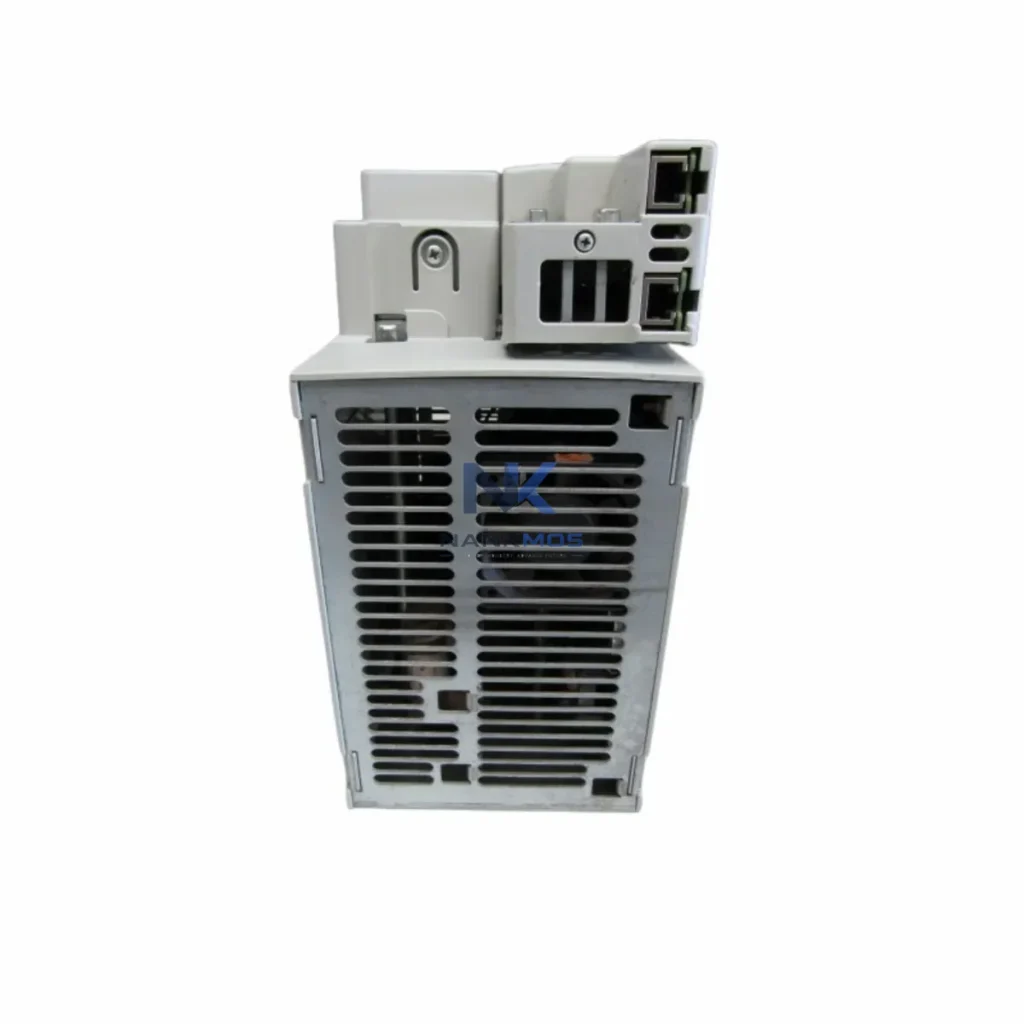

Allen-Bradley 2094-BM05-M Servo Axis Module

Product Details

2094-BM05-M Product Description

The Allen-Bradley 2094-BM05-M is a SERCOS-based servo axis module engineered for the Kinetix 6000 multi-axis servo drive system. In modern smart factory environments, motion control data must flow seamlessly from field-level servo drives through PLC controllers, industrial networks, SCADA platforms, and up to enterprise MES systems. The 2094-BM05-M sits at the heart of this data chain — translating real-time axis position, velocity, torque feedback, and fault diagnostics into structured network packets that upstream systems can act upon instantly. Whether you are commissioning a new high-speed packaging line, retrofitting a legacy motion system, or expanding a distributed servo architecture, this module delivers the network-linked performance that Industry 4.0 demands.

Designed to integrate directly into the Kinetix 6000 drive chassis alongside the 2094-AC09-M03-M power rail and companion axis modules such as the 2094-BM01-M and 2094-BM02-M, the 2094-BM05-M supports up to five servo axes within a single coordinated motion group. Its SERCOS fiber-optic ring interface connects directly to a ControlLogix or CompactLogix PLC — typically a 1756-M08SE or 1756-M16SE SERCOS interface card — enabling deterministic, jitter-free motion commands at cycle times as low as 1 ms. This level of synchronization is critical for multi-axis applications such as CNC machining centers, robotic welding cells, and high-precision assembly stations where axis coordination errors translate directly into scrap and downtime.

From a data-flow perspective, the 2094-BM05-M participates in a layered industrial communication architecture. At the field level, encoder feedback signals from servo motors — including Allen-Bradley MPL, MPM, and TLP series motors — are digitized and transmitted over the SERCOS ring to the PLC. The ControlLogix processor executes motion programs in real time, issuing position and velocity commands back to each axis module within the same deterministic scan cycle. Simultaneously, drive status data — including bus voltage, output current, thermal load, and active fault codes — is made available to the Studio 5000 Logix Designer environment, where it can be mapped to HMI tags for operator visualization on a PanelView Plus 7 or similar display terminal.

For SCADA integration, the ControlLogix backplane bridges SERCOS motion data to EtherNet/IP, allowing FactoryTalk View SE or Ignition SCADA to poll axis diagnostics, trend velocity profiles, and log fault events with millisecond timestamps. This data path supports remote monitoring scenarios where maintenance engineers access live drive health metrics from a control room or via a secure VPN connection — eliminating the need for on-site intervention during routine diagnostics. When a fault condition is detected on any axis, the system can trigger automated alarm notifications through the SCADA alarm management layer, route the event to a CMMS work order system, and simultaneously capture a pre-fault data snapshot for root-cause analysis.

The 2094-BM05-M also supports integration with broader plant-floor data infrastructure. An 1783-ETAP EtherNet/IP tap or a Stratix 5700 managed industrial switch can segment the motion network from the process control network, ensuring that high-bandwidth servo traffic does not interfere with PLC-to-SCADA communications. For facilities deploying edge computing, an Allen-Bradley Edge Gateway or a third-party IIoT gateway can subscribe to drive data published over EtherNet/IP, forwarding selected metrics to cloud analytics platforms for predictive maintenance modeling. This architecture supports the full data visualization stack — from real-time HMI dashboards to long-term trend analysis in cloud-based BI tools.

Inventory availability is maintained for immediate shipment. Each 2094-BM05-M unit undergoes pre-shipment functional testing to verify SERCOS communication integrity, axis enable logic, and fault response behavior before dispatch. All units are covered by a 12-month warranty against manufacturing defects, with technical support available for installation, commissioning, and network configuration queries.

A complete Kinetix 6000 motion cell built around the 2094-BM05-M typically begins at the motor feedback layer. Allen-Bradley MPL-B430P-M servo motors transmit high-resolution encoder data back to the axis module over the drive's internal feedback bus. The 2094-BM05-M digitizes this signal and places it on the SERCOS fiber ring, where a 1756-M08SE SERCOS interface card in the ControlLogix chassis receives it within the PLC scan cycle. The 1756-L73 ControlLogix processor executes coordinated motion instructions — cam profiles, gearing relationships, and interpolated path moves — and returns updated command data to each axis on the ring before the next cycle begins.

Simultaneously, the ControlLogix backplane carries axis status data to a 1756-EN2T EtherNet/IP communication module, which publishes drive health tags to the plant EtherNet/IP network. A Stratix 5700 managed switch routes this traffic to a PanelView Plus 7 HMI terminal for operator-level visualization and to a FactoryTalk View SE server for supervisory monitoring. Alarm conditions — such as over-temperature, bus undervoltage, or encoder loss — are captured by the SCADA alarm engine, timestamped, and forwarded to maintenance personnel via email or SMS notification. For remote diagnostics, a VPN-connected engineer can access the FactoryTalk Remote Access session and interrogate live axis tags without interrupting production.

At the edge layer, an Allen-Bradley Edge Gateway aggregates drive metrics from multiple Kinetix 6000 cells and forwards selected KPIs — cycle count, peak torque utilization, thermal headroom — to a cloud analytics dashboard. This data feeds predictive maintenance algorithms that flag axis modules approaching end-of-life thresholds before a fault occurs. The 2094-AC09-M03-M power rail supplying the axis module is also monitored for DC bus ripple and input phase loss, with status bits mapped to the same EtherNet/IP tag database. Companion modules such as the 2094-BM01-M and 2094-BM02-M operating on the same SERCOS ring share this diagnostic infrastructure, giving maintenance teams a unified view of the entire servo system from a single SCADA screen.

Many industrial facilities operating legacy servo systems face a common set of data challenges: protocol fragmentation between motion networks and process control networks, data silos that prevent SCADA from accessing drive-level diagnostics, and limited remote visibility into axis health between scheduled maintenance windows. The 2094-BM05-M addresses these gaps by operating within the ControlLogix ecosystem, where SERCOS motion data is natively bridged to EtherNet/IP — eliminating the need for external protocol converters or OPC middleware in most standard configurations.

For sites where older SERCOS I or SERCOS II infrastructure must coexist with newer EtherNet/IP-based systems, the ControlLogix platform acts as the integration layer, mapping motion tags to standard EtherNet/IP implicit messaging that any compliant SCADA or MES system can consume. This approach resolves the protocol mismatch problem without requiring a full network redesign. Production line transparency improves immediately: operators gain real-time visibility into axis position errors, following errors, and drive utilization rates — data that was previously locked inside the drive and inaccessible to upstream systems.

Alarm tracking is similarly enhanced. Rather than relying on drive-mounted fault LEDs that require physical inspection, fault codes from the 2094-BM05-M are surfaced as structured alarm objects in FactoryTalk View SE, complete with cause codes, timestamps, and recommended corrective actions drawn from the Kinetix 6000 fault dictionary. System expansion is straightforward: additional axis modules can be added to the SERCOS ring up to the interface card's maximum node count, and the ControlLogix tag database scales automatically to accommodate new axes without requiring changes to the SCADA configuration.

Q: What is the communication latency of the SERCOS interface on the 2094-BM05-M? The SERCOS fiber-optic ring on the Kinetix 6000 system supports cycle times as low as 1 ms with deterministic, jitter-free command delivery. This makes it suitable for high-speed coordinated motion applications where axis synchronization tolerances are measured in microseconds.

Q: Is the 2094-BM05-M compatible with both ControlLogix and CompactLogix platforms? The 2094-BM05-M is designed for use with ControlLogix and CompactLogix controllers equipped with a compatible SERCOS interface card (such as the 1756-M08SE or 1756-M16SE). Compatibility depends on the firmware revision of both the interface card and the axis module — consult the Kinetix 6000 compatibility matrix in Rockwell Automation publication 2094-UM001 before commissioning.

Q: Can axis diagnostic data from the 2094-BM05-M be accessed by a SCADA system remotely? Yes. Drive status tags are bridged from the SERCOS ring to EtherNet/IP via the ControlLogix backplane. Any EtherNet/IP-compatible SCADA platform — including FactoryTalk View SE, Ignition, and Wonderware — can poll these tags over the plant network. Remote access via VPN allows off-site engineers to monitor axis health and acknowledge alarms without physical presence on the production floor.

Q: What does the 12-month warranty cover, and how are units tested before shipment? Every 2094-BM05-M unit is functionally tested prior to shipment to verify SERCOS communication integrity, axis enable/disable logic, and fault detection response. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Technical support for installation, network configuration, and commissioning is available throughout the warranty period.
