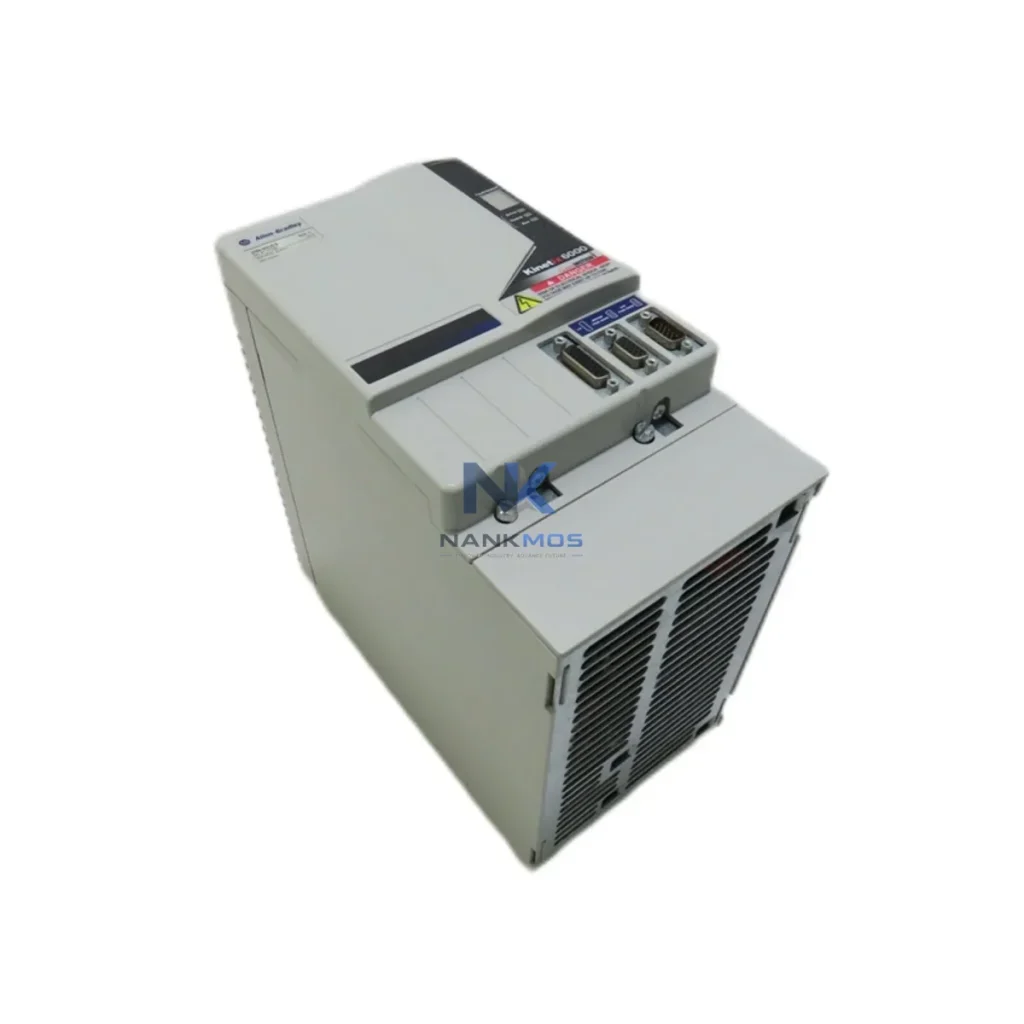

Allen-Bradley 2094-BM05 Servo Drive Axis Module

Product Details

2094-BM05 Product Description

The Allen-Bradley 2094-BM05 is a high-performance servo drive axis module designed for the Kinetix 6000 multi-axis drive system. Built to deliver precise motor control with a strong emphasis on energy efficiency, the 2094-BM05 integrates seamlessly into modern industrial production environments where load management, drive efficiency, and thermal optimization are critical operational priorities. Whether deployed in automotive assembly, packaging machinery, material handling, or precision manufacturing, this axis module provides the backbone for intelligent, energy-aware motion control.

At its core, the 2094-BM05 leverages the Kinetix 6000 shared DC bus architecture, enabling regenerative energy recovery across multiple axes. When a servo axis decelerates, the kinetic energy is fed back into the common DC bus and redistributed to other axes that are accelerating — dramatically reducing net energy draw from the AC supply. This regenerative capability is one of the most effective strategies for reducing energy consumption in multi-axis servo systems, and the 2094-BM05 is engineered to maximize this benefit across the full production cycle.

The 2094-BM05 axis module does not operate in isolation — its energy-control value is fully realized when integrated into a coordinated automation architecture. In a typical Kinetix 6000 installation, the 2094-BM05 axis module is paired with an Integrated Axis Module (IAM) such as the 2094-BC01-MP5, which provides the shared DC bus power supply and converter stage. Multiple axis modules share this bus, enabling the regenerative energy exchange that defines the system's efficiency profile.

On the controller side, the 2094-BM05 communicates with a ControlLogix L7x or CompactLogix L3x PLC via a SERCOS fiber optic interface, with motion coordination managed through Studio 5000 Logix Designer. This tight integration allows the PLC to execute coordinated motion profiles that minimize simultaneous peak current draw across axes — a key strategy for reducing demand charges and smoothing energy consumption curves on the production floor.

For energy monitoring and power quality analysis, the 2094-BM05 system is commonly deployed alongside PowerMonitor 5000 power monitoring units, which provide real-time visibility into energy consumption, power factor, and harmonic distortion at the drive level. This data feeds into FactoryTalk Energy Manager or third-party SCADA platforms, enabling energy managers to identify inefficiencies, benchmark consumption per production cycle, and implement demand-response strategies.

On the I/O side, 1756 ControlLogix I/O modules or 1734 POINT I/O distributed I/O nodes handle digital and analog signals from limit switches, proximity sensors, and encoder feedback devices. These signals inform the motion controller of machine state, enabling the PLC to command the 2094-BM05 to enter low-power hold states during idle periods — reducing unnecessary energy draw between production cycles.

HMI visualization is typically provided by a PanelView Plus 7 terminal running FactoryTalk View ME, giving operators real-time feedback on axis status, drive health, and energy consumption trends. When an axis fault is detected, the HMI alerts operators immediately, minimizing unplanned downtime and preventing energy waste from stalled or mis-sequenced production runs.

For applications requiring communication with higher-level MES or ERP systems, an EtherNet/IP communication module such as the 1756-EN2T bridges the Logix controller to the plant network, enabling production data — including energy metrics — to flow upstream for analysis and reporting. This connectivity is essential for facilities pursuing ISO 50001 energy management certification or implementing real-time OEE (Overall Equipment Effectiveness) dashboards.

In high-throughput production environments, energy waste typically occurs in three forms: excessive heat generation from inefficient drives, unnecessary energy draw during idle or low-load periods, and peak demand spikes caused by uncoordinated axis acceleration. The Allen-Bradley 2094-BM05 addresses all three through its shared DC bus architecture, intelligent motion coordination, and compatibility with energy management software.

The regenerative DC bus shared among Kinetix 6000 axis modules means that deceleration energy from one axis is immediately available to power the acceleration of another. In a multi-axis gantry, pick-and-place, or winding application, this energy exchange can reduce net AC power consumption by a meaningful margin compared to systems where each axis independently dissipates braking energy as heat through resistive braking. The result is a cooler cabinet, lower cooling system load, and reduced wear on thermal management components.

During production line changeovers or scheduled idle periods, the Logix controller can command the 2094-BM05 to enter a reduced-power state, holding axis position without maintaining full drive output. This capability — combined with the PowerMonitor 5000's real-time energy data — allows energy managers to quantify idle-state consumption and implement automated power-down sequences that reduce standby energy draw without compromising machine readiness.

From a predictive maintenance perspective, the 2094-BM05's drive diagnostics — accessible through Studio 5000 and FactoryTalk Diagnostics — provide early warning of motor insulation degradation, bearing wear, and load imbalance. Addressing these issues proactively prevents the energy inefficiency that accompanies mechanical wear: a motor running against increased friction draws more current, generates more heat, and accelerates component fatigue. By maintaining optimal mechanical condition, the 2094-BM05 system sustains its energy efficiency profile over the full equipment lifecycle.

Every 2094-BM05 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify drive output, communication integrity, and thermal performance. Units are shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. In-stock availability ensures rapid deployment for both new installations and drop-in replacements, minimizing production downtime during maintenance windows.

Q1: How does the 2094-BM05 contribute to energy savings in a multi-axis servo system? The 2094-BM05 participates in the Kinetix 6000 shared DC bus, enabling regenerative energy recovery between axes. When one axis decelerates, its braking energy is redistributed to axes that are accelerating, reducing net AC power draw and minimizing heat dissipation across the drive cabinet.

Q2: Which PLC platforms and software are compatible with the 2094-BM05? The 2094-BM05 is compatible with Allen-Bradley ControlLogix and CompactLogix PLC platforms running Logix 5000 firmware, programmed via Studio 5000 Logix Designer. Motion coordination is managed through the Logix motion instruction set over a SERCOS fiber optic interface.

Q3: Can the 2094-BM05 replace an existing Kinetix 6000 axis module as a drop-in replacement? Yes. The 2094-BM05 is designed as a direct replacement for compatible Kinetix 6000 axis module slots. Verify the IAM/AM power supply rating and SERCOS node configuration before installation. NANKMOS recommends confirming the firmware revision of the existing system to ensure compatibility.

Q4: What does the 12-month warranty cover, and how is the pre-shipment test conducted? The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing including drive output verification, communication interface check, and thermal performance validation. Test records are available upon request for quality assurance documentation.
